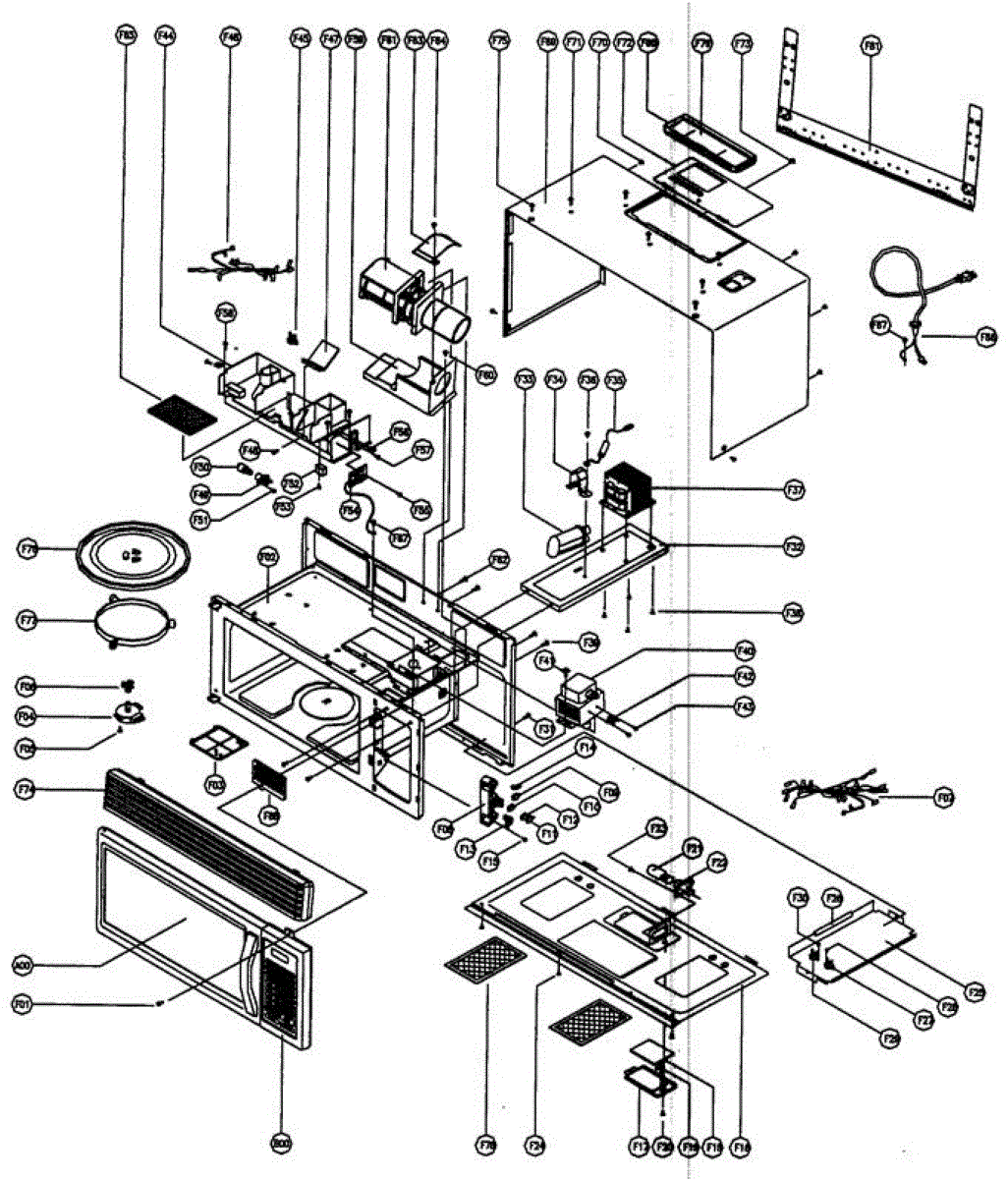

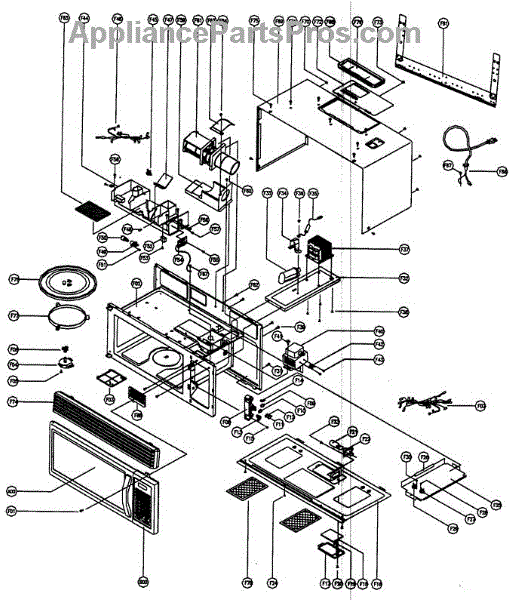

Parts for Magic Chef MCO160S: Cabinet Parts

This synchronous turntable motor powers the rotating glass tray in your microwave. By keeping the tray turning at a steady rate, it helps heat food more evenly and reduces cold spots during cooking. What it does:

• Drives the microwave's turntable via the coupler and roller guide
• Provides consistent, low-speed rotation to aid even heating
• Common failure symptoms: tray not turning, intermittent or jerky rotation, or humming/clicking from the base

• 1 turntable motor

• Unplug the microwave before servicing; microwaves contain high-voltage components even when unplugged
• Access is typically from the bottom; remove the motor cover, disconnect wires, and transfer mounting screws
• Align the motor shaft with the coupler/keyed flat; ensure the coupler and roller guide spin freely
• After reassembly, test with a microwave-safe cup of water on the tray to ensure smooth rotation

This microswitch completes or interrupts an electrical circuit to detect position or control small mechanisms. It replaces a worn or failed switch to restore correct electrical signaling and appliance operation. What it does:

• Acts as a momentary or limit switch to open/close a circuit when engaged
• Detects door/lever position or mechanical travel to allow normal operation
• Can prevent operation or control a function when the switch fails
• Common symptom: appliance won't start, cycles incorrectly, or a mechanism won't actuate

• Disconnect power before servicing to avoid shock or injury
• Handle small terminals and connectors carefully; avoid bending terminals
• May require basic hand tools; ensure correct wiring orientation when installing

This is a replacement circuit board switch that restores user control and electrical continuity on the appliance. It installs on the control assembly to help return reliable on/off or command inputs. What it does:

• Acts as the on/off or command actuation point on the control board, closing and opening the electrical circuit when pressed or toggled
• Restores responsive control when a worn or failed switch causes unresponsive buttons or intermittent function
• Can stop intermittent power or erratic control behavior caused by a faulty switch contact
• Works as the user-interface switching component tied to the appliance's control electronics

• For appliance use only; disconnect power before accessing the control board to avoid shock
• Handle the switch and circuit board by edges to avoid static damage; use ESD precautions when possible
• Verify connector orientation and seating before reassembly; test function with power restored only after reassembly

This replacement lamp cover protects the oven lamp and diffuses light for even interior illumination. It restores proper lighting when the original cover is cracked, discolored, or missing. What it does

• Shields the oven lamp from food, grease and impact to prevent premature bulb failure
• Diffuses the lamp for softer, more even interior light
• Commonly replaced when the cover is cracked, melted, discolored or falling off
• Helps maintain proper airflow around the lamp housing and keeps debris out

• Disconnect power to the appliance before servicing to avoid shock
• Allow lamp and oven interior to cool completely before touching the cover
• Remove any mounting clips or screws carefully; handle the cover gently to avoid cracking
• If the lamp does not work after installation, test the bulb and wiring; this cover does not include the lamp

BULB ONLY - For socket, order 3513003000.

This lamp holder is the replacement socket that secures and powers an appliance interior light bulb, restoring safe illumination so you can see inside the appliance for cooking, cleaning, and inspection. What it does:

• Holds the appliance interior light bulb in place and makes the electrical connection
• Replaces worn, cracked, or heat-damaged lamp sockets
• Restores reliable lighting when a bulb flickers, won't stay seated, or loses power intermittently
• Helps prevent poor contact that can cause intermittent or no light

• One lamp holder/socket

• Disconnect power or unplug the appliance before beginning work
• Allow the appliance to cool completely; use gloves or eye protection when handling bulbs
• Remove the bulb before swapping the socket to avoid breakage

This thermostat is the temperature control that regulates cooling cycles to keep the appliance operating within the correct range. Replaces a failed or intermittent control to restore normal temperature regulation and cycling. What it does

• Senses temperature and signals the compressor or heating element to turn on/off as needed.
• Stops excessive cycling and helps maintain steady interior temperature when the original thermostat fails.
• Commonly used to address symptoms such as inconsistent temperatures, unit running constantly, or compressor not starting.
• Works as a direct replacement when the original thermostat is damaged, corroded, or shows open/short electrical readings.

• One thermostat.

• Disconnect power to the appliance before beginning any repair to avoid shock or injury.
• Install in the same orientation and secure mounting to avoid pinched wires or damaged sensing elements.

This magnetron is the high-voltage microwave tube that generates the microwaves used to heat food. Replacing a failed magnetron restores microwave heating when oven components and control functions are otherwise working. What it does:

• Converts high-voltage electrical energy into microwave radiation that heats food.
• Commonly linked to no-heat or weak-heat symptoms when magnetron output drops or fails.
• May produce unusual noises or burning smells if damaged or shorted.
• Works with the oven's high-voltage system; other components can cause similar symptoms.

• Disconnect power and unplug the appliance before servicing; microwave capacitors can hold lethal charge.
• Avoid touching the ceramic insulators and antenna; handle the tube by its metal body and bracket.

This lamp holder is the replacement socket that secures and powers an appliance interior light bulb, restoring safe illumination so you can see inside the appliance for cooking, cleaning, and inspection. What it does:

• Holds the appliance interior light bulb in place and makes the electrical connection
• Replaces worn, cracked, or heat-damaged lamp sockets
• Restores reliable lighting when a bulb flickers, won't stay seated, or loses power intermittently
• Helps prevent poor contact that can cause intermittent or no light

• One lamp holder/socket

• Disconnect power or unplug the appliance before beginning work
• Allow the appliance to cool completely; use gloves or eye protection when handling bulbs
• Remove the bulb before swapping the socket to avoid breakage

BULB ONLY - For socket, order 3513003000.

This noise filter / fuse assembly helps reduce electrical interference and provides protective interruption during a fault, improving the stability of control electronics and reducing audible or electronic interference in the appliance. What it does:

• Filters EMI/RFI that can cause display flicker, control erratic behavior, or audio interference.
• Acts as a protective fuse/thermal link to interrupt power if an electrical fault occurs.
• Failure may cause intermittent power, controls that reset or act unpredictably, buzzing, or error codes.
• Restores cleaner power to control boards and sensors when replaced with a matching assembly.

• Always disconnect power to the appliance before attempting service.
• Replace in the original mounting location and reconnect wires to the correct terminals.
• Do not operate the appliance with safety devices removed.

This inline water filter removes common impurities to improve taste and clarity of refrigerator water and ice. Fits as a direct replacement for the same-style cartridge to restore normal flow and water quality. What it does

• Filters sediment, chlorine taste and odor commonly found in household water supplies
• Helps improve taste and appearance of drinking water and ice
• Can resolve reduced flow or mildly cloudy water when an old filter is clogged
• Designed for use with compatible refrigerator water lines and dispensing systems

• Turn off refrigerator water supply before removing the old filter to avoid leaks.
• Follow refrigerator manufacturer instructions for filter orientation and connection type.
• Flush several gallons of water through the new filter after installation to clear carbon fines and air.
• If tools are required, use the correct-size fittings and check all connections for leaks before restoring normal use.

This replacement power cord restores the external electrical connection for compatible appliances, letting the unit receive mains power safely and reliably. Use it when the original cord is damaged, frayed, or fails to make a solid connection. What it does

• Provides the external electrical connection between the appliance and the wall outlet.
• Replaces cords with visible damage, exposed wiring, or intermittent connection.
• Helps stop power-related symptoms such as the appliance not powering on or losing power unexpectedly.
• Restores a secure plug and strain-relief connection to reduce cord pull stress.

• One replacement power cord

• Always unplug the appliance or disconnect power at the breaker before starting work.
• Inspect terminals and connector for corrosion; replace any damaged fasteners or connectors before reassembly.
• Route the cord to avoid sharp edges, moving parts, or heat sources; secure strain relief per the appliance design.

This mounting bracket is a genuine OEM replacement part sourced directly from the manufacturer for use mounting microwave ovens to walls. The mounting bracket attaches the microwave to studs in the wall to hold it above the countertop. Mounting the microwave on a wall frees up counter space and puts the microwave at eye level, making it easier to see the contents inside when cooking. The mounting bracket is designed to hold the weight of the microwave but should be installed in studs to make sure the microwave does not fall. Locate the studs in the wall before installation. The ideal location will have an electrical outlet close enough to reach without having to install a new outlet. Mark the stud locations and use the mounting bracket template to line up the holes. Install the mounting bracket to the studs in the wall. Position the microwave on the brackets and secure it to the bracket with the fasteners in the mounting bracket hardware package. Plug the microwave into the outlet.This microwave mounting bracket of heavy-duty metal and sold individually. It does not come with the template or hardware. It is designed for use with microwaves manufactured by Maytag.
