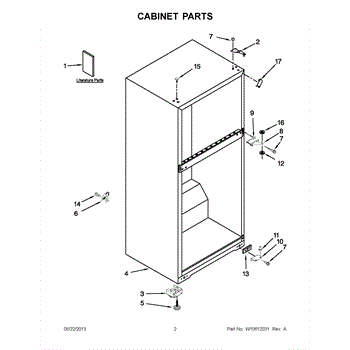

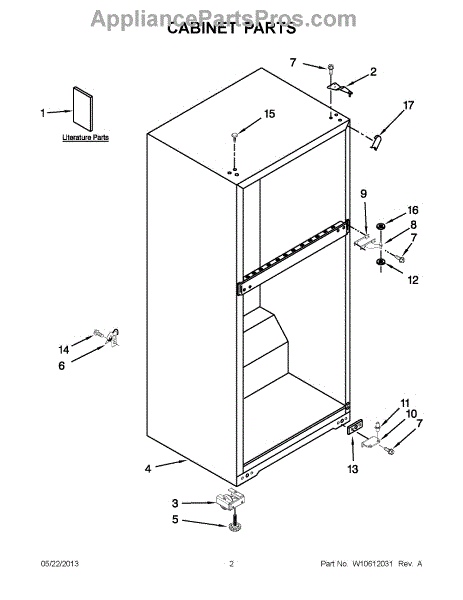

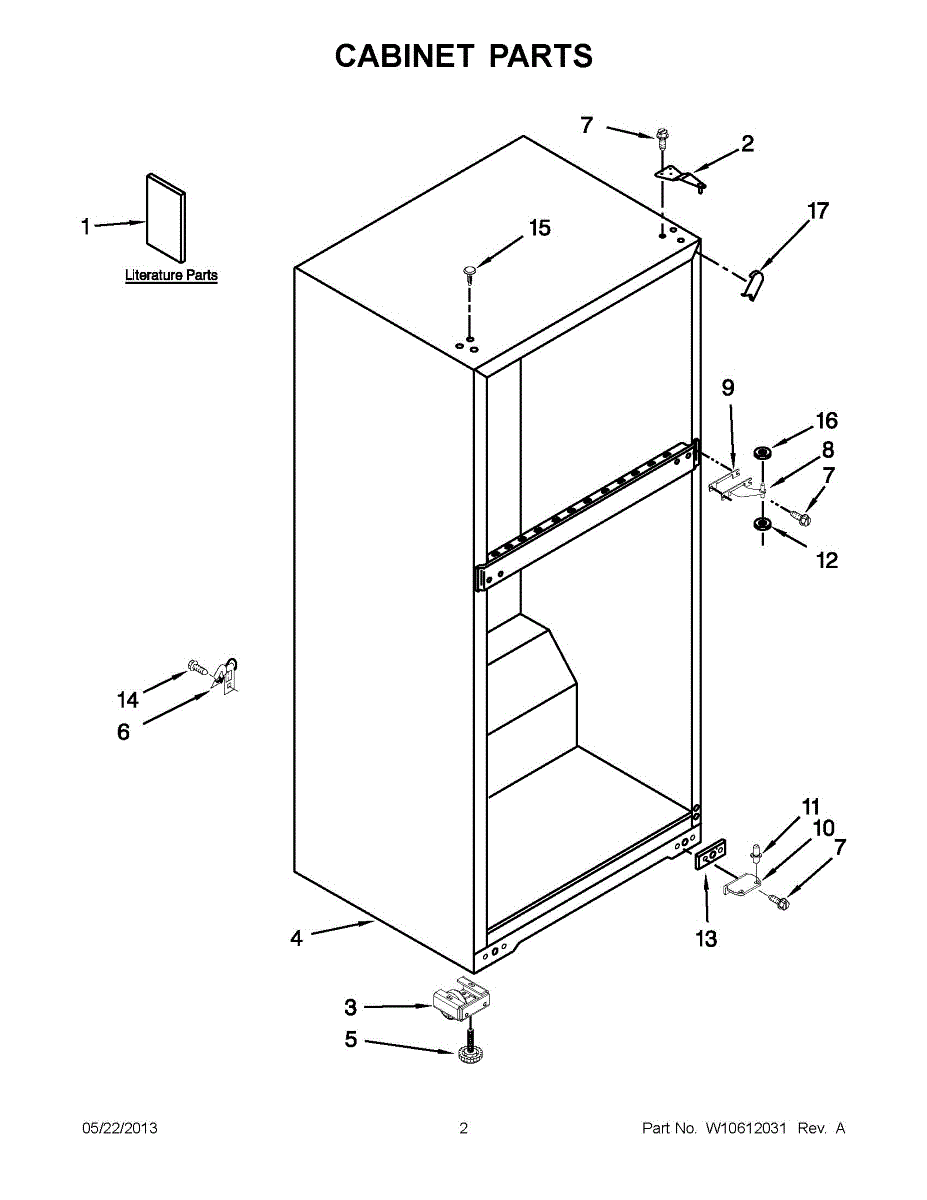

Parts for Maytag A8TXNWFBB00: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This top door hinge is the butt hinge assembly that mounts to the cabinet at the top of the refrigerator door, supporting the door and allowing smooth swing. Replacing a worn hinge restores alignment and a reliable seal.

• Provides the upper pivot point for the door
• Keeps the door aligned so the gasket seals correctly
• Wear or damage can cause sagging, rubbing, squeaks, or a door that won't close fully
• Helps reduce air leaks and temperature swings near the door

• Disconnect power and remove items from the door to reduce weight
• Support the door from below; remove the hinge cover and mounting screws
• Note the position of any shims/spacers and transfer them to the new hinge
• Reinstall, align the door, tighten screws, and ensure proper gasket contact

The Leveling Leg is an OEM part for Whirlpool refrigerators. This adjustable leg ensures your refrigerator is level. A level refrigerator ensures that doors seal properly, minimizing energy consumption and preventing uneven cooling or frost buildup.

Causes of damage to the leveling leg can range from normal wear and tear, corrosion from moisture exposure, or physical damage during moving or cleaning processes. It's also possible for the leg to become stiff or seized, making adjustment difficult.

Symptoms of a bad Leveling Leg include:

• The refrigerator wobbles or is unstable when doors are opened or closed.
• Difficulty in aligning the refrigerator doors due to the appliance not being level.
• Increased operational noise or vibrations, especially when the compressor turns on, indicating the refrigerator is not sitting evenly.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures panels, brackets, and internal components in your appliance. Replacing a missing, stripped, or corroded fastener restores a snug fit, reduces vibration and noise, and helps keep assemblies aligned for reliable operation.

• Fastens components to maintain proper alignment and structural support
• Replaces a missing, damaged, or stripped screw
• Helps reduce rattling, vibration, or looseness
• Restores secure mounting of covers, trim, and assemblies

• Disconnect power; turn off gas or water supplies as applicable before servicing.
• Compare to the original to match length and thread.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Reinstall any brackets or trim in the original order and orientation.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

This is the center hinge for the refrigerator doors. It supports and aligns the doors at the midpoint so they open smoothly and seal properly, helping maintain temperatures and reliable day-to-day operation.

• Provides the middle pivot point between the upper and lower doors
• Keeps door alignment and spacing correct for a tight gasket seal
• Common symptoms: door sagging or rubbing, squeaking/grinding, door not closing or popping open, uneven gaps
• Replace if the hinge bracket or pin is bent, worn, or corroded

• Disconnect power and clear items from the doors before starting
• Support the doors; a second person is recommended when removing hinge screws
• Note the order of any shims/spacers or washers and transfer them to the new hinge
• After installation, align doors and verify full gasket contact all around

Due to manufacturer changes, if D shaft hinge pin is needed use part number WP2325483.

The Hinge Pin is an OEM part for Whirlpool refrigerators. This part allows the door to open and close smoothly, providing a durable pivot point for the door's movement.

Over time, hinge pins can wear down or become damaged due to the constant stress of door movement, improper alignment, or accidental force applied to the door. A compromised hinge pin can lead to issues such as difficulty in opening or closing the door, a door that hangs unevenly or doesn't seal properly, and increased wear on other door components.

Symptoms of a bad Hinge Pin include:

• Squeaking or resistance when opening or closing the door
• The door not closing fully or sealing properly
• Visible wear or damage to the pin
• The refrigerator or freezer door hanging unevenly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This bottom hinge shim installs at the refrigerator's lower door hinge to fine-tune door height and alignment. Replacing a worn or missing shim can help restore smooth closing and an even, reliable gasket seal.

• Spaces the door at the lower hinge to set proper height and alignment
• Helps reduce door sagging or rubbing against the cabinet or other door
• Can help the door gasket seal evenly to minimize warm-air leaks

• Disconnect power and, if applicable, shut off the water supply
• Remove items from the door and support the door to prevent strain
• Loosen/remove lower hinge hardware and place the shim in the original location/orientation
• Reassemble, check alignment, and verify even gasket contact around the door

Size: 8-18 x 1/2 inch.

Color: White

Color: Black

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: Black

Color: White
