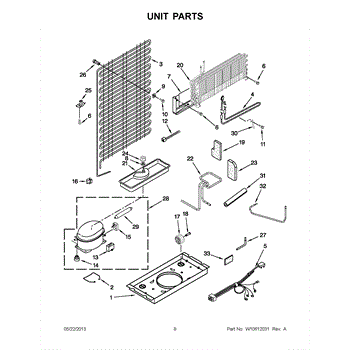

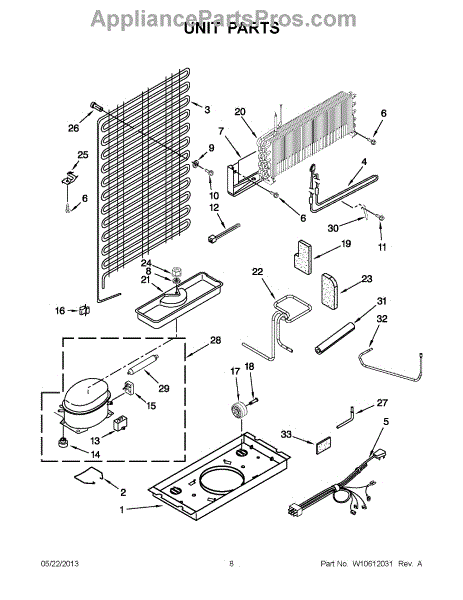

Parts for Maytag A8TXNWFBB00: 04 - Unit Parts

This formed condenser assembly moves heat away from the refrigeration system to help your appliance maintain proper cooling. A direct-fit replacement when the original condenser is bent, corroded, or no longer transferring heat effectively. What it does:

• Provides the metal pathway for refrigerant to release heat from the system
• Helps maintain proper compressor and cooling performance
• Replace if coils are dented, crushed, corroded, or blocking airflow
• Address symptoms like higher-than-normal internal temperatures or increased compressor run time

• Disconnect power to the appliance before starting any service
• Handle edges carefully; condenser fins and tubing can be sharp and easily damaged
• If refrigerant lines must be opened or brazed, perform the service
• Fit and mounting hardware before installation; follow OEM diagram for proper routing

The Defrost Heater is an OEM part for Whirlpool refrigerators. This heater turns on during the defrost cycle to melt the frost on the evaporator coils. If you need the defrost thermostat order WP4387490

Causes may include cracked heater elements reducing heat output or open circuit damage limiting functionality over time.

Symptoms of a faulty heater involve:

• Periodic refrigerator odors
• Prolonged defrost cycles or remaining ice
• Frost and ice buildup beyond normal amounts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Size: 8-18 x 1/2 inch.

This washer is a small hardware spacer used in appliance assemblies to distribute load and maintain proper spacing under a fastener or rotating component. Replacing a worn or missing washer helps restore alignment, reduce noise, and keep parts secure.

• Distributes fastener load to protect mating surfaces
• Maintains spacing/alignment between components
• Can act as a thrust surface to reduce friction and wear
• Typical symptoms: looseness or wobble, scraping/squeaking noises, or parts that won't stay tight

• Disconnect power; shut off gas and/or water as applicable
• Note the order/orientation of washers, spacers, and clips during disassembly; take a photo for reference
• Inspect related parts (retainers, bushings) and replace if worn
• Tighten fasteners per manufacturer guidance; avoid overtightening and verify smooth operation after reassembly

Size: 8 x 1/2 ab.

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is responsible for helping the compressor motor start and run efficiently by providing an extra electrical boost. This component ensures that the refrigerator operates smoothly and maintains the correct temperature by stabilizing the compressor's performance.

Causes of a bad run capacitor can include electrical surges, age-related wear, or overheating. When the capacitor fails, the compressor may struggle to start or run continuously, leading to inefficient cooling or a non-functional refrigerator.

Symptoms of a bad run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual clicking noises from the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This start device initiates the appliance's drive system so cycles begin when you press start. It replaces a failed or intermittent start control to restore reliable cycle starts and responsive push-button operation. What it does:

• Sends the start signal to the drive/motor control so the washer/dryer begins its cycle
• Replaces a worn or failed start switch that can prevent the appliance from starting
• Helps resolve symptoms like no response when pressing Start, intermittent starts, or needing to jiggle the button
• Works as the user-interface start control in combo control assemblies

• Disconnect power before accessing controls to avoid shock or damage
• Handle control components gently; avoid touching circuit traces or contacts
• Verify proper orientation and connector seating during reassembly
• Test operation after installation; inspect associated control components

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator tray collects and channels defrost and condensation water away from the refrigerator evaporator, helping prevent leaks and ice buildup so the cooling system runs cleanly and reliably. What it does:

• Captures defrost and condensation water from the evaporator coil
• Directs water to the drain system to avoid pooling inside the cabinet
• Helps reduce ice buildup around the evaporator area
• Supports normal defrost operation and prevents water-related leaks or odors

• Disconnect power to the appliance before replacing parts to avoid electrical shock.
• Remove food and shelving as needed for safe access to the evaporator area.
• Inspect surrounding seals and drain tube for clogs or damage while replacing the tray.
• Handle carefully to avoid damaging delicate evaporator fins or nearby components.

This precooler sleeve is the replacement tube that guides and protects the refrigerator precooler assembly, helping maintain proper airflow and component alignment for reliable cooling performance. What it does:

• Channels refrigerant/airflow around the precooler area to support efficient heat exchange
• Protects the precooler assembly from rubbing, kinking, or contact with adjacent components
• Helps prevent airflow leaks that can cause uneven cooling or frost buildup
• Commonly replaced when cracked, split, punctured, or otherwise damaged

• One precooler sleeve/tube

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels or the evaporator cover; handle evaporator fins and tubing carefully
• Inspect adjoining seals and clips; replace any damaged fasteners to ensure proper fit

This retaining clip secures trim, panels or small assemblies to keep parts aligned and prevent rattling. It's a simple replacement that restores a snug, stable fit where the original clip has broken or gone missing. What it does:

• Holds plastic or metal trim and panels in place to prevent gaps and movement
• Restores proper alignment and reduces vibration or rattling noises
• Keeps assembled components from shifting during normal use
• Useful when a damaged or missing clip causes loose or sagging parts

• One retaining clip

• Disconnect power and/or water to the appliance before beginning any repair
• Use needle-nose pliers or a flat screwdriver to remove the old clip and snap the replacement into place
• Verify the clip is fully seated and the panel/trim is secure before returning the appliance to service
• If the original clip required additional fasteners, retain and reuse them as needed

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
