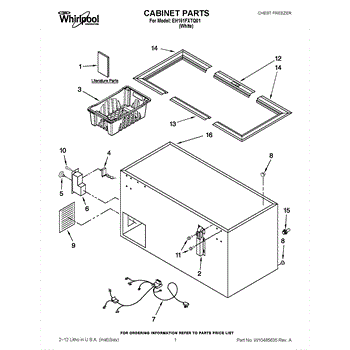

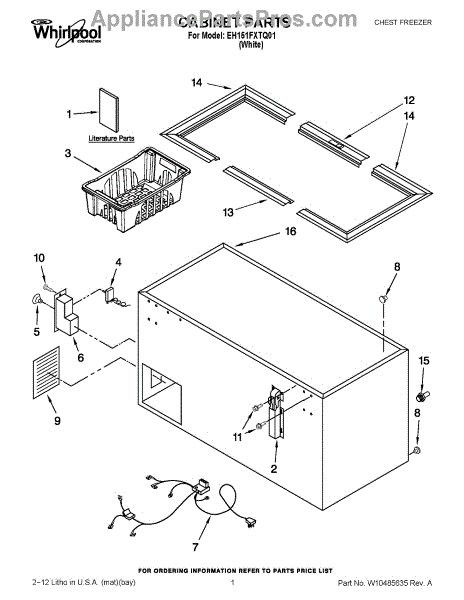

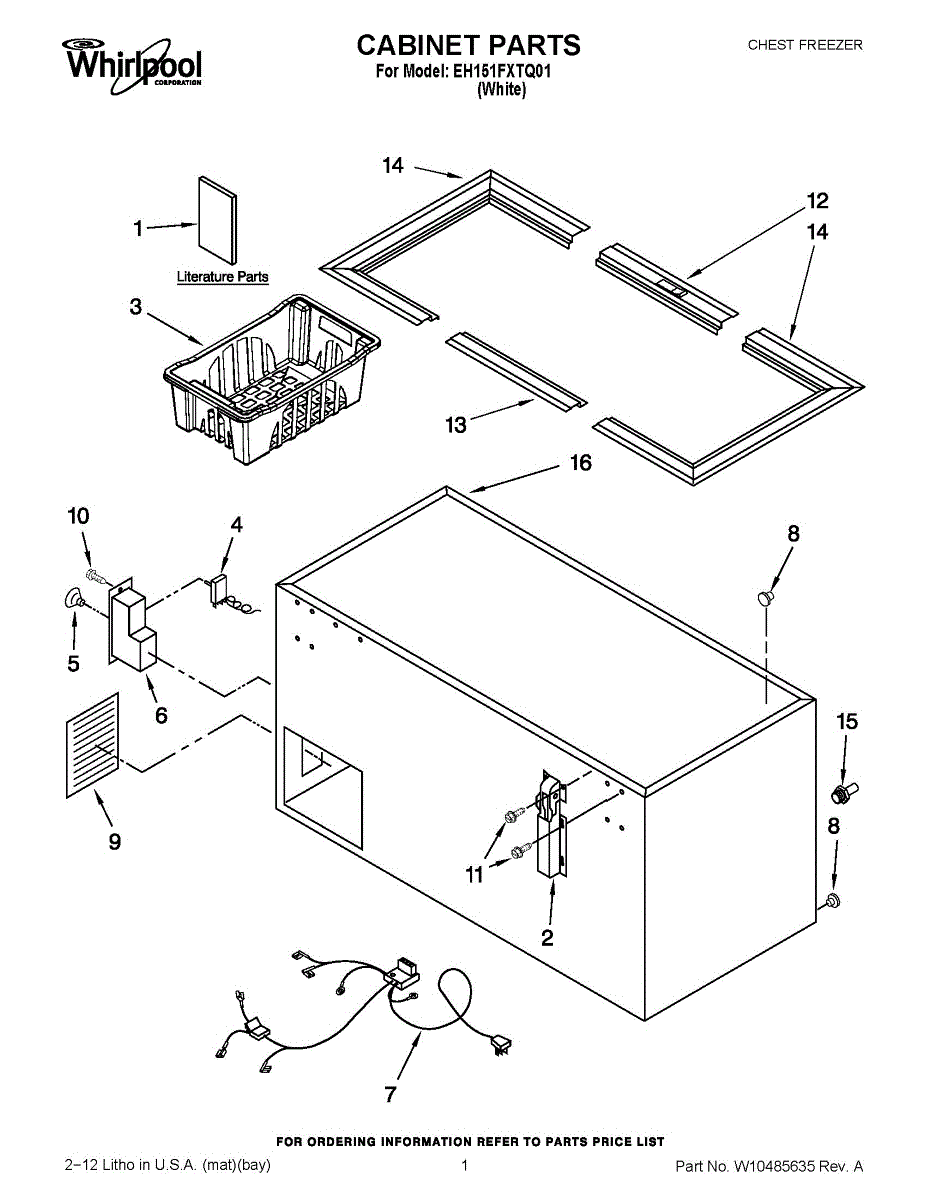

Parts for Whirlpool EH151FXTQ01: 01 - Cabinet Parts

This door hinge restores proper door support and alignment so the appliance door opens and closes smoothly. It replaces a worn or damaged hinge to help keep the door level and sealing correctly. What it does:

• Secures the appliance door to the cabinet and provides a pivot point for opening and closing
• Restores correct door alignment to prevent sagging or rubbing
• Helps maintain a consistent door seal to reduce drafts and temperature loss
• Useful when a door binds, droops, or won't stay closed properly

• One door hinge

• Disconnect power to the appliance before beginning any repair
• Keep original screws and mounting hardware if they are undamaged; replace if worn
• Door may be heavy—have a helper support the door while removing/installing the hinge
• Follow the manufacturer's instructions for proper alignment and torque

This mechanical thermostat is the appliance's temperature control. It senses internal temperature and opens or closes its electrical contacts to cycle the system, helping the unit reach and maintain the setting you select for consistent performance.

• Regulates temperature by switching power to the cooling or heating circuit as needed
• Helps prevent overcooling/overheating and unstable temperatures
• Common symptoms: runs constantly or won't start, temperature too warm or too cold, short-cycling, no response to knob/setting changes
• Visual damage, burnt terminals, or a thermostat that fails continuity tests indicate replacement

• Disconnect power before servicing
• Document wire locations; transfer wires one at a time and secure all connections
• If your unit uses a sensing bulb/capillary, route and secure it exactly as original; do not kink or sharply bend it
• Verify correct mounting and smooth knob/shaft movement, then restore power and test

This is a replacement machine screw used to secure interior and exterior appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for reliable operation. What it does:

• Secures panels, brackets, or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain correct alignment of control panels and trim pieces
• Works as a direct replacement when the original screw is lost or damaged

• One screw

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten to firm hand pressure; do not overtighten to prevent thread or part damage
• Disconnect power to the appliance before accessing internal components
• If fasteners or mounting holes are damaged, replace with the appropriate hardware.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

This defrost drain adapter funnels melted defrost water from the evaporator area into the refrigerator's drain channel, helping prevent water pooling and evaporator-area leaks. A simple replacement to restore proper drain flow. What it does:

• Directs defrost meltwater into the cabinet drain to prevent pooling under the evaporator.
• Helps stop water from leaking into the refrigerator or freezer compartment.
• Can reduce odor and residue caused by standing water in the drain area.
• Fits the drain/chest drain opening and mates to the cabinet drain tubing.

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover—keep screws and fasteners organized.
• Clean the drain channel and line of any ice or debris before installing the adapter to ensure proper flow.
• Reconnect power and test by pouring a small amount of warm water into the evaporator area to ensure the drain is routing properly.
