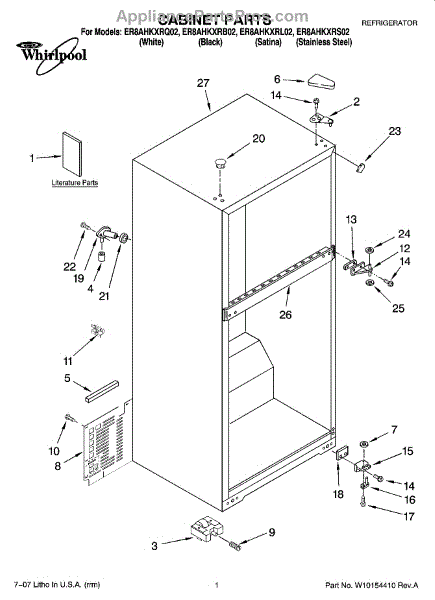

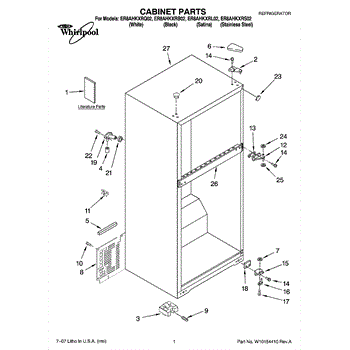

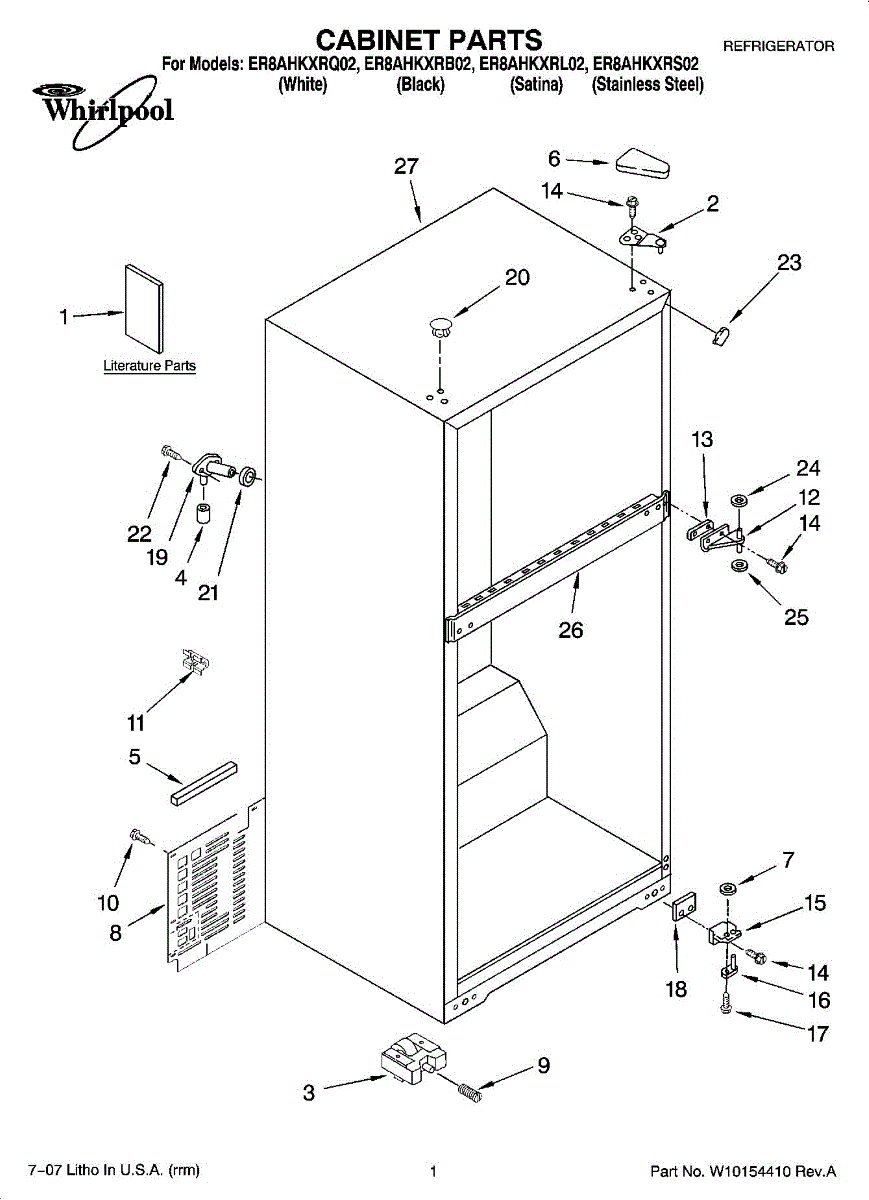

Parts for Whirlpool ER8AHKXRS02: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This top door hinge is the butt hinge assembly that mounts to the cabinet at the top of the refrigerator door, supporting the door and allowing smooth swing. Replacing a worn hinge restores alignment and a reliable seal.

• Provides the upper pivot point for the door
• Keeps the door aligned so the gasket seals correctly
• Wear or damage can cause sagging, rubbing, squeaks, or a door that won't close fully
• Helps reduce air leaks and temperature swings near the door

• Disconnect power and remove items from the door to reduce weight
• Support the door from below; remove the hinge cover and mounting screws
• Note the position of any shims/spacers and transfer them to the new hinge
• Reinstall, align the door, tighten screws, and ensure proper gasket contact

This hinge cover conceals and protects the door hinge area, providing a clean, finished look while helping keep dust and debris out. The black finish matches compatible appliances for a seamless appearance.

• Covers the door hinge to protect hardware and improve appearance
• Helps prevent dust and debris from entering the hinge area
• Common fix when the original cover is cracked, broken, loose, or missing
• Cosmetic part; does not correct door alignment issues caused by hinge wear

• Unplug the appliance before beginning any repair
• Open the door and remove any visible screws or clips securing the cover
• Lift off the old cover and align the new cover over the hinge
• Reinstall screws/clips and verify the cover is seated securely

This hinge cover replaces a damaged or missing hinge trim to protect and conceal the hinge assembly and restore the appliance's finished appearance. It fits over the hinge area and helps reduce dirt buildup and exposed hardware. What it does:

• Covers and protects hinge hardware, hiding screws and sharp edges
• Helps keep dirt, lint, and moisture out of the hinge area
• Restores the appliance's original, finished look
• Common symptoms: cracked, broken, or missing cover; exposed hinge hardware; cosmetic damage or debris buildup

• Refer to your model diagram for correct orientation and fastener locations
• Basic hand tools may be required; some models need the hinge loosened or partially removed
• Disconnect power and/or unplug the appliance before starting work when applicable
• Handle edges carefully to avoid cuts; follow OEM instructions for reassembly

This plain flat washer helps secure fasteners and evenly distribute load under nuts or bolts to prevent damage and loosening. A simple replacement when a washer is missing, rusted, or worn. What it does:

• Provides a smooth bearing surface between fastener and component to reduce wear
• Helps distribute clamping force to prevent stress on parts
• Reduces loosening from vibration when used with the correct fastener
• Common service part for assemblies where a thin metal spacer is needed

• Disconnect power and water to the appliance before beginning any repair
• Inspect the mating fastener and seating surface; replace any damaged hardware
• Slide the washer onto the bolt or stud with the flat faces against the mating surfaces; tighten fastener to secure but avoid overtightening

Size: 8-18 x 1/2 inch.

This is the center hinge for the refrigerator doors. It supports and aligns the doors at the midpoint so they open smoothly and seal properly, helping maintain temperatures and reliable day-to-day operation.

• Provides the middle pivot point between the upper and lower doors
• Keeps door alignment and spacing correct for a tight gasket seal
• Common symptoms: door sagging or rubbing, squeaking/grinding, door not closing or popping open, uneven gaps
• Replace if the hinge bracket or pin is bent, worn, or corroded

• Disconnect power and clear items from the doors before starting
• Support the doors; a second person is recommended when removing hinge screws
• Note the order of any shims/spacers or washers and transfer them to the new hinge
• After installation, align doors and verify full gasket contact all around

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

Due to manufacturer changes, if D shaft hinge pin is needed use part number WP2325483.

Screw with a 10-32 thread that secures panels and internal components in household appliances, providing a simple replacement to restore proper fit and reduce rattling or loose parts. Use when a missing or damaged screw causes loose trim or vibration. What it does:

• Fastens panels, brackets and trim to restore secure fit and reduce noise or movement.
• Replaces missing, stripped or damaged screws that cause loose or misaligned parts.
• Matches a 10-32 thread commonly used on appliance assemblies.
• Helps prevent further wear by restoring correct fastening at the original attachment points.

• Disconnect power and water to the appliance before servicing.
• Use the correct driver and engage threads carefully to avoid cross-threading.
• Do not overtighten — tighten just enough for a secure fit to prevent stripping.
• If threads are damaged, replace the mating fastener or insert rather than forcing this screw.

This bottom hinge shim installs at the refrigerator's lower door hinge to fine-tune door height and alignment. Replacing a worn or missing shim can help restore smooth closing and an even, reliable gasket seal.

• Spaces the door at the lower hinge to set proper height and alignment
• Helps reduce door sagging or rubbing against the cabinet or other door
• Can help the door gasket seal evenly to minimize warm-air leaks

• Disconnect power and, if applicable, shut off the water supply
• Remove items from the door and support the door to prevent strain
• Loosen/remove lower hinge hardware and place the shim in the original location/orientation
• Reassemble, check alignment, and verify even gasket contact around the door

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: white.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Color: Black

Color: White

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
