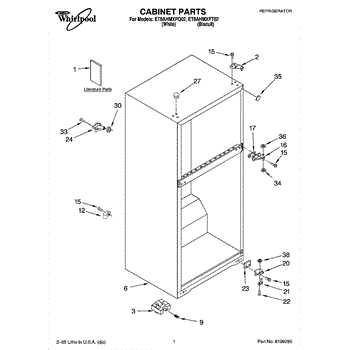

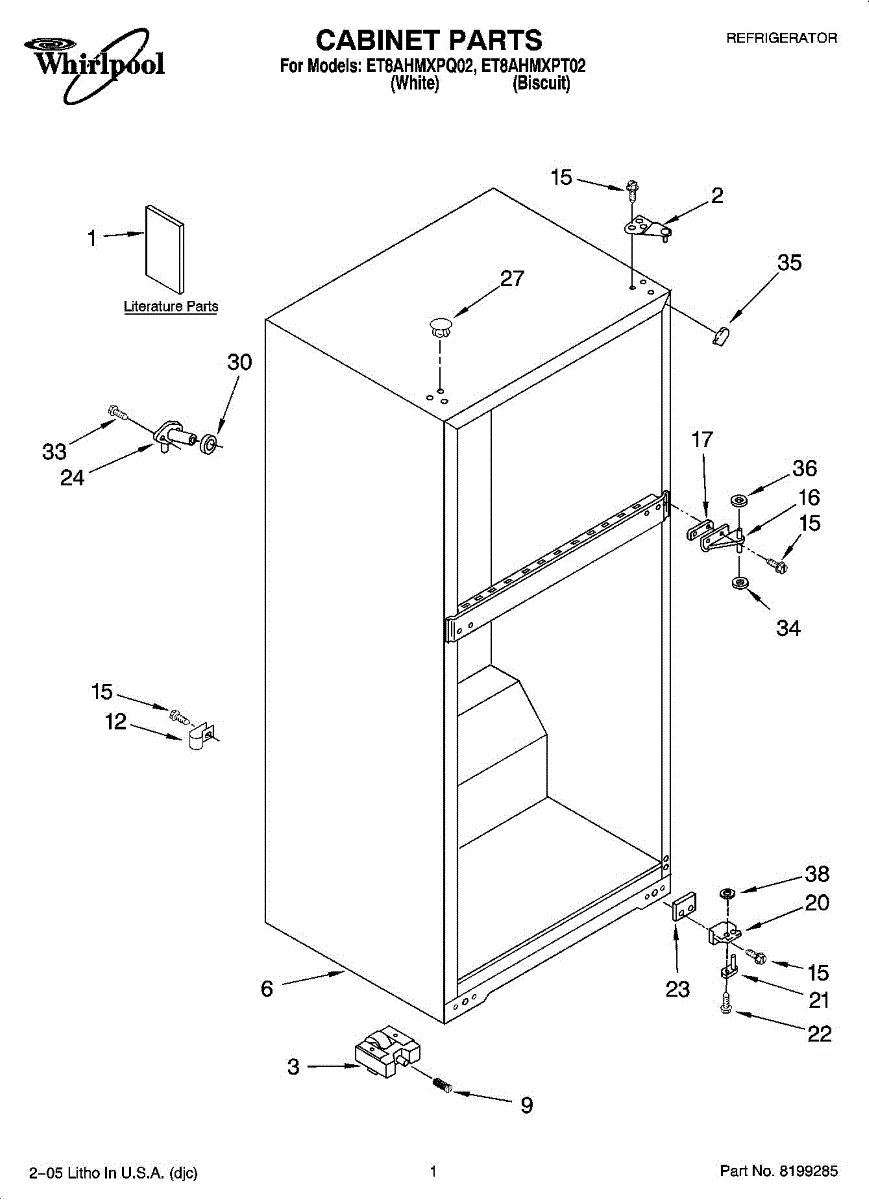

Parts for Whirlpool ET8AHMXPQ02: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Replaces the upper butt hinge assembly that mounts to the cabinet and supports your freezer or refrigerator door. Needed when hinge is cracked or worn.

Cabinet roller for refrigerators. Mounts under the cabinet to enable smooth movement across the floor. Replace if cracked, broken, or worn for stability.

Mounting screw for refrigerators. Used to secure internal components, panels, or shelving. Replace if stripped, missing, or damaged during repairs.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Replacement center hinge for refrigerator doors. Mounts between upper and lower doors to provide support and alignment. Replace if cracked or worn.

Door hinge butt for top-mount refrigerators. Mounts between cabinet and door to support hinge pin assembly. Replace if cracked, broken, or worn out.

10-32 thread screw that secures interior panels and brackets in refrigerators. Replace when original is stripped, missing, or damaged to restore fit.

Door hinge shim adjusts refrigerator door height and alignment at the lower hinge. Replace when worn to restore smooth closing and proper gasket seal.

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: white.

Covers unused mounting holes on refrigerator cabinet or trim for a finished look. Replace if cracked, broken, or missing to prevent dirt entry.

This is a rubber gasket that seals the connection between the water fill tube and the ice maker assembly inside the freezer compartment. It prevents water from leaking around the fill tube during the ice maker's fill cycle. Replace this gasket if you notice water dripping or ice buildup around the fill tube area, or if water is leaking onto the freezer floor during ice production.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Small plastic washer that supports the refrigerator door hinge assembly. Replace if worn, cracked, or missing to restore proper door alignment.

White plastic filler cap for refrigerator door panels. Replaces broken, cracked, or missing caps. Installs into door trim to complete appearance.

Flat washer secures fasteners and distributes load to prevent damage. Replace when missing, rusted, or worn. Verify fit with your model number.

Flat washer used on refrigerator door hinge assembly. Reduces friction and distributes load for smooth door operation.
