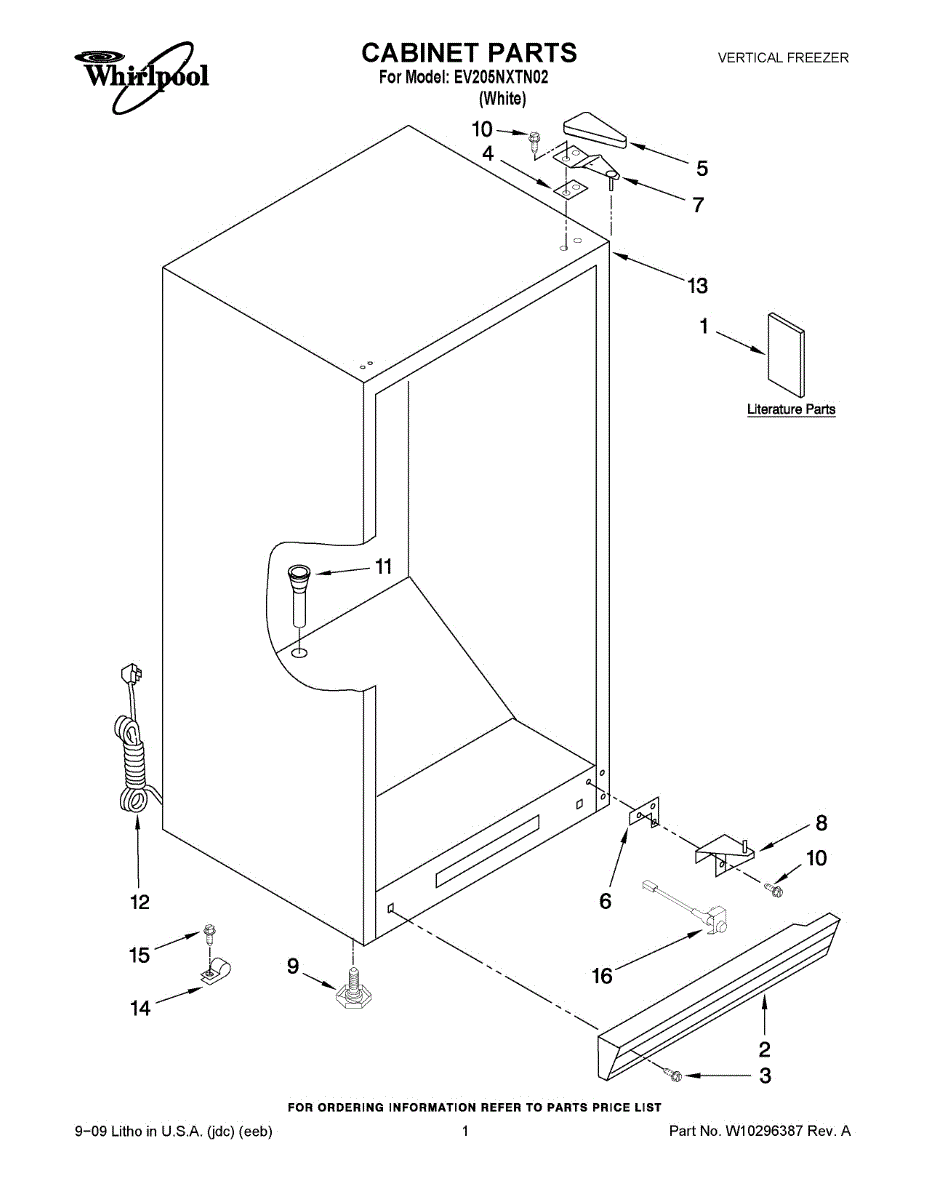

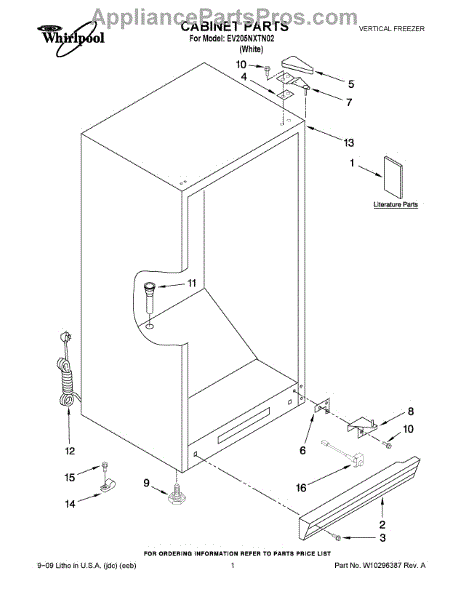

Parts for Whirlpool EV205NXTN02: 01 - Cabinet Parts

Size: 8 x 1/2 ab.

A thin replacement hinge shim that helps align and level the appliance door for a proper seal and smooth operation. Restores correct door spacing to reduce rubbing, uneven gaps, or misalignment. What it does:

• Centers and spaces the door at the hinge to correct misalignment and uneven gaps
• Helps doors close evenly and maintain a consistent seal
• Prevents rubbing or catching caused by out-of-position hinges
• Works with the hinge assembly to restore smooth opening and closing

• Disconnect power to the appliance before starting any repairs
• Remove the door or open/secure it to access hinge area
• Slide or position shim between hinge surfaces as shown in OEM instructions; do not force or bend excessively
• Tighten fasteners to secure alignment, then verify door operation and seal

A thin replacement hinge shim that helps align and level the appliance door for a proper seal and smooth operation. Restores correct door spacing to reduce rubbing, uneven gaps, or misalignment. What it does:

• Centers and spaces the door at the hinge to correct misalignment and uneven gaps
• Helps doors close evenly and maintain a consistent seal
• Prevents rubbing or catching caused by out-of-position hinges
• Works with the hinge assembly to restore smooth opening and closing

• Disconnect power to the appliance before starting any repairs
• Remove the door or open/secure it to access hinge area
• Slide or position shim between hinge surfaces as shown in OEM instructions; do not force or bend excessively
• Tighten fasteners to secure alignment, then verify door operation and seal

Adjustable leveler leg that stabilizes and levels compatible Whirlpool appliances. Replacing a worn or damaged leveler restores proper balance, reduces rocking, and helps doors and drawers align and seal correctly. What it does

• Raises or lowers the appliance to achieve a level position on uneven floors.
• Stops rocking or wobbling that can cause noise or uneven wear.
• Helps doors and drawers close and seal properly by correcting tilt.
• Replace when threads are stripped, the foot is broken, or the leg no longer holds height.

• Disconnect power (and water supply for appliances with hookups) before working beneath or behind the unit.
• Support the appliance securely (use blocks or have a helper) before removing or adjusting levelers.
• Most levelers screw in/out—turn to raise or lower, then test stability and door alignment.

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

Size: 8 x 1/2 ab.
