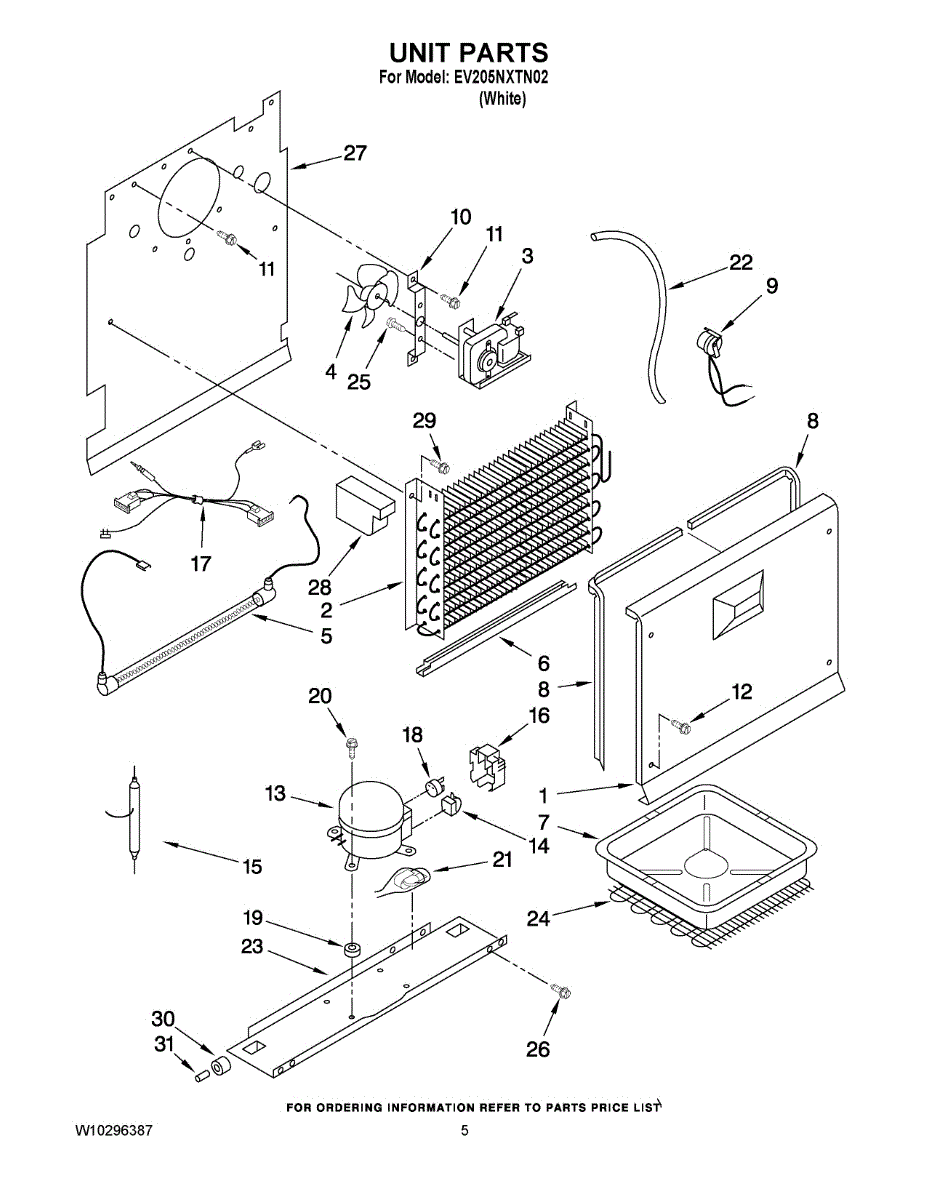

Parts for Whirlpool EV205NXTN02: 03 - Unit Parts

The Evaporator Motor is an OEM replacement part for Whirlpool refrigerators. This small but powerful motor circulates cold air inside the fridge and freezer compartments.

Causes of a bad evaporator motor include bearings seizing up or windings burning out due to age. Without proper lubrication, motors can quickly fail in refrigeration applications.

Symptoms of a bad evaporator motor include:

• Inefficient or fluctuating cooling inside the fridge and freezer
• Buzzing or grinding noises from cooling ventilation
• Frost developing unevenly or melting unexpectedly

This OEM Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, and some Kenmore refrigeration units as well.

The Fan Blade and Spring Clip is an OEM part for Whirlpool refrigerators. This component is responsible for circulating air within the refrigerator, ensuring even cooling throughout the compartments. The fan blade moves the air, while the spring clip secures it in place, maintaining optimal airflow.

Causes of a bad fan blade and spring clip can include wear and tear over time, damage from debris or food particles, or issues with the motor that cause the blade to malfunction. If the fan blade is not working correctly, it can lead to inadequate cooling and uneven temperatures in the refrigerator.

Symptoms of a bad fan blade and spring clip include:

• Unusual noises from the fan area
• Inconsistent temperatures inside the refrigerator
• The refrigerator running constantly or not cooling properly
• Visible damage or wear to the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This heater melts frost off the evaporator coils during the defrost cycle so cold air can circulate properly. Replacing a failed heater helps restore cooling performance and prevents heavy ice buildup.

• Warms the evaporator area during defrost to clear accumulated frost and ice
• Helps maintain steady airflow and temperature inside the unit
• Common failure signs: excessive frost or ice on coils, poor cooling, warm fresh-food section, frequent or prolonged defrost cycles
• Typically paired with a defrost thermostat for safety

• Disconnect power before servicing; components can be hot after a defrost cycle
• Access is usually behind the evaporator cover; handle fragile glass/element sections with care
• Verify wire connections and routing match the original before reassembly
• After installation, monitor for normal cooling and absence of rapid frost buildup

This right-side evaporator cover gasket seals the evaporator cover to help prevent air leaks and reduce frost buildup, supporting consistent cooling and efficient refrigerator operation. What it does:

• Seals the evaporator cover to minimize warm air intrusion and reduce ice accumulation on the evaporator
• Helps maintain stable compartment temperatures for better cooling performance
• Reduces moisture and dripping that can cause water pooling inside the cabinet
• Can address symptoms such as increased frost on the evaporator, higher-than-normal temperatures, or water inside the fresh food/freezer area

• Disconnect power to the appliance before beginning any repair
• Remove necessary interior panels or shelves to access the evaporator cover per the service manual
• Seat the gasket fully around the cover flange; inspect the cover and seating surface for damage or debris

This defrost thermostat is a bi-metal switch that senses evaporator temperature during defrost and opens to stop heater power once the coil warms. Replacing a failed thermostat restores proper defrost, reducing ice buildup and airflow-related cooling problems.

• Monitors evaporator coil temperature during defrost
• Opens the heater circuit at a set temperature; recloses when cold for the next defrost
• Helps protect against overheating and ensures consistent defrost operation
• Common symptoms: heavy frost on the evaporator, weak airflow/warm fresh food section, repeated ice buildup after manual defrost

• Disconnect power before servicing; wear cut-resistant gloves
• Access the thermostat at the evaporator behind the freezer's rear panel
• Move wires one-for-one from the old part; mount in firm contact with the coil/tubing and secure leads away from the fan
• After installation, the thermostat should show continuity when cold and open circuit when warm

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

This sealed-system compressor circulates refrigerant to cool your refrigerator, restoring normal cooling performance when the compressor fails. Designed to replace a failing compressor and help bring temperatures back to safe food-storage levels. What it does:

• Compresses and circulates refrigerant through the sealed refrigeration circuit
• Restores cooling when the compressor motor runs properly
• Commonly linked to symptoms like weak or no cooling, loud humming or clattering sounds, or a refrigerator that cycles continuously
• May be the cause if the appliance frequently trips a circuit breaker or shows hard-starting behavior

• Sealed-system work requires certified HVAC/refrigeration service and proper refrigerant handling per local regulations
• Disconnect power before beginning any repair; follow lockout/tagout practices
• Compressor replacement often requires system evacuation, brazing, and recharge — do not attempt unless qualified
• Use the identical replacement part number and follow OEM service instructions to avoid damage

The Start Device Assembly is an OEM part for Whirlpool refrigerators. It is a kit that includes the start relay and overload, both of which are crucial components for the proper operation of the compressor. The start relay is responsible for initiating the compressor's operation by providing an electrical boost to start the motor.

Causes of a faulty start device kit can include electrical component failure, power surges, or damage due to wear and tear over time.

Symptoms of a bad start device kit may include:

• The compressor not running or cycling on and off frequently
• Inadequate cooling or fluctuations in temperature
• Unusual noises coming from the refrigerator

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This wire harness routes electrical signals between the appliance control and internal components, restoring reliable communication and power paths. It replaces damaged or burned wiring to help resolve intermittent or failed control functions. What it does:

• Reconnects control board circuits to motors, switches, sensors, or terminal blocks
• Restores proper signal and power flow when wiring is damaged or shorted
• Helps stop intermittent operation, unexplained shutdowns, or control non-responsiveness
• Provides OEM-style replacement wiring and connector fit for direct swap

• Always disconnect power (unplug or shut off circuit breaker) before installing
• Handle connectors by the housing; avoid pulling on individual wires
• Confirm connector orientation and secure all clips and fasteners for strain relief

This overload protector is a safety device that mounts on the compressor and opens the circuit if overheating or excessive current is detected. Replacing a failed protector can help restore reliable compressor start-up and protect the motor from damage.

• Monitors compressor temperature/current and interrupts power during an overload condition
• Helps prevent compressor overheating and winding damage
• Common symptoms: refrigerator not cooling, compressor won't start, clicking or humming then shutting off, repeated cycling from the rear machine compartment
• Visible heat damage or a burnt odor at the start device area may indicate failure

• Disconnect power before servicing; work in a well-ventilated area
• Access the rear machine compartment; remove the cover to reach the compressor start assembly
• Note wire positions and orientation; the overload fits on the compressor terminal alongside the start device/relay—seat it fully and securely
• Inspect connectors for heat damage and ensure tight, clean terminals before restoring power

This 10-32 x 3/8 machine screw secures panels and components in many appliances where a small, threaded fastener is required. It replaces stripped, missing, or loose screws to restore stable assembly and reduce vibration. What it does:

• Fastens panels, brackets, and small components using 10-32 unified threads
• Restores secure mounting when screws are missing, stripped, or loose
• Helps stop rattling, misalignment, and intermittent part contact caused by loose fasteners
• Works wherever a 10-32 x 3/8 machine screw is specified by the manufacturer

• Disconnect power or unplug the appliance before servicing
• Use the correct size screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Replace with the same size and thread spec to ensure proper fit and function

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping
