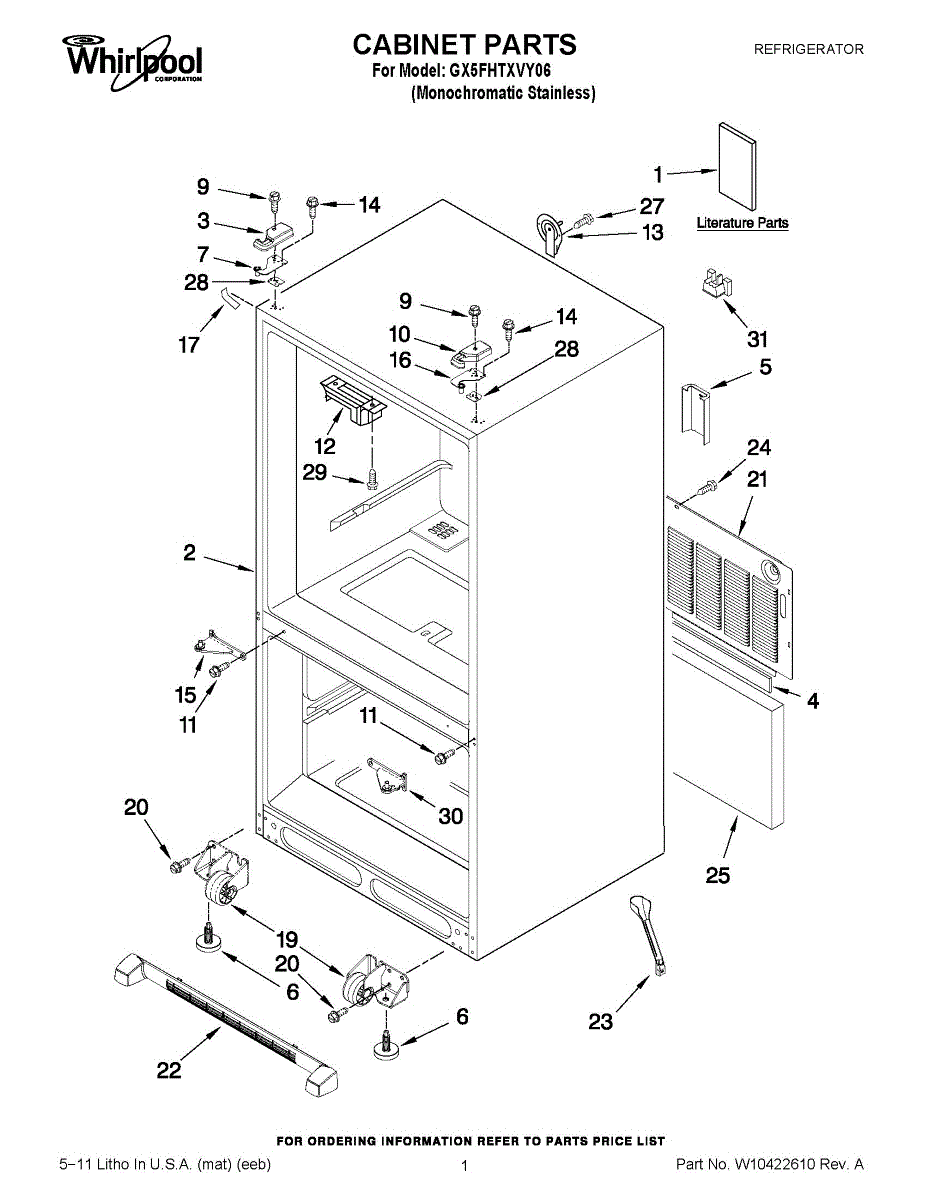

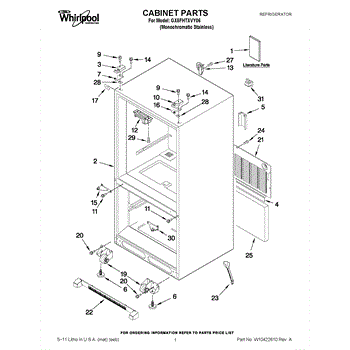

Parts for Whirlpool GX5FHTXVY06: 01 - Cabinet Parts

Conceals and protects the refrigerator door hinge area. Replaces cracked, missing, or loose hinge covers to restore clean appearance and shield components.

Plastic cover cap that protects the water valve connection on your refrigerator. Replace if cracked, broken, or missing to prevent debris buildup.

Adjustable leveling leg for refrigerators and freezers. Installs at base corner to stabilize appliance on uneven floors. Replace if broken or stripped.

Replaces a broken or worn top left door hinge on your refrigerator. Secures the door to the cabinet for proper alignment and smooth pivoting movement.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replaces a cracked, warped, or missing cover on your refrigerator. Protects internal components and restores proper fit so parts stay secured.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

Supports the refrigerator door hinge for smooth opening and closing. Replace this pivot block if it's cracked, worn down, or broken to restore proper alignment.

Protective cover for water valves and inlet hoses. Replace if cracked, broken, or missing to shield components from debris and accidental contact.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

Replacement door hinge assembly that secures and supports your refrigerator door. Restores smooth pivoting when the original is cracked, worn, or broken.

Upper door hinge assembly for refrigerators. Mounts at the top of the door to secure it to the cabinet. Replace if cracked, broken, or missing.

Replaces missing or damaged corner trim filler on your refrigerator. Restores a clean, finished look to interior or exterior cabinet seams and edges.

Hex head sheet metal screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, corroded, or stripped screws.

Back cover panel for bottom-mount refrigerators. Replaces cracked, broken, or missing rear cover. Installs on the back exterior of the unit.

Covers the base of your refrigerator to protect the lower ventilation area. Replace if cracked, broken, or missing. Snaps into place in minutes.

Guides condensation from the defrost cycle to the evaporation pan. Replace if cracked, clogged, or causing water leaks and ice buildup in the freezer.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The refrigerator top hinge shim is a thin spacer that fits between the top hinge and the refrigerator cabinet to fine-tune the alignment and level of the door. It helps ensure the door hangs evenly, seals properly, and closes without gaps. Replace or add this shim if the refrigerator door sags, doesn't close flush, or the door gasket isn't sealing evenly around the top of the door.

This hinge shim adjusts the alignment and spacing of your refrigerator door for proper closure. It ensures the door seals correctly and maintains proper clearance during operation. Replace it if your refrigerator door doesn't close properly, has uneven gaps, or if the door sags and doesn't align with the cabinet.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

Replacement door hinge assembly that secures and supports your refrigerator door. Restores smooth pivoting when the original is cracked, worn, or broken.

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power
