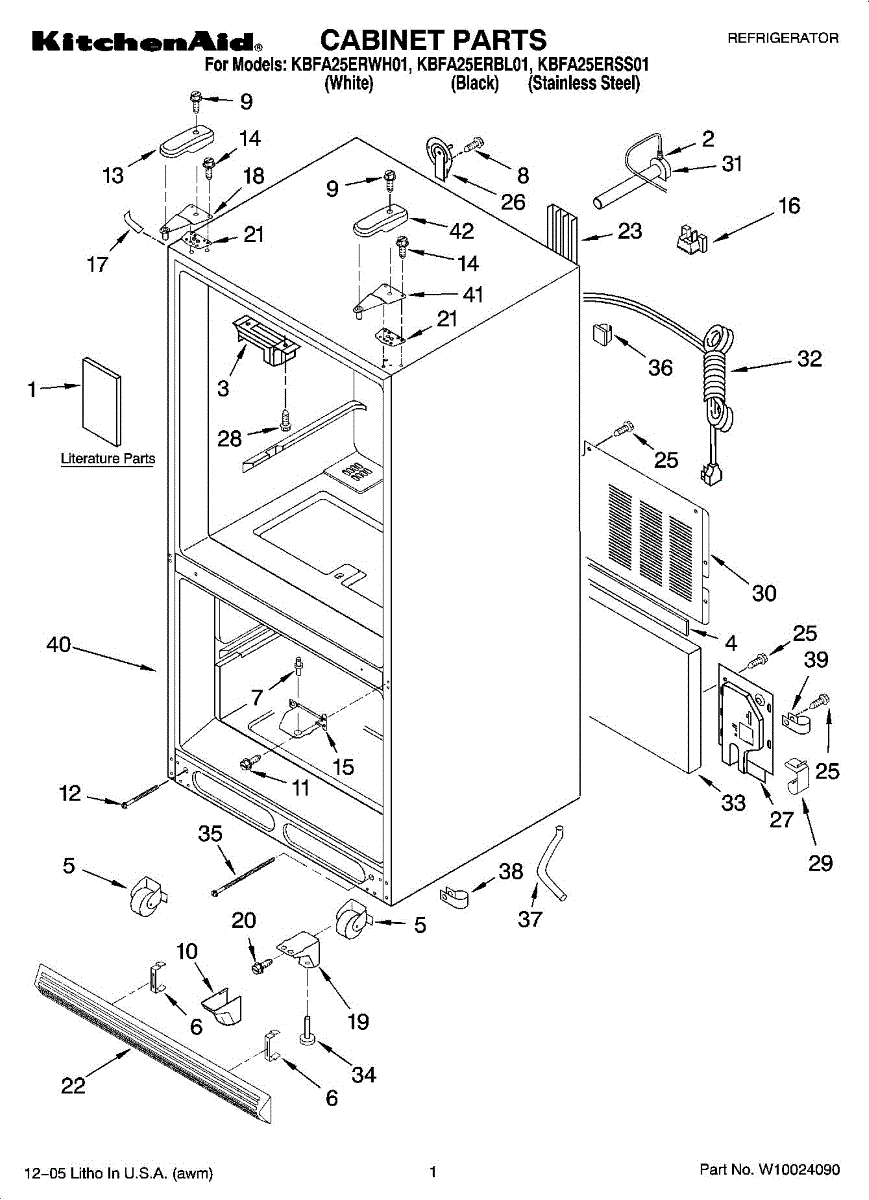

Parts for Kitchenaid KBFA25ERBL01: 01 - Cabinet Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

The Refrigerator Pivot Block is an OEM part for Whirlpool refrigerators. It supports the door hinge, allowing the refrigerator door to open and close smoothly. The pivot block ensures that the door stays aligned and securely attached to the refrigerator frame.

Causes of a bad pivot block can include wear and tear over time, heavy use, or damage from accidental impacts. Misalignment or excessive force when opening and closing the door can also contribute to its failure.

Symptoms of a bad refrigerator pivot block include:

• The refrigerator door not opening or closing properly
• A misaligned door that doesn't seal correctly
• Unusual noises when the door is operated
• The door feeling loose or wobbly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This center hinge pin kit secures the middle hinge on compatible refrigerators so the door stays aligned and operates smoothly. It restores proper door pivoting and reduces sagging or uneven closing. What it does:

• Replaces worn or bent center hinge pin to restore correct door alignment
• Helps stop door sag, rubbing, or gaps that affect sealing
• Reduces noise and sticking when opening or closing the door
• Works with the center/middle hinge assembly to maintain smooth pivot action

• Follow the refrigerator's service manual for disassembly; some models require removing the door or shelves
• Support the door during removal/installation to prevent damage or personal injury
• Use proper tools and avoid over-tightening hinge fasteners

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

This factory screw secures appliance panels, brackets, or trim. Replace a missing, stripped, or rusted fastener to restore a tight, rattle-free fit and keep components properly aligned in the intended OEM locations. What it does

• Fastens brackets, trim, or sheet-metal panels to the chassis
• Replaces worn, rusted, or missing hardware
• Helps eliminate loose panels, vibration, and misalignment
• Restores proper fit and support for affected assemblies

• Includes 1 screw

• Disconnect power and shut off gas/water before servicing
• Match this screw to the original location; lengths and thread types can vary by position
• Use the correct driver; start by hand and do not overtighten to avoid stripping threads
• If the receiving threads are damaged, repair/replace the mating clip or insert before installing

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This center hinge assembly secures and supports a refrigerator door, helping it pivot smoothly and stay aligned for a tight seal. Replaces a worn or damaged hinge to restore proper door movement and closure. What it does:

• Provides the pivot point that lets the door open and close smoothly
• Restores proper door alignment to prevent gaps that let cool air escape
• Stops door sagging or uneven operation caused by a worn hinge
• Reduces scraping, binding, or unusual noises at the door pivot

• One center hinge assembly

• Disconnect power to the appliance before beginning any repair
• Support or remove the door to avoid injury or damage
• Use the original mounting hardware or OEM-specified fasteners for secure installation
• Check door alignment and gasket seal after installation; adjust as needed

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.

This top hinge assembly secures and guides the refrigerator door at the cabinet top, restoring correct alignment for smooth opening and closing. Replace a worn or bent hinge to stop door sagging and improper sealing. What it does

• Supports the top of the refrigerator door and provides the pivot point for normal door movement
• Restores proper door alignment to prevent rubbing, gaps, and poor seal
• Reduces stress on the door and lower hinges caused by a bent or damaged top hinge
• Helps stop wind-up or binding when opening or closing the door

• Disconnect power and empty/secure the door before removing hinge fasteners to prevent injury or damage
• Support the door while replacing the hinge; two-person lift recommended for heavy doors
• Reuse or replace any hinge shims/screws only if explicitly specified by your model's parts list
• After installation, confirm door alignment and gasket seal; make minor adjustments as needed

This is a genuine replacement mounting screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening where a damaged or missing screw causes loose panels or rattling. What it does:

• Secures panels, brackets, or internal parts to restore a tight fit
• Stops vibration-related noise caused by loose fasteners
• Replaces stripped, damaged, or missing screws for safe operation
• Matches the OEM thread and head style for correct fit and torque

• Use the matching screwdriver or driver bit to avoid cam-out or head damage
• Hand-start the screw to align parts before final tightening
• Do not overtighten; stop when parts are snug to avoid stripping threads
• Disconnect power to the appliance before accessing internal panels

This toe grille assembly installs across the bottom front of your refrigerator—often called the toe kick or kickplate—to protect internal components while allowing proper airflow. Replace a cracked or missing grille to restore a clean, finished look and correct base ventilation.

• Covers the lower access opening and helps direct air through the condenser area
• Provides a finished appearance at floor level
• Helps keep debris out of the machine compartment
• Common signs of damage: cracked slats, broken tabs, loose or rattling grille, or a missing panel

• Disconnect power and protect the floor before starting
• Open the doors; remove the old grille by releasing spring clips or removing mounting screws (varies by model)
• Align the new grille with the tabs/slots; snap into place or secure with the original screws
• Verify vents are unobstructed and doors open/close without interference

This replacement cover protects water-related components on select Whirlpool washers, helping keep valves and hoses shielded from debris and incidental contact for reliable water flow management. What it does

• Protects water valves, inlet hoses, and nearby fittings from dirt and accidental contact
• Helps maintain proper water routing by keeping components covered and positioned
• Commonly replaced if cracked, broken, warped, or missing after impact or wear
• Can prevent debris buildup that interferes with valve operation or connections

• One replacement cover as pictured

• Disconnect power and shut off the water supply before starting any repair
• Secure with existing screws or clips
• Do not force the cover into place; inspect surrounding fittings and hoses for damage while installing
• If you see leaks after installation, recheck hose connections and valve seating; replace defective parts as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Icemaker Fill Tube is an OEM replacement part for Whirlpool refrigerators. It delivers water to the icemaker, allowing it to produce ice cubes. It is responsible for directing water from the water inlet valve to the icemaker tray, where it freezes into ice cubes.

A bad fill tube can occur due to wear and tear, blockages, or damage. If you notice symptoms such as no ice production, leaking water, or ice cubes with an unusual shape or size, it may be time to replace the fill tube.

Symptoms of a bad fill tube include:

• No ice production or limited ice output
• Leaking water around the icemaker area
• Irregularly shaped or oversized ice cubes

Repair your refrigerator by replacing the faulty or damaged fill tube with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Replacement power cord that restores the electrical connection so your appliance receives safe, consistent power. Use this cord to replace frayed, damaged, or non-functioning cords and help return reliable operation to the appliance. What it does:

• Restores the appliance's main power connection so it can turn on and operate.
• Commonly used when a cord shows frayed insulation, exposed wires, scorch marks, or intermittent power.
• Can address issues where the appliance does not power on due to a broken or damaged cord.
• Replaces cords with loose or damaged plug/terminal connections that may cause sparking or overheating.

• Always disconnect power at the breaker or unplug the appliance before inspecting or replacing the cord.
• Verify the cord configuration (3-prong vs. 4-prong) and terminal type match your appliance and local electrical code before installation.
• Use proper strain relief and routing to prevent pinching; secure all connections and replace any damaged terminal hardware.

This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This leveling foot adjusts the height and balance of your appliance so it sits stable and operates correctly. Replacing a worn or missing foot helps reduce vibration, noise, and unwanted movement during use.

• Supports and stabilizes the appliance by adjusting height at the base
• Helps correct rocking, excessive vibration, or walking during operation
• Can resolve rattling noises caused by uneven footing
• Aids proper door alignment and smooth operation when leveled

• Unplug power and shut off water (if applicable) before servicing
• Tilt or carefully raise the appliance to access the foot
• Thread the new foot in by hand; adjust to level with a bubble level
• Tighten any jam nut or lock mechanism if present; recheck level after placement

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

This top hinge assembly mounts at the upper corner of the cabinet to support the refrigerator door and allow smooth pivoting. Replacing a worn hinge restores proper door alignment and helps the gasket seal reliably.

• Supports the door's weight at the top and provides the pivot point
• Helps maintain correct door alignment and closing action
• Aids in consistent gasket contact to minimize warm-air leaks
• Common symptoms of a failing hinge: door sagging or rubbing, uneven gaps, poor sealing, squeaks or popping noises

• Unplug the refrigerator and, if applicable, turn off the water supply
• Have a helper support the door; remove the hinge cover, then the hinge screws
• Note/mark hinge position and transfer any shims or spacers from the original hinge
• Reinstall and adjust for even gaps; verify the door swings freely and the gasket seals all around
