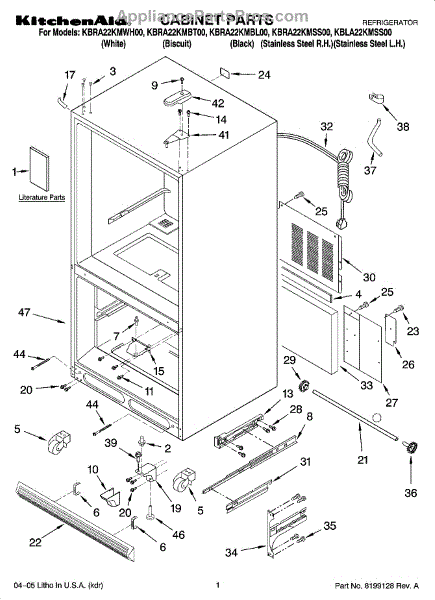

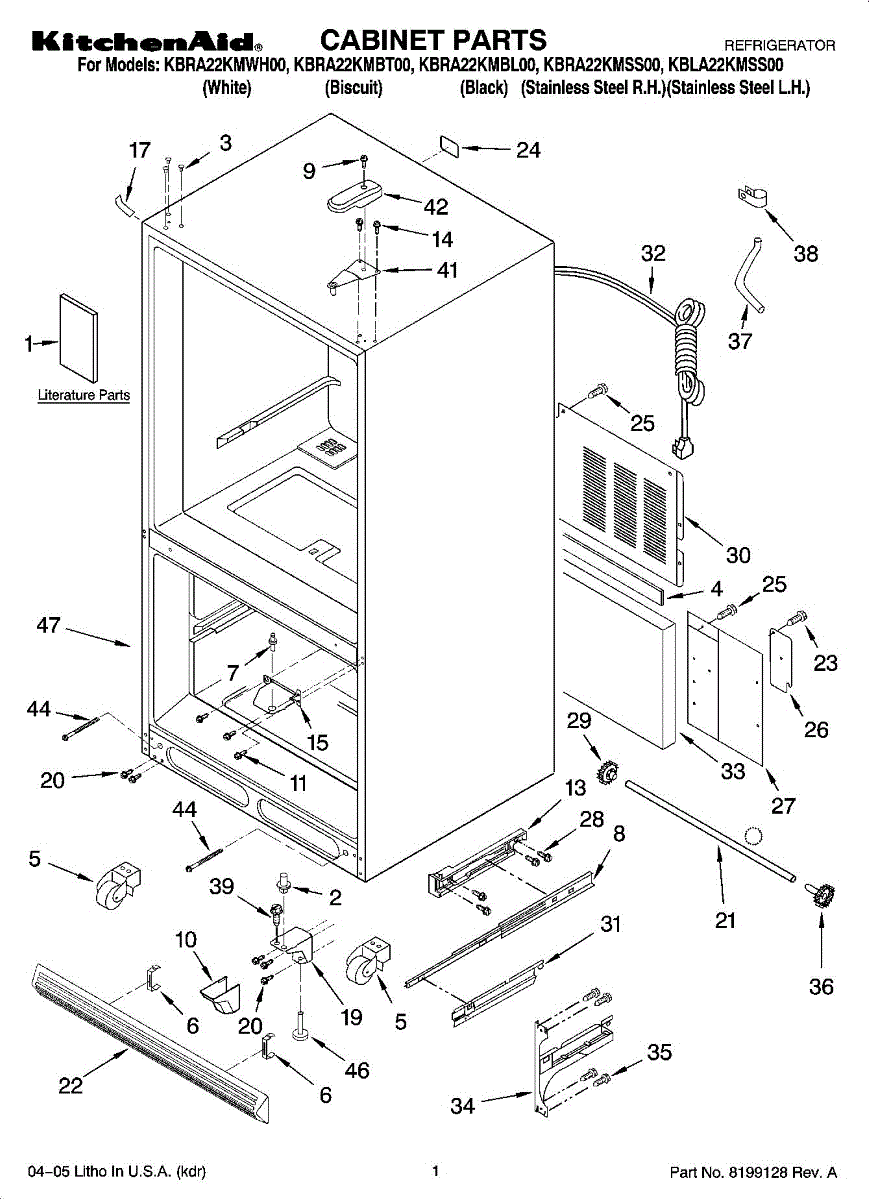

Parts for Kitchenaid KBLA22KMSS00: 01 - Cabinet Parts

This Bottom Hinge Pin supports the refrigerator door at the lower hinge, providing a smooth, stable pivot. Replace a worn or bent pin to restore proper door alignment, closing action, and gasket sealing.

• Serves as the pivot point for the door on the bottom hinge bracket
• Helps maintain alignment so the door gasket seals correctly
• Wear/failure symptoms can include door sagging, wobble at the hinge, squeaks or grinding, and poor self-closing
• Replacing a damaged pin can reduce hinge play and improve door operation

• Disconnect power; turn off water supply if working near a dispenser line
• Remove items from the door and support the door to prevent strain on hinges
• Detach bottom hinge fasteners, lift door off, replace the pin, and reassemble
• Adjust hinges as needed

This black handle hole plug fills and covers the exposed mounting hole on appliance handles for a finished, factory appearance and to help keep debris and moisture out. Snap-in design provides a clean cosmetic repair without replacing the whole handle. What it does:

• Covers an unused or damaged handle mounting hole to restore appearance
• Helps prevent dirt, moisture, and pests from entering through the handle opening
• Snaps into the handle recess for a secure, low-profile fit
• Commonly used when a missing or worn plug leaves a visible hole on the handle

• One black handle hole plug

• Repair is typically a simple snap-in replacement; plug aligns with handle recess before seating
• Use a flat plastic tool to remove the old plug to avoid scratching surrounding finish
• Disconnect power and follow appliance manufacturer's safety guidance when accessing handles near electrical components
• Do not force the plug; if fit is tight, handle style to avoid damage

Color: White.

This center hinge pin kit secures the middle hinge on compatible refrigerators so the door stays aligned and operates smoothly. It restores proper door pivoting and reduces sagging or uneven closing. What it does:

• Replaces worn or bent center hinge pin to restore correct door alignment
• Helps stop door sag, rubbing, or gaps that affect sealing
• Reduces noise and sticking when opening or closing the door
• Works with the center/middle hinge assembly to maintain smooth pivot action

• Follow the refrigerator's service manual for disassembly; some models require removing the door or shelves
• Support the door during removal/installation to prevent damage or personal injury
• Use proper tools and avoid over-tightening hinge fasteners

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This center hinge assembly secures and supports a refrigerator door, helping it pivot smoothly and stay aligned for a tight seal. Replaces a worn or damaged hinge to restore proper door movement and closure. What it does:

• Provides the pivot point that lets the door open and close smoothly
• Restores proper door alignment to prevent gaps that let cool air escape
• Stops door sagging or uneven operation caused by a worn hinge
• Reduces scraping, binding, or unusual noises at the door pivot

• One center hinge assembly

• Disconnect power to the appliance before beginning any repair
• Support or remove the door to avoid injury or damage
• Use the original mounting hardware or OEM-specified fasteners for secure installation
• Check door alignment and gasket seal after installation; adjust as needed

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.

This is a genuine replacement mounting screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening where a damaged or missing screw causes loose panels or rattling. What it does:

• Secures panels, brackets, or internal parts to restore a tight fit
• Stops vibration-related noise caused by loose fasteners
• Replaces stripped, damaged, or missing screws for safe operation
• Matches the OEM thread and head style for correct fit and torque

• Use the matching screwdriver or driver bit to avoid cam-out or head damage
• Hand-start the screw to align parts before final tightening
• Do not overtighten; stop when parts are snug to avoid stripping threads
• Disconnect power to the appliance before accessing internal panels

This 33-inch shaft-rack replaces the rack support shaft that the dishwasher rack slides on, restoring smooth in-and-out movement and correct rack alignment for easier loading and unloading. What it does:

• Acts as the axle for a dishwasher rack, supporting and guiding rack travel along the tub.
• Restores smooth sliding if the original shaft is bent, worn, or broken.
• Helps eliminate rack misalignment, rubbing, or sticking during use.
• Matches OEM fit and mounting points when used with the correct part number.

• Disconnect power and water to the appliance before beginning any repair.
• Remove the affected rack to access the shaft; keep track of end caps or retaining clips.
• Slide out the old shaft and install the replacement, ensuring clips/end caps are properly secured.

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

This icemaker fill cup and bearing assembly directs water from the inlet tube into the ice mold and provides the pivot point for the shutoff arm. Replacing a cracked or missing cup helps stop leaks, misdirected fills, and inconsistent ice production.

• Channels incoming water into the ice mold to prevent splashing and overfilling
• Provides the pivot/bearing for the ice level (shutoff) arm
• Helps maintain consistent cube size and reliable icemaker shutoff
• Typical symptoms: water or ice buildup under the icemaker, overfilling or hollow/irregular cubes, or a loose/binding shutoff arm

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and detach the icemaker to access the side-mounted cup
• Position the new cup directly under the fill tube; secure with existing hardware and verify the shutoff arm pivots freely in the bearing
• Restore power and water; run a test fill and check for leaks

Size: 8 x 1-1/4 inch.

The Drawer Gear Kit is an OEM part for Whirlpool refrigerators. This kit is designed to repair or replace the gear system that operates the sliding or rolling mechanism of a refrigerator drawer. It includes all necessary gears and components to ensure smooth operation of the drawer, allowing for easy access to fruits, vegetables, meats, or other items stored inside.

Causes for replacement can vary, including wear and tear from regular use, damage from overloading the drawer, or accidental breakage. Over time, the gears can wear down, lose teeth, or become misaligned, leading to poor drawer performance.

Symptoms of a bad Drawer Gear Kit include:

• The drawer is difficult to open or close
• A grinding or clicking noise when the drawer is moved
• The drawer sticks or jams during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This cradle supports and secures the freezer basket inside the compartment, keeping the basket properly aligned for smooth sliding and storage. Fits the OEM mounting locations and restores original basket support. What it does:

• Holds the freezer basket in the correct position to prevent sagging or misalignment
• Provides a stable mounting point so the basket slides smoothly
• Replaces cracked, broken, or missing bracketry that can cause rattling or uneven basket movement
• Helps restore proper function after impact or wear to the basket support

• Disconnect power to the appliance before servicing to reduce shock risk
• Remove the freezer basket and any obstructions to access the mounting area
• Typically secures with existing screws/clips; retain original fasteners when possible

This freezer basket cradle bracket supports and secures the freezer basket so it slides and rests correctly in the freezer compartment. Replaces a worn or broken cradle to restore proper basket alignment and support. What it does

• Holds the freezer basket in the correct position so the basket slides smoothly on its track
• Keeps the basket from tipping or sagging when loaded
• Prevents the basket from coming loose or falling out of the compartment
• Reduces noise and binding caused by a damaged or missing cradle

• One freezer basket cradle bracket

• Disconnect power to the refrigerator before starting any repair
• Access the cradle by removing the freezer basket and any obstructing panels or shelves
• Fasten with the existing screws or clips; the basket slides smoothly after installation
• Wear gloves and eye protection; for model-specific instructions

Replacement power cord that restores the electrical connection so your appliance receives safe, consistent power. Use this cord to replace frayed, damaged, or non-functioning cords and help return reliable operation to the appliance. What it does:

• Restores the appliance's main power connection so it can turn on and operate.
• Commonly used when a cord shows frayed insulation, exposed wires, scorch marks, or intermittent power.
• Can address issues where the appliance does not power on due to a broken or damaged cord.
• Replaces cords with loose or damaged plug/terminal connections that may cause sparking or overheating.

• Always disconnect power at the breaker or unplug the appliance before inspecting or replacing the cord.
• Verify the cord configuration (3-prong vs. 4-prong) and terminal type match your appliance and local electrical code before installation.
• Use proper strain relief and routing to prevent pinching; secure all connections and replace any damaged terminal hardware.

This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The Drawer Gear Kit is an OEM part for Whirlpool refrigerators. This kit is designed to repair or replace the gear system that operates the sliding or rolling mechanism of a refrigerator drawer. It includes all necessary gears and components to ensure smooth operation of the drawer, allowing for easy access to fruits, vegetables, meats, or other items stored inside.

Causes for replacement can vary, including wear and tear from regular use, damage from overloading the drawer, or accidental breakage. Over time, the gears can wear down, lose teeth, or become misaligned, leading to poor drawer performance.

Symptoms of a bad Drawer Gear Kit include:

• The drawer is difficult to open or close
• A grinding or clicking noise when the drawer is moved
• The drawer sticks or jams during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small button-style plug fills and finishes an unused hole or access opening on the appliance, restoring a clean appearance and helping keep out dust and moisture. It's a simple cosmetic and protective replacement. What it does:

• Covers and seals unused holes or trim openings to improve appearance
• Helps block dirt, lint, and moisture from entering panels or compartments
• Replaces worn or damaged plugs that no longer seat securely
• Provides a flush, finished look matching appliance trim

• Disconnect power to the appliance before servicing for safety.
• Typically snaps or presses into place; use a flat tool to carefully remove an old plug if needed.
• Avoid excessive force to prevent damage to surrounding trim or clips.

This top hinge assembly mounts at the upper corner of the cabinet to support the refrigerator door and allow smooth pivoting. Replacing a worn hinge restores proper door alignment and helps the gasket seal reliably.

• Supports the door's weight at the top and provides the pivot point
• Helps maintain correct door alignment and closing action
• Aids in consistent gasket contact to minimize warm-air leaks
• Common symptoms of a failing hinge: door sagging or rubbing, uneven gaps, poor sealing, squeaks or popping noises

• Unplug the refrigerator and, if applicable, turn off the water supply
• Have a helper support the door; remove the hinge cover, then the hinge screws
• Note/mark hinge position and transfer any shims or spacers from the original hinge
• Reinstall and adjust for even gaps; verify the door swings freely and the gasket seals all around

This top hinge cover protects and conceals the refrigerator's upper hinge assembly for a finished appearance and to keep dirt and debris out of moving parts. It restores a clean look and helps prevent contact with sharp edges. What it does:

• Covers the top door hinge to improve appearance and hide hardware
• Shields the hinge area from dust, crumbs and spills that can affect movement
• Helps prevent accidental contact with the hinge and sharp edges
• Matches the original color and fit for a seamless repair

• One top hinge cover

• Typically snaps or screws into place over the upper hinge; retain original fasteners if present
• Two-person support recommended when removing or reattaching the door to avoid damage or injury
• Disconnect power only if required by your appliance model and inspect the model-specific service instructions
• Inspect hinge and surrounding parts for wear while cover is off; replace damaged components as needed

This top hinge cover protects and conceals the refrigerator/washer hinge area for a clean, finished look while preventing dirt buildup and reducing contact with sharp edges. It restores appearance and keeps the hinge area shielded. What it does:

• Covers the top hinge assembly to protect the hinge and surrounding cabinet
• Helps prevent debris and moisture from contacting hinge components
• Improves appliance appearance by concealing mechanical parts
• Reduces the risk of accidental scrapes on exposed hinge edges

• Disconnect power and empty/secure any nearby doors or panels before beginning.
• Typically snaps or screws into place over the hinge; align carefully to avoid damage.
• Use recommended fasteners and avoid over-tightening to prevent cracking.

This factory screw secures appliance panels, brackets, or trim. Replace a missing, stripped, or rusted fastener to restore a tight, rattle-free fit and keep components properly aligned in the intended OEM locations. What it does

• Fastens brackets, trim, or sheet-metal panels to the chassis
• Replaces worn, rusted, or missing hardware
• Helps eliminate loose panels, vibration, and misalignment
• Restores proper fit and support for affected assemblies

• Includes 1 screw

• Disconnect power and shut off gas/water before servicing
• Match this screw to the original location; lengths and thread types can vary by position
• Use the correct driver; start by hand and do not overtighten to avoid stripping threads
• If the receiving threads are damaged, repair/replace the mating clip or insert before installing

This leveling foot adjusts the height and balance of your appliance so it sits stable and operates correctly. Replacing a worn or missing foot helps reduce vibration, noise, and unwanted movement during use.

• Supports and stabilizes the appliance by adjusting height at the base
• Helps correct rocking, excessive vibration, or walking during operation
• Can resolve rattling noises caused by uneven footing
• Aids proper door alignment and smooth operation when leveled

• Unplug power and shut off water (if applicable) before servicing
• Tilt or carefully raise the appliance to access the foot
• Thread the new foot in by hand; adjust to level with a bubble level
• Tighten any jam nut or lock mechanism if present; recheck level after placement
