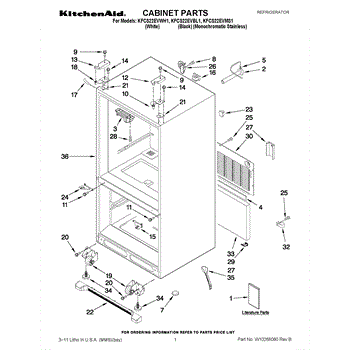

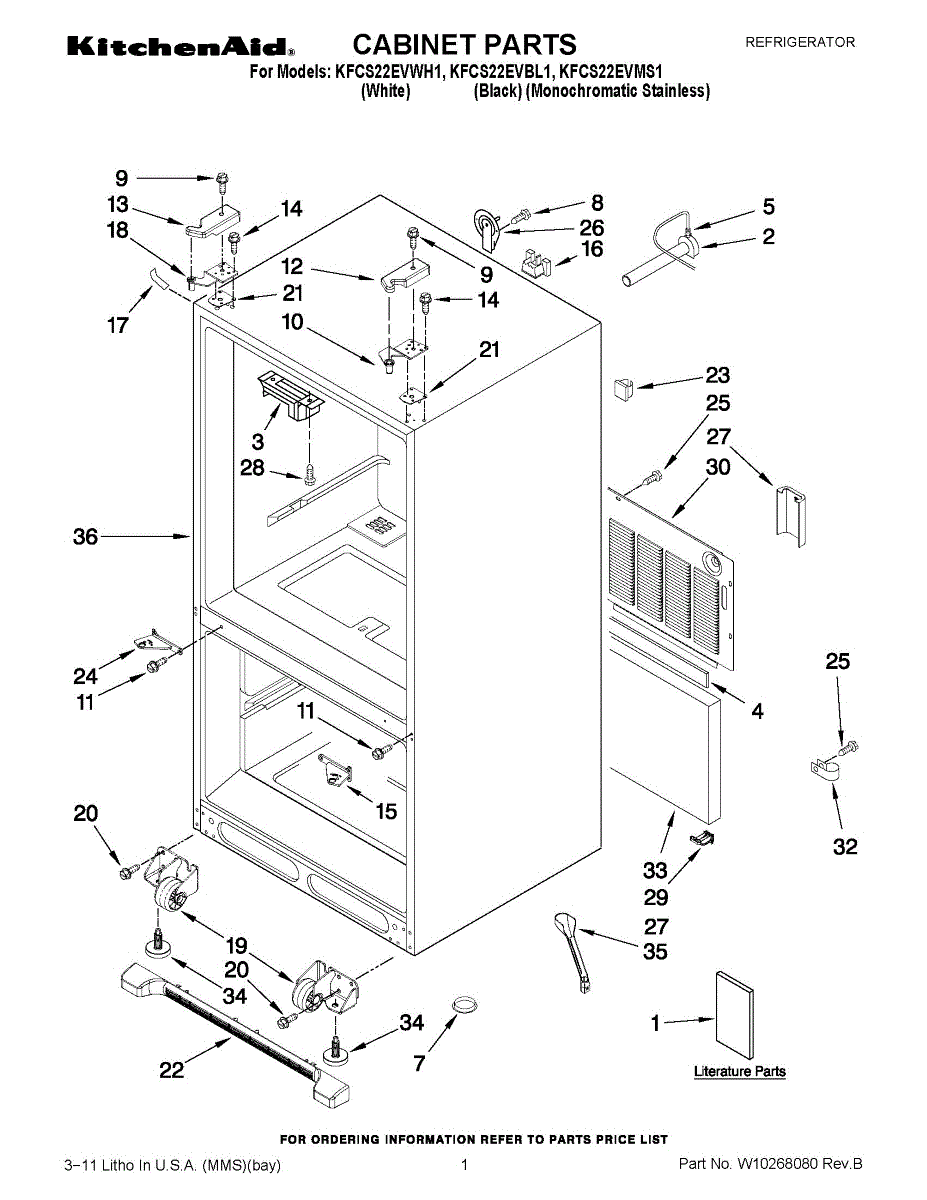

Parts for Kitchenaid KFCS22EVWH1: 01 - Cabinet Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Replacement icemaker fill tube that directs water from the valve to the ice tray. Replace if cracked, leaking, or causing water to freeze in the freezer.

A replacement trim piece for the breaker area that restores a finished look and helps shield the breaker opening. Use this trim to replace cracked, warped, or missing pieces and improve appliance appearance and safety. What it does:

• Covers the breaker opening and finishes the appliance exterior.
• Replaces damaged, cracked, or missing trim that leaves internal components exposed.
• Helps reduce dirt entry and accidental contact with the breaker area.
• Restores a neat, factory appearance to the appliance.

• Disconnect power at the home's breaker panel before servicing the appliance.
• Installation typically requires basic hand tools; follow the OEM service manual for exact steps.
• Handle edges carefully; damaged trim can have sharp edges.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Mounting screw for refrigerator assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repairs or maintenance.

Door hinge for bottom-mount refrigerators. Installs at the top or bottom of the door to support proper alignment. Replace if cracked or worn.

Mounting screw for refrigerator assembly. Secures components and panels in place. Replace if screw is stripped, missing, or no longer holding tight.

Replacement cover for bottom-mount refrigerators. Restores appearance when original is cracked, broken, or missing. Direct-fit component.

Cap cover for bottom-mount refrigerators. Replaces cracked, broken, or missing covers. Cosmetic part that snaps into place on your appliance.

Refrigerator cap cover installs on various interior or exterior components. Replace this part if the original is cracked, broken, or missing.

Replacement cover for bottom-mount refrigerators. Conceals internal components and provides a finished appearance. Order when original is cracked or missing.

Replacement cover cap for your refrigerator. Installs to protect internal components or conceal mounting hardware. Order a new cap if yours is cracked, broken, or missing.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This door hinge secures and pivots the refrigerator door so it opens and closes smoothly, restoring proper door alignment and seal. It's a direct-fit replacement when the original hinge is bent, worn, or broken. What it does

• Replaces a damaged or bent hinge to stop door sag and restore proper alignment
• Allows the door to pivot smoothly for reliable opening and closing
• Helps the door form a tight seal to maintain consistent cooling
• Appropriate when you see rubbing, uneven gaps, or the door dragging

• One door hinge

• Unplug the appliance and empty or support the door before removing the hinge
• Keep original fasteners unless replacement hardware is explicitly listed
• Align and secure the door while tightening to prevent misalignment or damage

Replacement door hinge for bottom-mount refrigerators. Secures and supports the refrigerator door. Replace if hinge is cracked, broken, or worn.

Door hinge hardware for bottom-mount refrigerators. Installs on cabinet to support door swing. Replace if hinge is cracked, bent, or damaged.

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power

Black plastic corner cover replaces damaged or missing exterior trim on your refrigerator. Restores finished appearance and protects edges from wear.

Replaces missing or damaged corner trim filler on your refrigerator. Restores a clean, finished look to interior or exterior cabinet seams and edges.

Top left door hinge assembly for bottom-mount refrigerators. Secures the upper refrigerator door to the cabinet. Replace if cracked, broken, or worn.

Front left roller assembly supports your refrigerator and enables smooth movement for cleaning. Replace when damaged or worn from moving. Verify fit with your model.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

Hex head sheet metal screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, corroded, or stripped screws.

Thin spacer shim that aligns and levels internal refrigerator components. Replace if worn, missing, or damaged to restore proper fit and clearances.

Flat shim spacer that fills small gaps between refrigerator components. Replace when worn, missing, or cracked to restore proper alignment and reduce noise.

Covers the lower front opening of your refrigerator. Replace this grille when the original is cracked, broken, or missing to restore a finished look.

Front kickplate grille panel that installs at the base of your refrigerator for a finished look. Replace if cracked, broken, or clips are damaged.

Covers the base of your refrigerator to protect the lower ventilation area. Replace if cracked, broken, or missing. Snaps into place in minutes.

Replacement refrigerator door hinge that mounts between the cabinet and door. Restores proper alignment when the original is worn, cracked, or broken.

Door hinge hardware for bottom-mount refrigerators. Installs on cabinet to support door swing. Replace if hinge is cracked, bent, or damaged.

Door hinge hardware for bottom-mount refrigerators. Installs on cabinet to support door swing. Replace if hinge is cracked, bent, or damaged.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Protective cover for water valves and inlet hoses. Replace if cracked, broken, or missing to shield components from debris and accidental contact.

Plastic cover cap that protects the water valve connection on your refrigerator. Replace if cracked, broken, or missing to prevent debris buildup.

Factory screw that secures panels, brackets, and hardware inside your refrigerator. Replace missing or stripped screws to eliminate rattles and loose fits.

This Clamp-Tube secures small appliance tubing and helps maintain a watertight connection so hoses stay in place and reduce leaks or movement. Durable metal construction designed to hold tubing firmly at fittings. What it does:

• Secures water or drain tubing to fittings to prevent disconnection and leaks
• Reduces hose movement and vibration that can cause wear or chafing
• Helps maintain consistent water flow by keeping connections tight
• Common symptom: loose or leaking tubing, rattling or intermittent water flow

• One tube clamp

• Disconnect power and shut off water supply before starting any repair
• Slide clamp over tubing then position at fitting and tighten with pliers; avoid over-tightening
• Inspect tubing and fittings for damage and replace if cracked or worn

Back cover panel for bottom-mount refrigerators. Replaces cracked, broken, or missing rear cover. Installs on the back exterior of the unit.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

Adjustable leveling leg for refrigerators and freezers. Installs at base corner to stabilize appliance on uneven floors. Replace if broken or stripped.

Guides condensation from the defrost cycle to the evaporation pan. Replace if cracked, clogged, or causing water leaks and ice buildup in the freezer.
