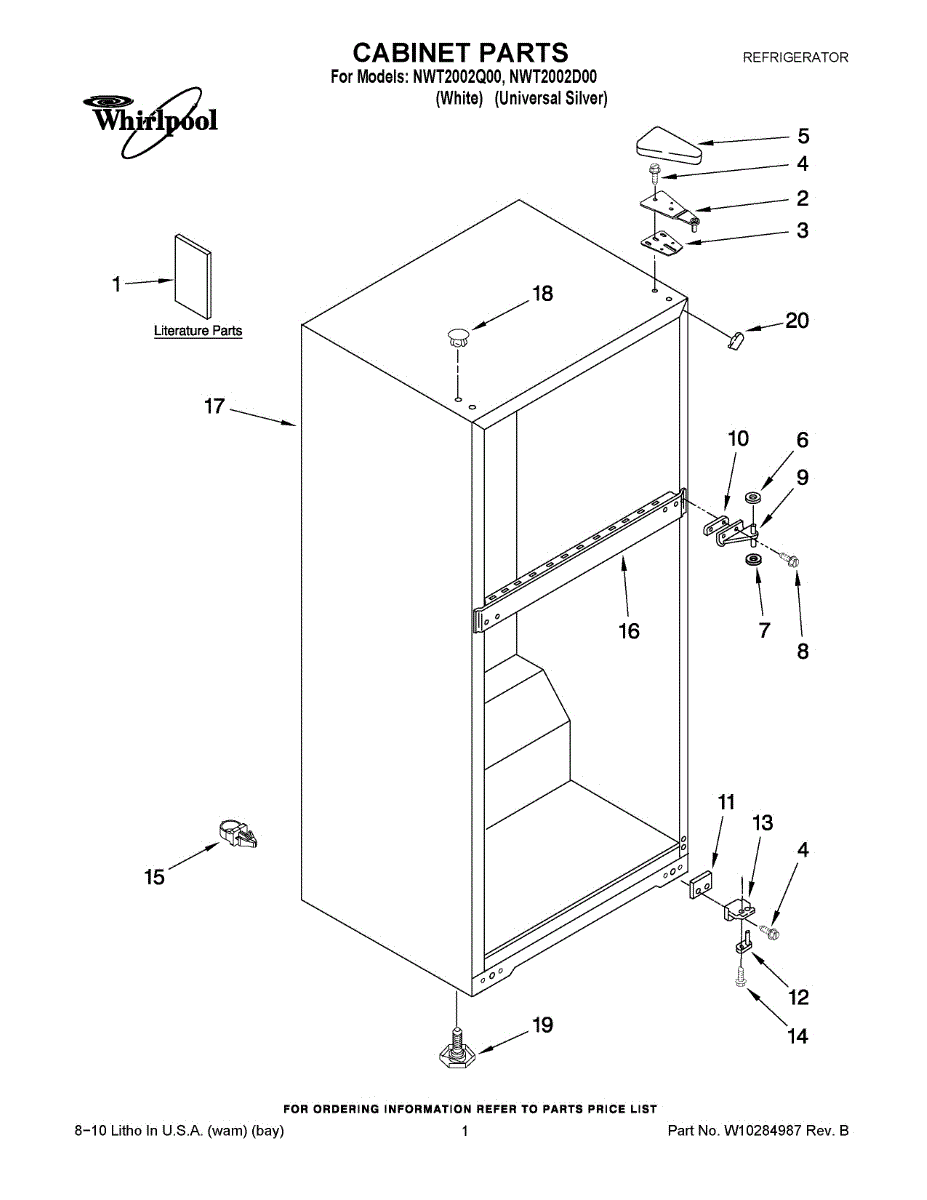

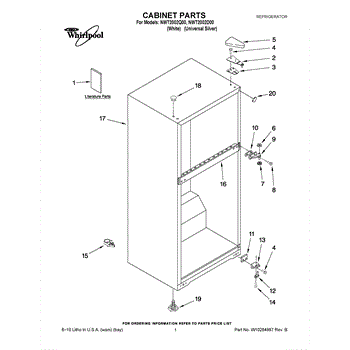

Parts for Whirlpool NWT2002D00: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This shim is a thin flat spacer used to align or space appliance components for proper fit and stable operation. It restores correct spacing to reduce rubbing, vibration, or misalignment during repairs and maintenance. What it does:

• Provides a precise gap or alignment between panels, housings, or assemblies
• Helps stop rubbing or scraping noises caused by misaligned parts
• Reduces vibration by stabilizing mating surfaces
• Used when replacing worn or missing shims during panel, bracket, or trim repairs

• Disconnect power (and gas, if applicable) before starting any repair
• Position shim between mating surfaces, then secure fasteners snugly—do not over-tighten
• Inspect surrounding parts and fasteners; replace any that are damaged

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

White.

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This washer is a small hardware spacer used in appliance assemblies to distribute load and maintain proper spacing under a fastener or rotating component. Replacing a worn or missing washer helps restore alignment, reduce noise, and keep parts secure.

• Distributes fastener load to protect mating surfaces
• Maintains spacing/alignment between components
• Can act as a thrust surface to reduce friction and wear
• Typical symptoms: looseness or wobble, scraping/squeaking noises, or parts that won't stay tight

• Disconnect power; shut off gas and/or water as applicable
• Note the order/orientation of washers, spacers, and clips during disassembly; take a photo for reference
• Inspect related parts (retainers, bushings) and replace if worn
• Tighten fasteners per manufacturer guidance; avoid overtightening and verify smooth operation after reassembly

This shim-hinge is a small replacement spacer used with the door hinge assembly to correct door fit and alignment. It helps restore an even gap and proper door seating for reliable closing and heat containment. What it does:

• Provides precise spacing on the hinge to correct a misaligned or uneven door
• Helps eliminate door sag, binding, or uneven gaps that prevent full closure
• Restores proper door seal alignment for consistent cooking or refrigeration performance
• Works as part of the hinge assembly to maintain correct door geometry

• Disconnect power or gas supply and support the door before removing hinge components
• Remove the hinge/door per the appliance's OEM instructions; install shim in the same orientation shown in the parts diagram
• Use basic hand tools; avoid forcing parts—confirm fit before reassembling

This door hinge is a direct-fit replacement that supports and guides the appliance door for smooth opening and reliable closing, restoring proper alignment and operation. Ideal when a worn or damaged hinge causes sagging or binding. What it does:

• Secures the door to the cabinet while allowing smooth swinging motion
• Restores proper door alignment to improve sealing and fit
• Reduces binding, scraping, or uneven gaps caused by a worn hinge
• Helps stop door sagging or misclosure that can affect performance

• Door hinge

• Disconnect power and remove any items from the door before starting
• Use appropriate tools and protect finished surfaces from scratches
• Support the door during removal/installation; a second person may be needed
• Reuse original mounting hardware if undamaged; verify door alignment after installation

This replacement door hinge secures the appliance door to the cabinet and provides a reliable pivot for smooth opening and closing. It restores proper door alignment and helps maintain a tight seal for optimal performance. What it does:

• Replaces a worn, bent, or broken hinge to stop door sagging and misalignment
• Restores proper door pivoting so the door opens and closes smoothly
• Helps correct gaps that can cause poor sealing or temperature issues
• Can reduce stress on latch and gasket by returning the door to correct alignment

• One door hinge

• Disconnect power to the appliance before beginning service
• Support the door while removing hinge fasteners to prevent dropping or damage
• Use appropriate hand tools; inspect mounting screws and strike plates and replace if damaged
• After installation, check door alignment and adjust as needed for a snug, even seal

Screw with a 10-32 thread that secures panels and internal components in household appliances, providing a simple replacement to restore proper fit and reduce rattling or loose parts. Use when a missing or damaged screw causes loose trim or vibration. What it does:

• Fastens panels, brackets and trim to restore secure fit and reduce noise or movement.
• Replaces missing, stripped or damaged screws that cause loose or misaligned parts.
• Matches a 10-32 thread commonly used on appliance assemblies.
• Helps prevent further wear by restoring correct fastening at the original attachment points.

• Disconnect power and water to the appliance before servicing.
• Use the correct driver and engage threads carefully to avoid cross-threading.
• Do not overtighten — tighten just enough for a secure fit to prevent stripping.
• If threads are damaged, replace the mating fastener or insert rather than forcing this screw.

A small retainer clip that secures panels, hoses or wiring to keep components in place and reduce noise from loose parts. Replacing a worn or broken clip restores proper fit and helps prevent intermittent contact or rattling. What it does

• Secures trim, panels, hoses or wire harnesses to mounting points to prevent movement.
• Keeps components aligned so switches and seals engage correctly.
• Stops rattling or vibrating noises caused by loose parts.
• Helps prevent abrasion or chafing of wires and hoses by holding them away from edges.

• Install by snapping or sliding the clip into the factory mounting slot; use needle-nose pliers if needed.
• Power off and unplug the appliance before accessing internal parts.
• Inspect surrounding mounts and mating tabs for damage; replace if worn for a secure fit.
• If removal is difficult, apply a small amount of penetrating lubricant and work carefully to avoid breaking adjacent plastic.

Color: white.

An adjustable leveler that supports and raises or lowers the appliance to help stabilize it on uneven floors. Restores proper alignment to reduce rocking, vibration, and door misalignment for improved performance and safety. What it does:

• Provides height adjustment to level the cabinet and prevent rocking
• Helps doors close and seal correctly by correcting leaning or unevenness
• Reduces vibration and movement that can cause noise or wear
• Simple turn-to-adjust design for fine tuning appliance position

• Unplug the appliance (and shut off water supply for units with plumbing) before working nearby
• Support the appliance when adjusting so it does not tip; use a helper or appliance dolly as needed
• Turn the leveler by hand or with a wrench; adjust both front/back or left/right sides evenly and re-check with a level
