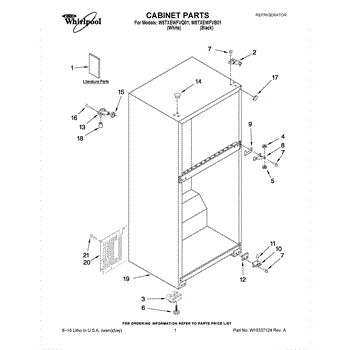

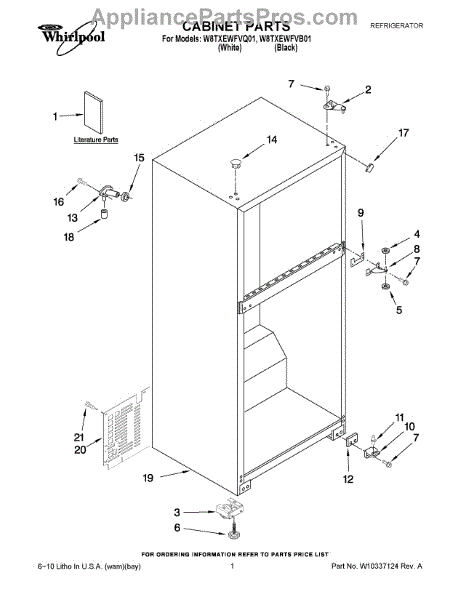

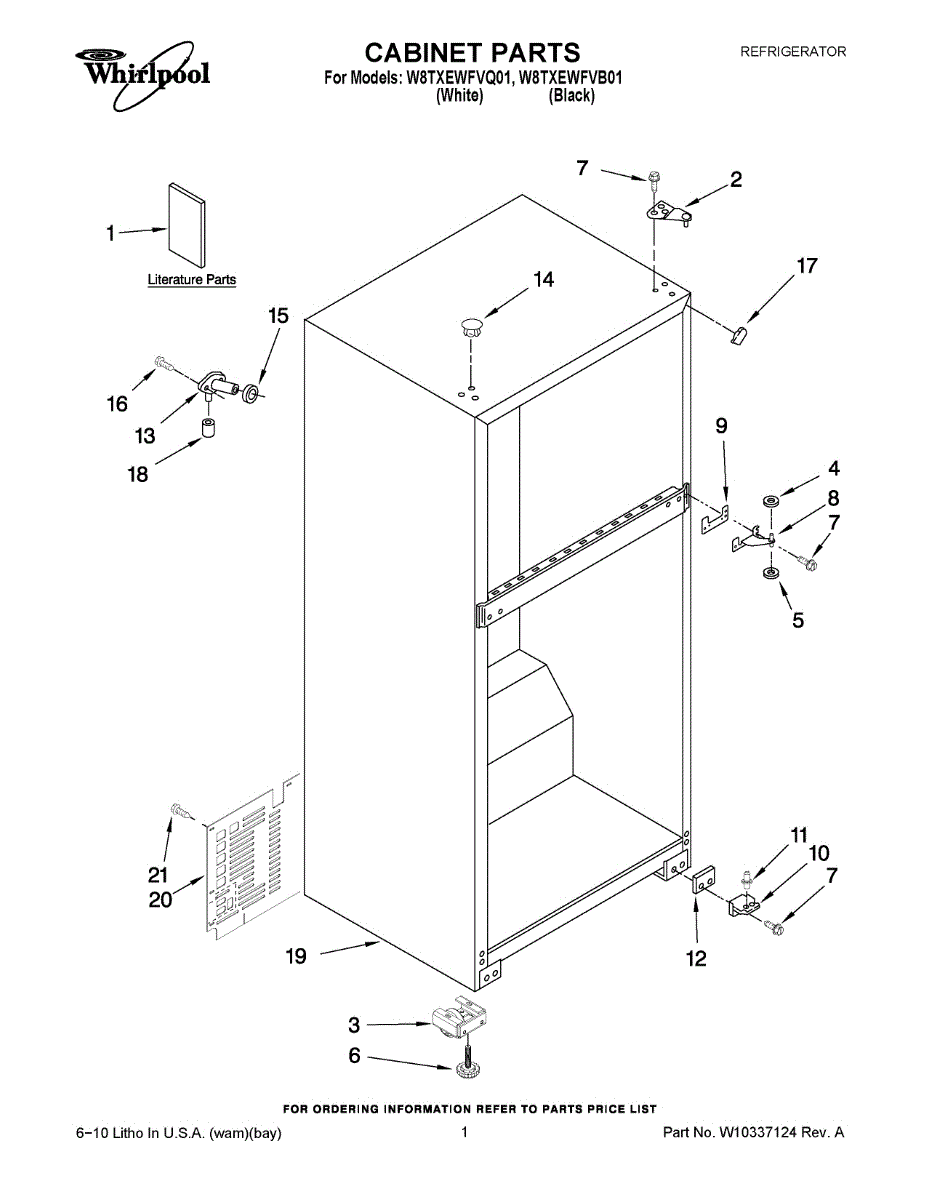

Parts for Whirlpool W8TXEWFVB01: 01 - Cabinet Parts

Replaces the upper butt hinge assembly that mounts to the cabinet and supports your freezer or refrigerator door. Needed when hinge is cracked or worn.

This is a small roller wheel that mounts to the front underside of the refrigerator cabinet, allowing it to roll smoothly when repositioning the unit. It supports the weight of the refrigerator and enables easy movement for cleaning or installation. Replace this roller if it is cracked, worn flat, or if the refrigerator wobbles, sits unevenly, or is difficult to slide in and out of its alcove.

Flat washer used on refrigerator door hinge assembly. Reduces friction and distributes load for smooth door operation.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

Replacement screw for refrigerators. Secures panels, brackets, and internal components. Install when original is missing, stripped, or corroded.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Replacement center hinge for refrigerator doors. Mounts between upper and lower doors to provide support and alignment. Replace if cracked or worn.

Door hinge butt for top-mount refrigerators. Mounts between cabinet and door to support hinge pin assembly. Replace if cracked, broken, or worn out.

Refrigerator door hinge pin that creates the pivot point for smooth door opening and closing. Replace if worn, damaged, or missing due to door stress.

Door hinge shim adjusts refrigerator door height and alignment at the lower hinge. Replace when worn to restore smooth closing and proper gasket seal.

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: white.

Black plastic hole plug endcap for refrigerator interior panels. Covers mounting holes and openings for a finished look. Replaces missing or broken caps.

This is a rubber gasket that seals the connection between the water fill tube and the ice maker assembly inside the freezer compartment. It prevents water from leaking around the fill tube during the ice maker's fill cycle. Replace this gasket if you notice water dripping or ice buildup around the fill tube area, or if water is leaking onto the freezer floor during ice production.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Black filler cap for refrigerator side panels. Replaces cracked, broken, or missing caps. Installs on top-mount refrigerator exterior trim for a clean finish.

White plastic filler cap for refrigerator door panels. Replaces broken, cracked, or missing caps. Installs into door trim to complete appearance.

Plastic cap for freezers, ovens, and refrigerators. Replaces cracked, broken, or missing caps. Direct fit component for secure installation.

Size: 8-18 x 1/2 inch.
