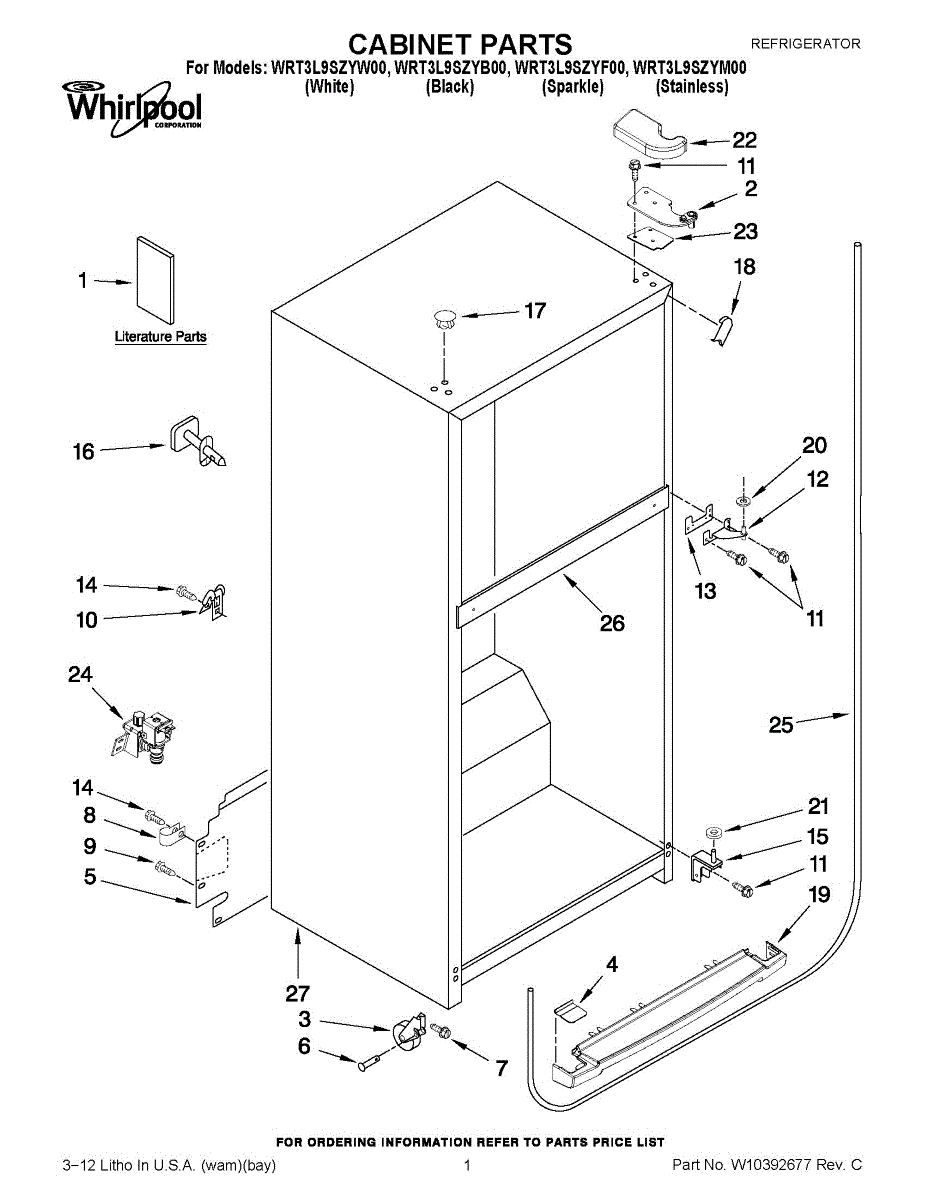

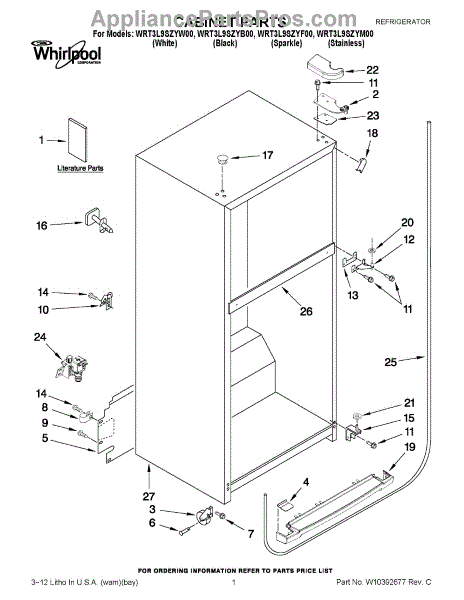

Parts for Whirlpool WRT3L9SZYF00: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Front cabinet roller wheel for refrigerators. Mounts under the cabinet to allow smooth rolling and positioning. Replace if cracked, broken, or worn out.

Replace a cracked, broken, or missing grill end cap on your refrigerator. This trim piece installs at the end of the base grille for a finished look.

Decorative end cap that covers the edge of the refrigerator's front grille. Replace if cracked, broken, or missing for a clean, finished look.

This black plastic grille covers the toe kick area at the bottom front of your refrigerator, providing a finished appearance while allowing airflow to the condenser. It replaces a damaged, cracked, or missing lower front cover that may cause poor cooling performance or an unsightly gap.

This is a rear panel cover that mounts to the back of the freezer compartment, typically covering the evaporator coils and related components. It helps direct airflow within the freezer to ensure even cooling. Replace this panel if it is cracked, warped, or heavily frosted over - which can indicate airflow problems leading to uneven temperatures or excessive frost buildup inside the freezer.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

Replacement screw for securing components inside your refrigerator. Needed when original screws are stripped, lost, or corroded during repairs.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Center door hinge connects and supports refrigerator doors. Replace if bent, broken, or lost during moving. Guides smooth door operation and alignment.

Center hinge spacer maintains proper door alignment and spacing. Replace if your refrigerator door sags or seal fails. Confirm fit with your model.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Supports the refrigerator door at the bottom pivot point. Replace if your hinge is rusted, bent, cracked, or broken to restore proper door alignment.

Black plastic hole plug endcap for refrigerator interior panels. Covers mounting holes and openings for a finished look. Replaces missing or broken caps.

Color: white.

Grey button plug cap for refrigerators and freezers. Covers screw holes or mounting points on interior or exterior panels. Replace if cracked or missing.

Covers seam gaps near door hinges on refrigerator cabinets. Replace if missing, peeling, or damaged to prevent air leaks and maintain appearance.

Cabinet filler trim closes the gap between your refrigerator and surrounding cabinetry. Replace if cracked, broken, or missing to restore appearance.

Trim piece that covers and finishes the outer corner where filler panels meet on your refrigerator. Replace if cracked, broken, or missing.

Front grille for bottom-mount refrigerators. Replaces cracked, broken, or missing grilles. Covers and protects the lower front section.

Replace a cracked or missing toe grille to restore your refrigerator's finished appearance and maintain proper airflow to the condenser compartment below.

Black toe grille panel for bottom-mount refrigerators. Covers the base opening and leveling feet. Replace if cracked, broken, or clips are damaged.

Small plastic washer that supports the refrigerator door hinge assembly. Replace if worn, cracked, or missing to restore proper door alignment.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

Replacement hinge cover cap for refrigerator door. Restores finished appearance after door reversal or replaces cracked, broken, or missing covers.

Replace a cracked or missing refrigerator door hinge cover cap. This plastic cover installs on top of the hinge assembly for a finished look.

This is a black plastic cover that fits over the right-side door hinge on the refrigerator. It provides a finished appearance by concealing the hinge hardware and helps protect the hinge mechanism from dust and debris. Replace this cover if it is cracked, broken, or missing, leaving the door hinge exposed.

Replace your refrigerator's damaged or missing cover cap. This protective cover installs over internal components to restore a finished appearance.

Plastic cover cap for refrigerator installation. Replaces cracked, broken, or missing covers. Snaps into place to provide finished appearance.

This is a grey plastic hinge cover that snaps over the left hinge assembly on the top or bottom of a refrigerator door. It conceals the hinge hardware for a clean, finished appearance. Replace this cover if it is cracked, discolored, or missing, which can leave the hinge exposed to dust and moisture.

Corrects hinge spacing to realign refrigerator doors and eliminate rubbing or uneven gaps. Replace when doors lean, don't close squarely, or show poor seal contact. Verify fit by model number before ordering.

Ice maker not filling or water dispenser not working? This water inlet valve controls flow to both. Easy 30-minute DIY fix for most refrigerators.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
