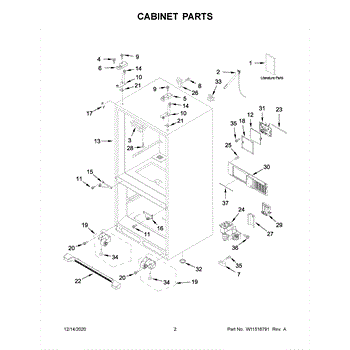

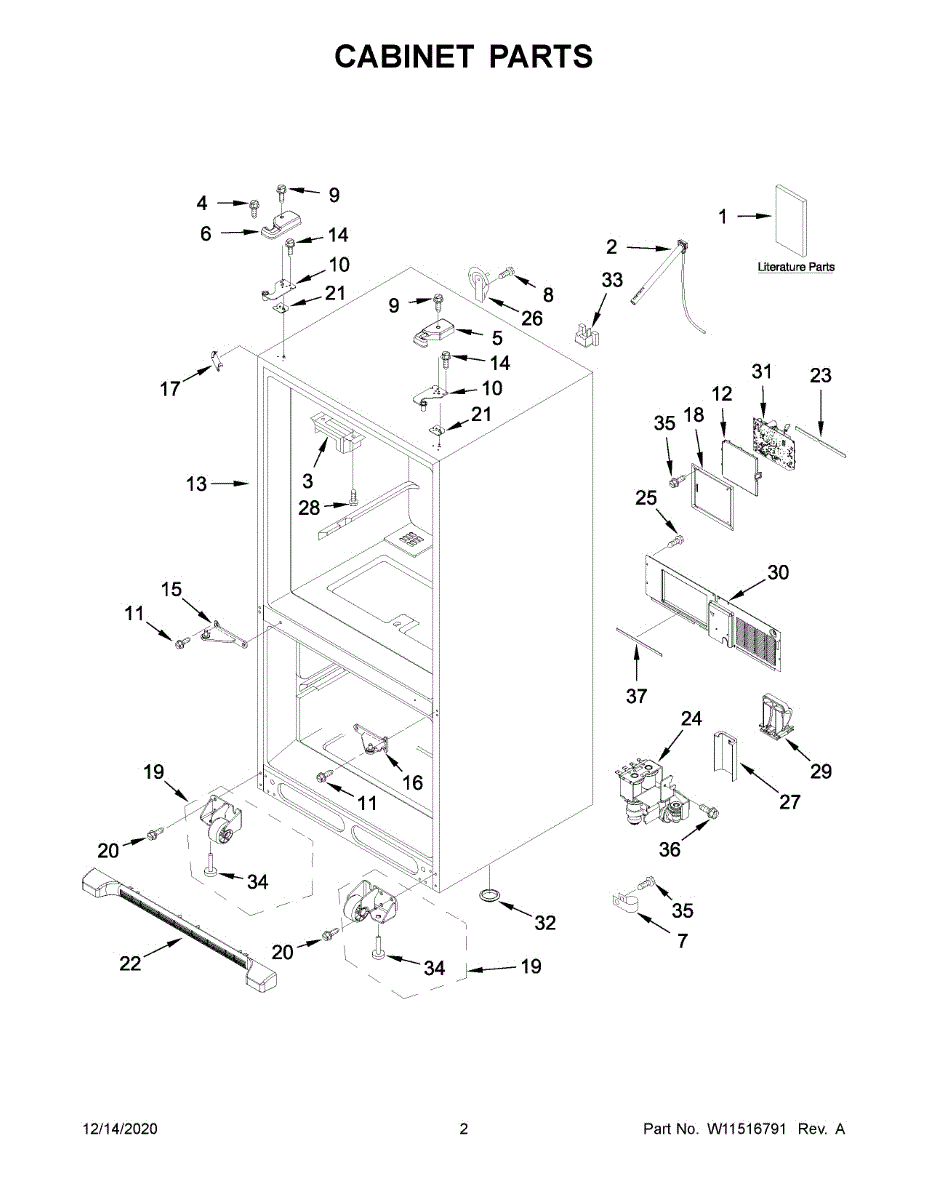

Parts for Kitchenaid KRFF302EBS02: Cabinet Parts

This replacement cover protects and conceals the appliance's control board and related electronics, helping prevent debris intrusion and accidental contact. It restores the appliance's original internal protection and appearance. What it does

• Shields the control board and wiring from dust, lint, and small debris
• Helps prevent accidental contact with electrical components
• Maintains proper component placement and internal airflow paths
• Useful when repairing or replacing control assemblies or wiring

• One replacement cover

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove access panels as needed to access the control area; handle panels gently to avoid breaking tabs
• Align the cover with mounting points and secure with original fasteners; do not overtighten
• If you see damaged wiring or connectors, stop and address electrical damage before reassembling

This door hinge secures and guides a refrigerator door, restoring smooth opening, closing, and proper door alignment. It's a direct-fit replacement designed to help stop door sag, rubbing, or gaps that let cold air escape. What it does:

• Supports the refrigerator door and keeps it aligned on the cabinet
• Allows the door to pivot smoothly when opening or closing
• Helps maintain a proper seal to preserve internal temperature
• Common symptom: door droops, rubs, binds, or won't stay closed

• One door hinge

• Installation requires basic hand tools; follow OEM instructions for correct alignment
• Keep door supported or use a second person while replacing hinges to prevent injury or damage
• Inspect mounting screws and hinge mating surfaces; replace any damaged fasteners

This door hinge is a direct-fit replacement part that restores proper door alignment and smooth opening/closing for compatible Whirlpool appliances. Replacing a worn or damaged hinge helps prevent door sag, gaps, and uneven sealing. What it does

• Supports and pivots the appliance door so it opens and closes smoothly
• Restores correct door alignment to ensure an even seal and temperature retention
• Stops door sagging or misalignment that can cause rubbing or uneven wear
• Reduces noise or binding during door movement when the hinge is worn

• Unplug the appliance or disconnect power before beginning any repairs.
• Support the door while removing or installing the hinge to prevent damage or injury.
• Keep original mounting hardware; use proper tools and basic mechanical skills.
• After installation, check door alignment and operation; adjust as needed for a tight, even seal.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This front base grille covers the lower toe area of the appliance, protecting internal components and channeling air through the condenser section. Replace a cracked or missing grille to restore a clean look and proper ventilation at the front. What it does:

• Covers the lower front area and helps direct airflow to the condenser
• Shields wiring and components from bumps, dust, and debris
• Helps reduce vibration noise when properly secured
• Common fix for a broken, warped, loose, or missing base grille

• 1 front base grille

• Disconnect power before servicing; turn off water supply if working near water lines
• Open doors as needed to access the grille fasteners
• Remove the old grille by releasing retaining clips or removing screws
• Align and secure the new grille using the existing mounting points; keep vents unobstructed

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It controls the flow of water to the ice maker and water dispenser, ensuring the appliance receives the right amount of water for ice production and dispensing. The valve opens and closes to regulate water flow, facilitating efficient operation of the refrigerator’s ice and water features.

You should replace this water inlet valve if it becomes clogged, damaged, or fails to operate correctly. Common causes of a bad valve include mineral buildup from hard water, wear and tear from regular use, or electrical issues that prevent the valve from opening or closing properly.

Symptoms of a bad water inlet valve include:

• No water to the ice maker or dispenser
• Slow or inconsistent water flow
• Leaks or drips from the valve area
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This electronic control board is the central module that runs your dishwasher's cycles. It controls power and timing so the unit fills, washes, drains, and dries correctly—restoring normal operation when the original board has failed.

• Manages cycle timing and options, routing power to the wash motor, drain pump, water inlet valve, and heating circuit
• Interfaces with sensors and the door latch to start and advance cycles
• Monitors faults to help protect components and ensure proper operation

• Disconnect power at the breaker and verify no voltage before service
• Access location varies by model
• Use ESD precautions; move connectors one at a time to the matching terminals
• After reassembly, run the unit's diagnostic/service cycle per the tech sheet to verify operation
