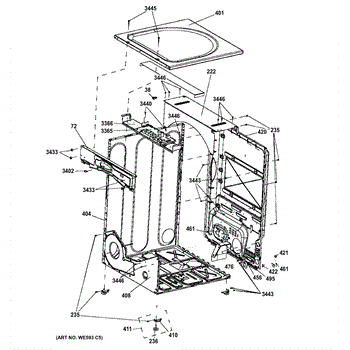

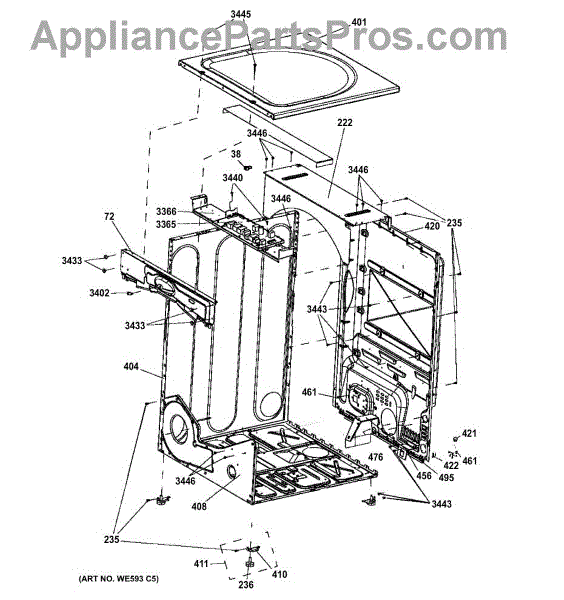

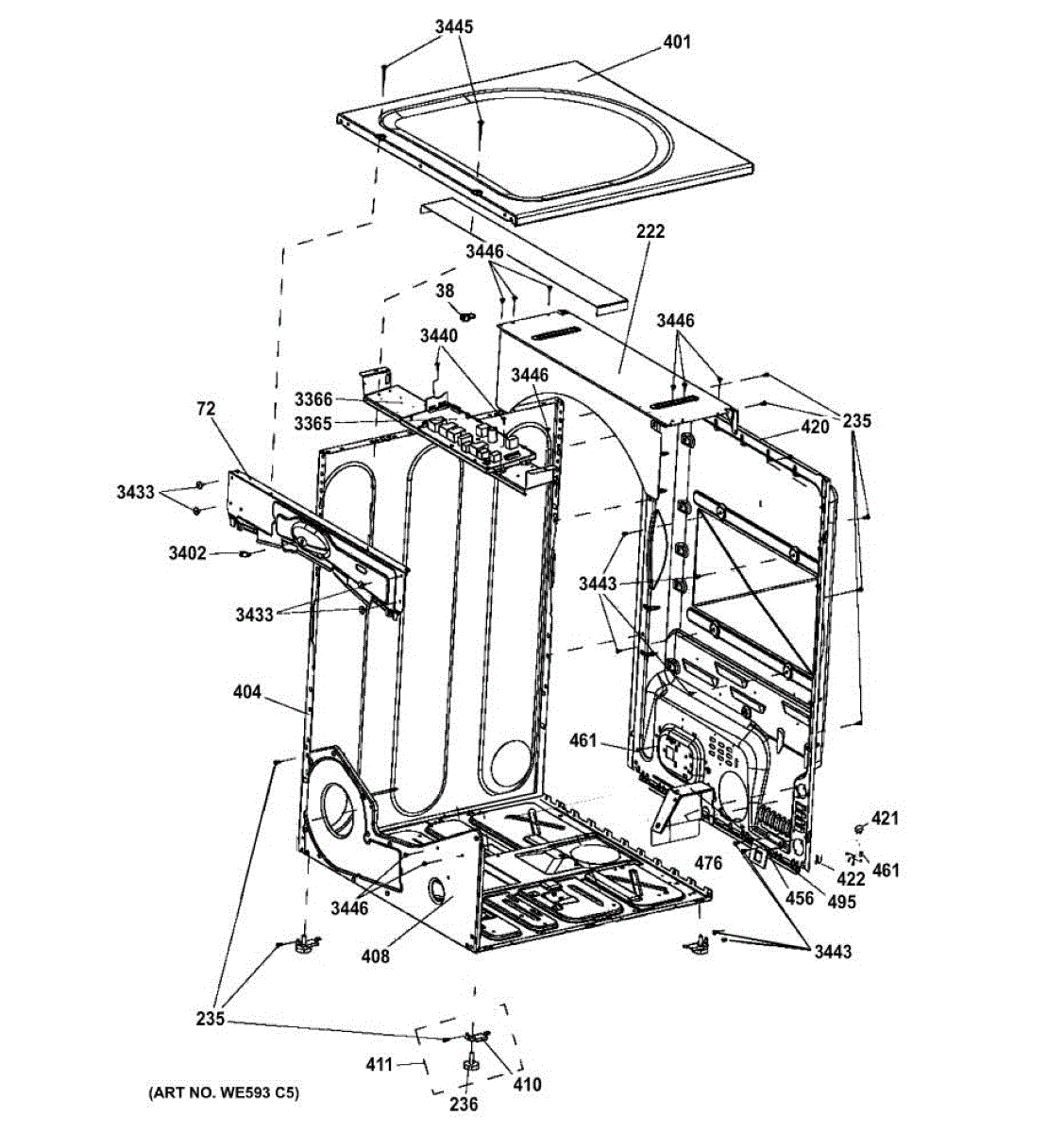

Parts for Ge GFDN245GL1BB: 04 - Cabinet & Top Panel Parts

Package of 12

Adjustable

This rear level leg bracket replaces the rear mounting bracket that secures a leveling leg to the appliance frame, restoring proper support and helping keep the appliance stable and level for safe, quiet operation. What it does:

• Secures the rear leveling leg to the appliance frame so the cabinet sits evenly
• Restores proper height and prevents the appliance from tilting backward
• Reduces rocking, wobbling, and vibration caused by a damaged or loose bracket
• Helps maintain safe, stable operation under normal load conditions

• Disconnect power (and gas supply if applicable) and move the appliance to a safe, accessible area before starting.
• Support the appliance cabinet so it cannot tip when the rear leg or bracket is removed.
• Use basic hand tools to remove and install the bracket; follow the appliance manufacturer's instructions.
• Inspect the leveling leg and front mounts while servicing; replace any worn or damaged hardware.

Rear bracket and leveling screw assembly.

This replacement rear panel and fuse cover protects the appliance's rear electrical area, shielding the fuse assembly and wiring while restoring safe access for service. It fits where the original rear fuse cover is installed. What it does:

• Shields the fuse housing and rear wiring from debris and accidental contact
• Helps prevent damage to the fuse area that can cause intermittent power or electrical faults
• Restores a secure cover when the original is cracked, warped, or missing
• Provides proper access for visual inspection and fuse replacement during service

• Disconnect power (unplug or switch off breaker) before installing.
• Use appropriate screws/fasteners; keep hands clear of sharp sheet-metal edges.
• Align cover over the fuse housing and secure firmly; inspect surrounding wiring before restoring power.

This 120V replacement power cord restores household current to gas ranges and ovens that use a corded connection for clocks, lights, igniters and controls. It provides a straightforward way to replace a damaged or worn cord and regain safe power to the appliance. What it does

• Supplies 120-volt power from the wall outlet to the range/oven's control system, clock and lights.
• Restores ignition and control functions when a frayed or broken cord prevents the appliance from receiving power.
• Replaces cords that show signs of burning, cracking, loose connections, or exposed wiring.
• Reduces risk of electrical faults caused by damaged insulation or terminals.

• One 120V power cord

• Disconnect power at the circuit breaker or unplug the appliance before starting; ensure the appliance is de-energized.
• Route and secure the cord to avoid pinching; tighten terminal screws to manufacturer torque recommendations.

Size: 8-32 t. Includes 12 screws.

Main power board that manages and distributes electrical power to an appliance's control components. Replaces a failed control board to help restore proper power delivery and core electrical functions. What it does

• Routes and regulates electrical power to the appliance's control circuits and modules.
• Restores operation when a faulty board causes loss of power to controls or motors.
• Addresses symptoms such as the appliance not powering on, control/display unresponsive, intermittent operation, or recurring electrical fault behavior.
• Works as the central power/control interface for related electrical functions.

• Disconnect power to the appliance before starting any repair.
• Handle the board by its edges and avoid touching components; protect against static discharge.
• Label and photograph wire harness locations before disconnecting for correct reassembly.

This main power board support is the mounting bracket that secures the appliance's main control board, helping maintain stable connections and prevent board movement that can cause intermittent power or control issues. Designed for direct OEM fit. What it does:

• Provides a secure mounting point for the main power/control board
• Keeps board aligned to prevent loose connectors and intermittent electrical contact
• Reduces vibration-related stress on solder joints and components
• Helps prevent damage from board shifting during use or transport

• One main power board support bracket

• Disconnect power at the breaker or unplug the appliance before starting any work
• Handle the control board carefully and avoid contact with circuit traces or components
• Use existing screws or hardware unless replacement fasteners are specified by the manufacturer

This replacement part is a screw, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This screw is compatible with many different areas of the appliance. Screws are generally used for keeping parts of the machinery secure and in place during use. It is possible that screws can become loose over time and need to be replaced after years of normal wear and tear.A new screw might be needed if the user notices parts of the appliances are becoming loose or are even falling off. This can be due to screws becoming stripped over time or if the appliance is bumped during transport. The repair for this part is simple. Remove the old screw and replace it with a new part. The only tools needed for this repair are a screwdriver and possibly pliers if the damaged screw is stuck in place.This screw is sold individually and is a genuine OEM replacement part sourced from the manufacturer.

A replacement screw used to secure panels and components in compatible GE appliances. Replacing missing or damaged screws restores secure mounting, reduces rattling, and helps keep parts aligned during normal operation. What it does:

• Fastens panels, trim, brackets, or small appliance components to maintain proper alignment and fit.
• Keeps internal parts secured to reduce vibration, rattling, or movement during use.
• Replaces stripped, rusted, or missing hardware that can cause loose or misaligned panels.
• Small, non-electrical part — does not affect electrical circuits or controls.

• Disconnect power and unplug the appliance before accessing internal parts.
• Use the properly sized screwdriver to avoid stripping the head; hand-start threads to prevent cross-threading.
• Tighten securely but avoid over-torquing; overtightening can strip threads or damage plastic components.
• Keep track of small parts and hardware; replace any damaged or mismatched screws with the correct OEM part.
