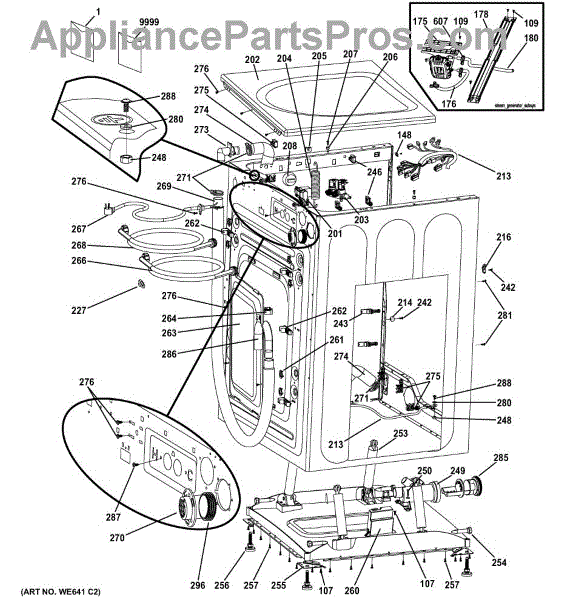

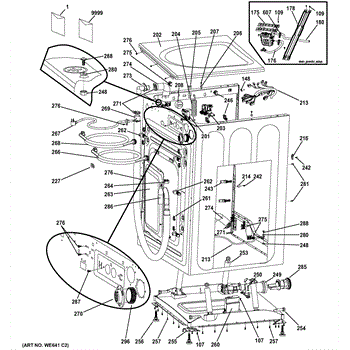

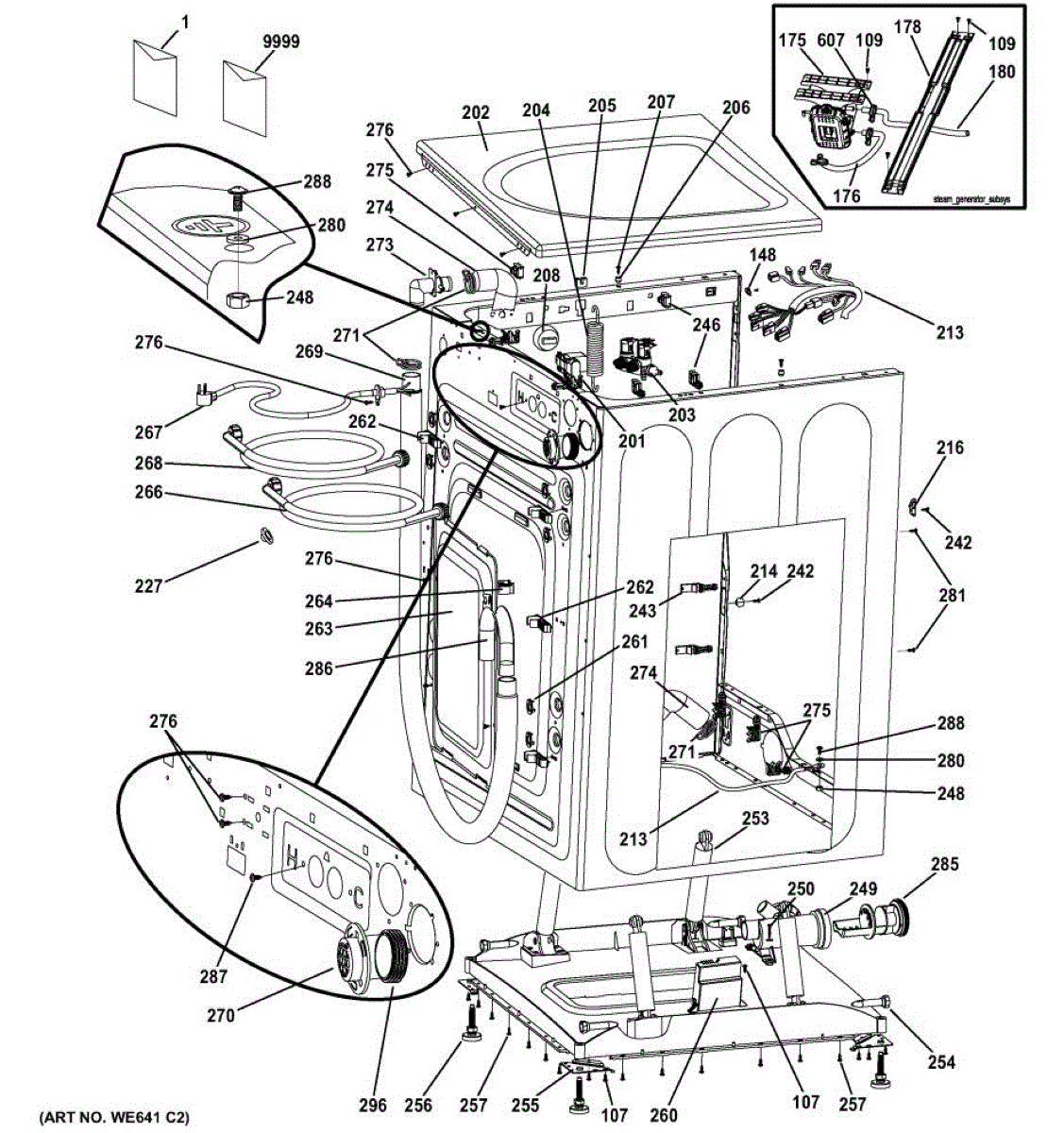

Parts for Ge GFWS1505D0MS: 02 - Cabinet & Top Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

EMI filter reduces electrical noise on the appliance's incoming power line to help protect electronic controls and cut down on radio/TV interference. It restores proper power filtering for appliances that show noise-related control issues. What it does:

• Filters electromagnetic and radio-frequency interference on the power input to prevent electrical noise from affecting control boards and sensors.
• Helps reduce visible or audible interference with nearby electronics such as radios, TVs, and audio equipment.
• Can address intermittent control errors, unexpected resets, or erratic operation linked to line noise.
• Provides the correct connection point for the appliance's power input so the control circuitry receives cleaner power.

• Disconnect power at the breaker and unplug the appliance before starting any work. Verify power is off with a tester.
• Match wiring colors and terminal types; secure all connections and route wires clear of moving parts.
• Some installations require removing access or control panels—retain fasteners.

Note: Due to design change, new part may look different but is still a functional replacement.

This suspension spring supports and stabilizes the washer tub, controlling movement during wash and spin. Replacing a weak or broken spring helps restore balance, reduce vibration, and prevent the tub from leaning or striking the cabinet.

• Supports the tub assembly within the cabinet and carries load
• Limits tub motion to reduce shaking and out-of-balance interruptions
• A stretched or broken spring can cause excessive vibration, banging, or a low/leaning tub
• Visual signs include broken coils or uneven tub height

• Disconnect power; turn off water and move the washer for safe access
• Springs are under tension—support the tub and wear hand/eye protection
• Note the original spring's location and orientation; reinstall in the same position
• After replacement, ensure the tub sits level and clears the cabinet on all sides

This spring hanger secures a suspension spring to the washer's cabinet/frame, supporting the tub assembly and helping control vibration. Replace a cracked or broken hanger to restore stable spin performance and reduce banging or shaking.

• Provides the mounting point for a suspension spring that helps carry the tub's weight
• Helps keep the basket balanced and limits vibration during spin
• Failure symptoms can include excessive shaking, loud banging, out-of-balance stops, or a sagging/leaning tub
• Visible cracks, deformation, or broken mounting tabs indicate the hanger should be replaced

• Disconnect power and water supply; access the hanger location per your model's service procedure
• Support the tub and control spring tension with locking pliers; wear gloves and eye protection
• Move the suspension spring to the new hanger and secure it in the same orientation
• Reassemble, level the washer, and run a test spin to verify smooth operation

This top panel pin secures the range's upper/top panel to the appliance frame so the panel stays aligned and stable for safe, reliable use. It's a simple replacement part that restores proper panel fit and reduces rattling. What it does:

• Locks the top/upper panel into position to keep it from shifting or sagging
• Helps eliminate panel movement, noise, and misalignment during use
• Restores a secure fit if the original pin is broken, bent, or missing
• Works as a direct-fit replacement where this OEM pin is specified

• One top panel pin

• Disconnect power to the appliance before any service to avoid shock or injury
• Access may require removing the cooktop or backguard
• Inspect surrounding clips, hinges, and mounting points and replace if damaged

This is a self-tapping appliance screw used to fasten panels and small components. It replaces missing or damaged screws to restore secure fit and reduce rattling or loose parts. What it does:

• Secures trim, panels, brackets or components where a small self-tapping fastener is required
• Restores a tight fit to stop vibration, rattling or misalignment
• Replaces stripped, corroded or lost screws that prevent proper assembly
• Compatible with common appliance sheet-metal and plastic thread-in points

• Use the proper screwdriver or driver bit to avoid stripping the head
• Start threads straight and apply firm, controlled pressure when driving into thin metal or plastic
• Replace with the exact size and type to ensure correct fit and function
• Disconnect power and follow appliance-specific safety instructions before servicing

This front panel hanger secures the appliance's front service panel to the cabinet, restoring proper alignment and preventing vibration or sag. It's a direct-fit replacement designed to bring panels back to factory position for a clean, stable appearance. What it does:

• Supports and anchors the front service panel to the appliance cabinet
• Keeps the panel aligned to prevent gaps, sagging, or rubbing
• Reduces rattles and vibration caused by a loose or damaged hanger
• Helps the panel latch securely for safe, normal operation

• One front panel hanger

• Disconnect power before beginning any service
• Partial panel removal is typically required; support the panel during replacement
• Inspect surrounding clips and fasteners; replace if worn to ensure a secure fit

This genuine replacement screw secures panels and components on compatible appliances to restore proper fit and reduce vibration or rattling. Use when missing, stripped, or loose fasteners prevent parts from staying in place. What it does

• Fastens trim, panels, or mounting brackets to maintain component alignment
• Restores secure attachment when original screws are missing or damaged
• Helps eliminate noise and vibration caused by loose parts
• Matches the OEM thread profile and length for proper fit

• Use the correct screwdriver or bit to avoid cam-out and damaged heads
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep spare screws and small parts away from children and pets
• If threads are damaged, replace mating fastener or insert rather than forcing this screw

The GE pump is an OEM replacement part responsible for removing wastewater from the washing machine during the drain cycle. It pumps out the soiled water from the washer's tub, ensuring that it is expelled through the drain hose and into the plumbing system or utility sink. The pump consists of an electric motor and an impeller that move the water effectively.

Causes of a bad pump can include clogging from debris or lint, wear and tear from regular use, or damage to the pump impeller or motor. Exposure to harsh chemicals or overloading the washer can also contribute to pump failure.

Symptoms of a bad pump include:

• Water not draining from the washer
• Unusual noises such as humming or grinding during the drain cycle
• Error codes related to drainage issues
• Water leaking from the bottom of the washer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

A small replacement cover that fits over the cabinet shipping screw area to protect the screw and improve the refrigerator's appearance. Installs quickly and restores the factory look where a shipping screw cap is missing. What it does

• Covers and protects the cabinet shipping screw or mounting hole from dirt and snagging
• Restores finished appearance to the appliance exterior where the cap was lost or damaged
• Helps keep the screw area clear of debris that can cause cosmetic or access issues
• Simple snap-in design keeps the cover secured in normal use

• Designed for a snap-in fit over the cabinet shipping screw; no special tools usually required
• Work on a cool, powered-off appliance and follow the manufacturer's safety guidance
• If the fit is tight, use a flat plastic tool or gloved fingers to press the cover into place to avoid scratching
• Only replace with the exact part specified for your appliance location

This cabinet rear cover replaces the damaged or missing rear panel on the appliance cabinet to protect internal components and help maintain proper airflow. It restores a finished rear appearance and helps keep wiring and parts enclosed. What it does:

• Covers the back of the cabinet to protect wiring, components and insulation from debris and contact
• Helps maintain intended airflow and prevents drafts through the rear of the appliance
• Stops snagging or accidental contact with internal parts that could cause damage or noise
• Prevents pests and dust from entering the cabinet area

• Always disconnect power (unplug or shut off breaker) before servicing the appliance
• Removal/installation typically requires removing a few screws; keep fasteners for reuse
• Handle edges carefully — panel edges can be sharp
• Verify proper fit and alignment before securing; ensure no wires are pinched

This inside drain hose directs defrost and condensation water from the freezer evaporator to the refrigerator drain system, helping prevent pooling and ice buildup. Replaces a worn, clogged, or cracked evaporator drain hose to restore normal drainage. What it does:

• Channels defrost and condensation water away from the evaporator area to the drain pan or tube
• Helps prevent water pooling, ice formation, and water leaks inside the freezer compartment
• Restores proper drainage when the original hose is cracked, split, or clogged
• Works with the appliance's internal drain fittings and clamp connections

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access requires removing interior panels or the evaporator cover; handle evaporator fins and sensors carefully
• Check and clear drain inlet and drain tube of debris when replacing the hose
• Use proper clamps or fasteners and avoid kinks or tight bends that restrict water flow

A replacement power cord that restores safe electrical connection to your appliance. Replaces a damaged or frayed cord so the unit can receive power without intermittent cutouts or safety hazards. What it does

• Provides the appliance with a dedicated electrical connection to the household power supply.
• Replaces damaged, cracked, or exposed wiring that can cause intermittent power loss or arcing.
• Helps eliminate burning smells, sparking at the cord, or tripping at the outlet when the cord is the source.
• Designed to mate with the appliance's factory power-port for a direct fit when the correct part is used.

• Disconnect power at the main breaker or unplug the appliance before attempting service.
• Inspect the cord strain relief and terminal connections; tighten terminals to manufacturer torque where specified.
• Do not modify the cord or cut wires; replace with the exact approved part to maintain safety certifications.

This outside drain hose directs wastewater from your washer to the household drain. Replace a cracked, kinked, or leaking hose to stop leaks and restore reliable draining at the end of each cycle.

• Routes discharge water from the drain pump to a standpipe, laundry tub, or sink
• Helps maintain proper flow during drain/spin to prevent backups
• Common signs of failure: water leaking behind the washer, slow or incomplete draining, or drain-related error messages
• Visual clues include cracks, pinholes, bulges, or severe kinks

• Disconnect power and water; pull the washer forward for access and place towels/bucket as needed
• Note hose routing and connection points; release clamps and remove the old hose
• Fully seat the new hose; reuse existing clamps/hangers as required. Route without kinks and maintain proper standpipe height
• Run a test drain/rinse and check all connections for leaks

A spring-style drain hose clamp that secures flexible drain tubing to fittings to prevent leaks and hose separation. Durable metal construction keeps drain connections tight for reliable wastewater flow and trouble-free operation. What it does:

• Holds drain hose firmly to pump, elbow or spud to reduce leaks and disconnections
• Applies even compressive force around flexible tubing for a secure seal
• Helps stop water spraying or pooling caused by a loose hose connection
• Commonly used on appliance drain and discharge lines where a snug clamp is required

• One spring-style drain hose clamp

• Use pliers to expand the clamp, fit over the hose, then release to engage; avoid twisting the hose while seating
• Replace any cracked or brittle hose before clamping to ensure a leak-free repair
• Disconnect power and water if required by your appliance before accessing the drain connection

This drain hose coupling joins two sections of a washer's drain hose to create a secure, leak-resistant connection. Replace a cracked or loose connector to help prevent leaks and support proper draining performance. What it does

• Connects two drain hose sections for proper water discharge
• Maintains a tight, sealed joint to help prevent leaks at the hose connection
• Restores a secure hose path if the original coupling is cracked, worn, or missing
• Common symptoms: water on the floor during drain, loose hose connection, or hoses separating

• Drain hose coupling

• Disconnect power and turn off water before servicing; pull the washer forward for access
• Place a towel or pan to catch residual water from hoses
• Loosen hose clamps, remove the old coupling, fully seat both hose ends on the new coupling, and tighten clamps securely
• Run a brief drain/rinse and inspect the connection for leaks

This ST4 x 10 self-tapping screw secures lightweight appliance panels and components, providing a reliable fastener for repairs and maintenance. It's a direct-fit hardware piece commonly used on control panels, trim and internal bracketry. What it does:

• Fastens plastic or thin metal panels and small internal parts without a nut
• Holds control housings, trim pieces, and access panels in place
• Helps stop rattles and loose panels when the correct fastener is installed
• Common replacement when original screws are stripped, missing, or corroded

• Use the correct ST4 screwdriver or compatible bit to avoid stripping the head
• Start threading by hand to ensure alignment before driving with a driver
• Tighten until snug; avoid over-torquing which can crack plastic parts
• Disconnect power and follow appliance safety instructions before servicing

This drain pump filter traps lint, coins, and small debris before they reach the pump, helping your washer drain properly and protecting the pump from damage. Replace a broken or clogged filter if you notice slow draining or a leak at the filter access.

• Screens out debris before it reaches the drain pump
• Helps maintain proper draining performance
• Common symptoms of a failed or missing filter: not draining/slow drain, leak at the filter access, or pump noise from debris
• Prevents hard objects from entering the pump and causing damage

• Disconnect power and turn off water before servicing
• Expect residual water; place towels or a shallow pan under the filter area
• Access the filter, unscrew and remove the old filter, and clear any debris from the housing
• Install the new filter and hand-tighten to seal; run a short drain cycle and check for leaks

A small sheet-metal screw used to secure panels and components on compatible GE appliances. Replaces worn or missing fasteners to restore proper fit and stop loose or rattling parts. What it does

• Secures appliance panels, brackets or trim to the cabinet or frame
• Keeps components aligned so doors, panels and controls operate correctly
• Common symptom: loose or rattling panels or trim
• Common symptom: parts that shift or detach during use

• One screw

• Use the correct sized Phillips screwdriver; start threading by hand to avoid cross-threading
• Tighten until snug — avoid over-torquing which can strip threads or crack panels
• Replace only with the same size and thread type for secure fit
• Disconnect power where applicable and follow appliance safety guidance before servicing

A small M5 x 12 machine screw used to secure panels and components in compatible appliances. Simple, serviceable hardware that helps restore proper fit and stops rattling or loose parts. What it does:

• Fastens panels, brackets, or components where an M5 x 12 machine screw is specified
• Restores secure attachment when original screw is missing, loose, or damaged
• Helps eliminate vibration noise and misalignment caused by loose hardware
• Fits into pre-tapped holes designed for M5 machine-threaded fasteners

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or hex driver to avoid stripping the head
• Install straight and tighten snugly; avoid over-tightening which can strip threads or crack plastic
• If threads are damaged, replace the mating fastener or insert as needed before reuse

This 3-way pipe clamp secures multiple small pipes or lines to the appliance chassis to reduce vibration and keep plumbing lines organized and clear of heat or moving parts. It helps prevent chafing and rattling for a quieter, safer appliance. What it does:

• Holds up to three small-diameter pipes or tubes in a single clipped location to prevent movement
• Keeps water, drain or refrigerant lines routed away from hot or moving components
• Reduces vibration and rattle noises caused by loose tubing
• Helps prevent abrasion and wear that can lead to leaks or line damage

• Disconnect power and shut off water supply before beginning any work
• Access may require removing panels or covers; use appropriate hand tools
• Position lines fully into the clamp before snapping or fastening; avoid pinching or kinking tubing
• Do not overtighten fasteners; secure clamp snugly to prevent movement without stressing the lines

This stacking kit secures a compatible dryer to a matching washer to create a safe, space-saving stacked laundry configuration. It helps stabilize the dryer and reduces movement during use for a more reliable setup. What it does:

• Provides brackets and mounting hardware to fasten the dryer to the washer
• Helps prevent the dryer from shifting or tipping when the washer is running
• Improves overall stability of stacked laundry appliances during normal operation
• Reduces vibration-related movement that can cause noise or misalignment

• Disconnect power to both appliances before installing and follow all manufacturer instructions
• Use only on compatible washer/dryer pairs
• Tighten hardware securely but avoid overtightening; follow torque guidance in OEM instructions

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
