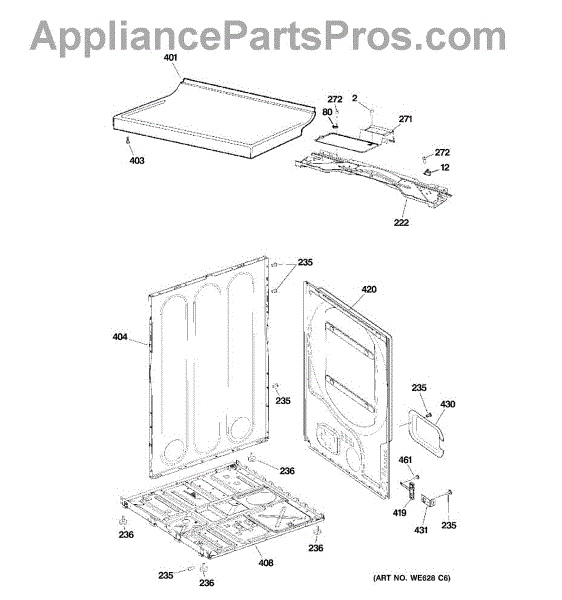

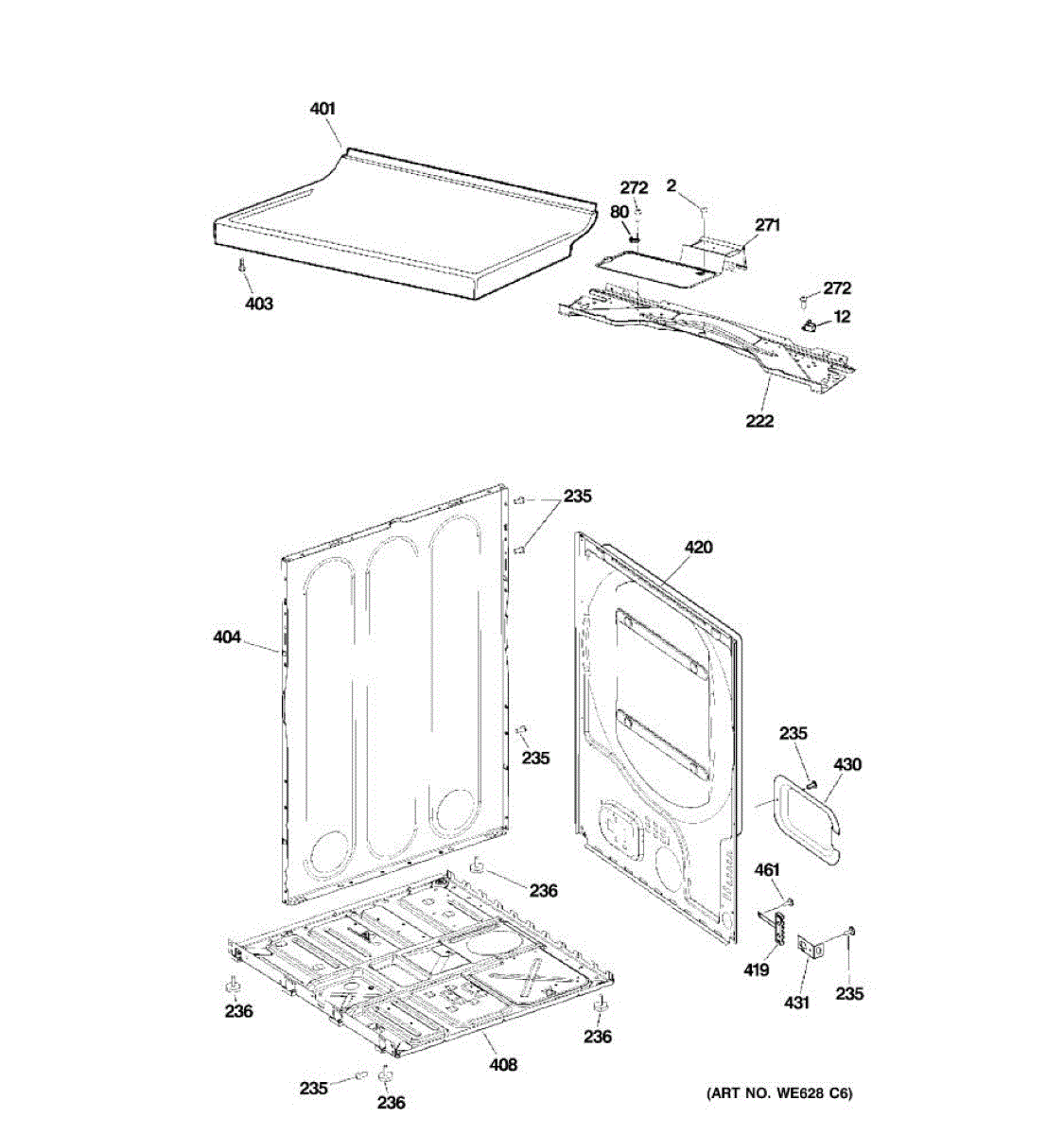

Parts for Ge GTDX185ED0CC: 03 - Cabinet & Top Panel Parts

This is a threaded fastener used to secure panels and small assemblies on compatible appliances, restoring a tight fit and stable operation. It replaces missing or stripped screws to reduce vibration and rattling. What it does:

• Secures trim, panels, and internal components where an 8-18 thread screw is specified
• Restores proper alignment to reduce rattles or vibration caused by loose parts
• Replaces missing or damaged screws that prevent parts from fastening correctly
• Works wherever an 8-18 x 7/16 screw is required by the manufacturer

• Use the correct screwdriver or nut driver to avoid cam-out and stripped heads
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power and remove any panels per manufacturer instructions before servicing
• If threads are damaged, replace the mating fastener

Fixed buzzer that replaces the appliance's audible tone generator in the control panel, restoring beeps and alerts for cycle completion and fault signals. Simple swap that returns audible notifications used during normal operation. What it does:

• Produces the control panel's audible tones for end-of-cycle alerts and warnings.
• Replaces a buzzer that has stopped sounding or produces weak, intermittent, or distorted beeps.
• Helps restore audible error/fault notifications so you can respond to appliance alerts promptly.
• Works as the control panel's dedicated tone generator — pairs with the appliance's existing electronics.

• Disconnect power to the appliance before beginning any service to avoid electrical shock.
• Access the control panel per your model's service instructions and note wire/harness positions before removal.
• Disconnect the buzzer wiring or harness, remove mounting fasteners, and install the replacement in the same orientation.
• Reassemble panels, restore power, and run a test cycle to audible operation.

The Timer Resistor is an OEM part for GE dryers. It works in conjunction with the dryer's timer to regulate the duration of the drying cycle, ensuring that clothes are dried for the appropriate amount of time.

Causes of a bad timer resistor can include electrical surges, prolonged exposure to high temperatures, or general wear over time. These factors can result in the resistor losing its effectiveness or failing completely.

Symptoms of a bad timer resistor include:

• The dryer running for too long or too short a time
• Inconsistent drying times
• The timer not advancing or getting stuck
• The dryer not starting or shutting off prematurely

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw restores secure fastening for appliance components, helping stop loose panels and rattles. Use it to replace a missing or stripped fastener and keep assemblies aligned and stable. What it does

• Fastens panels, brackets, or small assemblies to maintain proper alignment
• Prevents vibration-related noise and movement from loose parts
• Replaces missing, worn, or stripped screws that allow components to shift
• Simple hardware solution that restores secure connections

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or nut driver to avoid cam-out or damage
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten—excess torque can strip threads or damage parts

This is a 10-16 x 1/2 screw used to fasten small appliance components and panels; it restores secure attachment and helps stop rattling or loose parts for reliable operation. What it does:

• Secures panels, brackets, and small assemblies to the appliance
• Prevents movement that can cause noise, vibration or misalignment
• Restores proper fit where a worn or missing screw caused loose parts
• Matches OEM size so replacement fits original mounting points

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and do not overtighten—stop when snug to avoid damage
• Replace like-for-like; if corrosion or stripped threads are present, repair or replace the mating part as needed

This leveling leg threads into the base of your appliance to provide a stable, adjustable footing. Replacing a worn or missing leg helps keep the cabinet level, reducing vibration and noise for smoother, safer operation.

• Adjusts height so the unit can be leveled on uneven floors
• Maintains solid floor contact to minimize rocking or walking
• Helps reduce vibration and rattling noises during operation
• Signs you need this part: appliance wobbles, sits unevenly, or a foot is missing/damaged

• Disconnect power; for gas units, also shut off the gas supply
• With assistance, carefully tilt or raise the appliance to access the leg
• Unscrew the old leg and thread in the new leg by hand; use a wrench if needed
• Level the unit front-to-back and side-to-side; ensure all legs firmly contact the floor

This replacement screw secures panels, trims, and internal components to restore a snug, rattle-free fit and reliable operation. Use it to replace missing, corroded, or stripped fasteners for safe appliance performance. What it does:

• Fastens cabinet panels, trim pieces, and internal brackets to keep parts aligned and secure
• Replaces missing or damaged screws that cause loose or vibrating panels
• Prevents movement that can lead to wear, noise, or improper sealing
• Matches the original fastener role for appliances that specify part WE2M160

• Disconnect power or unplug the appliance before attempting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install until snug; avoid overtightening which can strip threads or crack plastic
• If threads are damaged or fastener holes are worn, replace damaged components.

The Power Terminal Block is an OEM part for GE dryers. This component serves as the connection point for the dryer's power cord, distributing electrical power to the various internal components of the dryer. It ensures that the dryer receives the proper electrical supply needed for its operation.

Causes of a bad power terminal block can include electrical overloads, corrosion from moisture exposure, and loose or frayed wiring connections. These issues can lead to improper power distribution or complete loss of power to the dryer.

Symptoms of a bad power terminal block include:

• The dryer not starting or losing power during a cycle
• Intermittent electrical issues or power surges
• Visible signs of damage such as burn marks or melted plastic
• Electrical arcing or sparking from the terminal block area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement rear panel and fuse cover protects the appliance's rear electrical area, shielding the fuse assembly and wiring while restoring safe access for service. It fits where the original rear fuse cover is installed. What it does:

• Shields the fuse housing and rear wiring from debris and accidental contact
• Helps prevent damage to the fuse area that can cause intermittent power or electrical faults
• Restores a secure cover when the original is cracked, warped, or missing
• Provides proper access for visual inspection and fuse replacement during service

• Disconnect power (unplug or switch off breaker) before installing.
• Use appropriate screws/fasteners; keep hands clear of sharp sheet-metal edges.
• Align cover over the fuse housing and secure firmly; inspect surrounding wiring before restoring power.

This terminal block cover shields the dryer's rear power connection at the terminal block. Replace a missing or damaged cover to help protect wiring from accidental contact and lint intrusion, maintaining a cleaner, safer connection area.

• Covers and helps protect the power cord terminals and wiring at the rear terminal block
• Helps prevent accidental contact and keeps lint/debris away from the connection area
• Restores a secure cover when the original is cracked, warped, or missing
• Common signs you need this part: exposed terminals at the rear panel, a loose or broken cover

• Disconnect power to the dryer before servicing
• Access the terminal block from the rear; remove the retaining fastener(s) and lift off the old cover
• Ensure the cord strain relief and wiring are properly positioned, then set the new cover in place and secure it

A replacement strain relief bracket that secures the appliance power cord at the entry point, protecting wiring and the terminal connection from pull and wear. Restores proper cord routing for safer, more reliable electrical connection. What it does:

• Secures the power cord where it enters the appliance to prevent tension on terminals and wiring.
• Helps reduce intermittent power, loose connections, or arcing caused by a tugged or poorly routed cord.
• Maintains correct cord routing and support to match the original mounting location and fit.
• Useful when the original bracket is cracked, broken, or no longer holds the cord firmly in place.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Access is typically from the rear; remove the back access panel to reach the cord entry and terminal block.
• Remove mounting screws holding the old bracket, position the cord, and secure the new bracket without over-tightening; reuse original hardware if appropriate.
• Inspect the power cord and terminals for damage—replace damaged wiring.

Size: 8-32 t. Includes 12 screws.
