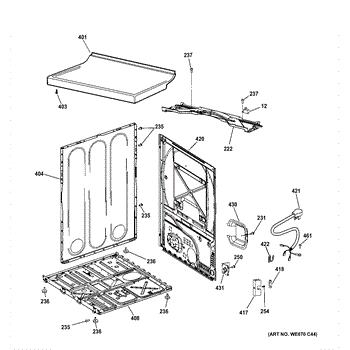

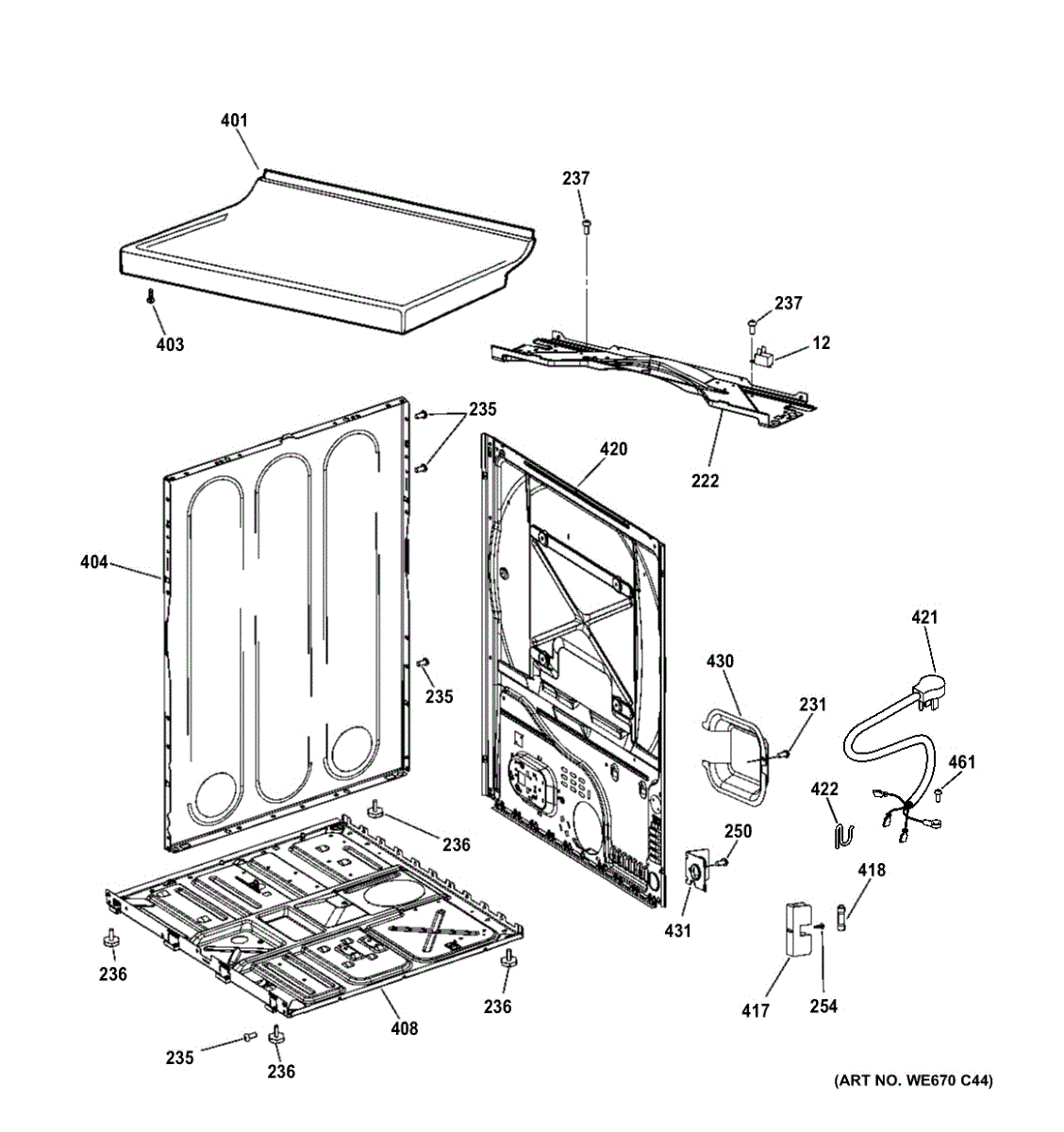

Parts for Ge GTDX185PD5CC: Cabinet & Top Panel Parts

Fixed buzzer that replaces the appliance's audible tone generator in the control panel, restoring beeps and alerts for cycle completion and fault signals. Simple swap that returns audible notifications used during normal operation. What it does:

• Produces the control panel's audible tones for end-of-cycle alerts and warnings.
• Replaces a buzzer that has stopped sounding or produces weak, intermittent, or distorted beeps.
• Helps restore audible error/fault notifications so you can respond to appliance alerts promptly.
• Works as the control panel's dedicated tone generator — pairs with the appliance's existing electronics.

• Disconnect power to the appliance before beginning any service to avoid electrical shock.
• Access the control panel per your model's service instructions and note wire/harness positions before removal.
• Disconnect the buzzer wiring or harness, remove mounting fasteners, and install the replacement in the same orientation.
• Reassemble panels, restore power, and run a test cycle to audible operation.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

This is a 10-16 x 1/2 screw used to fasten small appliance components and panels; it restores secure attachment and helps stop rattling or loose parts for reliable operation. What it does:

• Secures panels, brackets, and small assemblies to the appliance
• Prevents movement that can cause noise, vibration or misalignment
• Restores proper fit where a worn or missing screw caused loose parts
• Matches OEM size so replacement fits original mounting points

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and do not overtighten—stop when snug to avoid damage
• Replace like-for-like; if corrosion or stripped threads are present, repair or replace the mating part as needed

This leveling leg threads into the base of your appliance to provide a stable, adjustable footing. Replacing a worn or missing leg helps keep the cabinet level, reducing vibration and noise for smoother, safer operation.

• Adjusts height so the unit can be leveled on uneven floors
• Maintains solid floor contact to minimize rocking or walking
• Helps reduce vibration and rattling noises during operation
• Signs you need this part: appliance wobbles, sits unevenly, or a foot is missing/damaged

• Disconnect power; for gas units, also shut off the gas supply
• With assistance, carefully tilt or raise the appliance to access the leg
• Unscrew the old leg and thread in the new leg by hand; use a wrench if needed
• Level the unit front-to-back and side-to-side; ensure all legs firmly contact the floor

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

A replacement silicon controlled rectifier (SCR) that restores electronic power switching in the appliance's control circuitry. This SCR provides reliable on/off switching for motors or heating circuits when the original SCR has failed. What it does:

• Acts as an electronic switch to control power delivery to heating elements or motors
• Commonly fails when the appliance has no heat, intermittent operation, or won't run consistently
• Replaces a burned, shorted, or open SCR to restore normal control-board switching behavior
• Helps stop arcing or erratic performance when the original semiconductor has degraded

• For safety, disconnect power before accessing control electronics or replacing the SCR
• Handle the SCR and circuit board carefully to avoid ESD damage; use proper grounding if available
• Verify correct orientation and secure mounting; ensure all wiring and connectors are seated properly

This replacement screw secures panels, trims, and internal components to restore a snug, rattle-free fit and reliable operation. Use it to replace missing, corroded, or stripped fasteners for safe appliance performance. What it does:

• Fastens cabinet panels, trim pieces, and internal brackets to keep parts aligned and secure
• Replaces missing or damaged screws that cause loose or vibrating panels
• Prevents movement that can lead to wear, noise, or improper sealing
• Matches the original fastener role for appliances that specify part WE2M160

• Disconnect power or unplug the appliance before attempting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install until snug; avoid overtightening which can strip threads or crack plastic
• If threads are damaged or fastener holes are worn, replace damaged components.

This fuse holder secures a 3AB-style cartridge fuse within the appliance's electrical circuit. Replacing a cracked, loose, or heat-damaged holder restores a solid connection so the fuse can properly protect the circuit and prevent intermittent power issues.

• Provides a secure mount and reliable electrical contact for a 3AB cartridge fuse
• Helps ensure the protected circuit opens correctly during electrical faults
• Common symptoms of a failed holder: fuse won't seat, loose/burned contacts, intermittent or no power
• Direct replacement when the original holder is broken, heat-damaged, or cracked

• Disconnect power at the breaker or unplug the appliance before servicing
• Note wire positions and transfer one lead at a time to the new holder
• Install only a manufacturer-specified 3AB cartridge fuse of the correct rating
• Ensure the fuse seats firmly and all connections are tight before restoring power

The Dryer Fuse is an OEM part for GE dryers. This part is designed to protect your dryer from overheating by breaking the circuit if the temperature inside the dryer exceeds safe levels.

Causes of a bad Dryer Fuse can include lint buildup, restricted airflow, or overloading the dryer.

Symptoms of a bad Dryer Fuse include:

• The dryer not starting or running
• The dryer stopping mid-cycle
• No heat during the drying cycle
• The dryer overheating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 120V replacement power cord restores household current to gas ranges and ovens that use a corded connection for clocks, lights, igniters and controls. It provides a straightforward way to replace a damaged or worn cord and regain safe power to the appliance. What it does

• Supplies 120-volt power from the wall outlet to the range/oven's control system, clock and lights.
• Restores ignition and control functions when a frayed or broken cord prevents the appliance from receiving power.
• Replaces cords that show signs of burning, cracking, loose connections, or exposed wiring.
• Reduces risk of electrical faults caused by damaged insulation or terminals.

• One 120V power cord

• Disconnect power at the circuit breaker or unplug the appliance before starting; ensure the appliance is de-energized.
• Route and secure the cord to avoid pinching; tighten terminal screws to manufacturer torque recommendations.

This fuse terminal cover shields and insulates the fuse connection inside your appliance, helping prevent accidental contact and shorting. Replace a cracked or missing cover to maintain safe electrical protection and dependable circuit performance.

• Covers and insulates the fuse terminals to protect the connection
• Helps prevent accidental contact, arcing, and debris intrusion at the fuse
• Common signs you need this part: missing cover, cracks, heat discoloration, or a cover that won't stay secured
• Promotes a secure, consistent fuse connection once installed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the fuse area per your service information; note wiring and cover orientation
• Remove the damaged cover; inspect terminals and wiring for heat damage or looseness
• Seat the new cover fully and verify it is secure and clear of wiring

Includes 12 screws.
