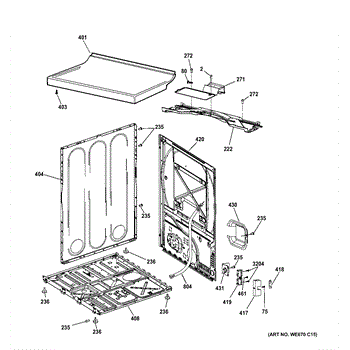

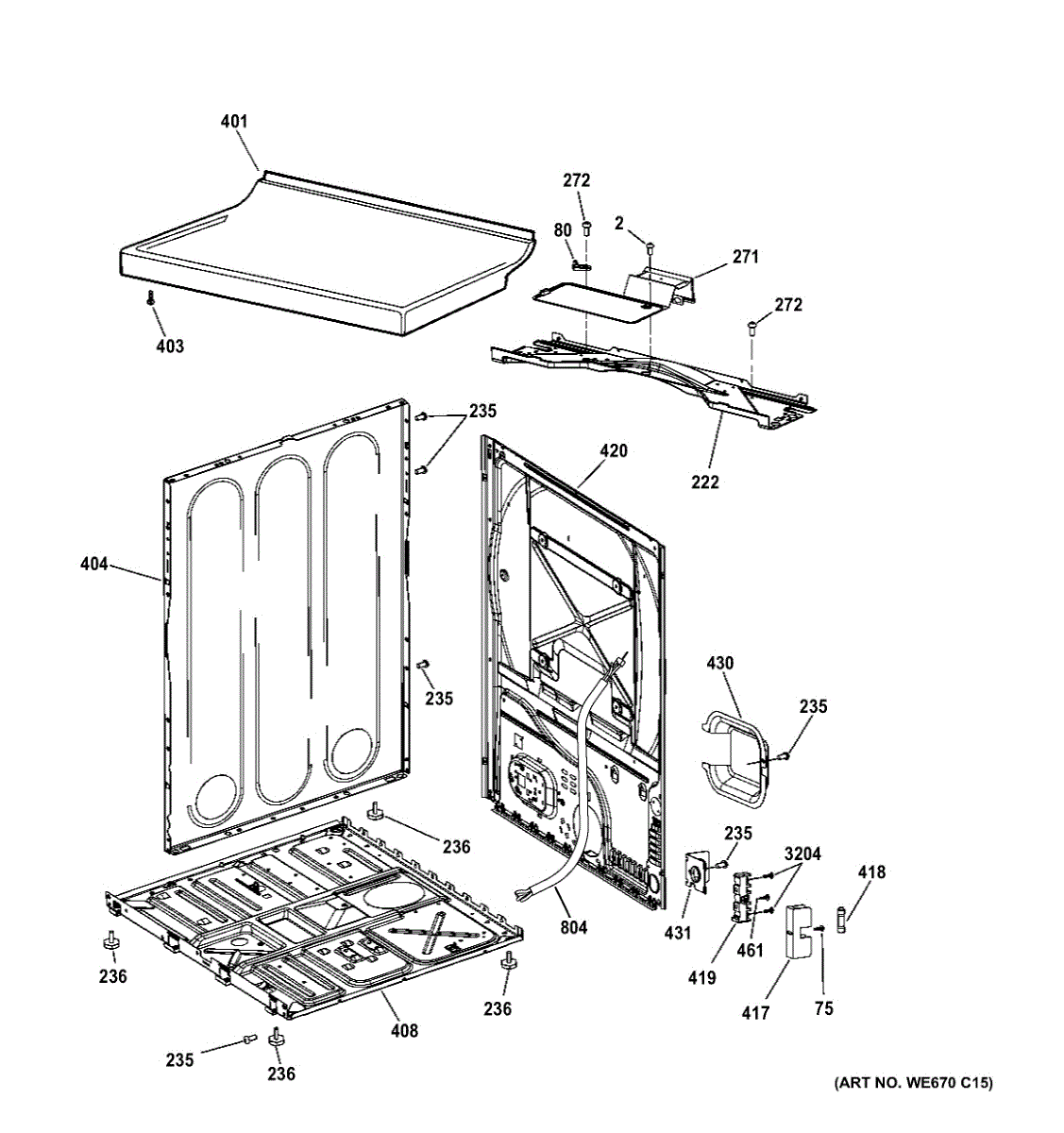

Parts for Hot Point HTDX100ED2WW: Cabinet & Top Panel Parts

Parts for Hot Point HTDX100ED2WW: Cabinet & Top Panel Parts

Location on Diagram
Part Description
Price & Availability
2
By: Ge
Part Number: WE02X20422

This is a threaded fastener used to secure panels and small assemblies on compatible appliances, restoring a tight fit and stable operation. It replaces missing or stripped screws to reduce vibration and rattling. What it does:

  • Secures trim, panels, and internal components where an 8-18 thread screw is specified
  • Restores proper alignment to reduce rattles or vibration caused by loose parts
  • Replaces missing or damaged screws that prevent parts from fastening correctly
  • Works wherever an 8-18 x 7/16 screw is required by the manufacturer
What's included: One screw Install notes:
  • Use the correct screwdriver or nut driver to avoid cam-out and stripped heads
  • Tighten until snug; do not overtighten to prevent thread or component damage
  • Disconnect power and remove any panels per manufacturer instructions before servicing
  • If threads are damaged, replace the mating fastener

More
$8.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
75
Product photo
4.7 (3)
By: Ge
Part Number: WE2M173

Replacement screw for securing dryer components like drum supports, panels, and housings. Needed when screws are lost, stripped, or damaged during repair.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

80
Best Seller
Product photo
5.0 (7)
By: Ge
Part Number: WE4M255

Fix a dryer timer that won't advance or automatic cycles that stopped working. This timer resistor regulates cycle duration. Easy 15-minute repair.

More
$34.95

IN STOCK
Ships Today Guaranteed
Add to Cart
235
Product photo
By: Ge
Part Number: WE2M307

10-16 x 1/2 mounting screw secures panels, brackets, and internal components in your dryer. Replace when stripped, missing, or corroded for stable assembly.

More
$12.47

IN STOCK
Ships Today Guaranteed
Add to Cart
236
Product photo
5.0 (2)
By: Ge
Part Number: WE01X29357

Adjustable leveling leg threads into the dryer base for stable footing. Replace missing, worn, or broken legs to level your unit on uneven floors.

More
$20.23

IN STOCK
Ships Today Guaranteed
Add to Cart
271
By: Ge
Part Number: WE1M1030
$13.64

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
401
Product photo
5.0 (1)
By: Ge
Part Number: WE20X20417

White cover panel that installs on top of your dryer cabinet. Replace if cracked, rusted, loose, or missing to restore a clean appearance.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

403
Product photo
By: Ge
Part Number: WE2M160

Replacement screw that secures dryer panels, trims, and internal components. Needed when original fasteners are missing, stripped, or corroded.

More
$15.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
404
By: Ge
Part Number: WE20X20406

White side panel for dryers. Replace cracked, damaged, or discolored exterior panels. Restores appearance and protects internal components.

More
$43.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
408
By: Ge
Part Number: WE20X20391
$60.12

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
417
Product photo
By: Ge
Part Number: WE1M1003

Dryer not heating or shutting off unexpectedly? A faulty fuse holder can disrupt circuit protection. This bracket secures your thermal fuse connection.

More
$37.74

IN STOCK
Ships Today Guaranteed
Add to Cart
418
Product photo
4.9 (10)
By: Ge
Part Number: WE1M1002

This CCMR 30-amp, 120-volt fuse protects the appliance's electrical circuit by opening when current exceeds safe limits. Replace a blown fuse to restore power to the affected circuit and help prevent damage to internal components.

  • Provides overcurrent protection for the circuit specified by the manufacturer
  • If the fuse is open, the appliance may be dead, won't start, or certain functions won't operate
  • Helps prevent wiring and component damage from shorts or overloads
  • Repeated fuse failures indicate an underlying electrical issue requiring diagnosis
What's included: 1 CCMR fuse (30A, 120V) Install notes:
  • Disconnect power to the appliance before servicing
  • Locate the fuse in its holder/block and inspect associated wiring for heat or damage
  • Test the old fuse for continuity; replace only with the identical rating specified
  • Never bypass or upsize a fuse; correct the root cause of the failure before returning to service

More
$53.69

IN STOCK
Ships Today Guaranteed
Add to Cart
419
Product photo
By: Ge
Part Number: WE4M525

Dryer won't power on or trips breaker? Replace the terminal block and ground strap assembly to restore safe electrical connections. Easy DIY repair.

More
$17.95

IN STOCK
Ships Today Guaranteed
Add to Cart
420
By: Ge
Part Number: WE20X20396
$66.95

IN STOCK
Ships Today Guaranteed
Add to Cart
430
Product photo
5.0 (2)
By: Ge
Part Number: WE1M1102

Protective cover that shields the rear power connection terminals on your dryer. Replace if cracked, broken, or missing to prevent lint buildup and accidental contact with electrical connections.

More
$15.95

IN STOCK
Ships Today Guaranteed
Add to Cart
431
Product photo
By: Ge
Part Number: WE01X20423

Replacement strain relief bracket that secures the power cord at entry point. Needed when bracket is cracked, broken, or missing to restore safe cord routing.

More
$7.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
461
Product photo
By: Ge
Part Number: WZ5X158D

Size: 8-32 t. Includes 12 screws.

More
$27.34

IN STOCK
Ships Today Guaranteed
Add to Cart
804
By: Ge
Part Number: WE15X20061
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3204
Product photo
5.0 (2)
By: Ge
Part Number: WZ4X241D

Includes 12 screws. Size: 8-18 ab.

More
$36.95

IN STOCK
Ships Today Guaranteed
Add to Cart
