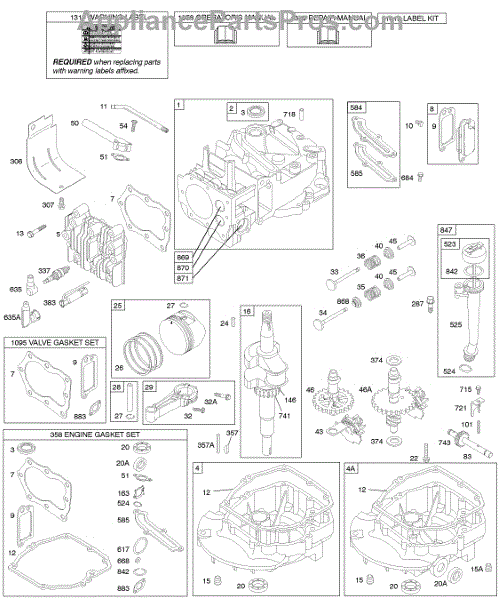

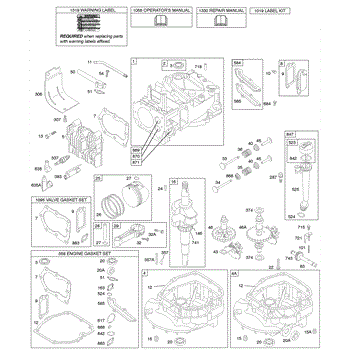

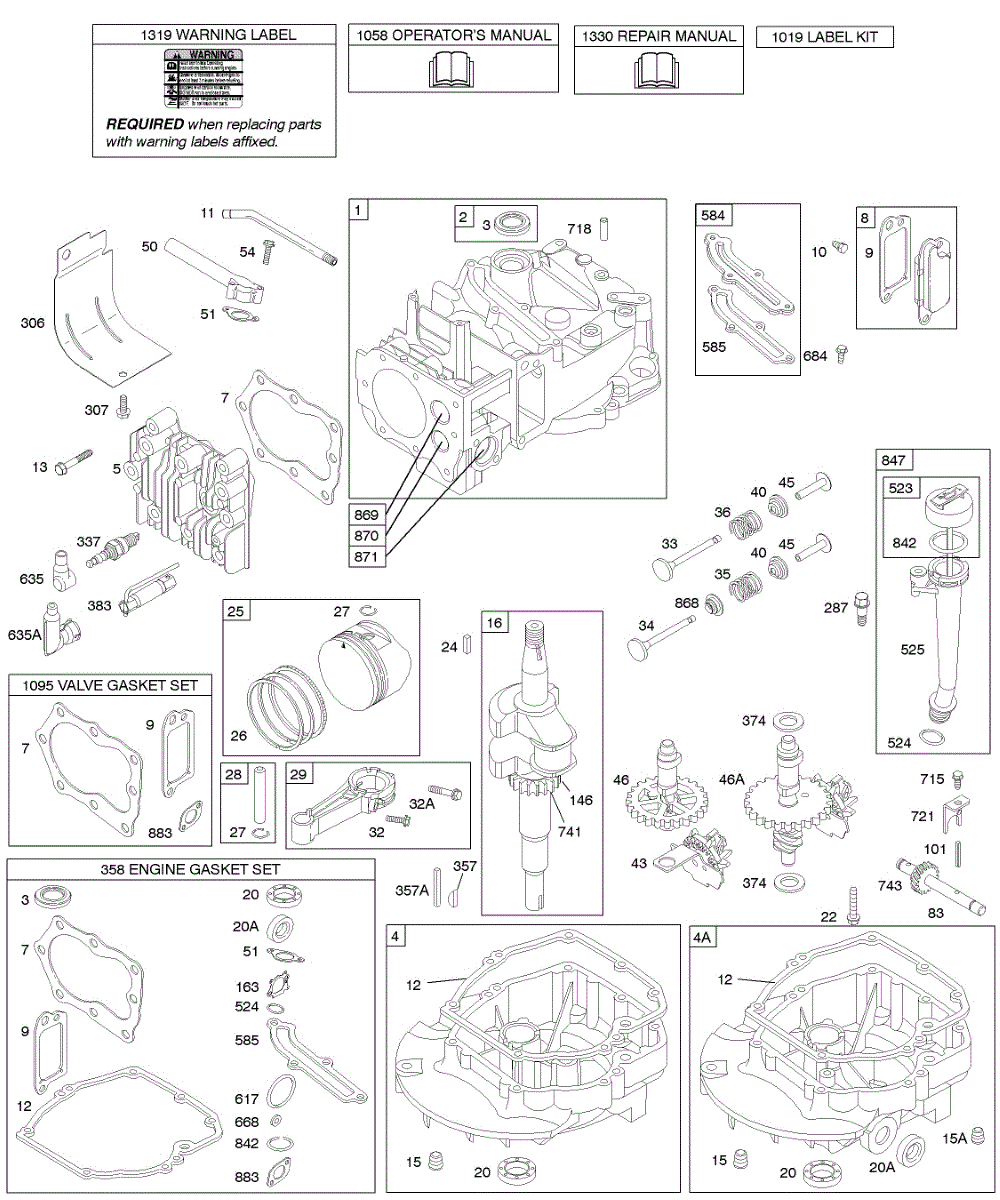

Parts for Briggs & Stratton 12G802-1908-E1: Cams, Crankcase Cover / Sump, Crankshaft, Cylinder, Kit / Gaskets, Oil, Piston Group, Valves Parts

This oil seal is a common part engineered to work in engines that power generators, vacuum cleaners, snowblowers, leaf blowers, mowers, and other small engine applications. The seal sits between the crankcase and the crankshaft. It is designed as a barrier to prevent oil leakage and to stop contaminants from leaving the crankcase. When the gasoline engine exhibits diminished power, and especially if it begins to emit oily gray or bluish smoke, there is a good chance the oil seal needs to be replaced. In order to replace the faulty seal, begin by removing the starter housing and taking off the nut that holds the starter wheel to the main shaft. The user will find the old seal on this shaft. Remove it and install the new seal, pushing it into place with the edges of a socket, then tapping it securely into place with a hammer. When choosing a replacement seal, remember to use an OEM genuine replacement part that is guaranteed to match the specs for the original part. This will ensure a quality match and long replacement life. This seal is compatible with Toro, Lawn-Boy, and Briggs & Stratton engines.

The cylinder head gasket sits between the cylinder head and the engine block. It has seals that allow the internal combustion process to occur, while also ensuring that coolant and oil do not blend as they leave the engine block and go to the head. This repair will require the use of wrenches, screwdrivers, pliers, and other equipment, and it will be necessary to purchase any other components in need of replacement at the time of the repair. This OEM cylinder head gasket replacement is a part for engines on lawn mowers, pressure washers, chipper and shredders, as well as other gas-powered devices from Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn Boy, Simplicity, and other manufacturers.

This is a breather assembly that is made for use on many types of lawn and garden equipment. The breather is an important component that helps vent extra air from the crankcase of the engine. If the engine on the equipment is no longer running well, it could be caused by a malfunctioning or broken breather assembly. If this is the case, the part will need to be replaced.Several tools are needed to replace the breather assembly. These include a 7/16th-inch socket, a 3/8th-inch nut drive or socket, a Phillips head screwdriver, a 5/16th-inch nut drive or socket, a 3/8th-inch nut driver or socket, and a pair of pliers. The muffler will need to be removed to gain access to the breather assembly. It can be inspected for damage before being removed. A new part can be installed to get the engine running at its best.This breather assembly is a genuine OEM replacement part that is sourced directly from the manufacturer. It's sold as an individual component. This assembly is made for use with lawnmowers, chipper shredders, snowblowers, leaf blowers, generators, and pressure washers made by Briggs & Stratton, Cub Cadet, Toro, Craftsman, Lawn-Boy, and Simplicity.

This part is a breather gasket. This specific breather gasket is manufactured for use with small engines. The breather gasket forms a seal between the breather and the cylinder. The breather itself relieves the pressure that is inside of the crankcase by allowing the air to exit but not allowing the air to enter. A new breather gasket may be needed if the breather itself seems to be clogged. It can sometimes become clogged with oil. It's recommended to replace the breather gasket any time the breather itself is serviced to ensure that a proper seal is maintained. This part is a genuine Midwest Engine part and is an OEM part sourced directly from the manufacturer and it is sold individually. This specific breather gasket is compatible with engines, lawnmowers, and generators that are manufactured by Midwest Engine, Briggs and Stratton, Toro, and Lawn Boy.

This genuine replacement crankcase gasket creates an airtight seal on the crankcase so that oil and air do not leak out of the engine when it is running. Over time, this gasket is exposed to extreme pressure and high heat and will naturally deteriorate. It could become faulty and create leaks or it could break entirely. In either case, a full replacement of the gasket is the only solution. This OEM part can provide an exact fit for compatible lawn and garden equipment engines. This genuine crankcase gasket is manufactured to strict standards by Briggs & Stratton and is compatible with select engines on lawn mowers and generators from Briggs & Stratton, Lawn Boy, and Toro. This gasket is made of durable composite material and it is sold as an individual unit. Other gaskets, hardware, or related parts are all sold separately. The repair can be done with just a wrench, but be sure to allow the engine to cool entirely before beginning any repairs. Always wear gloves and disengage the spark plug for safety when performing engine work.

This genuine Midwest Engine screw can be used as a replacement part for a variety of outdoor lawn and garden appliances including lawn mowers, snowblowers, tillers, pressure washers, generators, leaf blowers, edgers, and wood chippers. A screw might have to be replaced within the lifespan of one of these types of outdoor appliances. Tthis is a common occurrence as screws are small components that are easily lost and misplaced. Screws can also loosen over time, necessitating a replacement. If this is the case, the screw should be replaced with this OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This screw is compatible with the following outdoor appliance brands: Midwest Engine, Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn Boy, Simplicity, and MasterCut.

This authentic replacement oil seal is for use with a range of small engines. The oil seal is the lower seal that is located in the engine's sump. The seal is made to ensure that there are no oil leaks that could cause issues with the performance of the engine. If the seal is not working properly, it could result in leaks, and the machine may not have enough oil to function properly. Lack of oil can also cause serious issues with the engine. The oil seal is prone to wearing out over time. The seal can become worn and it can start to deteriorate the longer it is used. Owners should make it a point to replace the oil seals whenever they are changing their oil, oil filter, and gaskets. The oil seal is a genuine OEM replacement part, and it is sold individually. The oil seal is compatible with more than 150 different models of machine. This includes models of lawnmower, snowblowers, pressure washer, leaf blowers, generator, wood chipper, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Toro, Lawn-Boy, and Simplicity.

The flywheel key is the component on outdoor equipment that keeps the flywheel connected to the crankshaft. Over time, this key may become damaged or broken, particularly if the engine experiences a forceful stop, like hitting a large stationary object. If the flywheel key breaks, the engine will not start. A slightly damaged flywheel key is noticeable through symptoms like misfiring, backfiring, or having no power. If any of these are occurring, the flywheel key should be replaced to prevent complete engine failure.A flywheel puller tool is required for this repair. Make sure the engine is cool before working on the flywheel. Wear safety gear, including gloves and eye protection. Disconnect the spark plug and remove the blower housing. Remove the flywheel mounting nut and set it aside. Take the recoil starter cup off the mower. Use the flywheel puller to remove the flywheel and access the flywheel key. Remove the broken flywheel and replace it with the new flywheel. Reverse the steps to put the mower back together.This flywheel key is made of an aluminum alloy and is sold as an individual part. It is designed for use in lawnmowers, lawn tractors, and other small engines manufactured by Briggs and Stratton, Toro, Lawn-Boy, Simplicity, MTD, and others.

This screw is a genuine Midwest Engine replacement part for small engine appliances, including lawn tractors, lawn mowers, snowblowers, leaf blowers, vacuums, and tillers. The purpose of a screw is to tightly link materials together through rotation that pierces into the material. A screw might have to be replaced in the event that it is lost or misplaced, a common occurrence due to its size. A screw might also be replaced if it deteriorates over time, through erosion, cracking, or piercing, thereby reducing its efficacy in holding materials together. This kind of damage can be attributed to general overuse, to age, or simply to long-term exposure. If a screw is subject to any of this kind of damage, it is best to replace it immediately, as the materials held together by the screw must continue to be held together. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This screw is compatible with the following brands: Briggs & Stratton, Toro, Cub Cadet, and Lawn Boy.

This valve retainer is an authentic replacement part for use with many types of small lawn and garden engines. The retainer valve helps to keep the lock valve spring on the valve. It is shaped similarly to a washer, which will fit over the top of the valve spring. The piece also helps to add space between the valve spring and the head of the valve. The valve retainer is made from metal, and it is a small piece. The retainer could become lost and need replacement when performing other maintenance on the engine's valves. The metal could also become corroded or break. In those cases, it will need to be replaced as soon as possible. This is a genuine OEM replacement part that is sold individually. The part can be used with many types of equipment including lawn mowers, snowblowers, tillers, pressure washers, edgers, leaf blowers, log splitters, and wood chippers. Compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn-Boy, Snapper, MTD, Simplicity.

This genuine OEM gasket sits between the carburetor and cylinder to create a seal on a wide range of different lawn mower engines. The carburetor is responsible for mixing fuel and air, so it is important that it remains well sealed. The cylinder sits on top of the combustion chamber, and must also be sealed to provide the proper amount of pressure to drive the pistons. Therefore, it's crucial that nothing escapes from the engine where these two parts meet. Gaskets are designed to take a lot of wear and tear, but they can eventually blow after repeated exposure to heat and pressure. When a carburetor and cylinder gasket blows, the engine will not perform as well. Look out for vibrations, backfiring, low output, or an engine that stops shortly after startup. To replace this gasket, use a screwdriver, wrench set, and pliers to gain access to the carburetor's inner workings. This part is compatible with Toro, Lawn Boy, and Briggs & Stratton lawn mowers and comes sourced from its original manufacturer. This part ships individually.

A flange screw has a range of applications depending on how and where it is used. It features a flat portion near the top of the screw that helps to spread out the clamping force, which can reduce damage to the machine while remaining tight and in place. Flange screws may need to be replaced for a range of reasons. In some instances, they might be damaged or corroded and need a replacement. Other times, they could be lost when working on the machine. Owners should replace the screws as needed to ensure the proper operation of their machine. This is a genuine OEM replacement flange screw that is sold individually. It can be used for leaf blowers, lawn mowers, pressure washers, wood chippers, generators, snowblowers, air conditioners, and small engines. Compatible brands include Briggs & Stratton, Craftsman, Kenmore, Lawn-Boy, Simplicity, Toro, and Cub Cadet. Buyers should always ensure they are choosing the correct size for their flange screw and double-check to be sure it works with their make and model.

Engine gaskets are designed to seal and insulate various parts of the engine. Because they are subject to high heat and constant pressure, they can wear down and degrade over time. This can affect the seal of the engine and ultimately inhibit performance. If gaskets are left in disrepair, it can even create bigger problems in the engine. Therefore, a full replacement will be necessary. Gasket maintenance and replacement are considered parts of routine maintenance for lawn equipment. There are several of these gaskets found on lawn and garden equipment engines, and when more than one is faulty, it may be best to replace the entire set. This genuine set can be the perfect solution for compatible engines. This genuine OEM engine gasket set is designed to exact manufacturer standards and comes from Briggs & Stratton. This kit is designed for use with generator and lawn mower engines on select units from Toro and Briggs & Stratton. There are more than 150 units that can take this gasket set. These gaskets are made of durable composite materials and this set is sold individually, with a total of 18 gaskets included. Be sure to allow the engine to cool before replacing gaskets and always use the appropriate tools to prevent damage during replacement.

This OEM intake manifold o-ring seal is placed between two rigid parts to retain the pressure. It is manufactured from a flexible material that allows the o-ring to create a tight seal between the two parts. A new intake manifold o-ring seal may be needed if the o-ring itself is broken or worn and is not able to create a tight seal. Signs that the o-ring seal has gone bad is if the engine is overheating or the engine misfires or decreases in power during use. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment machines.This genuine Midwest Engine part is sourced directly from the manufacturer and sold individually. This intake manifold o-ring seal is used on various lawnmowers and outdoor power equipment products manufactured by Midwest Engine, Briggs & Stratton, Toro, and Lawn Boy.

The spark plug boot is a rubber piece that is responsible for connecting the spark plug to the spark plug wires and completing the connection. Spark plugs are necessary to create the engine spark that will start the motor in lawn equipment and other small engines. The boot holds the terminal and keeps everything protected from the elements and insulated so that it continues to work correctly. If the spark plug connection seems weak or if the existing boot is damaged, this replacement could provide the solution. This durable rubber boot will insulate the spark plugs and help any small engine run better. This spark plug boot replacement can be used with a number of Briggs & Stratton engines and is compatible with hundreds of different machines from Toro, Lawn-Boy, and Briggs & Stratton. This boot replacement is sold individually as a single piece and does not include the terminal or any other housing or materials.

This O-ring seal is used in all sorts of lawn and garden equipment as a seal for the oil dipstick. It helps seal the system from debris and dirt that could otherwise reach the oil and end up in the motor. Over time, an O-ring will start to shrink, which can result in air and oil leaks and a poorly performing engine. If the O-ring has pits, blisters, or pocks on the surface, it will also need to be replaced.If an O-ring seal is worn, damaged, or clogged, it should be cleaned or replaced before the equipment that houses it is used again. A flat head screwdriver can be used to remove the damaged O-ring. Once the old one has been removed, a new one can be placed into the same position before using the tool.This O-ring seal is designed for lawnmowers, snowblowers, tillers, wood chippers, pressure washers, generators, and leaf blowers. It is compatible with equipment from Simplicity, Briggs & Stratton, MTD, Craftsman, Snapper, Toro, Lawn-Boy, and Cub Cadet. The seal is a genuine OEM replacement part directly sourced from the manufacturer. It comes with a single seal.

This exhaust gasket is a genuine Midwest Engine replacement part for appliances operated by small engines, such as chipper shredders, snowblowers, leaf blowers, and lawn mowers. An exhaust gasket's purpose in the engine is to create a sealed layer between the carburetor and the exhaust tube to keep dirt and debris out of the infrastructure of the engine. A malfunctioning or broken exhaust gasket could compromise the seal between the carburetor and the exhaust tube, meaning that dirt and debris could get into the engine and cause damage. An exhaust gasket could be subject to damage from overuse and is generally known to require replacement over time from general wear and tear. If the exhaust gasket seal is compromised, it should be replaced immediately. Evidence of dirt and debris compromising an engine could take the form of oil leaking from the carburetor, black smoke pluming from the exhaust tube, and lower engine pressure than usual. This exhaust gasket is compatible with the following brands: Briggs and Stratton, Cub Cadet, and Toro. This part sold individually.

This authentic replacement item is a user's repair manual for Briggs & Stratton appliance engines. Whenever an operator has a problem with their appliance's engine, it's standard that they check the user's manual. It includes step-by-step directions for how to diagnose and then repair faulty parts. Many appliances use the same type of engine, so this manual is compatible with a wide variety of Briggs & Stratton products. It can also be used with some Toro and Lawn Boy engines as well. This product is sourced from the original manufacturer and ships individually. Any parts needed to make the repairs included in this manual will have to be purchased separately.
