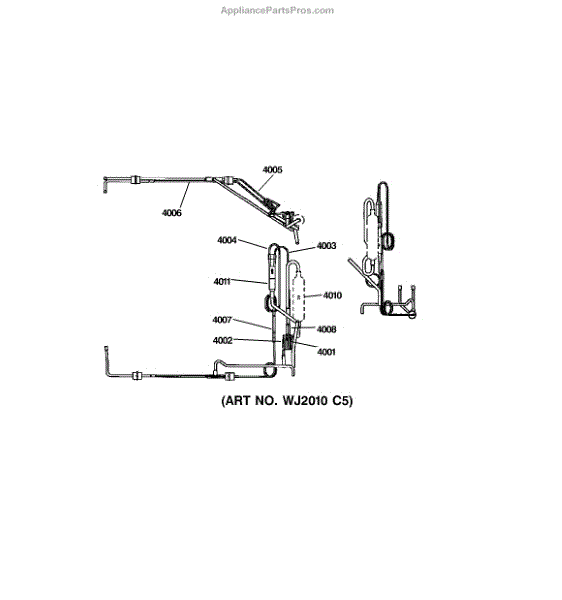

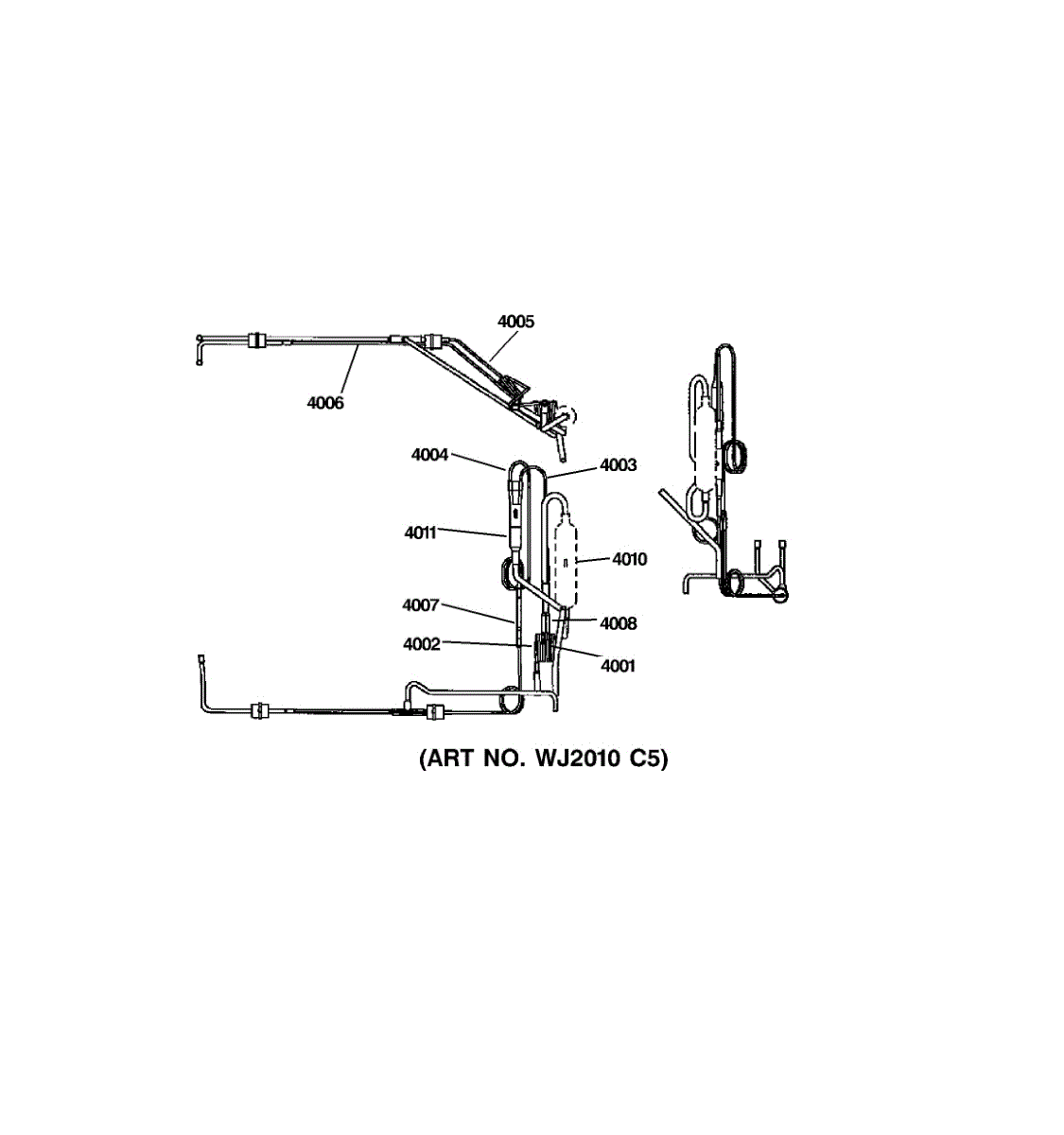

Parts for Ge AZ61H09DABW2: Capillary Tubes Parts

This capillary tube is the refrigerant metering element used in compatible refrigerators and freezers to control refrigerant flow for proper cooling. It helps maintain steady evaporator performance when operating correctly. What it does

• Meter refrigerant from the high-pressure side to the evaporator to regulate cooling
• Helps maintain correct evaporator temperature and steady refrigeration cycle
• Worn, clogged, or damaged capillary tubes can cause reduced cooling, long run times, or inconsistent temperatures
• Small leaks or kinks may cause loss of refrigerant and system performance issues

• One capillary tube

• Refrigeration system service should be performed; system must be recovered and evacuated before replacing
• Avoid kinking or sharply bending the tube during installation; routing affects performance
• Inspect fittings and replace any damaged connectors or seals to ensure a leak-free repair
• Follow all safety and environmental regulations for handling refrigerant and pressurized systems

This lead tube is a direct-replacement service part used where a rigid small-diameter tube is required to route fluid or gas between components. It restores proper routing and connection points for safe, reliable appliance operation. What it does

• Provides a rigid connection path for fluids or gases between appliance components
• Restores proper alignment and sealing where a damaged or corroded tube causes leaks
• Helps stop symptoms such as visible leaks, loss of supply to a component, or poor system performance
• Supports secure attachment at fittings and compression joints when used with compatible hardware

• Replace only with the exact OEM part or an approved equivalent to maintain fit and sealing
• Shut off and isolate power and any fluid or gas supply before starting work
• Inspect fittings and seals; replace any damaged compression ferrules or gaskets as needed

This special screw is a direct-replacement fastener used to secure internal or exterior appliance components, restoring proper fit and reducing movement that can cause noise or misalignment. What it does

• Fastens panels, brackets or component assemblies to keep parts aligned and secure
• Stops rattling or vibration caused by loose or missing hardware
• Replaces damaged or stripped screws that prevent proper assembly
• Helps maintain safe, stable operation by restoring correct part fit

• One replacement special screw

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Use the correct screwdriver or bit to avoid cam-out and thread damage
• Tighten until snug; do not overtighten to prevent stripping or cracking surrounding parts
• Keep small parts away from children and dispose of old hardware properly
