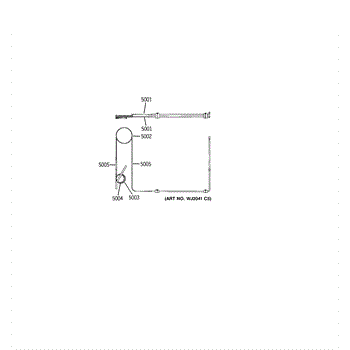

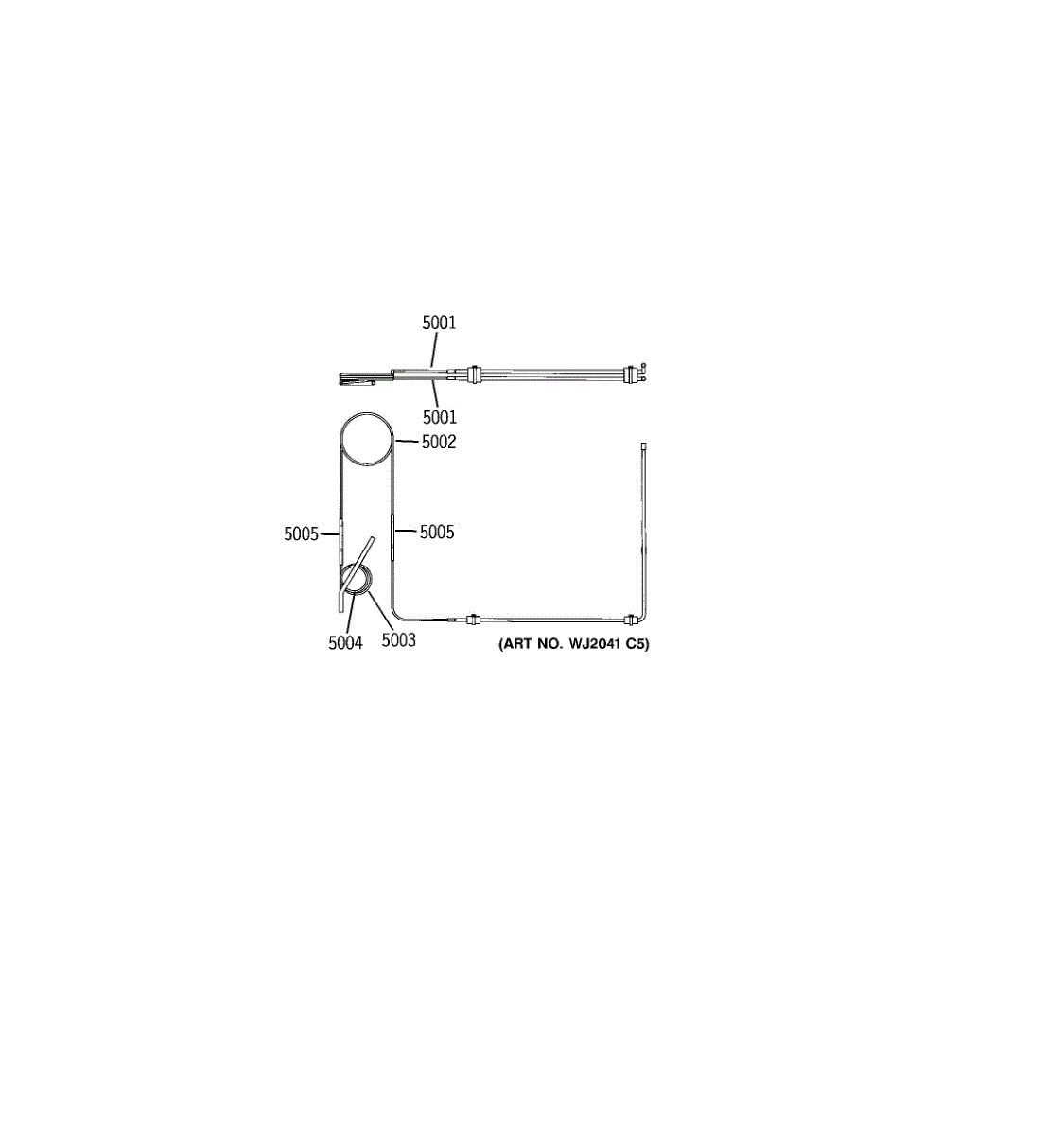

Parts for Ge AZ85E18EACM2: Capillary Tubes Parts

This lead tube directs gas safely from the appliance manifold to the valve assembly, helping maintain a sealed fuel path for reliable burner operation. It's a direct-fit replacement when the original tube is cracked, corroded, or leaking. What it does

• Channels gas between the manifold and gas valve or burner assembly to support proper ignition
• Restores a sealed gas path if the original tube is damaged or leaking
• Helps prevent gas leaks that can cause poor burner performance or safety risks
• Matches OEM fit and routing to maintain correct clearance and connection alignment

• One replacement lead tube as shown

• Turn off gas supply and disconnect power before servicing; follow all local codes
• Inspect fittings and seals; use replacement gaskets or sealant only if specified by the appliance manufacturer
• Tighten connections to the manufacturer's torque recommendations and check for leaks with a soap solution or approved leak detector
