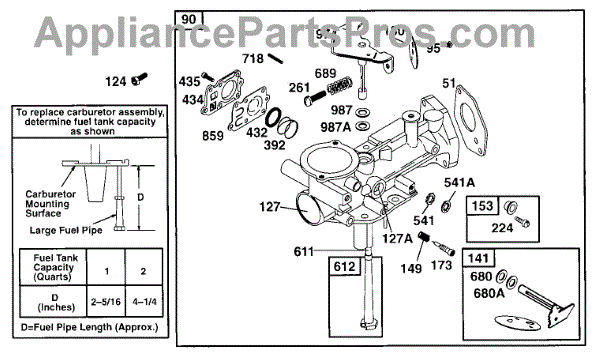

Parts for Briggs & Stratton 090232-0107-01: Carburetor Assembly Parts

This replacement choke shaft is an authentic OEM part for over 150 different appliance engines. The choke shaft is essentially a lever used to control the choke. When the choke is engaged, it controls how much air is released from the intake valve into the carburetor. With less air in the carburetor, the engine will burn less fuel and create less power. The choke shaft extends out from the engine, allowing operators to engage the choke. While useful, this does, however, mean that it is exposed to the elements and physical damage. If broken off, the choke will be unusable and the shaft will need replacing. To do so, use a socket wrench to disassemble the air filter and filter housing, and a pair of pliers to pull out the choke plate. Remove the damaged shaft by hand and reassemble with a new part. As a high-quality replacement part, this choke shaft comes sourced from its original manufacturer. It is compatible with engines made by Toro and Briggs & Stratton. This part includes a shaft, choke plate, and O-ring. This parts ship as a single unit.

This tube-pick up was created for three to five horsepower horizontal and five horsepower vertical engines with a two to three-quart tank and a pulse jet carburetor. As part of the carburetor, the tube-pick up moves gas from the float bowl to the main body of the carburetor. Sometimes the tube-pick up can become clogged up with particles and dirt, which makes it harder for gasoline to flow through it. This component can also become damaged or cracked, which means it will need to be replaced to operate the lawn equipment. Replacement requires removing the carburetor from the fuel tank, removing the tube-pick up and installing the new version. Carb cleaner may also be used in the process. This tube-pick up is a genuine OEM product directly from the manufacturer. It comes as an individual part and is made out of plastic. It is used for engines on leaf blowers, generators, tillers, lawn tractors, and lawnmowers by Simplicity, Briggs & Stratton, Cub Cadet, and Toro. A set of pliers may be needed to install the tube-pick up.

The carburetor diaphragm is part of older model engines where a secure seal is needed. This diaphragm is installed on the carburetor and will help to ensure maximum engine operation. The carburetor is responsible for creating and providing the air/fuel mixture to the engine, and there are many working parts that help to ensure that happens, including the diaphragm. In the event that the seal isn't as tight as it should be or the carburetor seems to be performing less effectively, it might be time to replace this part. Replacing the diaphragm will restore the seal and ensure maximum engine operation, as well as prevent further damage to other parts. Make sure to wear gloves when working on engine parts and always disengage the engine and allow it to cool completely before starting repairs. This genuine OEM replacement part is designed for use on Briggs & Stratton engines, including 3-5 HP horizontal engines. It specifically fits those with the pulsa jet carburetor from previous generations. This part is made to exact manufacturer standards and complies with all guidelines and emission regulations.
