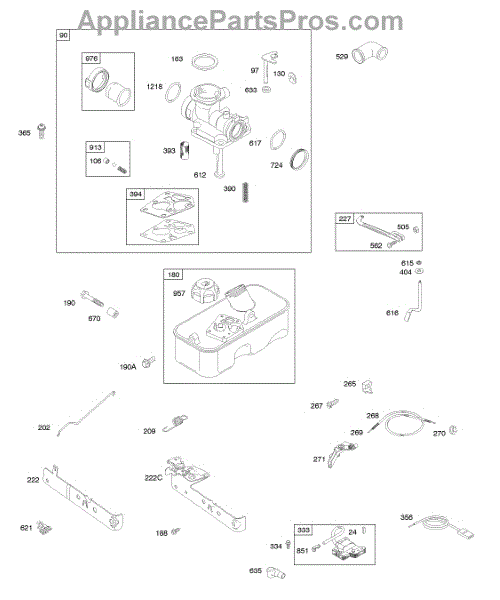

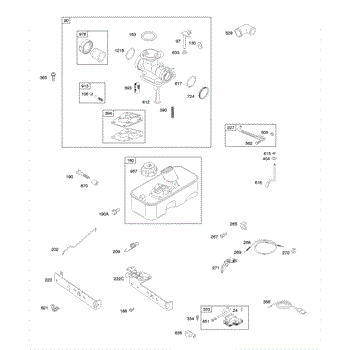

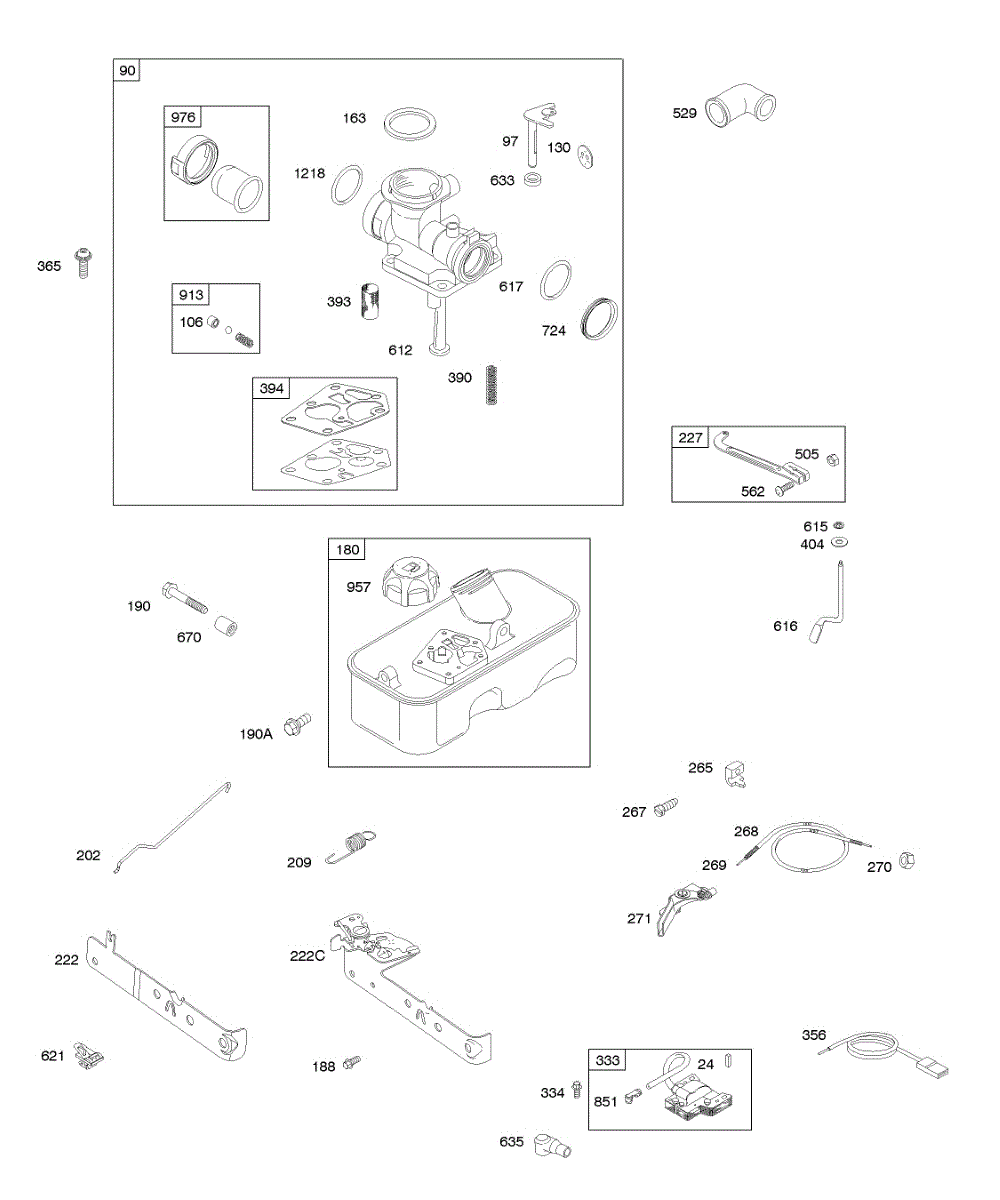

Parts for Briggs & Stratton 10K902-0100-E1: Carburetor, Controls, Fuel Supply, Governor Spring, Ignition Parts

The flywheel key is the component on outdoor equipment that keeps the flywheel connected to the crankshaft. Over time, this key may become damaged or broken, particularly if the engine experiences a forceful stop, like hitting a large stationary object. If the flywheel key breaks, the engine will not start. A slightly damaged flywheel key is noticeable through symptoms like misfiring, backfiring, or having no power. If any of these are occurring, the flywheel key should be replaced to prevent complete engine failure.A flywheel puller tool is required for this repair. Make sure the engine is cool before working on the flywheel. Wear safety gear, including gloves and eye protection. Disconnect the spark plug and remove the blower housing. Remove the flywheel mounting nut and set it aside. Take the recoil starter cup off the mower. Use the flywheel puller to remove the flywheel and access the flywheel key. Remove the broken flywheel and replace it with the new flywheel. Reverse the steps to put the mower back together.This flywheel key is made of an aluminum alloy and is sold as an individual part. It is designed for use in lawnmowers, lawn tractors, and other small engines manufactured by Briggs and Stratton, Toro, Lawn-Boy, Simplicity, MTD, and others.

This air cleaner gasket is a genuine replacement that is designed for select models of 3-5 HP small engines from Briggs & Stratton. The air cleaner gasket is designed to fit between the air cleaner and the carburetor assembly. This helps to create a seal between the two components and ensure that air does not leak out of the engine to provide the appropriate pressure. Gaskets are exposed to a lot of heat and pressure, along with constant vibrations, which can cause them to become frail or brittle over time. Replacing them is usually considered a part of routine maintenance and OEM parts should always be used. This genuine OEM air cleaner gasket is manufactured to exact standards and can be used on select engines from Briggs & Stratton and Toro. The engines are typically found on equipment like blowers, lawn mowers, generators, and other small lawn and garden machines. This gasket is sold as a single unit and does not include additional components or hardware. To replace the gasket, be sure to have the appropriate tools and a cool engine for best results. Never perform work when the engine is hot and always wear gloves to protect the hands.

This is a general use replacement screw. It is a standard piece of hardware for securing various components on lawn and garden equipment that will have multiple locations and uses based on the equipment model. Owners should refer to diagrams for proper location and application of this part. As a securing tool, this screw can become worn over time. The threads can strip or the screw can become lost during other repairs. This is when a replacement may be needed. Because this is a general-use part, it might be a good idea to keep a few extras on hand. This genuine replacement screw is designed for use with Briggs & Stratton, Toro, and Murray lawn and garden machines, including over 150 models of generators, tractors, snowblowers, and pressure washers. The screw can be replaced with a wrench in all applications and should only take a few minutes to fix. This durable screw is made of sturdy metal and sold as a single unit. Those who need additional screws will have to order multiple quantities.

This screw, manufactured by Briggs & Stratton, has multiple uses in small and medium sized gasoline powered engines, including generators, leaf blowers, lawn mowers, log splitters, chippers, tillers, pressure washers, and vacuums. Bolts of this design are used to secure engines and accessories to the body of the power tool. Manufactured with a smooth nozzle, these bolts are capable of withstanding four times the resistance of a regular hex bolt. For this reason, they are often used to secure the housing of moving parts, such as the cylinder head. Periodically, the wear and tear experienced by any engine will result in interior pieces needing to be replaced. In such cases it always a good idea to also replace the hardware that secures the various parts of the device together. Flange bolts and nuts should be replaced with genuine OEM parts such as this one, which is manufactured to meet the same specifications as the original. Occasionally, the high heat of the engine, coupled with extensive use, can cause a hex bolt such as this to freeze up. In such a case, a machinist is necessary to drill out the original bolt and retap the hole so the bolt can be used. This screw is compatible with equipment manufactured by Briggs & Stratton, Simplicity, MTD, Craftsman, Lawn Boy, Toro, Cub Cadet, and Murray.

Flange screws have a flange located near the top of the screw, which helps to distribute the connection force over a larger area to reduce potential damage to the machine. It also allows the screws to be used in oversized or irregular holes, and it helps to ensure they stay in place. This flange screw also has a hex top. Screws can last for a long time. However, they may become corroded or worn over time and need to be replaced. They could also become lost and need a replacement. Without all of the screws in the proper places in a machine, it could vibrate too much, which could render it less effective or unsafe to use. The flange screw is a genuine OEM part that can be used with many types of machines including lawn mowers, snowblowers, tillers, pressure washers, leaf blowers, generators, wood chippers, and other small engines. The screws are compatible with Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn-Boy, Snapper, Simplicity, and MTD.

This genuine Midwest Engine governor spring can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The function of the governor spring on an outdoor appliance is to maintain the consistent speed and power of the throttle by keeping tension.If the governor spring loses its ability to maintain consistent tension over time, which can occur as a result of corrosive damage from age, overexposure, or impact from collision, then it must be immediately removed and replaced. The small engine appliance at hand cannot be used without a functioning governor spring, as the throttle cannot be kept at its proper velocity without the governor spring in place. Additionally, the governor spring must work in tandem with the rest of the body of the governor within the engine. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This governor spring is compatible with the following brands: Midwest Engine and Briggs & Stratton. This part is sold individually.

This is a screw that is used in many types of lawn and garden equipment, including lawnmowers and wood chippers. It comes with a black finish and is made of durable metal. The screw can be used in many locations on a tool to attach two components together. Screws can also be used in tandem with nuts, but the two components should have the same threading and finish.Screws can become damaged, break, or be stripped and will need to be replaced. Corrosion, extreme temperatures, and unexpected stress can all lead to issues with a screw. A visual inspection can indicate whether the screw should be replaced. If it does need replacement, a screwdriver can be used to remove the original screw. The new component can be placed and tightened.This screw is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as a single component. The screw can be used with many types of lawn and garden equipment, including lawnmowers, tillers, pressure washers, leaf blowers, edgers, generators, wood chippers, and snowblowers manufactured by Briggs & Stratton, Cub Cadet, Craftsman, Murray, Wheel Horse, Lawn-Boy, MTD, MasterCut, Simplicity, and Toro.

A diaphragm is made from a durable rubber material and contributes to the function of the carburetor. However, constant heat and fuel exposure can make it stiff and even brittle. When it reaches the end of its lifespan, it will no longer help the carburetor maintain the right amount of fuel before transferring to the engine. If the engine has too much fuel, it will produce an unusual smoke accompanied by uncontrollable revving and vibration. Continuing to use the mower with a broken diaphragm can lead to total engine failure. To replace the worn-down diaphragm, make sure to have a screwdriver and socket set. Installation can take up to 30 minutes. It is recommended to clean the carburetor when replacing the diaphragm. Replace a broken carburetor diaphragm using this genuine Midwest Engine diaphragm. It is compatible with Briggs & Stratton, Toro, and Cub Cadet. It fixes issues like constant engine surging, hard engine starting, and sudden engine shut-down. This brand-new and original Midwest Engine diaphragm is sold individually. Other carburetor parts are sold separately.

This grommet is meant for small gasoline engines. It connects the crankcase breather tube to the carburetor. The elbow shape and rubber material of the grommet provide a convenient way to use it with metal tubing. This replacement breather tube grommet can help a small engine work better and more efficiently. This rubber engine part may dry out and crack over time, especially in the area connected directly to the carb. If not replaced, the carburetor will draw dirty air into the engine and cause costly problems. Use this manufacturer-approved spare part to replace a brittle grommet that has worn from age. This genuine OEM replacement part is sold individually and will fit specific models of blowers, generators, vacuums, and small engines from Toro and Briggs & Stratton.

This OEM intake manifold o-ring seal is placed between two rigid parts to retain the pressure. It is manufactured from a flexible material that allows the o-ring to create a tight seal between the two parts. A new intake manifold o-ring seal may be needed if the o-ring itself is broken or worn and is not able to create a tight seal. Signs that the o-ring seal has gone bad is if the engine is overheating or the engine misfires or decreases in power during use. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment machines.This genuine Midwest Engine part is sourced directly from the manufacturer and sold individually. This intake manifold o-ring seal is used on various lawnmowers and outdoor power equipment products manufactured by Midwest Engine, Briggs & Stratton, Toro, and Lawn Boy.

The stop switch, sometimes called a kill switch, is triggered to stop the engine when the operator is no longer on the seat ,This is important for safety. If the stop switch is not functioning properly, inspect it for damage and replace it right away. Operating a machine without a functional stop switch can be dangerous. The stop switch is a genuine OEM part, and it is sold individually. The switch can work for many types of equipment including lawn tractors, lawnmowers, log splitters, wood chippers, pressure washers, and tillers. The replacement part is compatible with a range of brands, including Midwest Engine, Toro, Craftsman, Briggs & Stratton, Lawn-Boy, Murray, Snapper, and MTD.

The spark plug boot is a rubber piece that is responsible for connecting the spark plug to the spark plug wires and completing the connection. Spark plugs are necessary to create the engine spark that will start the motor in lawn equipment and other small engines. The boot holds the terminal and keeps everything protected from the elements and insulated so that it continues to work correctly. If the spark plug connection seems weak or if the existing boot is damaged, this replacement could provide the solution. This durable rubber boot will insulate the spark plugs and help any small engine run better. This spark plug boot replacement can be used with a number of Briggs & Stratton engines and is compatible with hundreds of different machines from Toro, Lawn-Boy, and Briggs & Stratton. This boot replacement is sold individually as a single piece and does not include the terminal or any other housing or materials.

This genuine OEM replacement part is a spark plug terminal for a wide variety of small combustion engines. In a combustion engine, the spark plug generates a small electrical charge that creates enough power to start up the ignition and engage combustion. The plug connects to the ignition through the terminal. Spark plugs generate and then pass a small electrical current through to the ignition. Usually, the main issue with spark plugs is that this current hyper-extends and ends up frying the spark plug. However, if the terminal is damaged, the charge will not pass into the ignitor, and the engine will not turn. If the spark plug can carry a charge but the engine still won't turn, it's likely the terminal that needs replacing. This is an easy repair because the terminal should just snap on and off. If stuck, a pair of needle-nose pliers should make it easier. This high-quality replacement part is compatible with engines from Murray, Toro, Lawn Boy, and Briggs & Stratton. It is sourced from the original manufacturer and ships individually.

This fuel tank cap is an important part of the lawnmower. It affixes to the fuel tank and ensures that there is no debris, dirt, or air getting into the fuel system. Without the cap, the engine could become damaged and performance would suffer.A fuel tank cap can be cracked or damaged by impact with another object. The threading on the cap could become damaged and worn down, as well. Additionally, there is the chance that the cap could become lost. If there is any problem with the cap, it should be replaced as soon as possible. The replacement is simple and will require no tools.This black plastic cap is made for models of lawn mowers from MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, and Cub Cadet. The cap is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

The primer bulb primes the engine on select models that feature a pulsa prime carburetor. This primer helps prevent no-starts or slow starts and can ensure that the engine fires up properly each time that you use your lawn tools. Based on its location and small size, this bulb can become damaged or break down over time. If the primer isn’t working or has cracked or fallen off, this replacement part can provide the exact fit for compatible engines. This product includes the rubber primer bulb and the plastic collar that attaches the bulb to the engine housing. The repair for this issue should only take a few minutes to remove the old primer and collar and replace it with the new one. This OEM replacement primer bulb is a genuine Briggs & Stratton replacement part and is compatible with select engines from the brand. It can also be used with select Toro machines.
