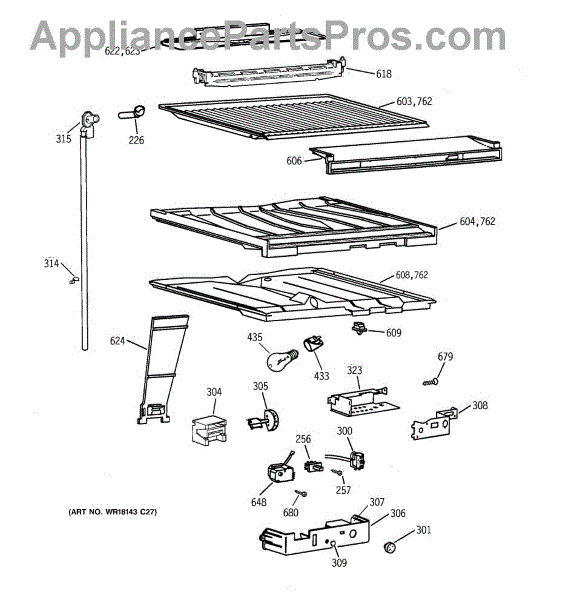

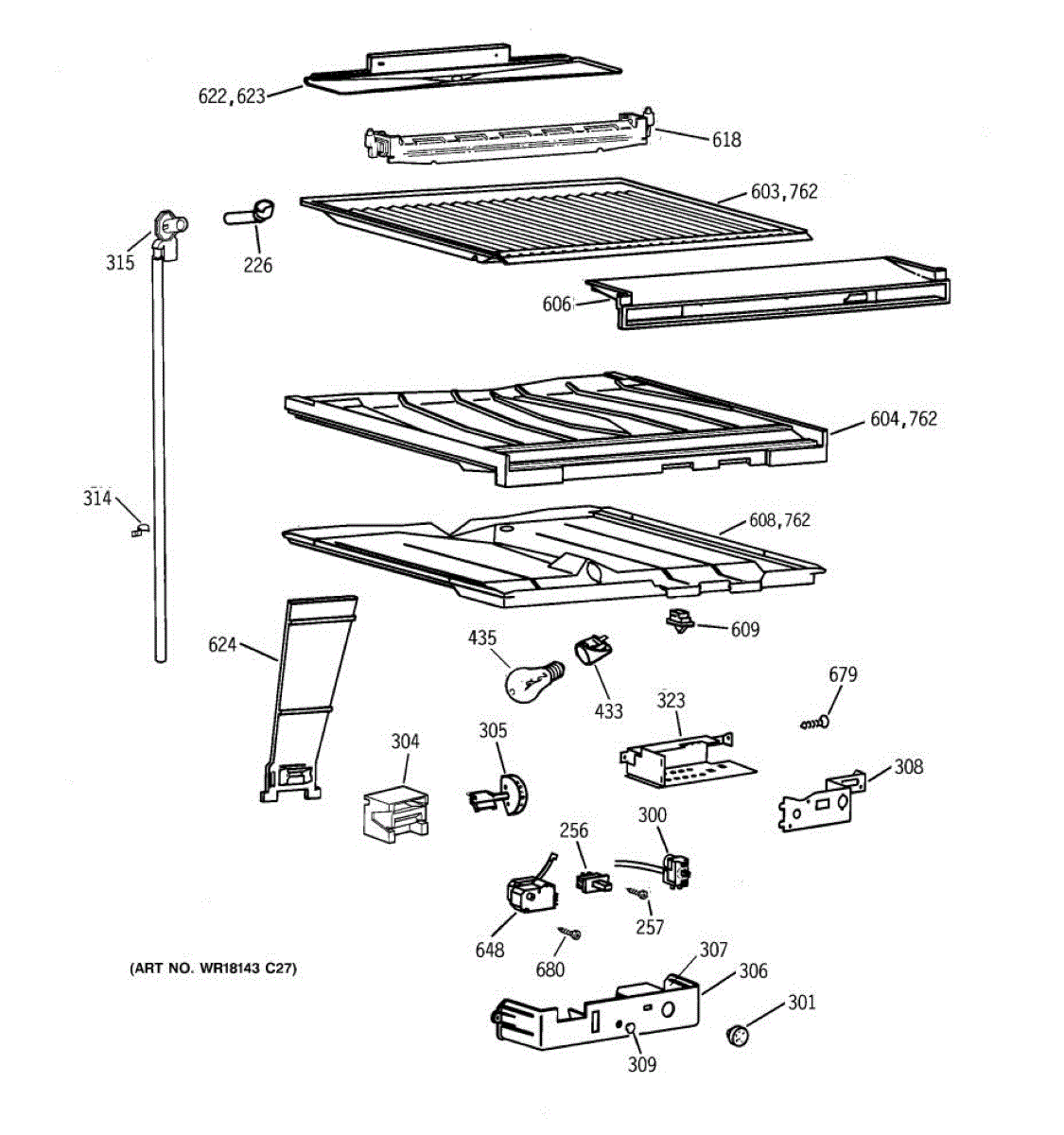

Parts for Ge ZSEB480DYA: 10 - Case Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

Bottom hinge bushing for refrigerator freezer doors. Installs at the lower hinge to help the door pivot smoothly. Replace if worn, cracked, or missing.

Bottom hinge bushing guides the refrigerator door hinge pin for smooth pivoting. Replace if worn, cracked, or missing to restore proper alignment.

Left hand base channel provides lower cabinet support for your freezer. Replace if cracked, bent, or damaged to restore proper alignment and stability.

Door closure spacer for side-by-side refrigerators. Replaces broken, worn, or missing spacers that ensure proper door alignment and seal.

Shoulder bolt for refrigerator assembly. Secures internal components and panels. Replace if bolt is stripped, missing, or no longer holding parts firmly.

Nylon hinge arm secures and guides refrigerator doors for smooth pivoting and alignment. Replace if cracked, broken, or worn to restore door support.

Bottom door hinge screw secures the lower hinge assembly to your refrigerator door. Replace if stripped, missing, or damaged to restore door alignment.

This is a small metal shear pin used in the refrigerator's ice maker or door hinge assembly. It acts as a mechanical safety component designed to break under excessive force, protecting more expensive parts from damage. Replace this pin if it has snapped or sheared off, causing the connected component to become loose, misaligned, or non-functional.

Right-hand base channel provides lower structural support for refrigerator doors. Replace if bent, cracked, or missing to restore proper door alignment.

This front roller assembly includes a small wheel and bracket designed to support and guide a sliding component inside the refrigerator, such as a drawer or shelf track. It allows smooth, low-friction movement when opening and closing drawers. Replace this roller if drawers feel sticky, wobble, or no longer glide evenly.

This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a damaged rear roller so the drawer opens and closes smoothly
• Keeps the drawer aligned and prevents it from binding or tilting
• Reduces scraping and uneven wear on the drawer and track
• Supports normal load on the rear of the drawer for stable operation

• Remove drawer contents and slide the drawer out according to your appliance manual before starting
• Inspect the front and rear tracks; replace only the damaged roller(s) and test drawer movement after installation
• Use basic hand tools; avoid forcing parts
• No special wiring or electronic handling required; follow general safety precautions

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

Bottom hinge case for side-by-side refrigerators. Covers and protects the lower door hinge assembly. Replace if cracked, broken, or missing.

Replace the actuator arm in your side-by-side refrigerator. This lever controls mechanism movement and may need replacement if cracked or broken.

Right side case trim for refrigerators. Covers the side panel edge for a finished look. Replace if cracked, broken, or missing for proper appearance.

This is a right-side hinge assembly that attaches the front base grille to the refrigerator cabinet. It allows the grille to pivot open for access to the condenser coils and other components beneath the unit. Replace this hinge if the grille is sagging, won't stay closed, or the hinge tabs are broken or cracked.

Left-side grill hinge secures your refrigerator's lower access panel. Replace when bent, worn, broken, or missing to restore stable alignment and operation.

Upper case hinge for refrigerator doors. Secures and allows smooth door pivoting. Replace if cracked, broken, or worn to restore proper door alignment.

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

Water inlet fill tube kit routes water to your refrigerator's dispenser and ice maker. Replace if cracked, leaking, or frozen to restore proper delivery.

Replacement mounting screw that secures panels and internal components in your freezer. Replace stripped, rusted, or missing fasteners to restore stability.

This is a large adhesive logo nameplate that attaches to the front of a range or cooktop. It provides brand identification and a finished look to the appliance exterior. Replace this nameplate if it has fallen off, become discolored, or is peeling away from the surface.

A 2 amp replacement fuse that protects low-current appliance circuits by opening when an overcurrent occurs. Install this direct-replacement fuse to restore power to control circuits and stop damage from a blown fuse. What it does:

• Interrupts current in control or low-voltage circuits when the fuse rating is exceeded
• Prevents electrical damage by opening the circuit on overloads
• Common symptoms of a blown fuse: appliance won't power on, controls are unresponsive, or intermittent operation
• Use as a like-for-like replacement matched to the original 2 amp rating

• Disconnect power to the appliance before inspecting or replacing the fuse
• Replace only when the appliance is cool and dry; avoid touching conductive ends

Freezer light not turning on or off? This door light switch activates interior lighting when opened. Moderate DIY repair—press tab, rotate out old switch.

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

This tray transformer is a direct-replacement transformer assembly that provides the proper low-voltage power for the appliance tray assembly, restoring reliable operation and control. Use it to replace a worn or failed transformer without modifying wiring or controls. What it does

• Steps down line voltage to the tray assembly's required control voltage so tray components receive stable power
• Restores power to tray-related circuits when a failed transformer causes loss of function
• Common symptom: tray functions, lights, or heater do not operate or respond
• Designed to fit and mate with the factory tray wiring and mounting points for a clean swap

• One tray transformer assembly

• Always disconnect power to the appliance before starting work to avoid shock hazard
• Match the replacement to the original by part number and connector style before installing
• Basic hand tools are typically required; handle wiring and terminals carefully to avoid damage

Size: 10-32 GXTT FLP.595 S

Connects refrigerator water supply tubing to the appliance for dispenser and ice maker. Replace if cracked, loose, damaged, or leaking at the connection point.

The Spring Closure is an OEM part for GE refrigerators. This spring aids in the automatic closing of the refrigerator door, ensuring it seals tightly after each use to maintain optimal internal temperatures.

Causes of a bad spring closure can include regular wear and tear, corrosion due to moisture, or accidental damage that compromises its function.

Symptoms of a bad spring closure include:

• The refrigerator door not closing completely or staying ajar
• Difficulty in opening or closing the door smoothly
• Increased energy consumption as cold air escapes
• Frost buildup around the door seal area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This corner key assembly secures and finishes a refrigerator door corner, restoring proper alignment and a clean appearance. It replaces a cracked, broken, or missing corner piece to help the door close evenly and look factory-original. What it does:

• Provides structural support at the door corner to maintain proper edge alignment
• Covers and protects the underlying corner area from damage and wear
• Helps reduce visible gaps or misalignment that can affect sealing
• Restores the cabinet's finished appearance after impact or deterioration

• One corner key assembly

• Disconnect power to the appliance before starting any repair
• Remove door or trim per manufacturer instructions to access the corner area
• Install with original fasteners or clips; do not force or over-torque plastic snaps
• If hinge or door alignment issues persist, inspect associated hinges and gaskets
