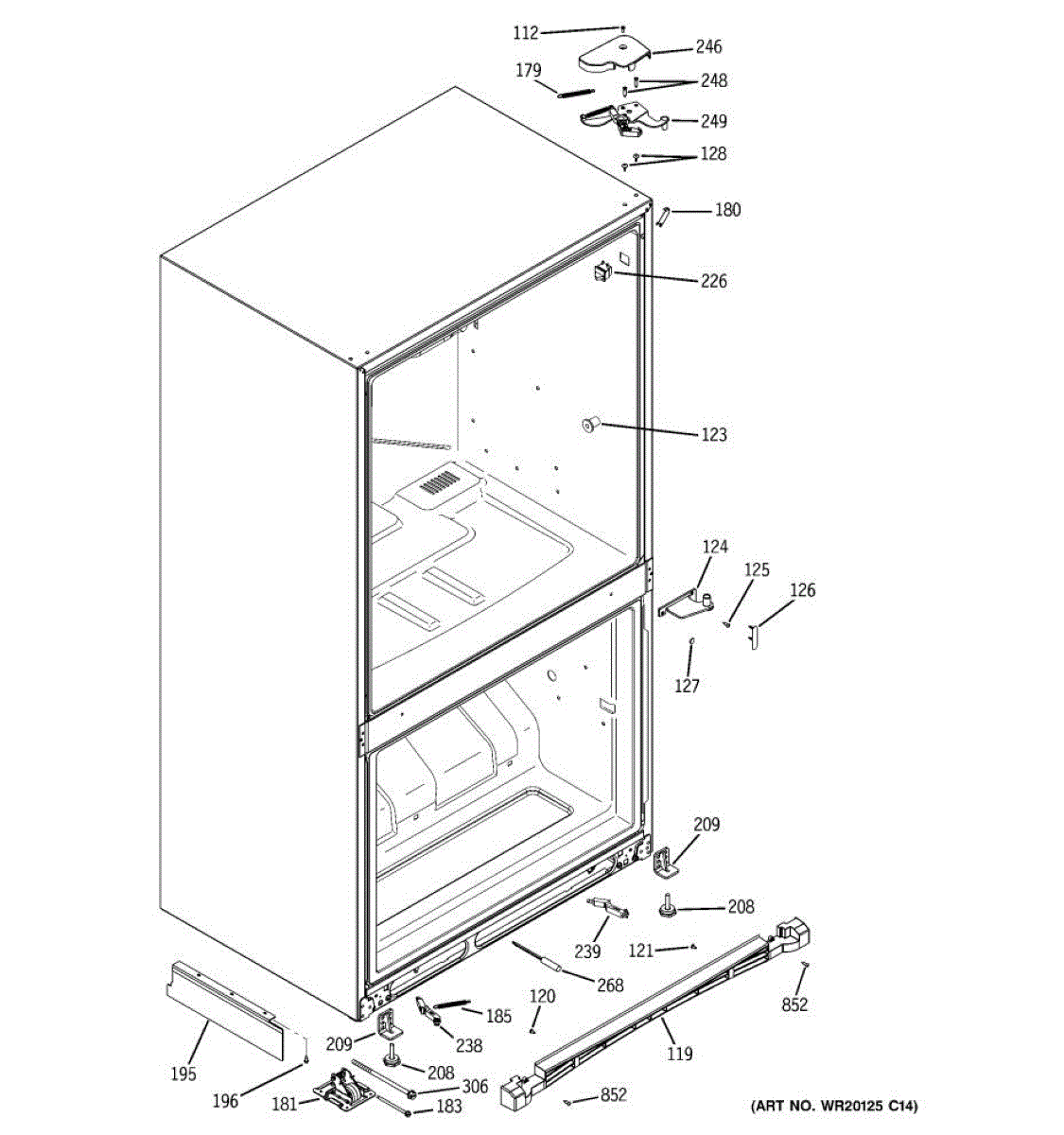

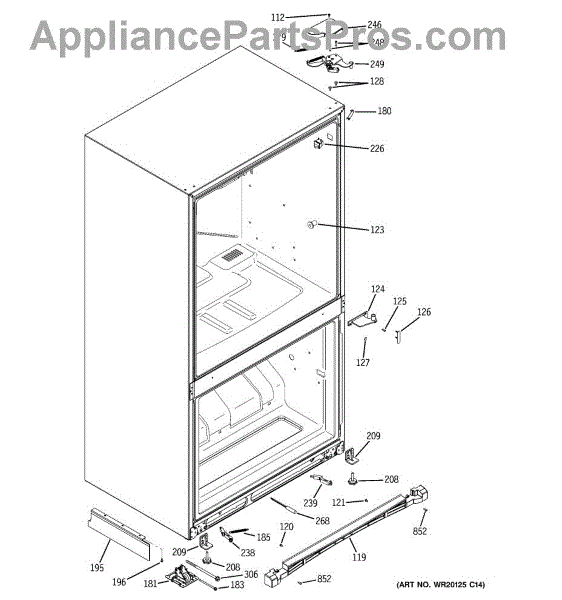

Parts for Ge PDCS1NBWARSS: 06 - Case Parts

This hinge cover screw fastens the hinge cover in place, helping keep it secure and protecting the hinge components beneath. Replace a missing or stripped screw to stop the cover from loosening or rattling.

• Secures the hinge cover to the door/cabinet hinge
• Helps protect hinge hardware and wiring under the cover
• Replaces stripped, rusted, or missing hardware
• Common symptoms: loose or missing hinge cover, vibration or rattling at the hinge area

• Disconnect power to the appliance before servicing near the hinge area
• Use the correct screwdriver; start threads by hand to avoid cross-threading
• Align the cover properly and tighten snugly—do not overtighten to prevent stripping
• Keep the door closed during work to minimize movement

This silicon controlled rectifier (SCR) is a replacement control semiconductor that helps regulate power to heating elements and motors, restoring proper cycle control and heat delivery in compatible appliances. What it does:

• Controls and chops AC power to heating elements or motor circuits for variable heat/speed control
• Can stop intermittent or no-heat conditions caused by a failed SCR in oven, range, or similar appliances
• Helps restore stable thermostat/regulation behavior when the original SCR is not switching correctly
• Commonly used where precise power control is required in the appliance's control board or module

• One silicon controlled rectifier (SCR) as shown

• High-level, service-only replacement — disconnect power before starting work
• Verify correct part number on the appliance and transfer heat sinks or mounting hardware if required
• Use proper ESD precautions when handling semiconductor components

This fastener secures appliance components where a #8-18 AB hex-washer-head screw is specified. At 1/2 inch long, it restores a tight, reliable hold when an original screw is missing, damaged, or stripped.

• Secures brackets, panels, and covers where this size/thread is specified
• Replaces missing, stripped, or corroded screws
• Helps reduce vibration or rattling caused by loose fasteners
• Correct #8-18 AB thread and 1/2-in length for a precise fit

• Disconnect power before servicing; shut off water supply if working near water connections
• Compare to the original to confirm length and thread match
• Start threads by hand to prevent cross-threading; use the correct driver for the head type
• Tighten snugly; do not overtighten into plastic or thin sheet metal

• Thread: #8-18 (Type AB)
• Head: Hex-washer
• Length: 1/2 in

This shelf support is the small rear rail clip that secures a refrigerator shelf or drawer rail in place. A worn or broken support can let the shelf tilt or drop, making storage unstable.

• Holds the rear of the shelf or rail securely to the cabinet wall
• Helps correct issues like a sagging, tilting, or loose shelf
• Replaces cracked, missing, or deformed supports causing poor fit
• Restores proper alignment so bins and shelves slide/seat correctly

• Unplug refrigerator before service
• Remove the shelf/bin to access the support
• Depress locking tabs and slide the old support out; snap the new one into the cabinet slot
• Ensure it's fully seated before reinstalling the shelf

This is a silicon controlled rectifier (SCR) used in appliance control circuits to regulate power to heaters or motors, helping the appliance deliver consistent operation and heat when needed. What it does:

• Acts as a switch in the control circuit to regulate current flow to heating elements or motors
• Can prevent or allow power to the load based on control signals from the appliance module
• Common symptom indicators: intermittent or no heat, unit won't reach operating temperature, or inconsistent operation of the controlled component
• Used where precise control of AC power is required for safe, efficient performance

• One silicon controlled rectifier (SCR) as described

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the part carefully; avoid bending terminals and observe anti-static precautions
• Verify wiring and terminal orientation matches the original before reconnecting

This is a replacement cover mullion screw that secures the mullion/trim cover on the refrigerator door assembly, restoring a snug, rattle-free fit and keeping the trim properly aligned. What it does

• Secures the mullion or center trim cover to the refrigerator door
• Prevents the trim from vibrating or coming loose during door use
• Addresses symptoms like a loose or rattling mullion cover
• Restores proper trim alignment for a finished appearance

• One cover mullion screw

• High-level hand tools (screwdriver) are typically all that's needed
• Tighten until snug; avoid overtightening to prevent striping the hole or damaging trim
• Disconnect power only if removal of other parts requires working near electrical components; otherwise, ensure doors are stable before working

A replacement reversible plug door that covers and protects the appliance power inlet while letting the cord exit left or right for tidy cord routing. Restores a clean back panel appearance and helps keep the power connection protected from debris. What it does:

• Covers the power inlet opening to protect the plug and inlet from dust and debris.
• Reversible design lets you route the power cord to either side to fit against the wall.
• Helps keep the cord tucked close to the appliance so the unit can sit flush with cabinetry or walls.
• Replace when the door is cracked, broken, missing, or no longer holds the plug securely.

• Always unplug the appliance before starting any repair or inspection.
• May require access to the rear panel; check your owner's manual for disassembly steps.
• Check orientation before finalizing installation to ensure correct left/right cord routing.

This spring closure is the OEM-style replacement that helps a door or panel return to a closed position smoothly and reduces slack or slamming for improved alignment and operation. It fits the original mounting points and restores the intended closing action. What it does:

• Provides the tension needed to pull a door/panel closed and hold it in place
• Restores consistent closing action when the original spring is worn or broken
• Helps reduce noisy slamming and prevents partial-open gaps that affect seal and alignment
• Works with the door/panel linkage to improve day-to-day usability

• One spring closure

• Turn off power to the appliance or unplug it before starting any repair
• Verify correct orientation and routing before fastening; spring tension can cause sudden movement
• Use appropriate hand tools and eye protection; if the original mounting clips are damaged, replace them as well

This replacement corner cap restores the finished edge and protective cover on an oven door corner for a clean appearance and proper fit. It replaces a cracked, chipped, or missing corner that can catch debris or show damage. What it does:

• Covers and protects the outer corner of the oven door from chips and dents
• Helps maintain a smooth door edge so the door closes and seals properly
• Improves cosmetic appearance when the original corner is cracked or worn
• Reduces sharp or rough edges that can catch on clothing or cause minor cuts

• Turn off power to the appliance and allow the oven to cool before servicing
• Installation may require partially removing the oven door or trim; have basic hand tools ready
• Handle the door and trim carefully to avoid scratching finished surfaces

This is a mobility screw used to secure mobility-related components in compatible appliances, providing a reliable fastener for stable operation and correct alignment. It replaces worn or missing screws to restore secure mounting. What it does

• Fastens and secures mobility/bracket components to prevent movement or misalignment.
• Helps maintain proper alignment of moving parts that can cause noise or binding when loose.
• Commonly replaced when mounting points are stripped, damaged, or missing.
• Small replacement part that supports overall appliance stability and safe operation.

• One screw as shown/packaged by the manufacturer.

• Use the correct screwdriver or bit to avoid stripping the screw head.
• Ensure the appliance is powered off and disconnected from the power source before accessing internal components.
• Do not overtighten; snug to manufacturer torque or until the part is secure.
• If mounting hardware or threaded inserts are damaged, replace or repair those components before installing this screw.

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

This adjustable leveling screw replaces a worn or damaged leg adjustment used to raise, lower, and level the appliance for stable operation. It restores proper fit and helps reduce rocking and uneven appliance height. What it does:

• Provides height adjustment to level the appliance on uneven floors
• Stabilizes the unit to reduce rocking and vibration
• Helps align doors and drawers that hang or bind due to uneven stance
• Works as the threaded lower leg/adjuster for proper weight support

• Disconnect power and water and move the appliance to access the leveling assembly safely.
• Support the appliance with a jack or block before removing or adjusting legs to prevent tipping.
• Turn the screw with an appropriate wrench or pliers; adjust gradually and check level frequently.
• If the leg assembly includes a mounting bracket, keep fasteners secure and replace any worn hardware.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This manufacturer-specified screw fastens appliance panels, brackets, and internal components in place. Replace a missing or stripped fastener to restore a tight, rattle-free fit and reliable support at the original mounting points.

• Provides the correct fastener for securing covers, brackets, and assemblies
• Replaces lost, rusted, or damaged screws
• Helps resolve loose or vibrating panels and trim
• Maintains alignment of components and hardware

• Unplug the appliance; shut off water if working near supply lines
• Match the new screw to the original location; verify length and thread
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Keep removed hardware organized for reassembly
