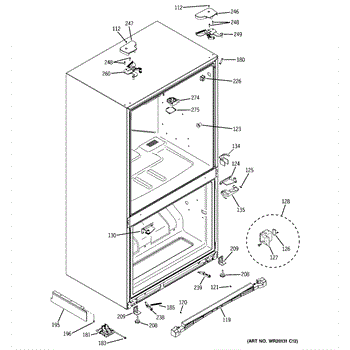

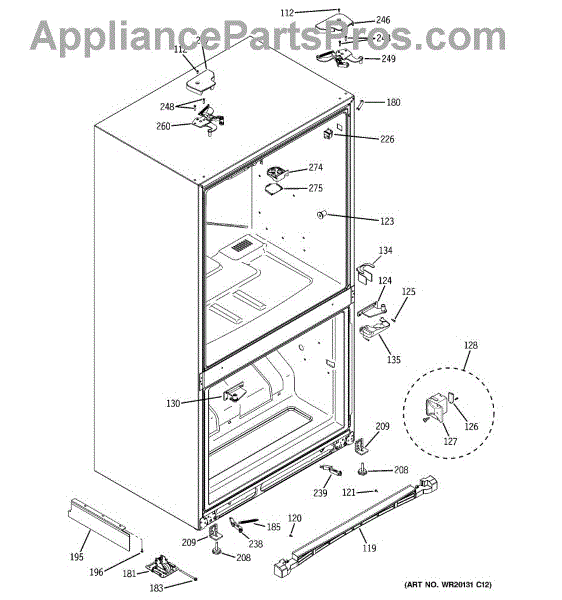

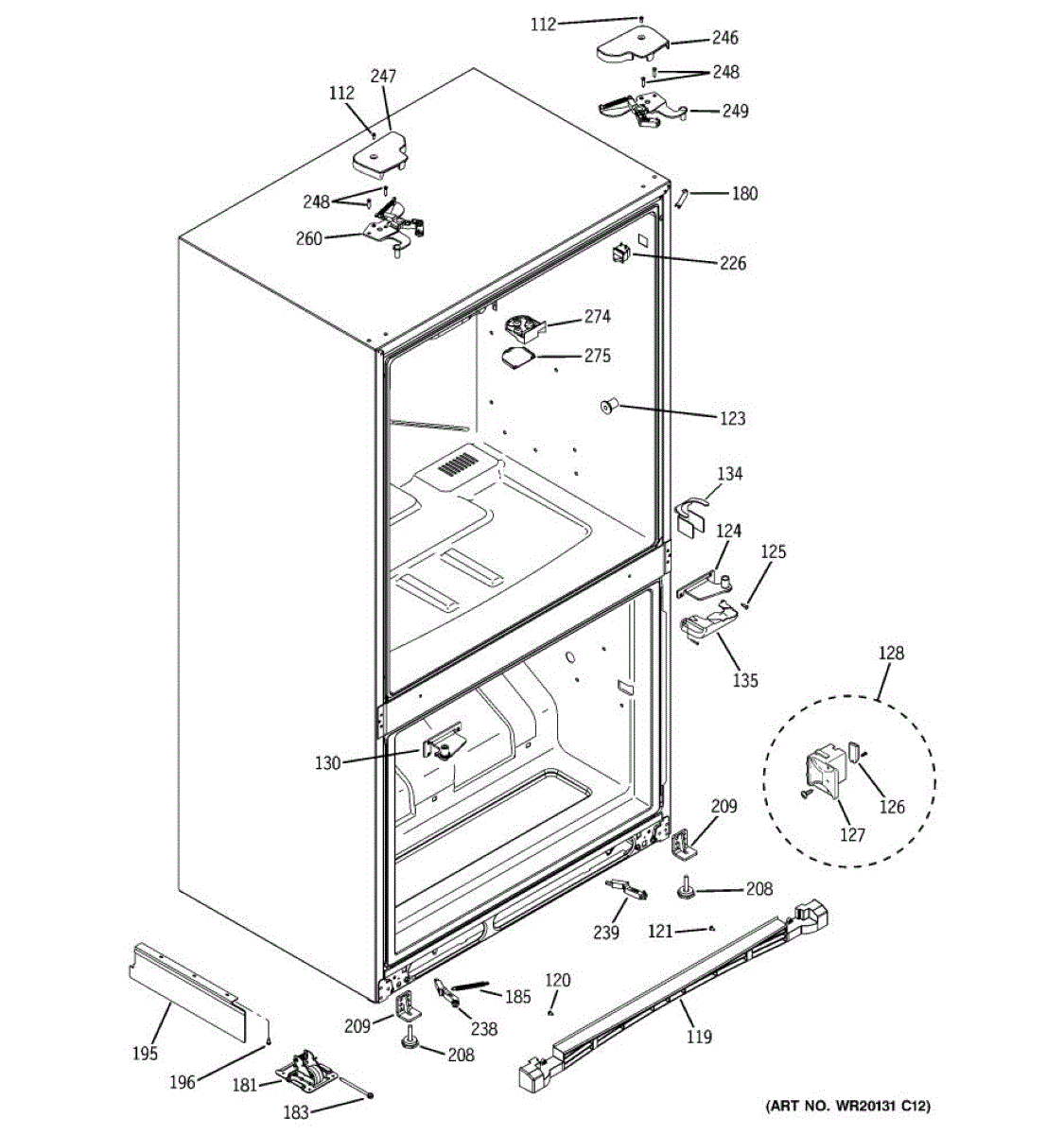

Parts for Ge PGCS1PJXASS: 07 - Case Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

This hinge cover screw fastens the hinge cover in place, helping keep it secure and protecting the hinge components beneath. Replace a missing or stripped screw to stop the cover from loosening or rattling.

• Secures the hinge cover to the door/cabinet hinge
• Helps protect hinge hardware and wiring under the cover
• Replaces stripped, rusted, or missing hardware
• Common symptoms: loose or missing hinge cover, vibration or rattling at the hinge area

• Disconnect power to the appliance before servicing near the hinge area
• Use the correct screwdriver; start threads by hand to avoid cross-threading
• Align the cover properly and tighten snugly—do not overtighten to prevent stripping
• Keep the door closed during work to minimize movement

This silicon controlled rectifier (SCR) is a replacement control semiconductor that helps regulate power to heating elements and motors, restoring proper cycle control and heat delivery in compatible appliances. What it does:

• Controls and chops AC power to heating elements or motor circuits for variable heat/speed control
• Can stop intermittent or no-heat conditions caused by a failed SCR in oven, range, or similar appliances
• Helps restore stable thermostat/regulation behavior when the original SCR is not switching correctly
• Commonly used where precise power control is required in the appliance's control board or module

• One silicon controlled rectifier (SCR) as shown

• High-level, service-only replacement — disconnect power before starting work
• Verify correct part number on the appliance and transfer heat sinks or mounting hardware if required
• Use proper ESD precautions when handling semiconductor components

This fastener secures appliance components where a #8-18 AB hex-washer-head screw is specified. At 1/2 inch long, it restores a tight, reliable hold when an original screw is missing, damaged, or stripped.

• Secures brackets, panels, and covers where this size/thread is specified
• Replaces missing, stripped, or corroded screws
• Helps reduce vibration or rattling caused by loose fasteners
• Correct #8-18 AB thread and 1/2-in length for a precise fit

• Disconnect power before servicing; shut off water supply if working near water connections
• Compare to the original to confirm length and thread match
• Start threads by hand to prevent cross-threading; use the correct driver for the head type
• Tighten snugly; do not overtighten into plastic or thin sheet metal

• Thread: #8-18 (Type AB)
• Head: Hex-washer
• Length: 1/2 in

This shelf support is the small rear rail clip that secures a refrigerator shelf or drawer rail in place. A worn or broken support can let the shelf tilt or drop, making storage unstable.

• Holds the rear of the shelf or rail securely to the cabinet wall
• Helps correct issues like a sagging, tilting, or loose shelf
• Replaces cracked, missing, or deformed supports causing poor fit
• Restores proper alignment so bins and shelves slide/seat correctly

• Unplug refrigerator before service
• Remove the shelf/bin to access the support
• Depress locking tabs and slide the old support out; snap the new one into the cabinet slot
• Ensure it's fully seated before reinstalling the shelf

This mobility front assembly replaces the worn front caster/roller that helps a refrigerator glide when pulled out for cleaning or service. Restores smooth forward movement and stable front support for safe access. What it does:

• Provides a rolling front support so the appliance moves smoothly on the floor
• Helps stabilize the front of the refrigerator when it is pulled out or pushed in
• Reduces sticking and uneven movement caused by worn or damaged rollers
• Can help minimize scraping or surface damage during repositioning

• One mobility front assembly

• Disconnect power and, if applicable, water supply before servicing
• Empty or secure loose items and have a second person help when tilting or moving the appliance
• Remove the kickplate or access panel as required to reach and replace the front assembly
• Tighten fasteners to OEM torque and test mobility before returning the appliance to normal use

This is a mobility screw used to secure mobility-related components in compatible appliances, providing a reliable fastener for stable operation and correct alignment. It replaces worn or missing screws to restore secure mounting. What it does

• Fastens and secures mobility/bracket components to prevent movement or misalignment.
• Helps maintain proper alignment of moving parts that can cause noise or binding when loose.
• Commonly replaced when mounting points are stripped, damaged, or missing.
• Small replacement part that supports overall appliance stability and safe operation.

• One screw as shown/packaged by the manufacturer.

• Use the correct screwdriver or bit to avoid stripping the screw head.
• Ensure the appliance is powered off and disconnected from the power source before accessing internal components.
• Do not overtighten; snug to manufacturer torque or until the part is secure.
• If mounting hardware or threaded inserts are damaged, replace or repair those components before installing this screw.

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

This adjustable leveling screw replaces a worn or damaged leg adjustment used to raise, lower, and level the appliance for stable operation. It restores proper fit and helps reduce rocking and uneven appliance height. What it does:

• Provides height adjustment to level the appliance on uneven floors
• Stabilizes the unit to reduce rocking and vibration
• Helps align doors and drawers that hang or bind due to uneven stance
• Works as the threaded lower leg/adjuster for proper weight support

• Disconnect power and water and move the appliance to access the leveling assembly safely.
• Support the appliance with a jack or block before removing or adjusting legs to prevent tipping.
• Turn the screw with an appropriate wrench or pliers; adjust gradually and check level frequently.
• If the leg assembly includes a mounting bracket, keep fasteners secure and replace any worn hardware.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head

This cover top striker secures the appliance door/cover to the cabinet so the door latches properly and stays closed. Durable replacement for worn or broken striker assemblies to restore reliable door engagement. What it does:

• Provides the contact point for the door latch/strike to engage and hold the door closed
• Replaces damaged or worn striker that can cause a door to fail to latch or pop open
• Helps stop rattling or misalignment caused by a broken strike surface
• Works with the original latch mechanism to maintain proper door positioning

• Disconnect power to the appliance before beginning any repair
• Remove outer door or top cover panels as required to access the striker
• Retain and reuse any original screws or clips unless replacement hardware is specified
• Align striker with latch mechanism and tighten securely; do not force or overtighten
