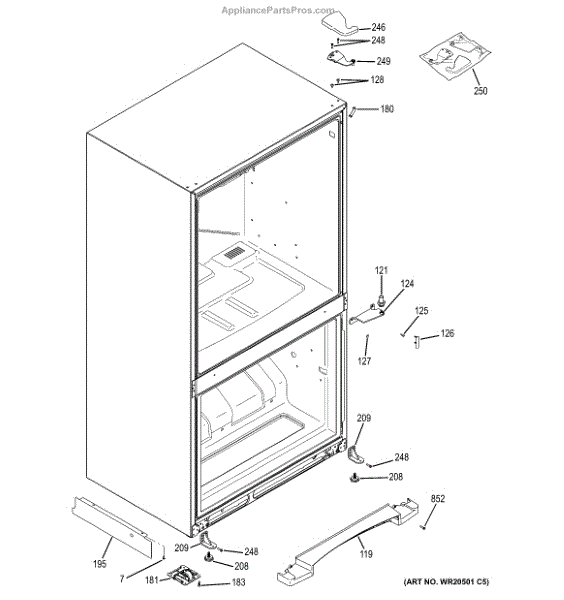

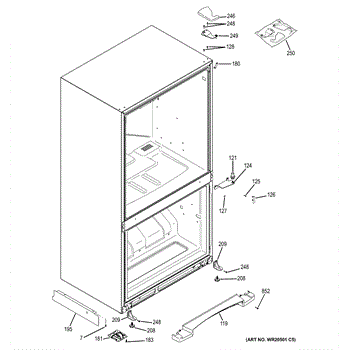

Parts for Ge GDE20GGHBRBB: Case Parts

Parts for Ge GDE20GGHBRBB: Case Parts

Location on Diagram
Part Description
Price & Availability
7
Product photo
4.7 (3)
By: Ge
Part Number: WR01X10606

8-18 CA HX 1/2 S

More
$9.88

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
119
By: Ge
Part Number: WR74X10264
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

121
Product photo
5.0 (1)
By: Ge
Part Number: WR02X12875
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

124
Product photo
By: Ge
Part Number: WR13X10597
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

125
Product photo
5.0 (1)
By: Ge
Part Number: WR01X10683

This is a silicon controlled rectifier (SCR) used in appliance control circuits to regulate power to heaters or motors, helping the appliance deliver consistent operation and heat when needed. What it does:

  • Acts as a switch in the control circuit to regulate current flow to heating elements or motors
  • Can prevent or allow power to the load based on control signals from the appliance module
  • Common symptom indicators: intermittent or no heat, unit won't reach operating temperature, or inconsistent operation of the controlled component
  • Used where precise control of AC power is required for safe, efficient performance
What's included:
  • One silicon controlled rectifier (SCR) as described
Install notes:
  • Disconnect power to the appliance before servicing to avoid shock or injury
  • Handle the part carefully; avoid bending terminals and observe anti-static precautions
  • Verify wiring and terminal orientation matches the original before reconnecting

More
$8.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
126
By: Ge
Part Number: WR02X12381

This is a replacement cover mullion screw that secures the mullion/trim cover on the refrigerator door assembly, restoring a snug, rattle-free fit and keeping the trim properly aligned. What it does

  • Secures the mullion or center trim cover to the refrigerator door
  • Prevents the trim from vibrating or coming loose during door use
  • Addresses symptoms like a loose or rattling mullion cover
  • Restores proper trim alignment for a finished appearance
What's included
  • One cover mullion screw
Install notes
  • High-level hand tools (screwdriver) are typically all that's needed
  • Tighten until snug; avoid overtightening to prevent striping the hole or damaging trim
  • Disconnect power only if removal of other parts requires working near electrical components; otherwise, ensure doors are stable before working

More
$8.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
127
By: Ge
Part Number: WR02X10994
$4.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
128
By: Ge
Part Number: WR02X13009

This plug cover is a small protective cap that shields an appliance's power or wiring plug/terminal area from dust and accidental contact. It helps keep connections clean and reduces the risk of debris buildup. What it does

  • Covers and protects an exposed appliance plug or terminal connection
  • Helps prevent dust, dirt and small debris from entering the plug area
  • Reduces risk of accidental contact with terminals while appliance is serviced or idle
  • Commonly used when a cord or plug is not in use or during maintenance
What's included One plug cover Install notes
  • No special tools required; push the cover firmly into place over the plug or terminal
  • Ensure the appliance is powered off and unplugged before servicing nearby components
  • Inspect the cover for damage and replace if cracked or deformed
  • Not intended to alter electrical connections or provide waterproofing; use only as a protective cap

More
$8.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
181
By: Ge
Part Number: WR02X12807
$24.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
183
Product photo
By: Ge
Part Number: WR01X10622

Machine screw secures panels, brackets, and components in refrigerators. Replaces lost, stripped, or damaged 10-32 fasteners to restore stability.

More
$11.34

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
195
By: Ge
Part Number: WR17X12295

Air separator divider for side-by-side refrigerators. Replaces cracked, broken, or missing air flow dividers in the fresh food compartment.

More
$29.29

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
208
Product photo
By: Ge
Part Number: WR01X10850

Threads into the leveling leg or adjuster bracket to raise or lower your refrigerator cabinet. Replace if stripped, missing, or worn for stable footing.

More
$25.33

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
209
By: Ge
Part Number: WR02X12874

Leg bracket assembly that mounts to the bottom of your refrigerator to support and secure the leveling legs. Replace if cracked, broken, or missing.

More
$16.60

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
246
Product photo
By: Ge
Part Number: WR02X12806

Replace your refrigerator's hinge cover if cracked, broken, or missing. This plastic cap installs over the door hinge mechanism for a finished look.

More
$6.23

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
248
Product photo
5.0 (1)
By: Ge
Part Number: WR01X10792

Hex head screw for refrigerator panels, brackets, and assemblies. Replaces missing, stripped, or rusted fasteners to secure components properly.

More
$14.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
249
Product photo
By: Ge
Part Number: WR13X10596
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

250
By: Ge
Part Number: WR12X20320

Door hinge reversal kit for refrigerators. Allows you to change door swing direction from left to right or vice versa. Includes hinges and hardware.

More
$124.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
