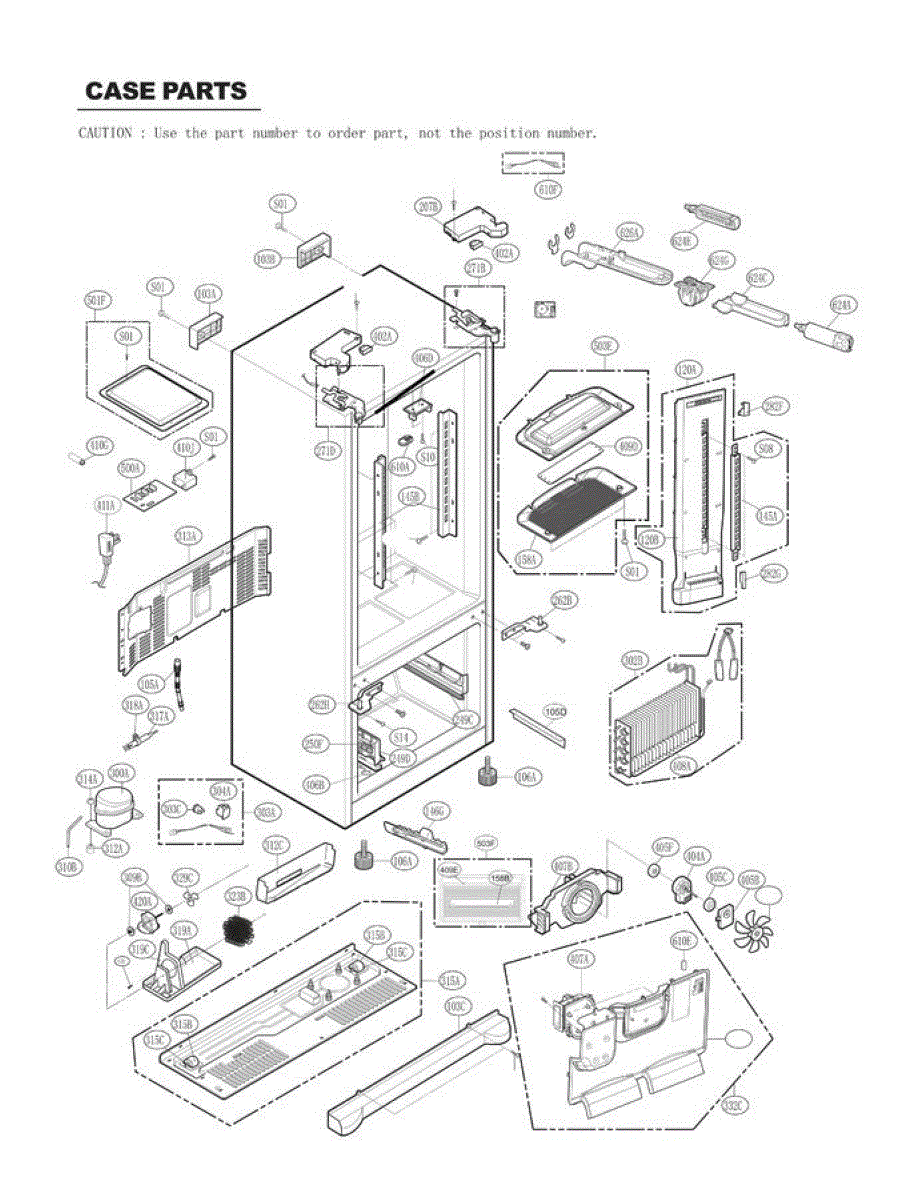

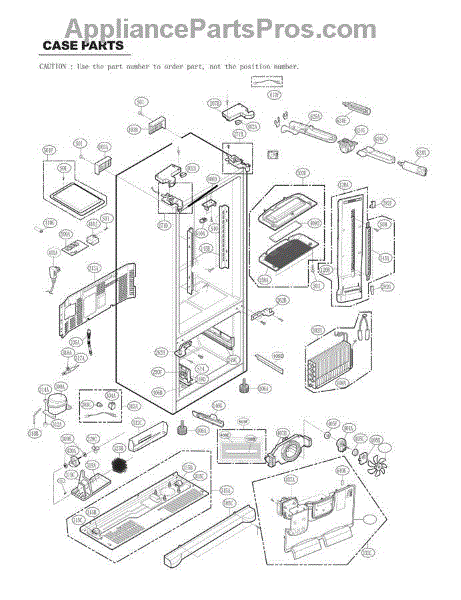

Parts for Lg 70322: Case Parts

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

Adjustable leveling leg that threads into the refrigerator base frame to support and stabilize the unit. Replace worn, broken, or missing legs.

Freezer drawer roller assembly enables smooth gliding of your refrigerator's lower drawer. Replace if drawer sticks, wobbles, or is hard to open. Confirm fit with your model number before ordering.

Dual roller wheel assembly that mounts to the rear wall of the freezer drawer. Replace when wheels are missing, broken, or cracked for smooth sliding.

Replacement glass panel for refrigerator shelves. Restores a smooth surface when the original is cracked, broken, or missing. Panel-only component.

The Tray Asm is an OEM part for LG refrigerators. It is designed to store fruits and vegetables at optimal humidity levels, helping to keep produce fresh for longer periods. It has approximate measurements of 30 inches in length, 18 inches in width, and 4 inches in height.

Causes of a bad tray asm can include cracking or breaking due to frequent use, accidental dropping, or exposure to heavy loads that exceed its capacity. Over time, the plastic can also become brittle and more susceptible to damage.

Symptoms of a bad tray asm include:

• Cracks or breaks in the drawer
• Difficulty sliding the drawer in and out
• Produce not staying fresh as long
• The drawer not fitting properly in its compartment

This OEM LG part is also compatible with Sears/Kenmore models.

The Drawer Guide is an OEM part for LG refrigerators. This part allows the smooth and effortless operation of the refrigerator's drawers, ensuring they glide in and out with ease.

Causes of a bad drawer guide can be attributed to wear and tear over time, misalignment during installation, or damage from excessive force or improper use of the drawers.

Symptoms of a bad drawer guide include:

• Difficulty opening or closing the drawers
• Drawers getting stuck or not sliding properly
• Excessive friction or resistance when operating the drawers
• Drawers becoming misaligned or tilted
• Unusual noises or grinding sounds when using the drawers

This OEM LG part is also compatible with some Kenmore models.

Right side upper hinge.

A PTC thermistor assembly that senses temperature and provides the control board with accurate temperature feedback to help regulate heating and cycling. Replacing a faulty thermistor restores reliable temperature monitoring for safe, consistent operation. What it does:

• Monitors temperature and sends a signal to the appliance control so heating and cycles can be adjusted.
• Helps prevent overheating by enabling proper control of the heating system.
• Common symptoms of a failing thermistor: incorrect or inconsistent temperatures, heating that won't start or won't stop, extended cycle times, or temperature-related error codes.
• Works as the OEM-designated temperature sensing/feedback component for compatible LG units.

• Disconnect power to the appliance before starting any repair.
• Handle the assembly carefully; avoid pulling on wires or connectors—replace in the same orientation.
• May require basic hand tools and access panels.

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

Covers and protects the interior compartment fan while directing airflow. Replace if cracked, broken, or missing to restore safe air circulation.

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

Supports and stabilizes your refrigerator door for proper alignment. Replace if bracket is cracked, broken, or causing door misalignment issues.

This run capacitor provides the continuous electrical boost needed to keep the refrigerator's compressor motor running efficiently. It stores and releases energy to maintain the proper phase and voltage for the compressor during normal operation. Replace this capacitor if the compressor struggles to start, hums without running, shuts off intermittently, or if the refrigerator stops cooling altogether.

This is the condenser fan motor assembly located near the compressor at the back or bottom of the refrigerator. It draws air across the condenser coils to dissipate heat and keep the refrigeration system running efficiently. Replace this motor if the refrigerator is running warm, the compressor is overheating, or you no longer hear the fan running when the compressor is on.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

Allows water to flow directly to your dispenser and ice maker without filtration. Install when choosing not to use a water filter. Confirm fit by model.
