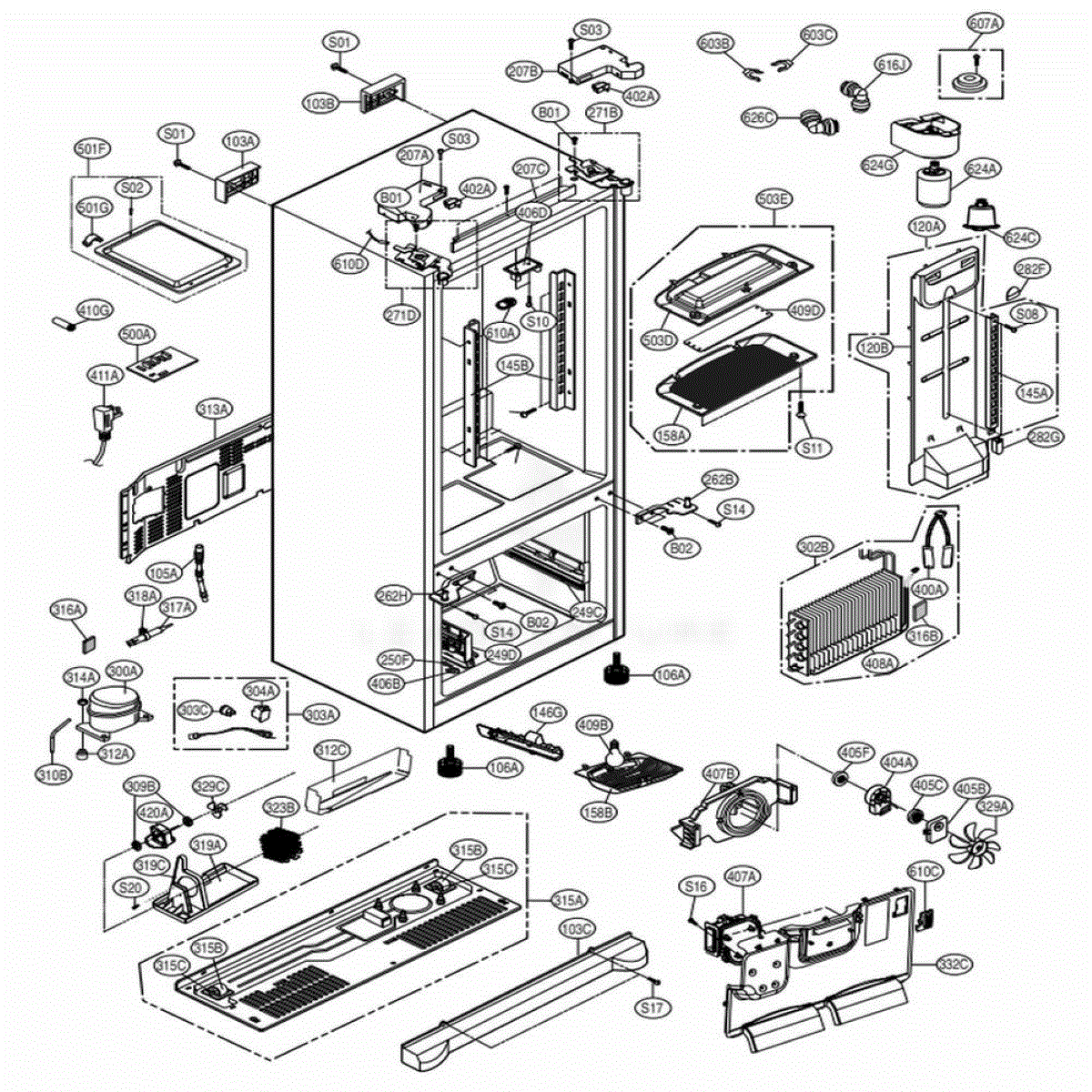

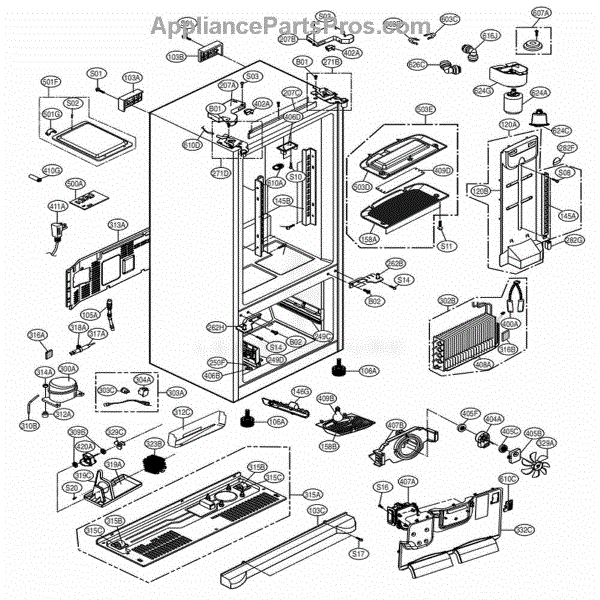

Parts for Lg 72023: Case Parts

Plastic holder that secures the drawer rail to the refrigerator frame. Replace if cracked, broken, or missing to properly support and align drawers.

Supports the center door on bottom-mount refrigerators. Replace if your hinge is cracked, worn, or broken to restore proper door alignment.

Secures panels, brackets, and internal components in your refrigerator. Replace this mounting screw if the original is missing, stripped, or damaged.

Wire harness assembly for bottom-mount refrigerators. Connects electrical components throughout the unit. Replace if wires are frayed, damaged, or corroded.

Replace the interior light housing cover in your refrigerator. Needed when the original lamp case is cracked, broken, or missing. Installs inside the fridge.

This noise damper reduces vibration and rattling sounds from refrigerant lines in your refrigerator. It cushions the copper tubing against the cabinet to prevent metal-on-metal contact that creates annoying noises. Install this damper if your refrigerator makes clicking, rattling, or vibrating sounds, especially when the compressor cycles on and off.

Replacement mounting bracket that secures internal components to the cabinet frame. Needed when original is cracked, bent, or broken, causing loose parts.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

Replacement mounting screw for refrigerator panels, trim, and components. Secures loose or missing fasteners to reduce vibration and keep parts in place.

Replacement mounting screw for refrigerators. Secures panels, shelves, or components inside your fridge. Order if original is stripped, missing, or lost.

This is a rear end cap designed to attach to the refrigerator door handle, giving it a finished look and helping hold the handle securely in place. It snaps onto the end of the handle assembly. Replace this part if it is cracked, broken, or missing, which can make the handle feel wobbly or unstable during use.

Note: 90 degree elbow coupler (Fits 5/16" diameter tubing on each end) For 1/4" elbow connector, order part# 4932JA3009A.

Broken or missing light cover leaving your refrigerator interior dim or exposed? This lens snaps into place in minutes to restore even lighting.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This is a plastic grille or cover that sits over the evaporator fan area inside the refrigerator or freezer compartment. It directs cold air flow from the evaporator coils into the compartment while protecting the fan and coils from contact with food items. Replace this cover if it is cracked, warped, or if frost is building up unevenly inside the compartment due to improper airflow.

Leveling leg for refrigerators. Installs at bottom corner to elevate and stabilize the appliance. Replace if broken, compressed, or no longer secure.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

Secures panels, brackets, and trim components inside your refrigerator. Replace this fastener if it's stripped, lost, or damaged to restore alignment.

Secures panels, brackets, and components inside your refrigerator. Replace this fastener if worn, missing, or stripped to restore proper assembly.

This main PCB power control board is the appliance's electronic control module that manages power distribution and coordinates core functions—replacing a faulty board restores proper electronic control and responsive operation. What it does:

• Regulates and distributes electrical power to the appliance's subsystems
• Controls electronic functions and timing for cycles and user commands
• Processes user-interface inputs and sends signals to motors, valves, heaters, or compressors
• Common symptoms of a failing board include no power or unresponsive controls, intermittent operation, or error codes related to electronics

• Always disconnect power before servicing; verify the appliance is fully de-energized
• Take note of connector locations and wire routing before removal for correct reinstallation
• Handle the PCB by its edges and avoid static discharge; do not touch component leads

This is a small retainer clip that secures the compressor in place at the base of the refrigerator. It helps prevent the compressor from shifting or vibrating excessively during operation. Replace this clip if your refrigerator produces unusual rattling or vibrating noises from the back, or if the compressor appears loose or has shifted from its mounting position.

Lower cover assembly protects the refrigerator's lower cabinet area from debris. Replace if cracked, broken, or missing to restore appearance.

Rattling or loose parts in your refrigerator? This retaining pin secures moving components and keeps them aligned for smooth, quiet operation.

Secures and guides your refrigerator door for smooth opening and closing. Replace if door sags, rubs, or won't seal properly. Confirm fit by model number.

Protects and diffuses the interior lamp for even lighting. Replace if cracked, yellowed, or broken to restore visibility and shield the bulb from spills.

LED light assembly restores interior refrigerator illumination. Replace when lights dim, flicker, or fail completely. Verify fit with your model number.

Door hinge screws secure the refrigerator door hinges to the cabinet frame, allowing proper door operation and alignment. Replace when doors sag, don't close properly, or screws are loose, stripped, or missing causing door misalignment.

Replacement screw for securing panels, brackets, and internal components. Restores tight fit and proper alignment when original hardware is stripped or missing.

Vibration-isolating grommet that mounts between the compressor and chassis. Replace if cracked, worn, or missing to restore proper cushioning.

Refrigerator won't power on or loses power intermittently? This power cord assembly replaces frayed or damaged cords to restore safe, reliable operation.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

Fix frost buildup and uneven cooling in your refrigerator with this evaporator defrost heater. Melts ice from coils during defrost cycles. Moderate repair.

Covers and protects the interior compartment fan while directing airflow. Replace if cracked, broken, or missing to restore safe air circulation.

Right side upper hinge.

Fix a refrigerator not cooling properly with this compressor sealing pipe. Essential sealed system component for restoring proper refrigeration.

This is the condenser fan motor assembly located near the compressor at the back or bottom of the refrigerator. It draws air across the condenser coils to dissipate heat and keep the refrigeration system running efficiently. Replace this motor if the refrigerator is running warm, the compressor is overheating, or you no longer hear the fan running when the compressor is on.

90-degree elbow connector for 1/4" refrigerator water lines. Replaces cracked, leaking, or broken tube fittings between filter and dispenser.

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

Secures water supply line connections in your refrigerator. Replace if leaking, loose, or damaged to restore proper ice and water dispenser function.

Refrigerator light won't turn off when door closes? This door switch controls interior lighting based on door position. Simple DIY repair.

Secures water tubing to prevent leaks and disconnections in your refrigerator's water line system. Replace if clip is broken, missing, or tubing moves freely. Confirm fit with your model number.

Refrigerator not cooling or making clicking sounds? The compressor run capacitor provides electrical boost to start and run the compressor motor reliably.

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

This is a rubber or elastomer damper that supports and isolates the evaporator fan motor inside the refrigerator. It absorbs vibration from the motor to reduce noise during normal operation. Replace this part if you hear excessive buzzing, rattling, or vibration coming from the freezer section, which often indicates the damper has hardened or deteriorated.

Fix error code ER DH or ice buildup in your freezer with a new defrost control assembly. Regulates defrost cycles to prevent frost. Moderate DIY repair.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

Refrigerator stopped cooling after power outage? The compressor overload protector prevents overheating damage. Easy DIY fix when compressor won't run.

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

Plastic cover that protects the temperature sensor in your refrigerator. Replace if cracked, broken, or missing to properly shield the sensor component.

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.
