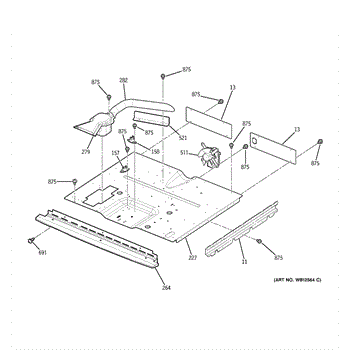

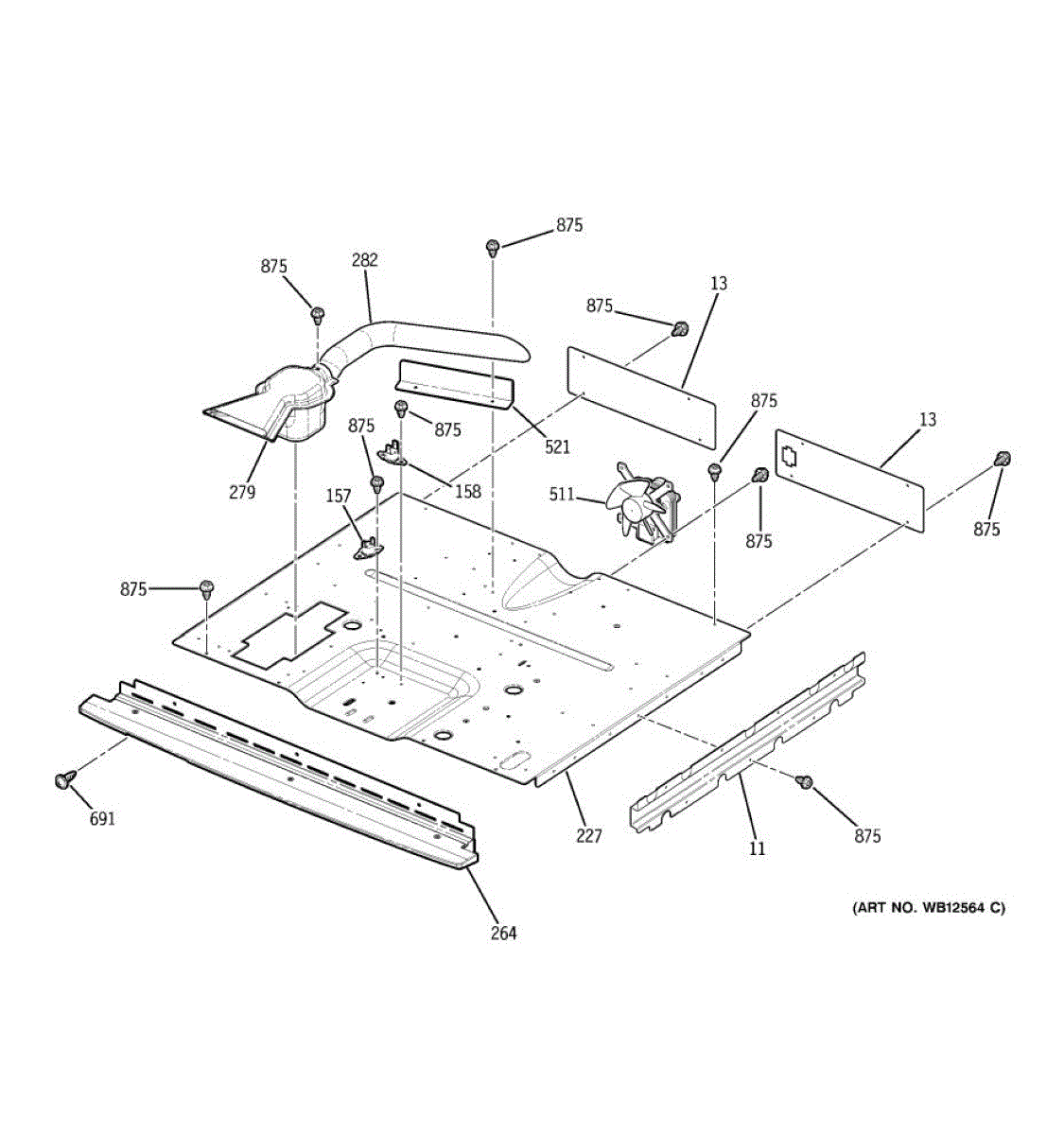

Parts for Ge JKP48BF1BB: 03 - Center Spacer Parts

The Hi-Limit Switch is an OEM replacement part for GE ranges. It is a safety component responsible for monitoring internal oven temperatures. The hi-limit switch helps prevent overheating by detecting when excessive heat has built up inside the oven cavity. It will automatically cut power to the bake/broil elements if temperatures rise too high.

Causes of a bad hi limit switch can include normal failure after years of exposure to heat, or issues with the electronic components or calibration.

Symptoms of a bad hi-limit switch include:

• The oven failing to heat up or bake/broil food properly
• Frequent thermal cut outs requiring the oven to be unplugged
• Delays in the oven reaching the set temperature
• Oven will not turn on

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This lower limit switch is the replacement lock-position switch used on the appliance door/lock assembly to restore proper lock sensing and control operation. Replaces a worn or failed lower lock switch to help the unit recognize door lock position. What it does

• Detects the lower/locked position of the door latch so the control can allow oven/cook functions
• Stops appliance operation or shows lock-related faults when the door isn't secured
• Commonly fails after wear, leading to lock faults, inability to start, or door-lock errors
• Works as the electrical sensor portion of the door/lock mechanism

• One lower limit switch (lock)

• Disconnect power to the appliance before starting any service
• Replacement may require removing the door or access panel and detaching the lock/latch assembly
• Handle small fasteners and electrical connectors carefully; note connector locations before removal

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Package of 12

Black. 8-18 AB HXW 3/8
