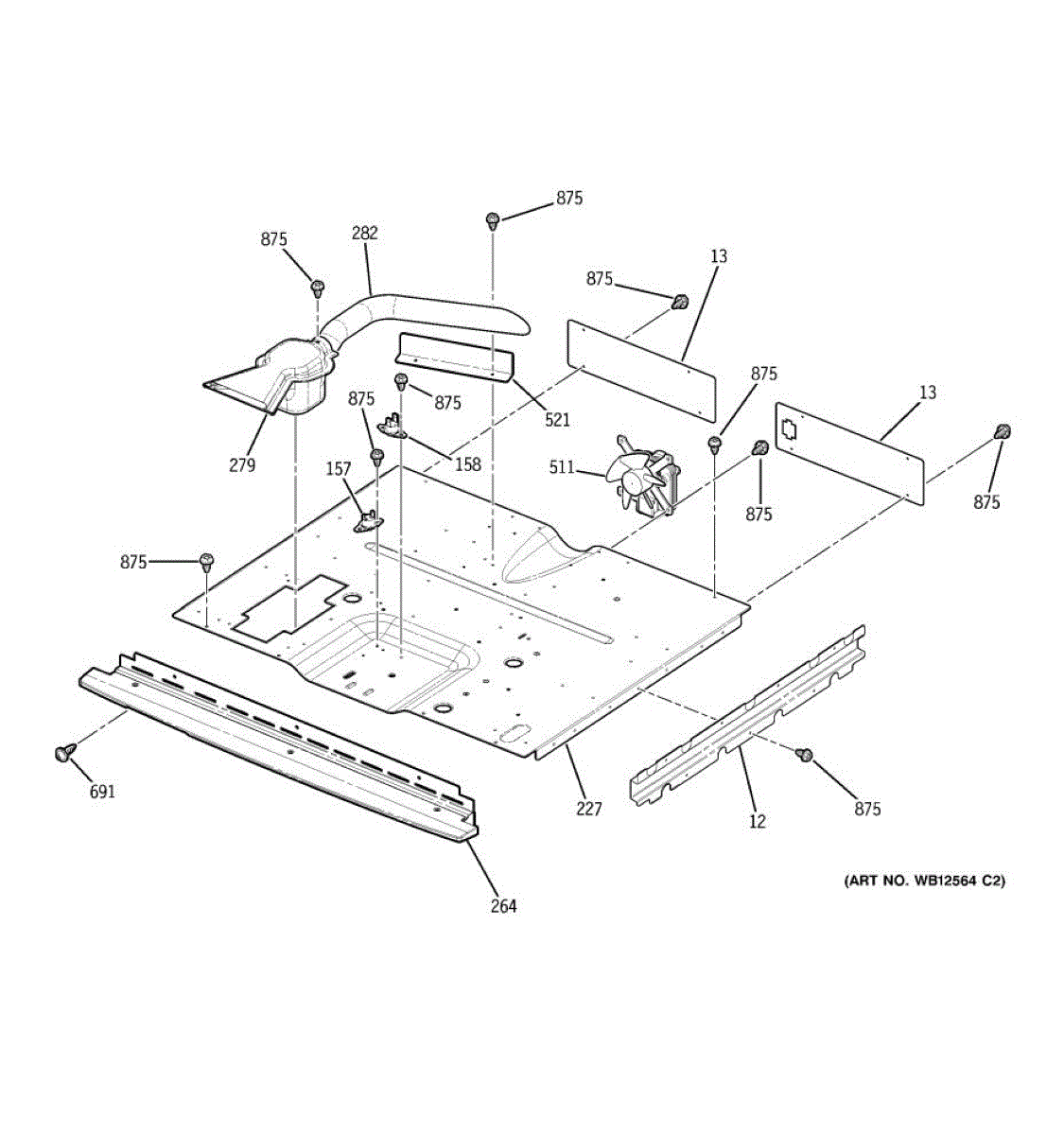

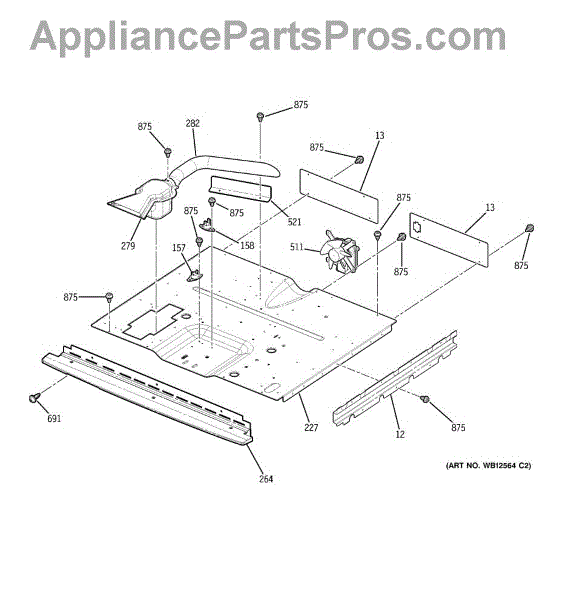

Parts for Ge JKP48BF2BB: 03 - Center Spacer Parts

Oven won't heat or overheats? This high limit switch cuts power when temperatures exceed safe levels. Common fix for temperature control issues.

Oven won't heat or shuts off after reaching temperature? The hi-limit thermal switch prevents overheating. DIY repair takes 30-60 minutes.

This lower limit switch is the replacement lock-position switch used on the appliance door/lock assembly to restore proper lock sensing and control operation. Replaces a worn or failed lower lock switch to help the unit recognize door lock position. What it does

• Detects the lower/locked position of the door latch so the control can allow oven/cook functions
• Stops appliance operation or shows lock-related faults when the door isn't secured
• Commonly fails after wear, leading to lock faults, inability to start, or door-lock errors
• Works as the electrical sensor portion of the door/lock mechanism

• One lower limit switch (lock)

• Disconnect power to the appliance before starting any service
• Replacement may require removing the door or access panel and detaching the lock/latch assembly
• Handle small fasteners and electrical connectors carefully; note connector locations before removal

Middle trim assembly for ovens and wall ovens. Replaces cracked, broken, or missing trim pieces. Installs around the control panel or door frame area.

Oven vent box assembly that routes hot air and steam from the cooking cavity. Replace if cracked, damaged, or missing to restore proper ventilation.

Duct vent inlet for wall ovens. Channels air from the oven cavity to the exhaust system. Replace if cracked, damaged, or broken to restore proper ventilation.

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8
