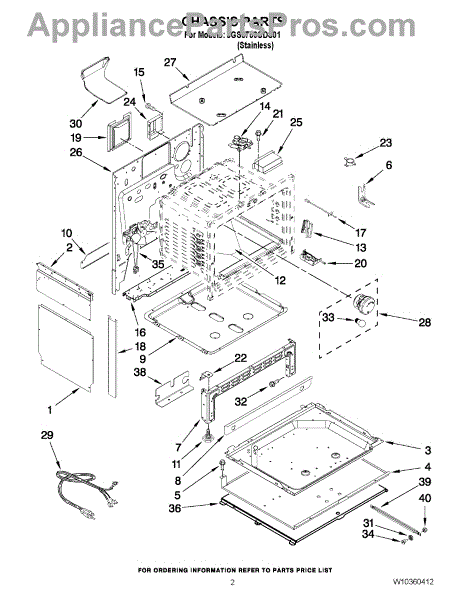

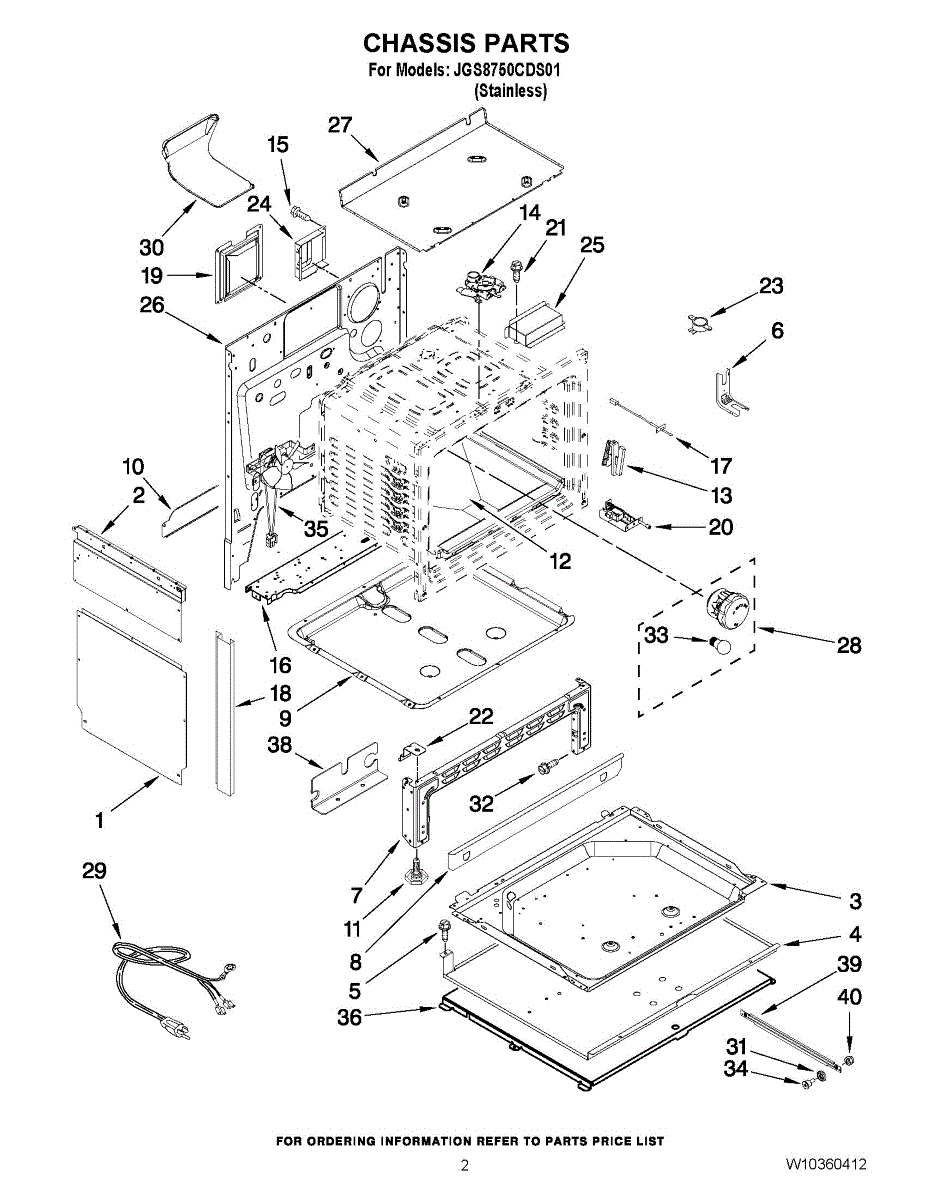

Parts for Jenn-Air JGS8750CDS01: 02 - Chassis Parts

Replace your range's control panel trim if cracked, chipped, or damaged. This decorative panel covers the control area for a finished appearance.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Mounting bracket that secures and stabilizes internal range components. Replace if cracked, bent, or missing to restore proper alignment and support.

Replacement bottom panel for your oven cavity. Installs at the base of the oven interior. Order a new panel if yours is cracked, warped, or rusted.

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Oven not heating properly or showing F3 error? The temperature sensor likely failed. Simple DIY fix—unplug, remove 2 screws, replace sensor.

Replace cracked, chipped, or missing side trim panels on your range. This decorative trim covers the side edge of the cooktop for a finished look.

Oven light won't turn on or off? Replace the light switch assembly to restore reliable control. Moderate DIY repair taking 15-30 minutes with basic tools.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Range won't heat or overheats? This high-limit thermostat cuts power when temperatures exceed safe limits, restoring proper oven operation. Easy DIY fix.

Replace your range's access cover housing if the original is cracked, broken, or missing. This protective cover installs over internal components.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This drawer runner guides and supports the movement of pull-out drawers in your range or oven. It ensures smooth operation and proper alignment when opening and closing storage drawers. Replace this part if drawers stick, don't slide smoothly, fall out completely, or don't align properly when closed.
