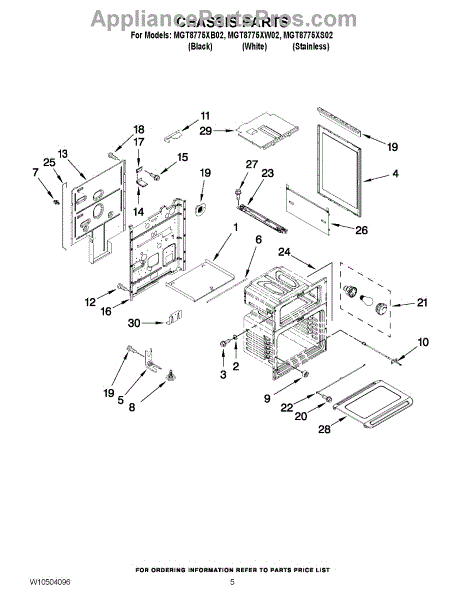

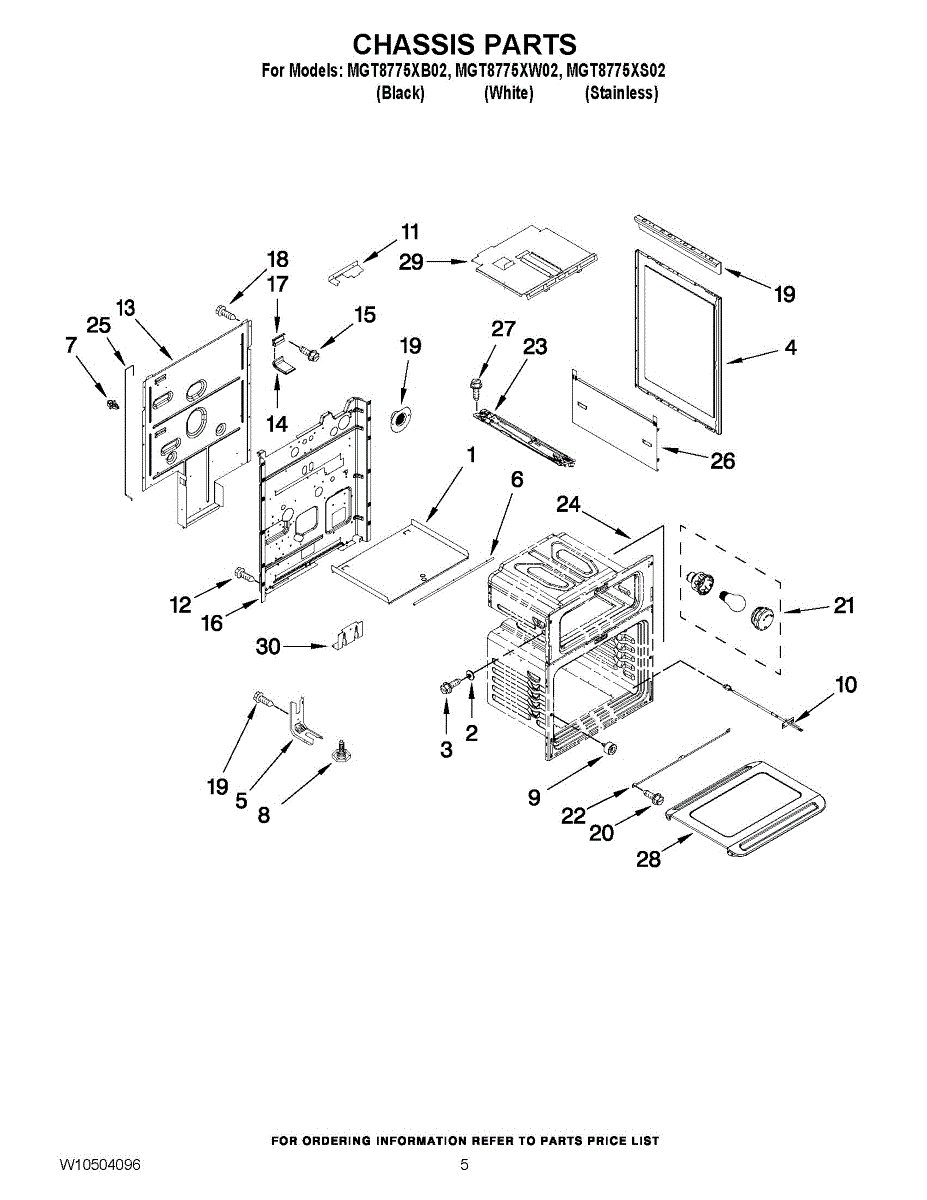

Parts for Maytag MGT8775XB02: 04 - Chassis Parts

A small replacement spacer that positions and supports a side panel, helping maintain proper panel alignment and gap for safe, quiet operation. Restores the correct spacing when the original spacer is damaged or missing. What it does:

• Keeps the side panel aligned and properly spaced from the cabinet
• Prevents rubbing, vibration noise, and panel misalignment
• Helps maintain consistent clearances for adjacent components
• Useful when a broken, cracked or missing spacer causes loose or uneven panels

• One replacement spacer for the side panel

• Disconnect power to the appliance before beginning any repairs
• Access typically requires removing the side panel or adjacent trim; keep track of fasteners
• Handle panels carefully to avoid scratching or denting during reassembly

This side panel assembly replaces a damaged or bent outer side wall to restore the appliance's exterior fit and finish. It provides a stable mounting surface and helps protect internal components from dust and damage. What it does:

• Replaces a cracked, dented, or rusted side panel to improve appearance and structural support
• Restores proper alignment for doors, controls, or adjacent panels
• Helps keep internal parts and wiring protected from debris and moisture
• Can reduce rattles or vibration caused by a loose or warped side panel

• One complete side panel assembly as shown

• Installation requires removing screws and possibly adjacent trim; keep hardware organized for reassembly
• Power off and disconnect the appliance before starting any repair
• Handle edges carefully — panel edges may be sharp
• If mounting holes don't align, do not force; verify panel orientation and hardware match your appliance

For screws order: WP7101P485-60.

The Leveling Leg is an OEM replacement part for Whirlpool ranges. These adjustable legs help balance and stabilize the range.

Causes of a bad leveling leg commonly involve wear over time, thread or weld failures from supporting heavy loads, as well as damage due to impact or drops during installation.

Symptoms of a faulty leveling leg include:

• Instability such as rocking motions felt while cooking
• Uneven heating
• Doors that do not close properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment

This oven temperature sensor monitors heat inside the oven and sends that signal to the control to regulate the heating elements. Replacing a faulty sensor restores accurate preheat and steadier baking performance. What it does:

• Continuously measures actual oven-cavity temperature and reports it to the control
• Lets the control board cycle bake and broil elements to maintain the set temperature
• Common symptoms of failure: won't reach set temperature, runs too hot or too cold, extended preheat, or sensor-related error codes on the display
• If the sensor reads open/shorted, many controls will disable heat as a safety

• 1 oven temperature sensor

• Disconnect power at the breaker; allow the oven to cool completely
• Sensor is typically mounted to the rear oven wall; remove mounting screws and gently pull the sensor forward to access the connector (some models require rear-panel access)
• Disconnect the 2-wire plug carefully to avoid losing the connector into the insulation
• Route wiring as original, seat the connector fully, secure the sensor, restore power, and test operation

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Size: 8-18 x 3/8 inch.

This support bracket secures and stabilizes internal appliance components, helping keep panels and assemblies aligned for reliable operation and reduced vibration. Use when a mount or internal bracket is broken, bent, or missing. What it does

• Provides a secure mounting point for internal panels and assemblies
• Keeps components aligned to prevent rubbing, noise, or misfeeds
• Restores proper fit where original bracket is damaged or corroded
• Helps maintain cabinet stability during normal operation

• One support bracket as shown

• Refer to your appliance's service manual or exploded diagram for correct location and fastener type
• Inspect surrounding hardware and replace any stripped screws or damaged anchors
• Disconnect power (or gas and power for gas appliances) before starting repairs

Color: Black. For biscuit order 98008169. For white order WP98008544.

This door latch keeps the door securely closed and engages the door switch/interlock so the appliance operates as designed. Replacing a worn or broken latch helps resolve door-related errors and restores reliable, safe operation.

• Secures the door against the strike for proper closure and alignment
• Actuates the door switch/interlock so controls recognize a closed door
• Helps prevent operation when the door is open or not fully latched
• Common symptoms: door won't latch or stay closed; unit won't start or shows a "door/open-close" message; broken or loose latch hook

• Disconnect power before servicing; use proper PPE and beware of sharp edges
• Access the latch through the door panel/trim as applicable; use non-marring tools to avoid damage
• Transfer any reusable clips/springs from the old latch to the new part
• After installation, verify smooth door closure and that the control detects the door as closed

This door gasket seals the oven door to help keep heat and cooking moisture inside for more even baking and efficient operation. It replaces a damaged or worn seal to restore a snug, continuous closure. What it does

• Provides a heat-resistant seal around the oven door to reduce heat loss
• Helps prevent hot air and steam from leaking during cooking
• Can reduce uneven baking or longer cook times caused by gaps
• Visible signs of failure include cracks, flattening, or gaps around the door edge

• Disconnect power to the appliance and allow the oven to cool completely before starting.
• Remove the old gasket by pulling from the retention channel; press the new gasket into the same channel until fully seated.
• Check the seal all the way around the door and make minor adjustments for an even fit.

This oven door gasket creates a tight seal around the oven door to help keep heat and moisture inside for more even baking and cooking. It replaces a worn or torn seal to reduce heat loss and improve oven performance. What it does:

• Seals the oven door to prevent heat and smoke from leaking during operation
• Helps maintain consistent oven temperatures for more even cooking and baking
• Reduces energy loss and prevents exterior surfaces from getting excessively hot
• Addresses symptoms like visible gaps, burned or brittle rubber, smoke escaping, or longer cook times

• Disconnect power to electric ovens or shut off gas supply and pilot for gas ovens before installing
• Allow the oven to cool completely before starting work to avoid burns
• Remove the oven door or open it per your model's service instructions to access the gasket channel; replace gasket by seating it evenly around the door frame
• Inspect the gasket channel for debris and clean before installing; do not use adhesives unless specified by the manufacturer

Size: 8abx3/8 - blk)

This broiler pan is the heat-safe tray used for broiling in the oven or broiler drawer. Replace a rusted, warped, or missing pan to maintain safe broiling and simpler cleanup by catching drippings.

• Holds food for broiling and supports correct placement under the broiler
• Collects drippings to help reduce flare-ups and smoke
• Restores safe use when the original pan is rusted, pitted, dented, or warped
• Seats on the designated rails/supports in the broiler drawer or compartment per model design

• Allow the appliance to cool completely; wear cut-resistant gloves
• Remove the broiler drawer or open the broiler compartment as your model requires
• Position the pan on the proper rails/supports and verify stable seating before use
• Follow your model's user guide for broiling setup and care
