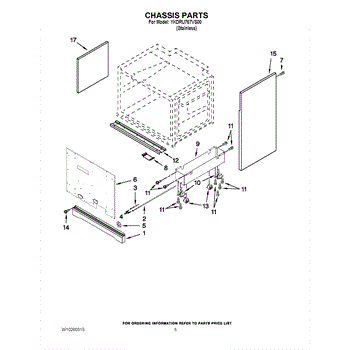

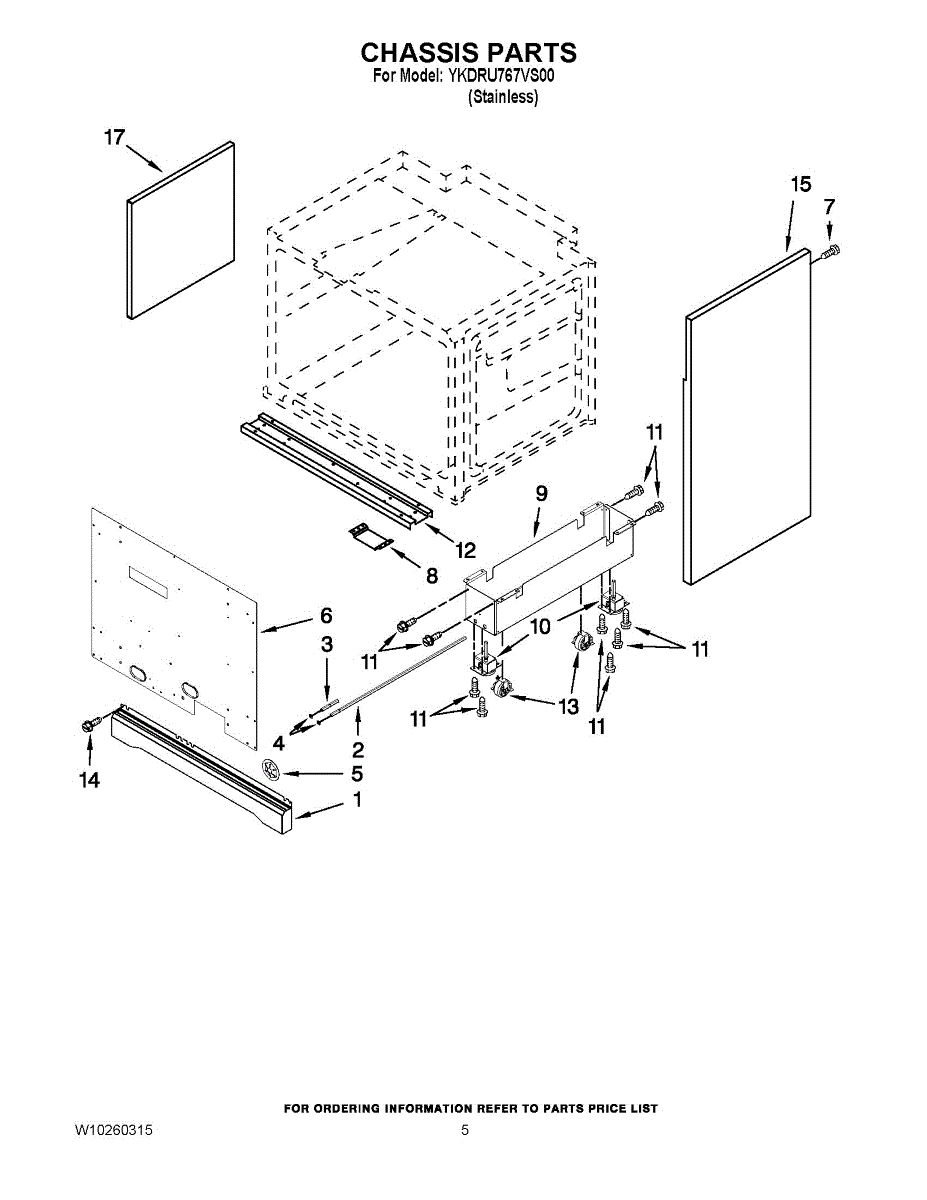

Parts for Whirlpool YKDRU767VS00: 03 - Chassis Parts

36-inch kickplate vent cover that installs at the base of your range. Replace this lower trim panel if it's dented, broken, or missing to restore appearance.

Control shaft for gas range knobs and controls. Replaces worn, broken, or missing shafts that prevent proper knob attachment or smooth operation.

Control shaft for gas range knobs and selector switches. Replaces worn, stripped, or broken shafts that cause loose or difficult-to-turn controls.

E-ring clip secures components in your gas range. Replace if loose, damaged, or missing to maintain proper part alignment. Verify fit with model number.

Speed nut secures oven components in electric and gas ranges. Replace if nut is stripped, missing, or no longer holds parts firmly in place.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This mounting bracket secures appliance components in place to reduce movement and rattling during operation. It provides reliable structural support for the cabinet or internal assemblies to help maintain proper alignment and function. What it does:

• Secures panels, assemblies, or components to the appliance frame to prevent shifting
• Helps reduce vibration and noise caused by loose parts
• Maintains alignment of connected parts to support proper operation
• Commonly replaced when bracket is bent, broken, or missing fasteners

• Disconnect power to the appliance before beginning any work
• Installation requires basic hand tools; keep track of fasteners and any small parts
• Support the assembly being worked on to avoid strain on other components
• Follow for proper bracket placement and torque

Leveling foot for gas ranges. Installs at the base to adjust height and stability. Replace if broken, cracked, or missing to level your range properly.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
