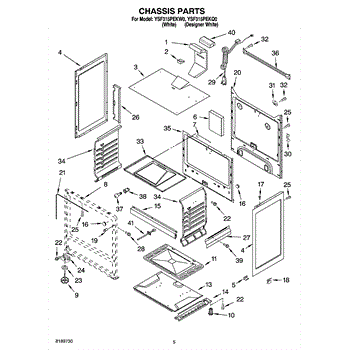

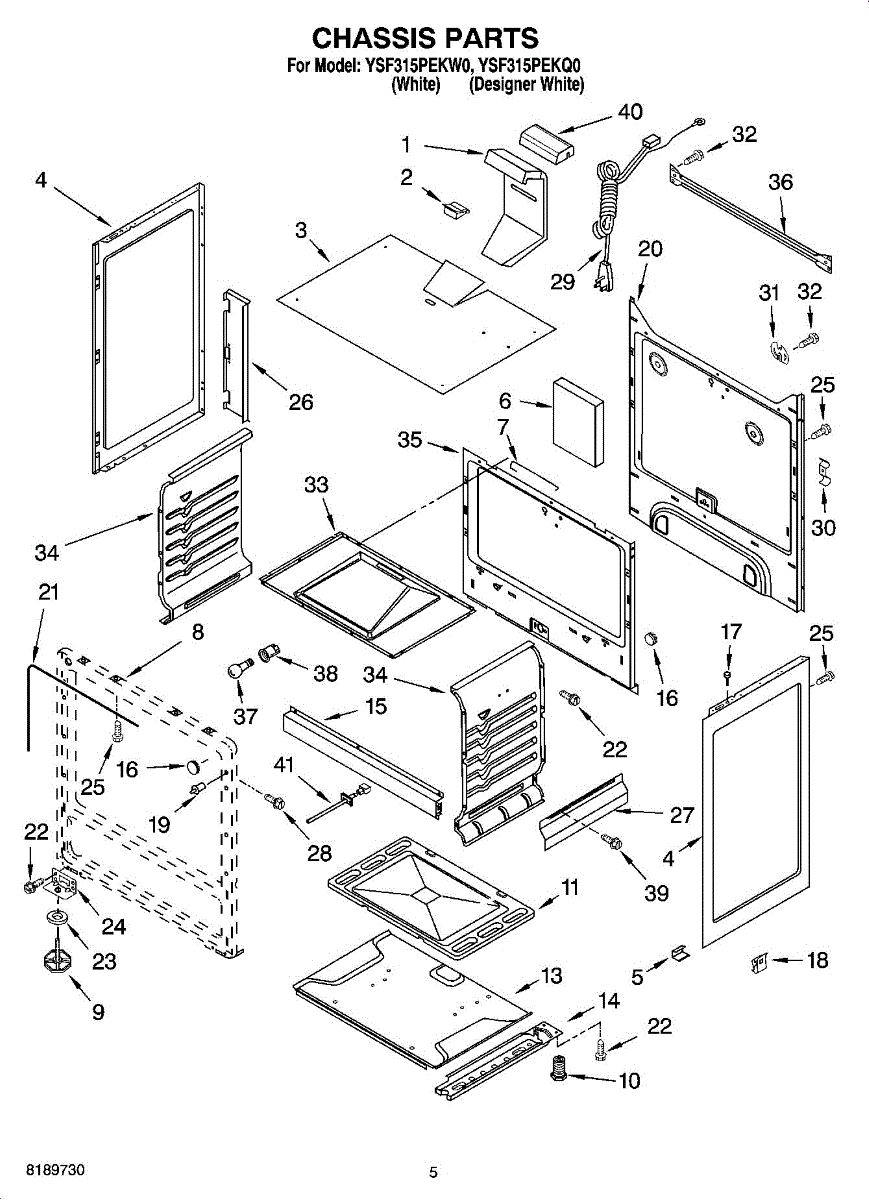

Parts for Whirlpool YSF315PEKW0: 04 - Chassis Parts

Color: White. For biscuit use 98010045. For black use WP98010043

This clip secures the oven's bottom panel to the range chassis so the floor of the oven stays properly seated during cooking and cleaning. Replacing a missing or bent clip stops rattles and keeps the panel locked in place. What it does:

• Holds the oven bottom panel securely in position
• Helps prevent the panel from lifting, shifting, or rattling
• Restores proper fit after cleaning or service
• Replace if the clip is missing, bent, or broken

• 1 clip

• Disconnect power and allow the oven to cool completely; shut off gas supply for gas models
• Remove oven racks and the bottom panel per your model's instructions
• Install the clip at the designated mounting point and ensure the panel edge seats under the clip
• Wear cut-resistant gloves; sheet-metal edges can be sharp

This front leveling leg adjusts the height at the front of your appliance to keep it level and steady. Replacing a worn or missing foot helps eliminate rocking, protect floors, and make fine leveling adjustments simple.

• Threads into the base at the front corner to raise or lower the unit for accurate leveling
• Stabilizes the appliance to minimize rocking and vibration when opening the door or using the cooktop
• Restores proper adjustment when the original foot is stripped, bent, or missing
• Common signs include a wobbling appliance, difficulty leveling, or metal-to-floor contact/scuffing

• Disconnect power; turn off the gas supply
• Protect the floor and use an assistant to carefully slide and tip the appliance
• Start the new leg by hand to avoid cross-threading; finish adjustment with a wrench
• Level front-to-back and side-to-side, then verify stability before restoring service

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This oven bottom is the replacement metal panel that sits under the oven cavity to protect internal components and help catch spills. It restores a clean, heat-resistant surface for safer cooking and easier cleanup. What it does:

• Replaces a damaged, warped, or corroded oven floor that may trap food or cause uneven heating
• Provides a durable surface to catch drips and crumbs, reducing smoke and odors from burned spills
• Helps protect lower oven components and heating elements from debris
• Restores proper clearance and support for oven racks and cookware

• Includes: 1 oven bottom panel

• Disconnect power to the oven before starting any repair; for gas ranges, shut off gas supply
• Typically removed and installed from inside the oven after taking out racks; handle edges carefully — metal may be sharp
• Confirm fit against your oven cavity and existing mounting tabs before finalizing installation

This replacement bumper cushions and protects appliance panels and doors to reduce vibration, prevent chipping, and stop rubbing or rattling. It restores a quiet, secure fit where the original bumper has worn or fallen off. What it does:

• Acts as a soft stopper to prevent doors, drawers, or panels from banging or contacting metal surfaces
• Reduces vibration and rattling during operation
• Protects finishes from chips, scratches, and wear at contact points
• Helps restore proper alignment and snug fit where the original bumper is missing or compressed

• One replacement bumper (1 count)

• Clean and dry the mounting surface; remove any old adhesive or debris before installing
• Press the bumper firmly into place; some bumpers use adhesive backing or fit into a recess—verify fit before final placement
• If adhesive is used, allow time for proper bonding per adhesive instructions; avoid using the appliance until secure
• For safety, disconnect power to the appliance before accessing panels or doors

Door light switch.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Note: This part is one screw, order quantity needed.

This 18-inch supply power cord delivers a reliable electrical connection to restore appliance power and safe operation. It replaces a damaged or missing cord so the unit can receive power from the wall outlet. What it does:

• Provides the main AC connection between the appliance and household power
• Replaces frayed, melted, or broken cords that cause intermittent power or no power
• Restores secure plug and strain-relief connection to reduce arcing and overheating risks
• Matches factory-style terminal ends for a direct fit when compatible

• One 18-inch supply power cord

• Disconnect power at the breaker or unplug the appliance before starting
• Inspect terminals and cord routing; secure with the factory strain relief
• Tighten terminal connections firmly but do not overtighten; confirm proper insulation

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

Right hand side

Left hand side

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This light socket holds the bulb and supplies power for reliable appliance lighting. Replace a cracked, heat-damaged, or loose socket to restore safe, consistent illumination inside the appliance.

• Secures the lamp and connects it to the appliance wiring
• Restores proper electrical contact to the bulb
• Replaces sockets showing arcing, discoloration, melting, or a loose fit
• Common symptoms: light won't turn on, flickers, works intermittently, or bulbs fail prematurely

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely before accessing the socket
• Use the bulb type and wattage specified for your model
• Transfer existing mounting screws/brackets and wiring connectors as needed; ensure tight, clean connections

Size: 6 inches long. Includes ceramic wire connectors.

The INSULATION is an OEM component specifically designed for Whirlpool electric ranges. Positioned between inner and outer wall cavities, it efficiently buffers heat.

Fiberglass batting material keeps internal temperatures elevated for cooking while preventing harmful temperatures from spreading outside. Stable temperature control is essential for consistent results.

Causes of damaged insulation could be high heat exposure over time weakening fibers, moisture ingress deteriorating integrity, or physical punctures allowing heat leakage.

Symptoms of insufficient insulation include:

• Oven unable to effectively retain or distribute set temperatures
• Door and exterior surfaces becoming too warm to safely touch
• Higher energy bills from frequent recovery heating cycles

This Whirlpool insulation is also compatible with electric ranges by GE, Frigidaire, Samsung, and some LG kitchen models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
