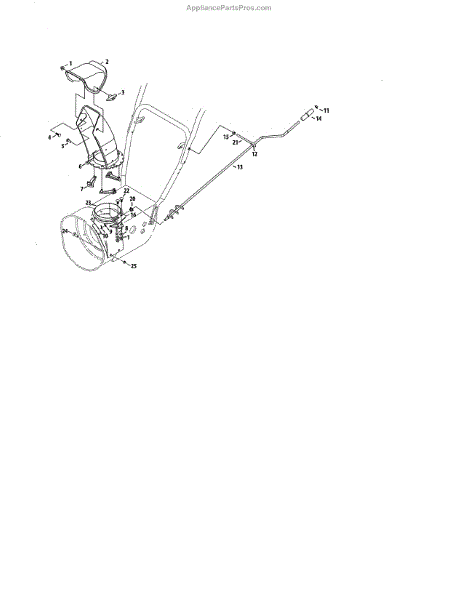

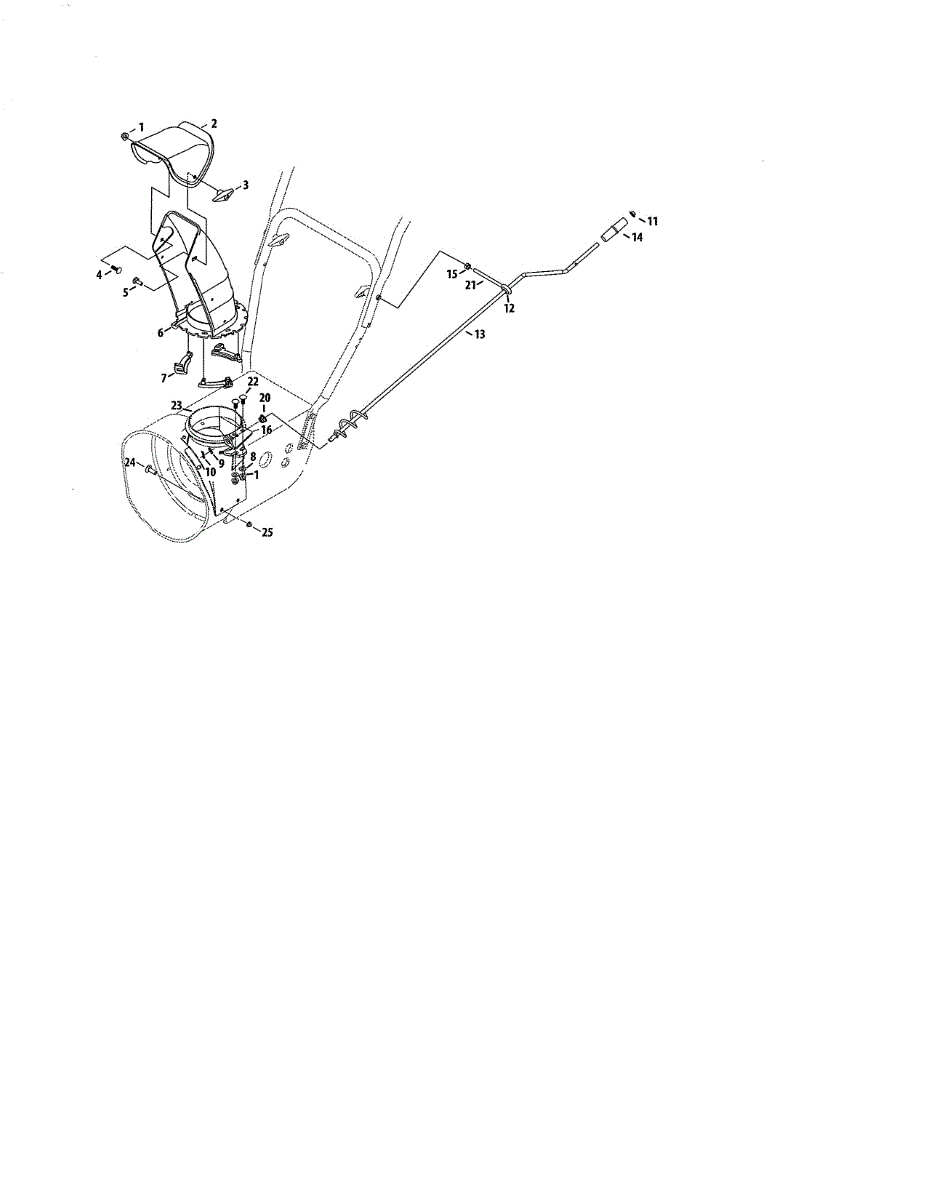

Parts for Mtd 31AH6ZFH500: Chute Control Parts

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This is a chute flange keeper that is commonly used on snowblowers. It is black and made of durable plastic. The purpose of the chute flange keeper is to ensure the chute can properly rotate along with the chute adapter. The chute flange keeper is connected to the flange on the chute. There are typically three chute flange keepers on a snowblower.If a chute flange keeper is damaged, broken, or missing, it will need to be replaced. A screwdriver and work gloves will be needed to handle the job. A screwdriver can be inserted into the equipment to pry off the old chute flange keeper. Put the new flange keeper in place and force it into position using vice grips. Users can also snap in one end and use a pair of pliers to get the other side to fit. Reassemble all parts before using the tool again.This is an authentic OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual component. The chute flange keeper is designed for use with snowblowers manufactured by Yard-Man, Huskee, MTD, Yard Machines, Troy-Bilt, Cub Cadet, and Craftsman.

This part is a replacement push nut. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or detached push nut in snow blowers.Push nuts are a special type of fastener that secures together different equipment components. Push nuts will need to be replaced if worn, broken, lost, or otherwise ineffective. When working on or near an engine, it's important to make sure the equipment is powered off and completely cool before starting any repairs. For more accurate information on how and where to install this push nut, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This push nut can be used with different models of snow blowers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

This chute crank assembly is a genuine MTD part, sold individually. This chute crank assembly can be used as a replacement part in a snowblower. The purpose of the chute crank assembly in a snowblower is to redirect the snow that is ejected out of the snowblower.If the chute crank assembly can no longer regulate the direction from which the snow is dispensed during the operation of the snowblower, the component should be removed and replaced by this genuine OEM replacement part. It is a simple replacement process that will require only basic tools to properly execute.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This chute crank assembly is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, and Yard Man.

This is a chute crank bracket for a snow blower. The bracket holds and positions the chute in the proper direction so that snow is thrown at the desired angle. This is a genuine OEM part and is sold individually. This part is compatible with several brands, including Craftsman, Huskee, Ryobi, Troy-Bilt, Yard Machines, and Yard Man.If the crank bracket is rusted, damaged, or bent, it can affect the efficiency of the snow blower and throw the snow in the wrong direction or clog the chute. Replacing the bracket is fairly simple and will help the snow to be thrown efficiently and without clogging. For proper placement of the chute, remove it from the bracket and be sure that it moves easily. When attached, if the teeth do not mesh correctly, the bracket will need to be readjusted or replaced. This is easily done by loosening the bolts and moving the bracket until the teeth mesh. This will allow the chute to turn correctly. If the teeth will still not mesh, detach the chute and then remove the bad bracket and install the new bracket.

Snowblowers require a chute adapter that directs the snow pulled into the machine up, out, and away. The chute adapter is adjustable and moves vertically to determine the height of the snow being expelled from the device. It attaches the auger housing to the lower chute. There may be issues that arise with the chute adapter with regular use or damage from ice. When snow is no longer coming out from the chute adapter, it could be clogged, or the adapted may require replacement. A damaged chute adapter will lower the snow thrower's effectiveness and increase the time and energy demanded for clearing snow.The chute adapter is easily installed with hardware not included with this piece. Existing nuts and bolts may be reused to attach this replacement chute. A socket set and wrench set are required for assembly. Wear gloves for safety when replacing the adapter.This OEM authentic replacement part is a chute adapter compatible with several different types of snow blowers. It can be installed on brands including MTD, Yard Machines, Yard-Man, Troy-Bilt, Cub Cadet, and Husky. The chute is made from rugged black plastic. It is sold individually and includes the chute only.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.
