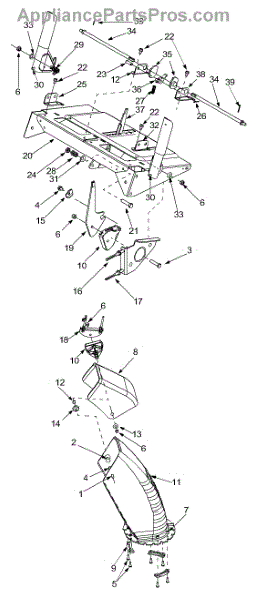

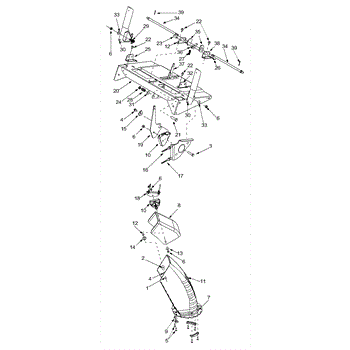

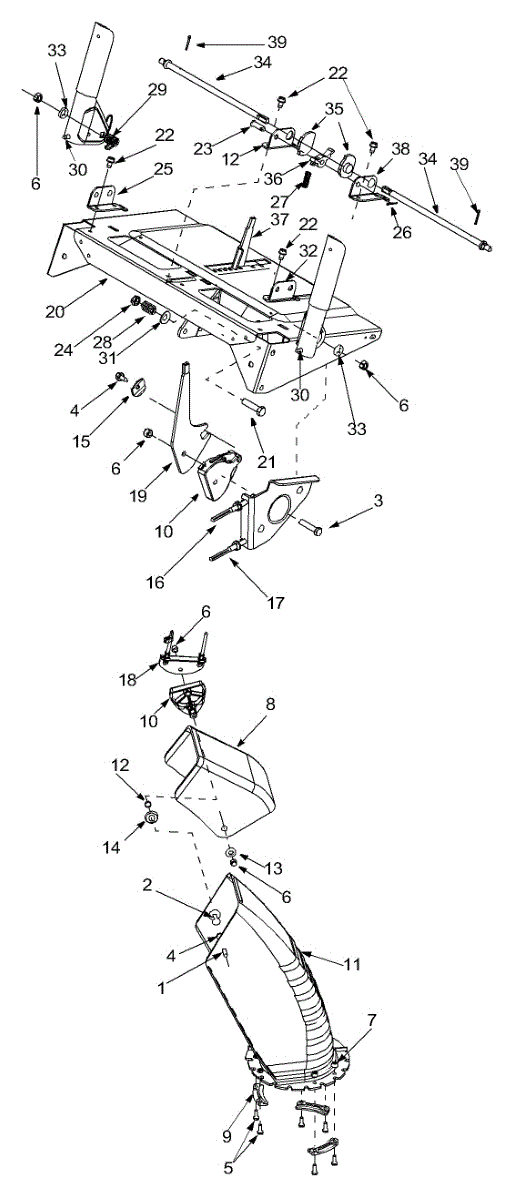

Parts for Yard-Man 31AE993J401 / 2003: Chute & Controls Assembly Parts

This carriage bolt is a fastener with a flat tip and a round head with threading along the shank. Also known as coach bolts and plow bolts, the item can be used with many types of lawn and garden equipment. This is a 5/16 carriage bolt that resists turning after the bolt has been tightened. Wear and tear or impact can cause damage to a carriage bolt and lead to the need to replace them.Removing a carriage bolt requires twisting the nut loose from the end of the bolt and then hitting the nut with a hammer. This will begin to move the shoulder out of the lawn equipment. Continue the process until the bolt is loose enough to remove. Installing a new carriage bolt simply requires sliding the bolt into the hole, adding the nut, and tightening things up.This carriage bolt is designed for use with Craftsman, MasterCut, Toro, Yard-Man, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines lawn and garden equipment. It can be used with lawnmowers, chainsaws, snowblowers, edgers, and tillers. This is a genuine OEM product sourced directly from the manufacturer as an individual component.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

This upper discharge chute is a genuine MTD part, sold individually. This upper discharge chute can be used as a replacement part in a snowblower or an edger. The purpose of the upper discharge chute is to provide a channel through which the snow or greenery can be gathered and then dispelled by the equipment. The upper discharge chute in a snowblower or an edger might need to be replaced at some point within the typical lifespan of the appliance. This could occur if the upper discharge chute is punctured dented, cracked, eroded, or warped. If this occurs, the upper discharge chute should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This upper discharge chute is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Montgomery Wards, Yard Man, and MasterCut.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This genuine OEM part is a compression spring for a lawnmower. The compression spring is the spring that holds the mower deck onto the lawnmower. Over time, the compression spring can become degraded due to excessive wear and tear. If it is no longer securing the mower deck, it will need to be replaced. Luckily, replacing this part is a relatively simple process.To replace the spring, make sure the mower deck is set to the lowest position. Locate the old retainer spring and pull it out and away from the mower. Once removed, slide the new spring into its proper position. Make sure it fits tightly, and the mower deck is secured. Once secured, power the mower to see if the spring stays in place during operation. If it does, then the installation was a success. This replacement part is sold individually and is compatible with MTD brand lawnmowers.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This cam rod, also called a rod cam or a cam-rod, is a genuine MTD part. It is manufactured as a replacement part for snow blowers and snow throwers from a number of makers.This rod is long and thin, and although the original is made from durable material, it can become warped or damaged over time. It is an important component in the push function of the machine and must be replaced if damaged for safety purposes.This cam rod is a genuine OEM part which is sourced directly from the manufacturer. It is sold individually. It is compatible with snow blowers and snow throwers made by ACE, Craftsman, Huskee, Husky, Lawn Chief, Montgomery Ward, MTD, Power Pro, Ranch King, Ryobi, Select Series, White Outdoor, Yard Machines, and Yard-Man. Many of the compatible machines were made in the 1990s.
