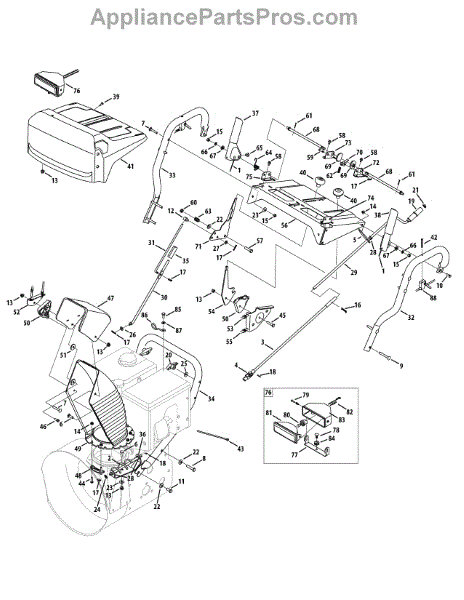

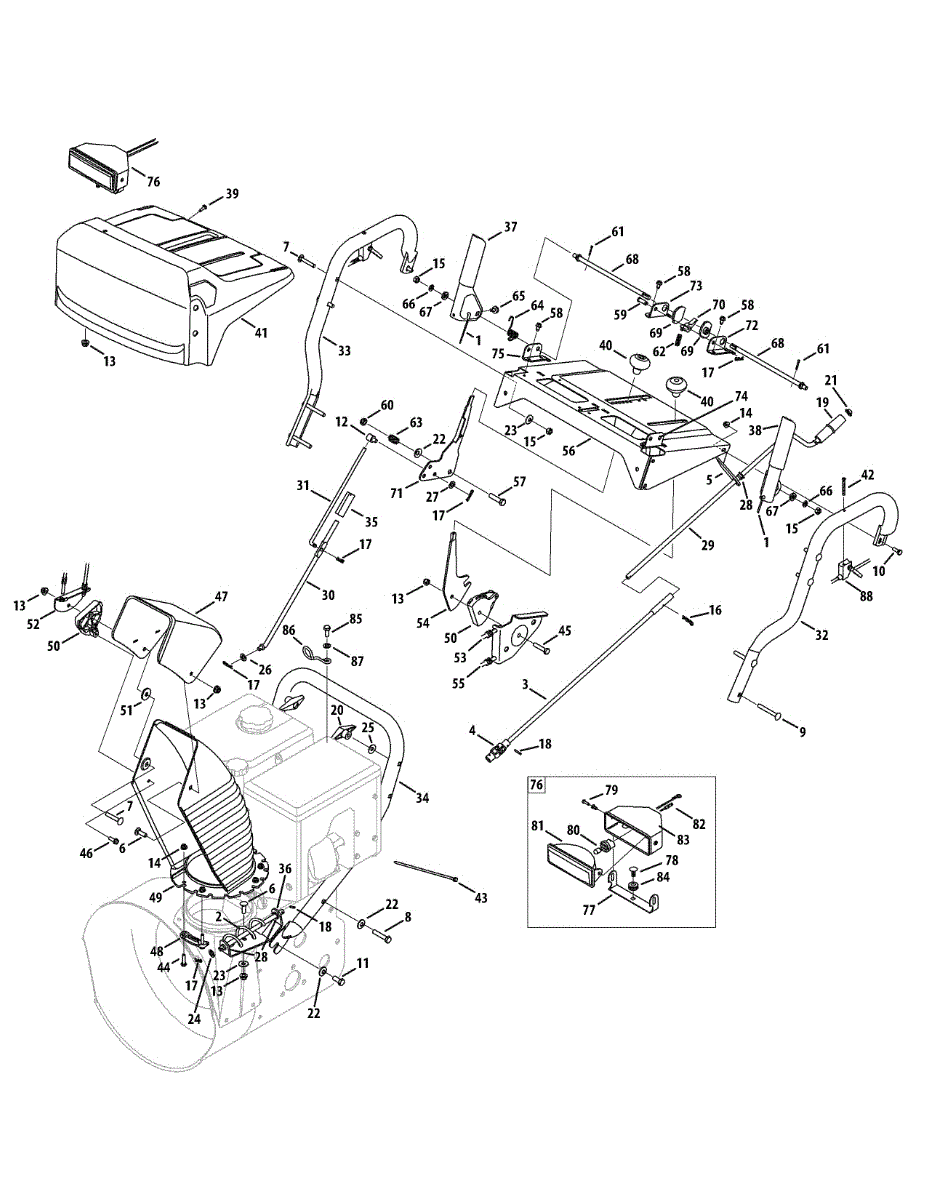

Parts for Craftsman 31AH976J799 / 2009: Chute & Controls Parts

This cable assembly connects the auger engagement lever on the handle to the auger clutch mechanism on a snowblower. It allows you to engage and disengage the auger that breaks up and feeds snow into the impeller. Replace this cable if the auger won't engage when the lever is squeezed, stays engaged when released, or if the cable is frayed, stretched, or broken.

If your snow thrower's controls feel loose or unresponsive, this joint assembly links components and transfers motion. Moderate difficulty repair part.

Carriage bolt fastener for lawn and garden equipment. Replaces worn, stripped, or missing bolts that secure deck components and attachments.

Carriage bolt for lawn mowers, snow blowers, tillers, and edgers. Works with a nut to secure metal components. Replace if worn, stripped, or missing.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Replacement fastener for lawn mowers and outdoor power equipment. Secures components and panels. Order a new one if yours is stripped, missing, or damaged.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

Spring roll pin fastener for snow thrower assemblies. Secures moving parts and linkages. Replace if pin is missing, worn, or falls out during operation.

Chute crank knob for snow throwers. Installs on the chute rotation control. Replace if cracked, broken, or missing to restore manual chute adjustment.

This part is a replacement push nut. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or detached push nut in snow blowers.Push nuts are a special type of fastener that secures together different equipment components. Push nuts will need to be replaced if worn, broken, lost, or otherwise ineffective. When working on or near an engine, it's important to make sure the equipment is powered off and completely cool before starting any repairs. For more accurate information on how and where to install this push nut, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This push nut can be used with different models of snow blowers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

The replacement flat washer here is a part commonly found on many types of small engines, including those in lawn and garden equipment. The washer can be used on various parts of the engine depending on the make and model. The washer can help to spread the pressure of the connection over a wider surface area. This will help reduce damage to the machine at the connection point. The washers are made from metal and there may be a need to replace them. If they have become corroded, bent, or lost, they should be replaced right away. Owners should keep in mind what with some models, the washers will be secured with the use of a push pin. The push pins are sold separately. This is an authentic OEM replacement flat washer that is sold individually. The washer can be used on many types of equipment including lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, log splitters, and wood chippers. Compatible brands include Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut.

Bell washer adds spacing on shafts in lawn tractors, tillers, mowers, and chipper shredders. Replace if washer is missing, worn, or damaged during maintenance.

This is a bushing made from black plastic with a cleft down the middle to provide enough flex for easy insertion. It has a flanged design, which means it won’t easily pop out after installation, even under stress from constant vibration. The bushing’s primary purpose is to protect wires and cables from damage as they pass through a channel. As such, the material is fairly durable and does not need to be replaced under ordinary circumstances. That said, there are some situations in which it can become damaged. For one thing, it’s easy to damage while repairing the wires or cables that run through the bushing. If the bushing does need to be replaced, it requires disconnecting any cables or wires that run through the bushing. Pop out the old bushing with a rubber mallet, install the new bushing the same way, reconnect the wires, and the repair is complete. This is an OEM part sourced directly from MTD, and it is sold individually. It was initially used on snowblowers but has also been used on lawnmowers and lawn tractors.

Replacement shift knob for snowblower control lever. Installs on the shift rod to adjust speed and direction. Replace if cracked, broken, or missing.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

Hex screw for lawn tractors, mowers, snow blowers, and tillers. Replaces broken, stripped, or missing screws in various assembly points.

This is a versatile screw designed with flanged hex head and double-lead threads. It is a high-low self-tapping screw with one thread that is high and the other low for easier penetration. The twin threads also reduce the amount of material displaced when the screw is driven into the material. This type of screw also creates a firmer grip. This screw can also be used to secure a newly installed front cover or grill. This part is available as an individual replacement part. It is a genuine OEM part for use with specific models of snow throwers, lawn tractors, electric mowers, chippers, and log splitters from Bolens, Cub Cadet, Craftsman, Poulan, Ryobi, Toro, MTD, Troy-Bilt, Yard Machines, and Yard-Man.

This upper discharge chute is a genuine MTD part, sold individually. This upper discharge chute can be used as a replacement part in a snowblower or an edger. The purpose of the upper discharge chute is to provide a channel through which the snow or greenery can be gathered and then dispelled by the equipment. The upper discharge chute in a snowblower or an edger might need to be replaced at some point within the typical lifespan of the appliance. This could occur if the upper discharge chute is punctured dented, cracked, eroded, or warped. If this occurs, the upper discharge chute should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This upper discharge chute is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Montgomery Wards, Yard Man, and MasterCut.

Replacement chute flange keeper for snow throwers. Secures the discharge chute assembly to the housing. Replace if broken, cracked, or missing.

Replacement chute assembly for snowblowers. Directs expelled snow away from equipment. Replace if cracked, damaged, detached, or missing from unit.

Cable guide for snowblowers. Keeps control cables properly routed and secured. Replace if cracked, broken, or missing to maintain smooth cable operation.

Replace your snow thrower's cable bracket if it's cracked, broken, or missing. This mounting bracket secures control cables for proper operation.

Hex screw for lawn mowers and outdoor power equipment. Replaces lost, stripped, or damaged hardware. Secures components and panels during assembly.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

This genuine OEM part is a compression spring for a lawnmower. The compression spring is the spring that holds the mower deck onto the lawnmower. Over time, the compression spring can become degraded due to excessive wear and tear. If it is no longer securing the mower deck, it will need to be replaced. Luckily, replacing this part is a relatively simple process.To replace the spring, make sure the mower deck is set to the lowest position. Locate the old retainer spring and pull it out and away from the mower. Once removed, slide the new spring into its proper position. Make sure it fits tightly, and the mower deck is secured. Once secured, power the mower to see if the spring stays in place during operation. If it does, then the installation was a success. This replacement part is sold individually and is compatible with MTD brand lawnmowers.

Return spring for snow blowers. Mounts to the control mechanism to provide tension and return function. Replace if stretched, broken, or missing.

This part is a replacement handle lever bumper. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective or misplaced handle lever bumper in snow blowers.The handle lever bumper provides some cushioning between the frame of the handle and the control lever, making it easier for the user to operate the snow blower. If this part is damaged or misplaced, it will need to be replaced to ensure optimal functionality. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on the installation of this particular handle lever bumper, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality rubber. This handle lever bumper can be used with a variety of snow blower models manufactured by Craftsman, MTD, and other brands.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Replacement washer for snow blower and snow thrower models. Needed when original washer is lost, damaged, or worn. Secures components properly.

Replace a worn or bent cam rod that causes poor shifting or control issues in your snow blower. Direct fit part restores smooth operation.

Left handle bracket for gas snowblowers. Mounts to the frame to secure the left handlebar. Replace if cracked, bent, or broken from impact or wear.

Replace a cracked, broken, or missing handle bracket on your snow blower. This structural bracket secures the handle assembly to the frame. Easy install.

Handle support bracket for snow blowers. Secures and stabilizes the upper handle assembly. Replace if bracket is bent, cracked, or broken.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

Halogen headlight lamp for snow blowers. Replace when light dims or burns out to maintain visibility during winter clearing. Verify fit with model number.
