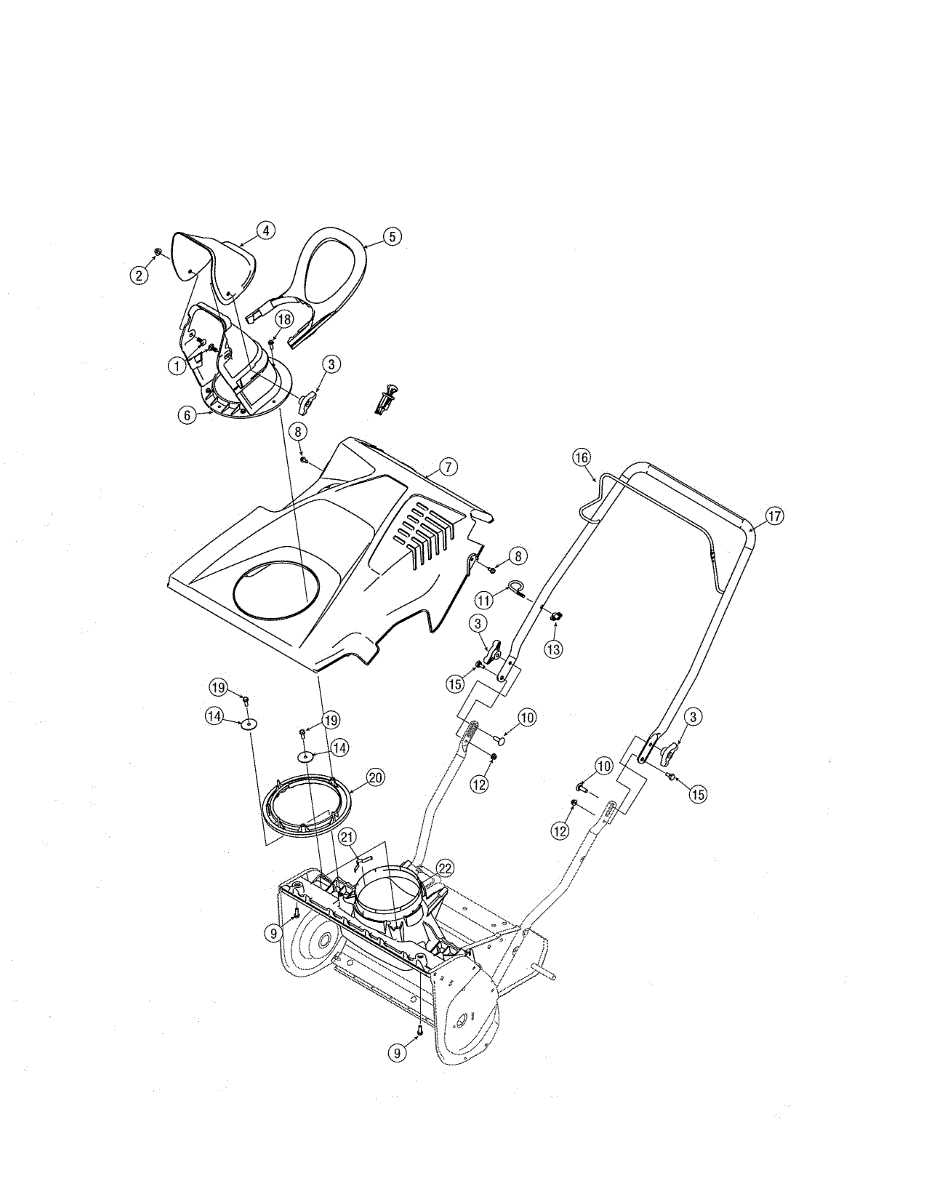

Parts for Craftsman 24711683: Chute / Handles Parts

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

Wing knob for lawn mowers and snow blowers. Secures chutes, bagger frames, and adjustable components. Replace if cracked, broken, or missing.

Upper chute assembly for gas snow throwers. Directs snow discharge from the auger housing. Replace if cracked, damaged, or missing. Installs on top.

Chute handle for snowblowers. Attaches to the discharge chute assembly to control snow direction. Replace if cracked, broken, or missing.

Lower discharge chute for gas snowblowers, 6.5 inch size. Directs snow away from machine. Replace if cracked, broken, or missing for proper operation.

Service kit for snowblowers includes essential maintenance parts for routine upkeep. Replace worn or missing components to keep your snow thrower ready.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

This is a versatile screw designed with flanged hex head and double-lead threads. It is a high-low self-tapping screw with one thread that is high and the other low for easier penetration. The twin threads also reduce the amount of material displaced when the screw is driven into the material. This type of screw also creates a firmer grip. This screw can also be used to secure a newly installed front cover or grill. This part is available as an individual replacement part. It is a genuine OEM part for use with specific models of snow throwers, lawn tractors, electric mowers, chippers, and log splitters from Bolens, Cub Cadet, Craftsman, Poulan, Ryobi, Toro, MTD, Troy-Bilt, Yard Machines, and Yard-Man.

Carriage screw that secures various components on lawn mowers and snowblowers. Replace if your screw is stripped, loose, missing, or damaged during use.

Eyebolt for snow throwers. This 1/4-20 threaded eyebolt secures components to the frame. Replace if bent, stripped, or missing for proper assembly.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

This is a shoulder screw that is used to secure the handles of yard equipment. Typically, this screw is used with a matching wing nut, which is sold separately. Many different varieties of push lawn mowers have handles that fold downward for ease of storage. This is one of the locations on a mower where one will find shoulder bolts and the point at which these bolts are most likely wear out. While they are made of durable machined metal, shoulder bolts receive a great deal of wear, particularly from the handles being raised and lowered each time the mower is used. When pushing down on the mower to clear wet grass clippings or to make sharp turns with the mower, the entire weight of the mower is put on the two shoulder screws where they intersect. Since the metal of the handles can turn at that juncture, extra shearing action is put on the shoulder bolts, which can wear out. It is actually advantageous that the bolts wear out since otherwise, the handles themselves would warp and break apart. These OEM genuine replacement parts fit a number of different lawn and garden machines, including many made by Cub Cadets, Husky, Troy-Bilt, Craftsman, Yard-Man, Bolens, MTD, and Yard-Machines.

Auger engagement handle for snow throwers. Installs on handlebar assembly to control auger operation. Replace if cracked, bent, or broken for safe use.

Upper handle for gas snowblowers. Replaces cracked, broken, or worn handles on the operator control assembly. Essential for safe equipment operation.

Hex head screw with indented washer for lawn tractors and riding mowers. Replaces broken, stripped, or missing screws in various assembly points.

Chute ring for gas snowblowers. Installs at the discharge chute assembly to secure and support proper chute rotation. Replace if cracked or broken.

Replacement chute adjustment spring for snow throwers. Installs on the chute control mechanism. Replace if stretched, broken, or missing to restore proper chute positioning.
