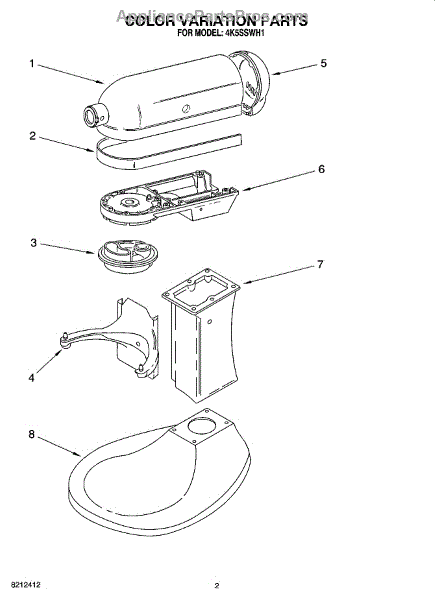

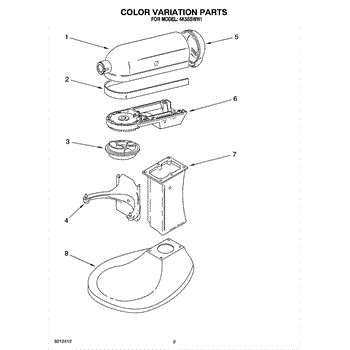

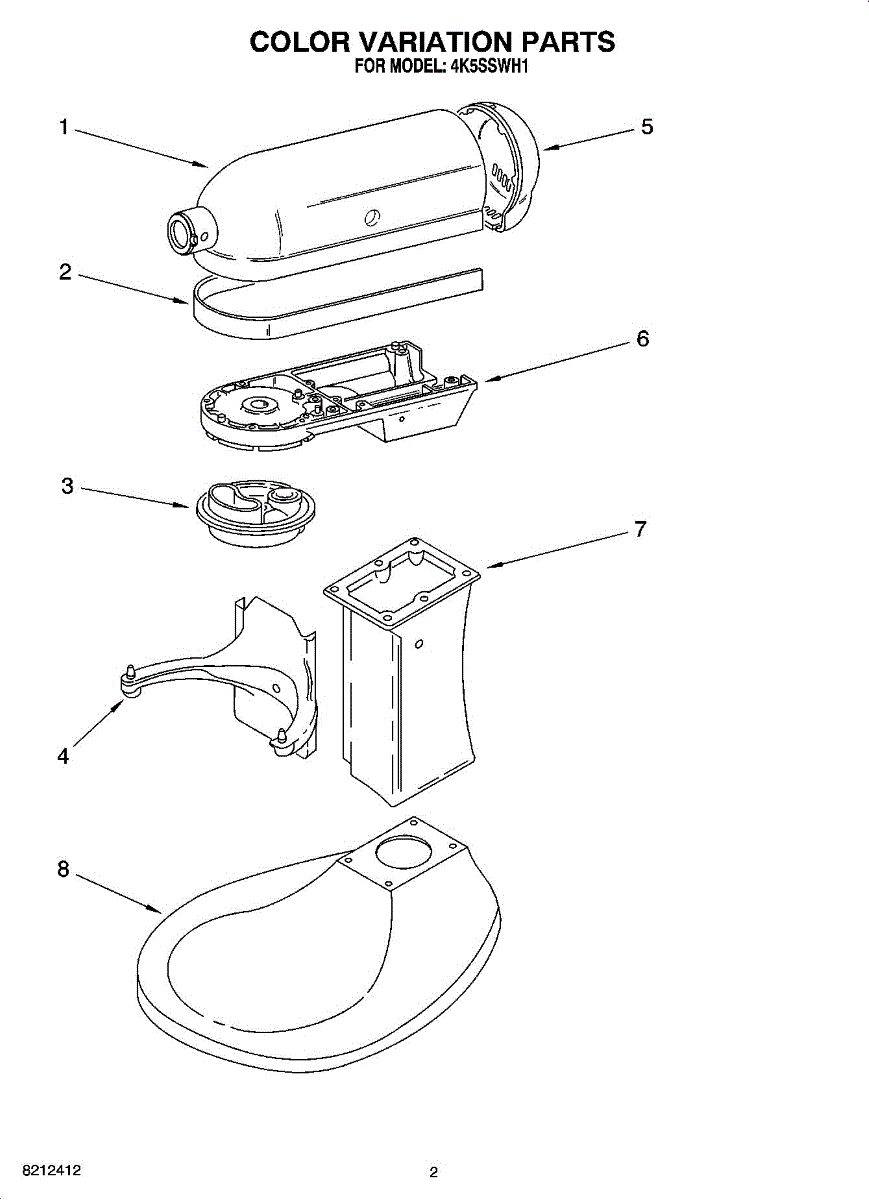

Parts for Whirlpool 4K5SSWH1: 01 - Color Variation Parts

This gearcase housing is the molded enclosure that supports and protects the motor drive gears, keeping them aligned for reliable rotation. It restores proper gear engagement and prevents debris from entering the drive area. What it does:

• Houses and positions the motor drive gears so the drive system turns smoothly
• Protects internal gears from lint, dust, and moisture that can cause wear or jamming
• Helps maintain correct gear alignment to reduce noise, grinding, or slipping during operation
• Supports the motor/gear assembly for consistent power transfer to the drivetrain

• Install with original fasteners and proper torque to maintain alignment
• Inspect gears, seals, and nearby components; replace any worn parts while housing is accessible
• Disconnect power and follow manufacturer safety procedures before attempting service

This Trim Band is the outer-facing trim piece that restores the finished edge and appearance of the appliance door or opening. It replaces bent, cracked, or missing trim to help the appliance look and seal properly. What it does:

• Covers and protects the outer edge of the door/opening for a finished look
• Restores proper alignment where bent or damaged trim prevents a snug fit
• Helps prevent dirt and moisture intrusion at the door edge
• Addresses visual damage such as dents, cracks, or peeling finish

• One Trim Band as shown

• Disconnect power (and gas if applicable) before starting any repair
• Handle edges carefully—trim parts can be sharp
• Use basic hand tools; for detailed instructions

Color: White

A replacement support mounting bracket that holds and stabilizes internal components for proper alignment and smooth operation. Restores secure positioning to reduce noise and wear from loose or shifted parts. What it does

• Provides a stable mounting point to keep panels, housings, or assemblies aligned.
• Helps prevent vibration and rattling caused by worn or broken supports.
• Restores correct part spacing to reduce stress on adjacent components.
• Commonly replaced when parts sag, vibrate, or fail to remain securely positioned.

• One replacement support mounting bracket.

• Basic hand tools typically required; follow your appliance's service instructions.
• Disconnect power before starting any repair to avoid shock or injury.
• Inspect surrounding clips, screws, or fasteners and replace if worn.

Color: White
