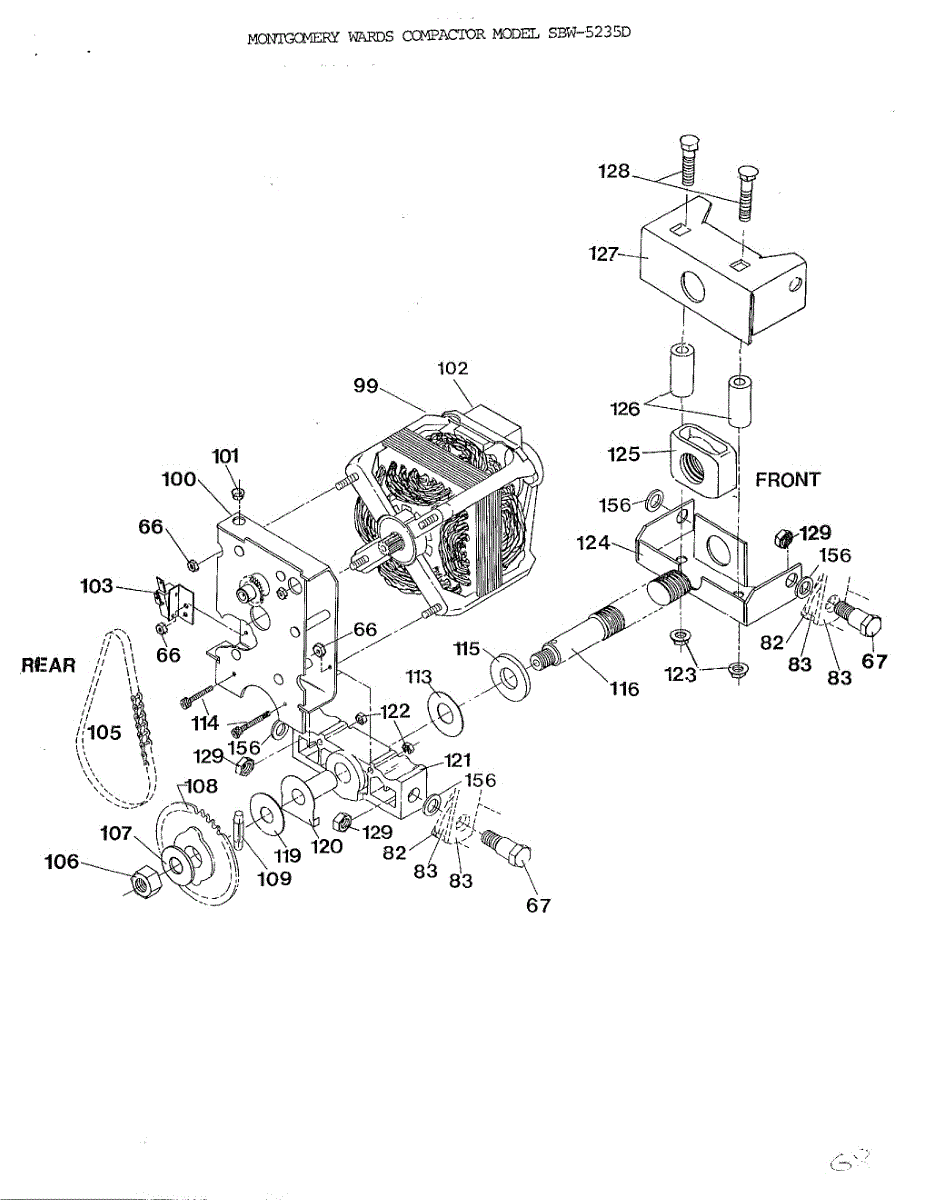

Parts for Broan 5235D: Compactor Page 3 Parts

This is a replacement mounting screw designed for use in range hood and ventilation assemblies. It restores secure attachment of panels or components so vents and covers stay properly aligned and safe to use. What it does:

• Secures trim, panels, or internal components to chassis or bracket mounting points
• Helps stop rattling, vibration, or loose panels that can occur with worn or missing fasteners
• Restores proper part alignment to maintain airflow paths and cover fit
• Simple hardware replacement to support overall unit stability and safety

• Screw

• Turn power off to the appliance and ensure the unit is cool before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Verify matching thread size and length before installation; do not force mismatched fasteners
• Replace all affected screws to ensure even mounting

Cushioning bumper that mounts on the compactor door to prevent noise and impact damage. Replace if cracked, compressed, missing, or no longer cushions.

Replace your trash compactor's worn or missing spacer component. This part maintains proper spacing between moving components during compaction cycles.

Mounting screw for trash compactor assembly. Secures internal components and panels. Replace if screw is stripped, missing, or damaged during maintenance.

This replacement power cord restores safe electrical connection for compatible Broan appliances, letting the unit receive power when the original cord is damaged or worn. Use this cord to replace frayed, cut, or non-functioning cords. What it does:

• Provides the appliance's primary AC power connection
• Replaces cracked, frayed, melted, or otherwise damaged cords
• Helps stop intermittent power or loss of power caused by a faulty cord
• Restores a secure plug-and-cord connection for safe operation

• Disconnect power at the breaker or unplug the appliance before starting any work
• Match wiring and connector type to the appliance; follow the factory wiring diagram
• Route the cord away from moving parts, heating elements, and sharp edges

This is a small hex nut that secures components and fasteners in place on compatible Broan appliances, helping restore stable mounting and eliminate loose connections. What it does

• Fastens onto a threaded stud or bolt to hold panels, brackets, or hardware together
• Restores proper tension when a loose nut causes rattling or wobbling
• Prevents parts from shifting or falling off during operation
• Used where a compact, reliable threaded fastening point is needed

• One hex nut

• Turn off and unplug the appliance before servicing to avoid shock or injury
• Match thread size and type to the original fastener; do not force onto mismatched threads
• Tighten securely but avoid over-torquing which can strip threads or damage components

This is a genuine OEM screw designed to secure components on compatible Broan ventilation appliances. It provides a dependable fastening solution for panels, grilles, or internal parts, helping restore proper fit and operation. What it does:

• Secures range hood or ventilation unit components to prevent rattling and maintain alignment
• Holds panels, filters, or mounting brackets in place for safe operation
• Restores lost or damaged hardware to avoid gaps that can affect performance
• Simple, direct replacement for the original fastener when the correct part number is used

• Use the correct screwdriver bit to avoid cam-out or damaged heads
• Do not overtighten; snug until secure to avoid stripping threads or cracking housings
• Disconnect power or follow appliance safety steps before servicing electrical models
• Keep loose screws away from children and pets; small parts can be a choking hazard

This wire harness routes power and signals between the hood's motor, lights, switches and controls to restore electrical connectivity and proper operation. It replaces a damaged or burnt wiring assembly to help clear electrical faults. What it does:

• Connects the blower motor, light sockets, and control switches to the hood's power supply
• Restores broken or corroded wiring paths that can cause intermittent operation or complete failure
• Helps stop arcing, shorts, or blown fuses when the original harness is damaged
• Enables proper function of speed switches and lighting circuits once installed

• One complete wire harness assembly as shown

• Disconnect power to the appliance at the breaker before starting any work
• Verify connector orientations and secure all wiring with the original clips or mounts
• Inspect adjacent components for heat or damage that could have affected the harness

Mounting nut for trash compactor assembly. Secures internal components and mechanical parts. Replace if stripped, missing, or corroded during repair.

This mounting spacer keeps blower and housing components correctly spaced for secure assembly and smooth operation. Replaces a worn or missing spacer to restore proper alignment and reduce vibration and noise. What it does:

• Provides a fixed gap between housing components to ensure correct fan alignment and airflow
• Stabilizes mounting points to prevent rubbing and reduce vibration-related noise
• Helps maintain proper clearances so moving parts do not contact the housing
• Useful when fastener locations sit low or when original spacer is cracked, compressed, or missing

• Disconnect power to the appliance before beginning any repair
• Remove panels or housings as needed to access the spacer; keep track of fasteners and orientation
• Seat the spacer fully and reinstall fasteners snugly—do not overtighten to avoid crushing the spacer

This spacer positions and secures components inside the appliance to maintain correct alignment and clearance for reliable operation. It's a simple replacement that restores proper spacing where the original spacer is worn or missing. What it does:

• Keeps parts properly spaced to prevent rubbing, contact, or misalignment
• Helps maintain correct airflow or clearance between internal components
• Reduces vibration and wear caused by components touching or shifting
• Supports secure reassembly after service or component replacement

• One spacer as shown

• Verify the spacer location and orientation before removal of surrounding parts
• Use basic hand tools; keep fasteners and adjacent parts organized for reassembly
• Disconnect power to the appliance before starting service to avoid shock or injury
• Replace as needed for a secure fit

A single replacement mounting screw used to fasten components on compatible Broan ventilation units. Restores secure assembly to reduce vibration, rattling or loose panels and keep parts aligned for proper operation. What it does:

• Secures panels, brackets or small components to the appliance chassis
• Prevents rattling and vibration caused by missing or loose fasteners
• Keeps motor and blower assemblies properly aligned when used in original mounting locations
• Helps maintain a safe, stable installation of ventilation components

• Disconnect power to the appliance before servicing to prevent electrical shock
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten snugly but avoid over-torquing to prevent damage to threads or sheet metal
• Keep removed hardware organized so all fasteners are reinstalled

A small mounting spacer used to position or support fasteners and panels so nearby parts sit correctly and aren't over-compressed. Helps maintain proper alignment and reduces vibration for reliable operation. What it does:

• Creates and maintains the correct gap between mating parts or panels
• Positions screws, bolts, or studs to prevent over-tightening and damage
• Helps reduce rattling or vibration caused by loose or misaligned parts
• Keeps panels and components aligned for smooth function and appearance

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct fastener and size for the spacer location; do not force or modify the part
• Tighten fasteners snugly but avoid over-torquing; the spacer is meant to prevent over-compression

This small bushing supports a rotating shaft and helps keep the blower or fan running smoothly, reducing wear and noise. It restores proper alignment and helps maintain airflow performance when the original bushing is worn or damaged. What it does:

• Centers and supports the motor or fan shaft to reduce wobble and friction
• Minimizes vibration and rubbing that can cause noise or premature wear
• Helps maintain consistent blower/fan movement for reliable airflow
• Commonly replaced when noise, shaft play, or uneven operation occurs

• One bushing as shown

• Designed for replacement of the same OEM bushing; confirm fit before installation
• Turn power off at the breaker or unplug the appliance before servicing
• Use basic hand tools; avoid forcing parts to prevent damage
• If shaft or housing shows excessive wear, inspect adjoining components and replace as needed

Lower limit switch.

Mounting nut for trash compactor installation. Replaces missing, stripped, or corroded nuts that secure compactor components. Essential hardware piece.

Washer for trash compactor mounting hardware. Replace if original is cracked, worn, or missing to ensure proper installation and stability.

Replacement mounting screw for trash compactor panels and brackets. Secures loose components and replaces stripped, missing, or damaged screws.

Washer for trash compactor installation. Replace this hardware component if your original washer is missing, worn, or damaged during disassembly.

Positions and secures components inside your trash compactor for proper alignment and stable mounting. Replace if original spacer is damaged or missing.

Fix a trash compactor door that won't stay closed or latch properly with this door latch assembly. Direct replacement part restores secure closing.

This replacement drawer restores storage and access for your appliance's lower compartment, providing a secure, easy-to-open receptacle for cookware and accessories. It's a direct-fit service part that replaces a damaged, cracked, or missing drawer. What it does:

• Provides a stable storage compartment and smooth opening/closing action
• Replaces drawers that are cracked, warped, dented, or won't stay closed
• Restores the appliance's finished appearance and usable storage space
• Helps prevent loose items from contacting heating elements or internal components

• Turn off/unplug the appliance before starting any repair to avoid electric shock
• Remove any contents from the existing drawer and follow OEM removal steps
• Installation typically requires basic hand tools; handle edges carefully to avoid cuts

This is a replacement mounting nut that secures panels, brackets, or fasteners on ventilation appliances. It restores lost or damaged hardware so components stay firmly attached and reduce vibration or rattling. What it does:

• Secures panels, brackets, or fasteners to keep parts aligned and stable
• Prevents vibration and rattling caused by loose hardware
• Replaces stripped, corroded, or missing nuts that allow components to come loose
• Restores the original fastening point so associated hardware functions properly

• Disconnect power to the appliance before beginning any service
• Use the correct socket or wrench size to avoid rounding the nut
• Thread carefully and avoid cross-threading; do not overtighten
• If threads are damaged or hardware repeatedly loosens, inspect mating fastener and mounting hole

Cable retainer for trash compactors. Secures and guides cables within the compactor mechanism. Replace if cracked, broken, or missing to maintain proper operation.

This is a replacement door panel in avocado/coffee finish that restores the exterior appearance of compatible Broan range-hood or microwave doors. It replaces a cracked, faded, or cosmetically damaged panel so the appliance looks like new. What it does:

• Replaces a worn, cracked, chipped or discolored door panel to restore finished appearance
• Provides the factory color/finish for avocado/coffee trim on compatible Broan units
• Helps the door close and seal properly when damage interferes with fit (cosmetic parts only)
• Matches OEM fit and mounting points for a clean, factory-style replacement

• Disconnect power to the appliance before beginning any repair
• Handle the panel carefully to avoid scratches; use soft cloth or gloves
• Basic hand tools (screwdriver) are typically required; keep removed fasteners for reinstall

Replacement mounting nut for compactors and vent hoods. Secures panels, brackets, or internal components. Order a new nut if yours is stripped or missing.

This small retaining clip secures linkage and small components in ventilation and range hood assemblies to help keep moving parts aligned and reduce rattling. It's a simple replacement for a lost or broken fastener. What it does:

• Holds linkage or small assemblies in place to prevent separation during operation
• Keeps moving parts aligned to reduce noise and vibration
• Replaces a worn, broken, or missing clip that can allow parts to shift or rattle
• Fits where a compact retaining clip is required for secure attachment

• Disconnect power to the appliance before attempting any service
• Handle carefully; nearby sheet metal edges may be sharp
• Verify clip orientation and seating before restoring power
