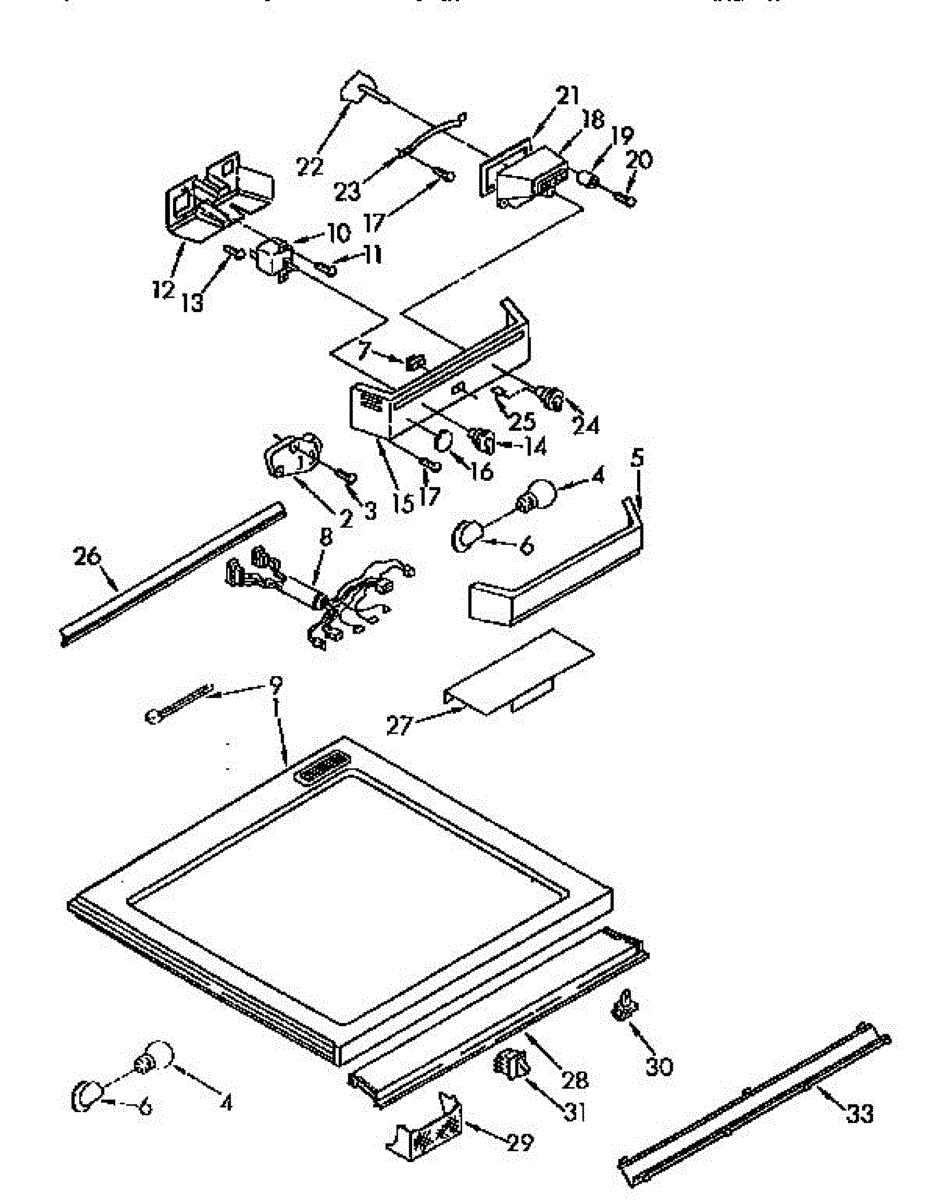

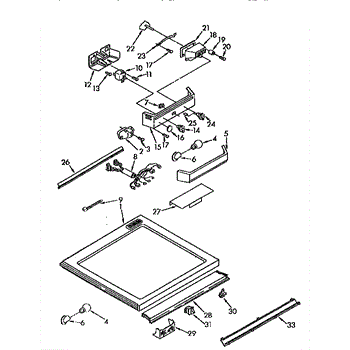

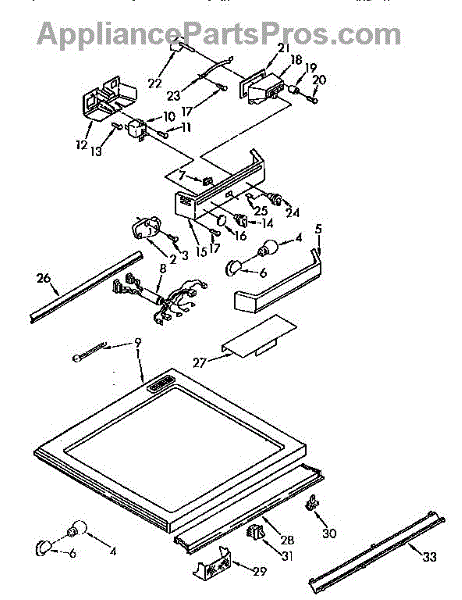

Parts for Kenmore 106.9631650 (1069631650, 106 9631650): Compartment Separator Parts

The Timer is an OEM part for Whirlpool refrigerators. This component is essential for controlling the defrost cycle of the refrigerator, ensuring that the appliance operates efficiently by periodically melting any frost buildup on the evaporator coils. By regulating the defrosting process, the timer helps maintain the optimal temperature and energy efficiency of the refrigerator.

Causes of a bad timer can include electrical malfunctions, wear and tear over time, or exposure to power surges. When the timer fails, the defrost cycle may not run correctly, leading to issues with frost buildup and inefficient cooling.

Symptoms of a bad timer include:

• The refrigerator running continuously without cycling off
• Frost buildup on the evaporator coils
• The refrigerator being too warm or too cold
• The defrost cycle not initiating or running too frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement light bulb restores clear, dependable illumination so you can easily see inside your appliance and check status at a glance. Replacing a burned-out or dim lamp improves visibility, convenience, and day-to-day safety.

• Provides light when the door opens or the light switch is turned on
• Helps you view contents and monitor progress without guesswork
• Addresses no-light, dim, or flickering conditions
• Installs in the designated light socket on compatible models

• Disconnect power to the appliance before servicing
• Allow the bulb and surrounding area to cool completely
• Handle glass with a clean cloth or gloves; skin oils can shorten bulb life
• Install gently without overtightening; use only the type/rating specified for your model

Cold control that regulates cooling cycles to maintain set temperatures in the fresh-food section. Replacing a failed control restores more consistent temperature control and helps prevent food spoilage. What it does:

• Controls compressor/cooling cycles based on the selected temperature setting to maintain cabinet temperature.
• Common symptoms: refrigerator running constantly, not cooling, or temperature cycling irregularly.
• Interfaces with the fridge control housing and wiring to open/close the cooling circuit as needed.

• Disconnect power to the appliance before starting any repair.
• Access the control housing/panel to remove the old control; note wire locations or take a photo for correct reinstallation.
• Handle any attached sensor or capillary tube gently to avoid kinks or damage.
• After installation, restore power and the refrigerator reaches and holds the desired temperature.

The Icemaker Complete Add-On Kit is an OEM replacement part for Whirlpool side-by-side refrigerators. The kit includes the icemaker head, auger motor assembly, wire harness, installation hardware, and more. These allow ice production capability to be added to older refrigerators that were not initially equipped with icemaking.

Causes of a bad icemaker can include wear and tear from regular use, mineral buildup from hard water, and electrical issues that affect the ice production cycle.

Symptoms of a bad icemaker include:

• No ice production or slow ice-making
• Ice cubes that are irregularly shaped or smaller than usual
• Leaks or water pooling in the ice maker area
• Unusual noises during the ice-making process

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker is an OEM part for Whirlpool refrigerators. It is designed to automate the ice production process, ensuring a consistent and reliable supply of ice cubes. Please note that this particular icemaker does not include a front cover or shut-off arm; you can reuse these parts from your old icemaker.

Causes of a bad icemaker can include malfunctioning water valves, clogged fill tubes, or faulty electronic controls. These issues can prevent the icemaker from receiving water, freezing it properly, or dispensing ice, impacting its efficiency.

Symptoms of a malfunctioning icemaker include:

• No ice production despite being activated.
• Smaller or misshapen ice cubes.
• Leaking water in the freezer compartment.
• Unusual noises during its cycle.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
