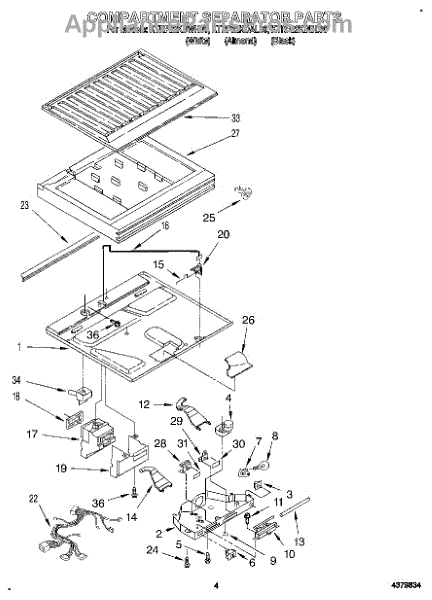

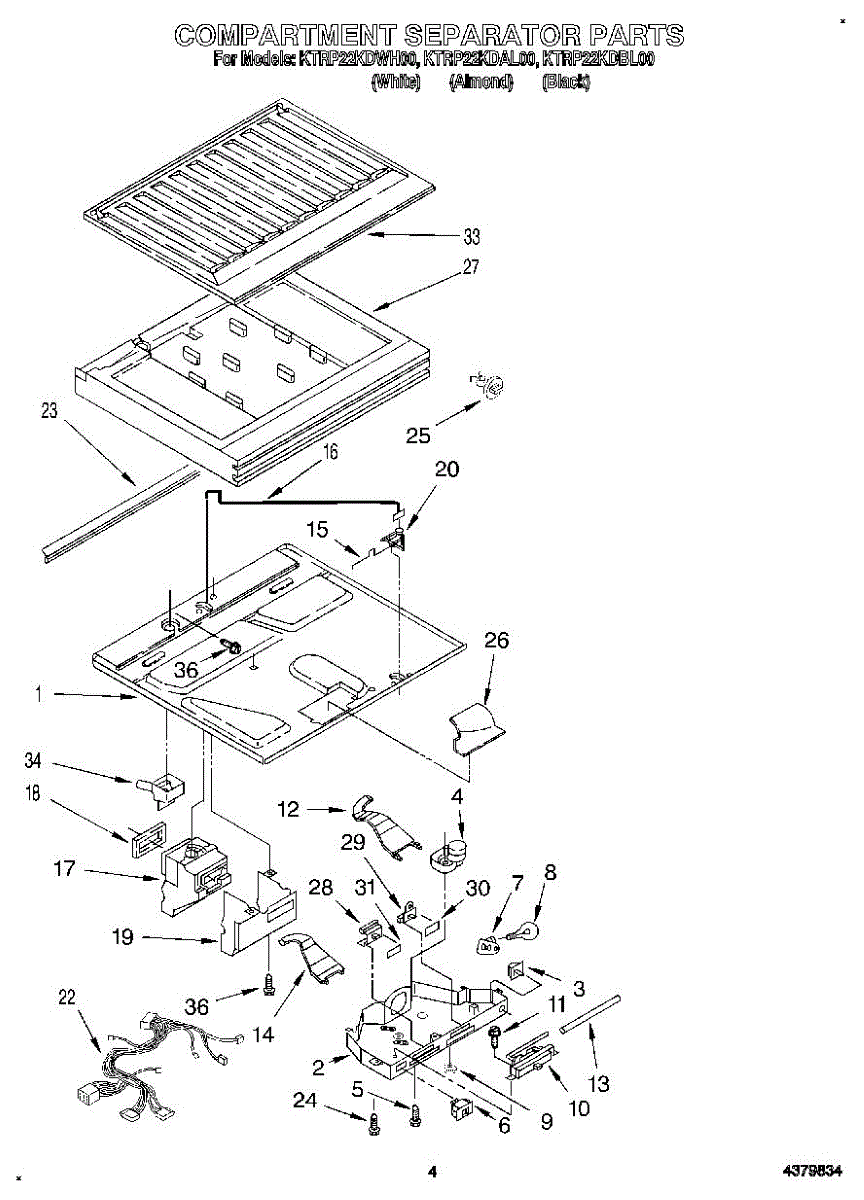

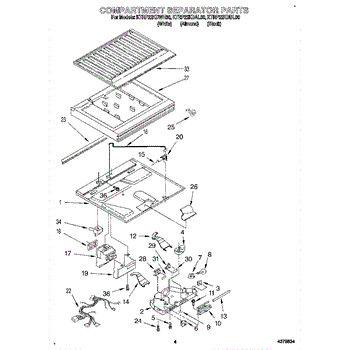

Parts for Kitchenaid KTRP22KDBL00: 03 - Compartment Separator Parts

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator light switch include:

• The interior light staying on when the refrigerator door is closed
• The light not activating when the refrigerator door is opened
• Intermittent or flickering light due to a loose connection or faulty switch

Causes of light switch failure typically involve mechanical wear from repeated use, accumulation of dirt or debris that can interfere with the switch mechanism, or electrical issues such as short circuits.

This OEM part is also compatible with other brands manufactured by Whirlpool, including Maytag, KitchenAid, Jenn-Air, Amana, and others.

The Timer is an OEM part for Whirlpool refrigerators. This component is essential for controlling the defrost cycle of the refrigerator, ensuring that the appliance operates efficiently by periodically melting any frost buildup on the evaporator coils. By regulating the defrosting process, the timer helps maintain the optimal temperature and energy efficiency of the refrigerator.

Causes of a bad timer can include electrical malfunctions, wear and tear over time, or exposure to power surges. When the timer fails, the defrost cycle may not run correctly, leading to issues with frost buildup and inefficient cooling.

Symptoms of a bad timer include:

• The refrigerator running continuously without cycling off
• Frost buildup on the evaporator coils
• The refrigerator being too warm or too cold
• The defrost cycle not initiating or running too frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose parts that cause vibration, rattling, or misalignment for a tighter, safer assembly. What it does:

• Secures covers, trim, brackets, or control panels to the appliance frame
• Keeps components aligned to prevent rattling and movement during operation
• Replaces stripped, missing, or damaged fasteners that compromise fit
• Helps restore structural stability for normal operation

• Disconnect power and turn off water supply before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid over-tightening which can crack plastic or strip threads
• If threads are damaged, replace with correct OEM fastener.

This light socket replaces a worn or heat-damaged lamp holder so your appliance light works reliably again. Its straight-connector design fits applications with in-line wiring, ensuring a secure electrical connection to the interior light bulb.

• Holds the light bulb and supplies power to it
• Restores interior illumination for better visibility
• Straight terminal orientation for housings requiring inline wiring clearance
• Typical signs of failure: light stays off with a good bulb, flickers, or shows heat damage at the socket

• Disconnect power at the breaker or unplug before servicing; allow the area to cool completely
• Remove any lens/cover; transfer wires one at a time to maintain correct connections
• Secure the socket with existing bracket/fasteners; do not overtighten
• Test light operation before reassembly and confirm the door switch activates the light

This replacement light bulb restores clear, reliable illumination so you can see contents and monitor appliance operation. Replace a burned-out, dim, or flickering bulb to bring visibility back to the area it lights. What it does:

• Provides illumination in the appliance's interior or designated lighting location
• Makes it easier to see contents and check status at a glance
• Common symptoms: light won't turn on, intermittent/flickering light, dim or blackened bulb

• 1 light bulb

• Disconnect power before servicing; allow hot surfaces and the old bulb to cool completely
• Remove any lens/cover, then remove the old bulb
• Install the new bulb securely without overtightening; reinstall the lens/cover if present
• Restore power and test operation

6 - 19 x .250

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-32 x 1/2 inch.

Size: 8 x 1/2 ab.
