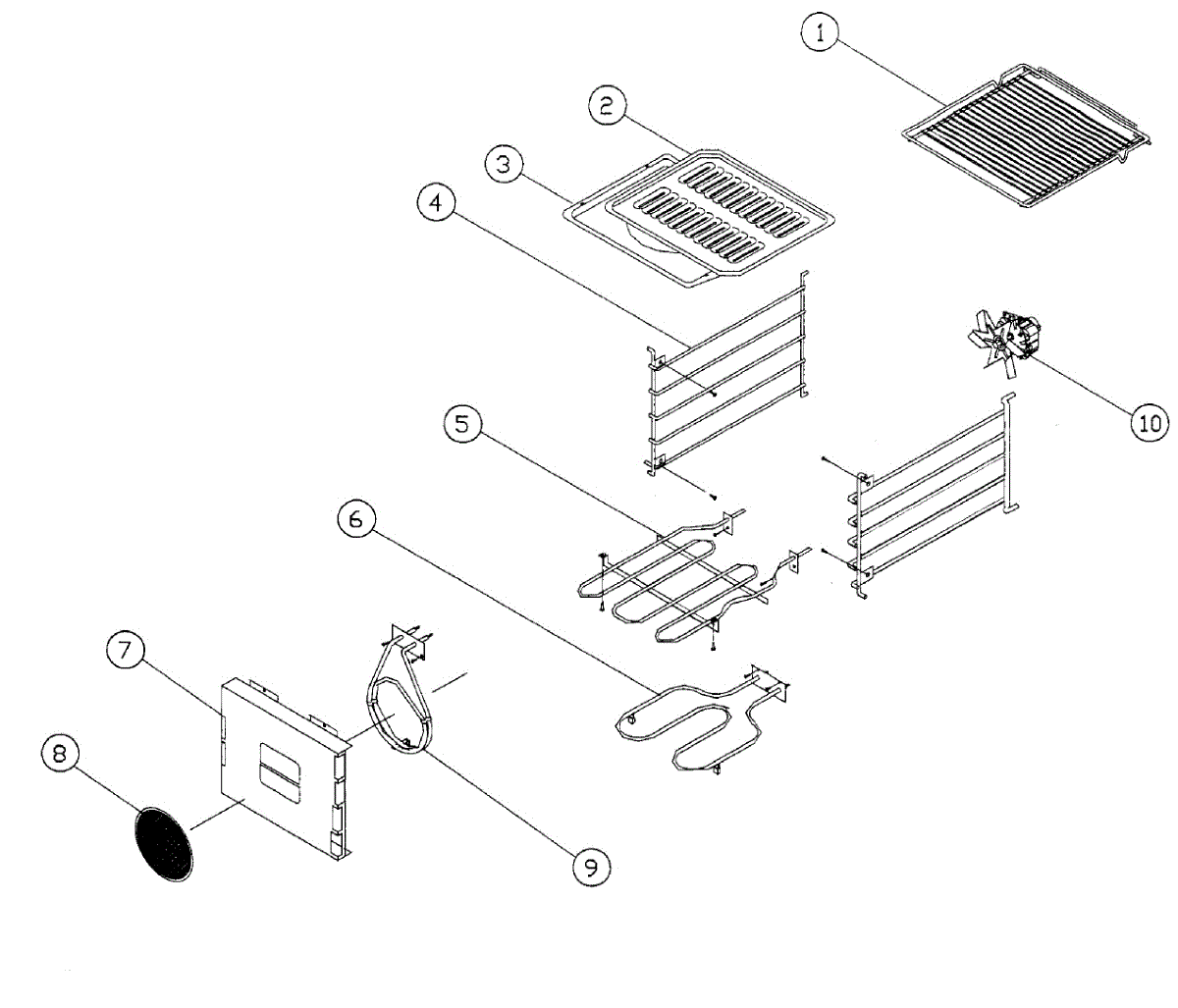

Parts for Dacor ERDE48LP: Components Parts

This is the upper/broil heating element for electric ovens, designed to restore high-heat broiling and even top-surface browning. Replaces a failed broil coil so your oven can reach proper broil temperatures again. What it does:

• Provides the intense, direct heat required for broiling and browning food
• Heats the oven's upper cavity so broil cycles reach target temperatures
• Commonly fails open or shorts, causing no broil heat or a tripped breaker
• Restores consistent top-element performance when damaged, burned, or broken

• One broil (upper) heating element

• Disconnect power at the breaker before attempting any service
• Allow the oven to cool completely; heating elements can be hot or fragile
• Remove the oven racks and access the element mounting screws; support the element while disconnecting wiring

This is a replacement bake element for compatible electric ovens that provides the lower-oven heat source used for baking and roasting. Restores even bottom-heat performance when the original element is faulty. What it does

• Heats the oven's lower cavity to provide the radiant heat needed for baking and roasting.
• Commonly replaced when the oven fails to reach set temperatures or bakes unevenly.
• Can show visible damage (breaks, blisters) or electrical failure (no heat) when defective.
• Works with oven controls to cycle on/off for temperature regulation.

• 1 bake element

• Disconnect power at the breaker before inspecting or replacing the element.
• Handle the element carefully to avoid bending or damaging the terminals.
• Verify terminal connections are tight and secure; replace mounting screws if worn.

This convection element kit replaces the oven's convection heating element to restore even heat for baking and roasting. Use it when the convection system no longer produces consistent hot air or the oven bakes unevenly. What it does:

• Heats air for the oven's convection cooking mode so the fan can circulate consistent temperature.
• Restores even browning and predictable bake/roast results when the convection element has failed.
• Common symptom indicator: uneven baking or roasting, or visible damage to the element.
• Can be part of repairs when the oven does not reach expected results in convection mode.

• Disconnect power at the breaker before starting any repair — electric shock hazard.
• Access typically requires removing the oven cavity back panel or inner rear panel; use proper tools and follow OEM instructions.
• Inspect wiring terminals and insulation; replace connectors that are corroded or damaged.

This internal convection fan circulates heated air inside the oven cavity to promote more even cooking and consistent temperatures. It replaces a failed or noisy fan to restore proper convection performance. What it does:

• Circulates hot air for even baking and roasting
• Helps maintain consistent oven temperatures during convection cycles
• A faulty fan can cause uneven cooking, loss of convection function, or unusual noise
• Works as the internal blower assembly that directs airflow from the heating element

• Disconnect power to the range before beginning any repair.
• Handle the fan and housing carefully to avoid bending blades or touching sharp sheet-metal edges.
• Verify proper mounting and secure electrical connections; do not run the oven with loose hardware.
