Parts for Kenmore 253.9770691 (2539770691, 253 9770691): Compression Parts

Replace worn compressor mounting grommets to stop excessive vibration and noise. Fits most air conditioner and heat pump models. Simple DIY fix.

This overload protector helps protect the refrigerator compressor from overheating and electrical overloads, reducing the risk of damage. It restores proper compressor starting when the protector has failed. What it does:

• Senses excessive heat or current and interrupts power to the compressor to prevent damage.
• Commonly replaced when the compressor won't start, runs intermittently, or only hums.
• Works with the compressor start components to allow safe restart after an overload condition.
• Provides a compact, inline thermal/electrical safety device for the compressor circuit.

• One overload protector

• Disconnect power to the appliance before inspecting or replacing the part.
• Install on the compressor terminals as shown in the OEM wiring diagram; ensure secure terminal connections.
• Replace related start components (relay/capacitor) only if diagnosed as faulty—do not assume other parts are included.

This acoustic cover is a molded sound-insulation panel that helps reduce operational noise and protects internal components from dust and debris. It restores quieter operation and shields wiring and parts behind the appliance's exterior. What it does:

• Dampens vibration and reduces humming, buzzing, and other operational noise
• Covers and protects internal components from dust and incidental contact
• Helps stabilize panels and prevent rattling from loose or vibrating parts
• Common fix for louder-than-normal operation or new rattles after maintenance

• Disconnect power (unplug or shut off breaker) before beginning any work
• Handle foam/insulation surfaces gently to avoid compressing or tearing
• Align tabs or mounting holes and secure with original screws or clips

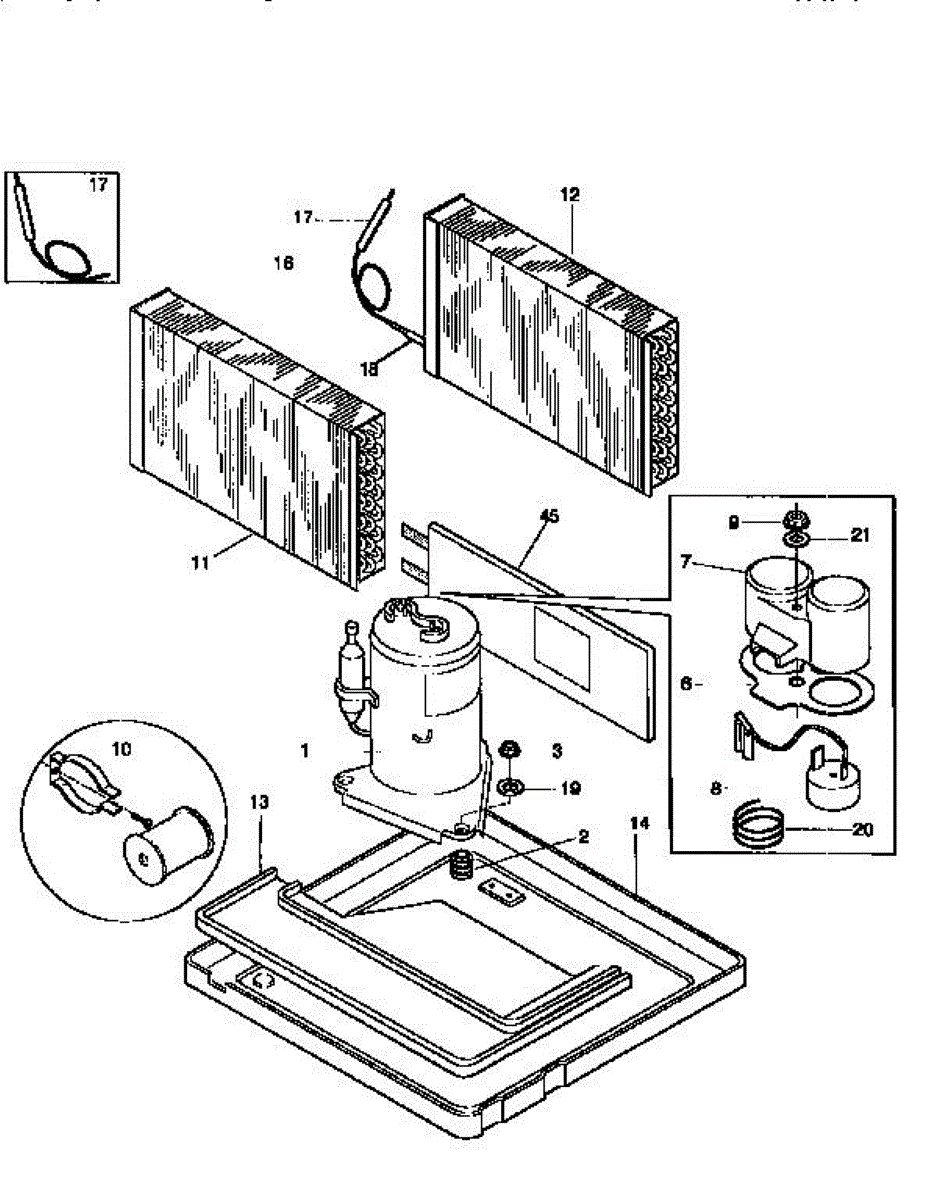

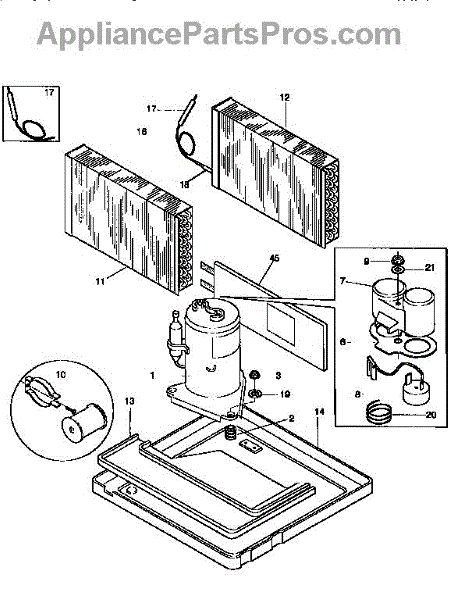

This parts list is the manufacturer's service diagram and parts reference that helps identify factory components for ordering and repair. It makes locating part names and item numbers easier when planning service. What it does:

• Shows exploded views and part callouts so you can identify which components match your appliance
• Helps descriptions and quantities before you order replacements
• Useful for diagnosing which part is associated with a specific symptom or failure
• Saves time by providing a single reference for parts breakdowns and assembly order

• This is a reference document; no tools or installation are required
• Keep the sheet with your appliance records or service paperwork for future use
• If a printed sheet is damaged or missing, request a replacement from the manufacturer or authorized parts distributor
