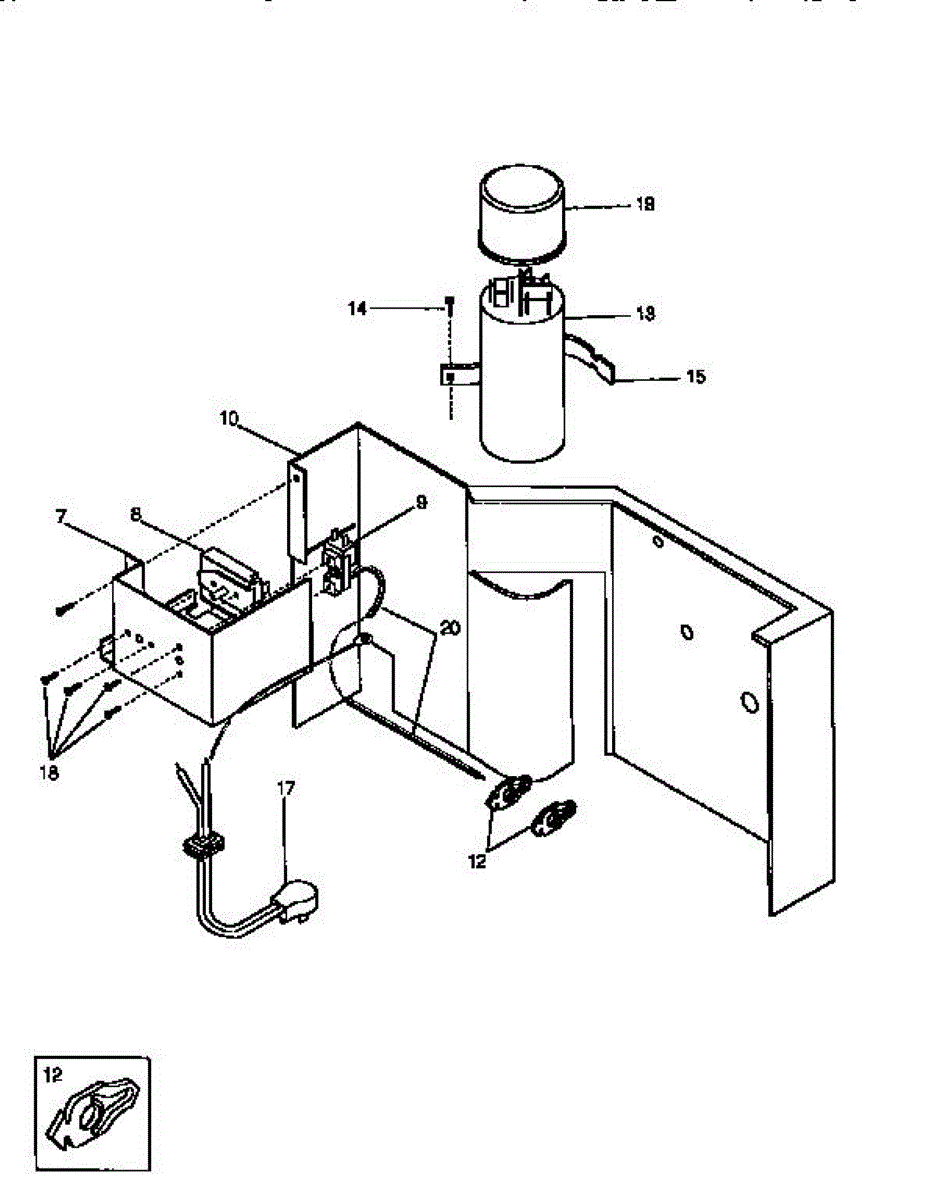

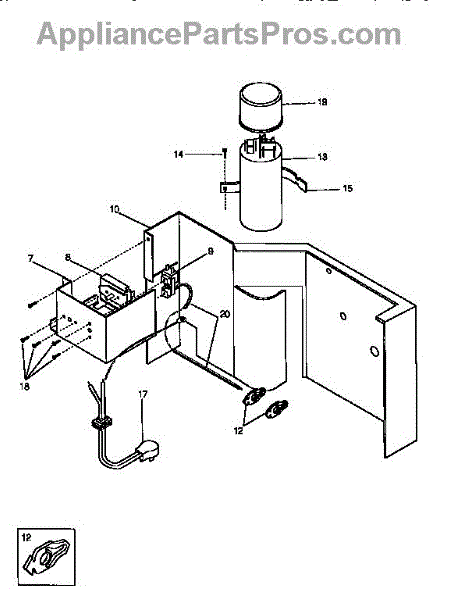

Parts for Kenmore 253.9770691 (2539770691, 253 9770691): Control Panel Parts

Fix an air conditioner that won't change modes or speeds with a new selector switch. This control switch replacement takes 30-45 minutes with basic tools.

If your air conditioner won't maintain the set temperature or cycles incorrectly, the temperature control may have failed. Simple replacement restores function.

Metal sheet-metal screw secures panels, brackets, and internal components. Replace when missing, stripped, or damaged to restore proper fit.

This parts list is the manufacturer's service diagram and parts reference that helps identify factory components for ordering and repair. It makes locating part names and item numbers easier when planning service. What it does:

• Shows exploded views and part callouts so you can identify which components match your appliance
• Helps descriptions and quantities before you order replacements
• Useful for diagnosing which part is associated with a specific symptom or failure
• Saves time by providing a single reference for parts breakdowns and assembly order

• This is a reference document; no tools or installation are required
• Keep the sheet with your appliance records or service paperwork for future use
• If a printed sheet is damaged or missing, request a replacement from the manufacturer or authorized parts distributor
