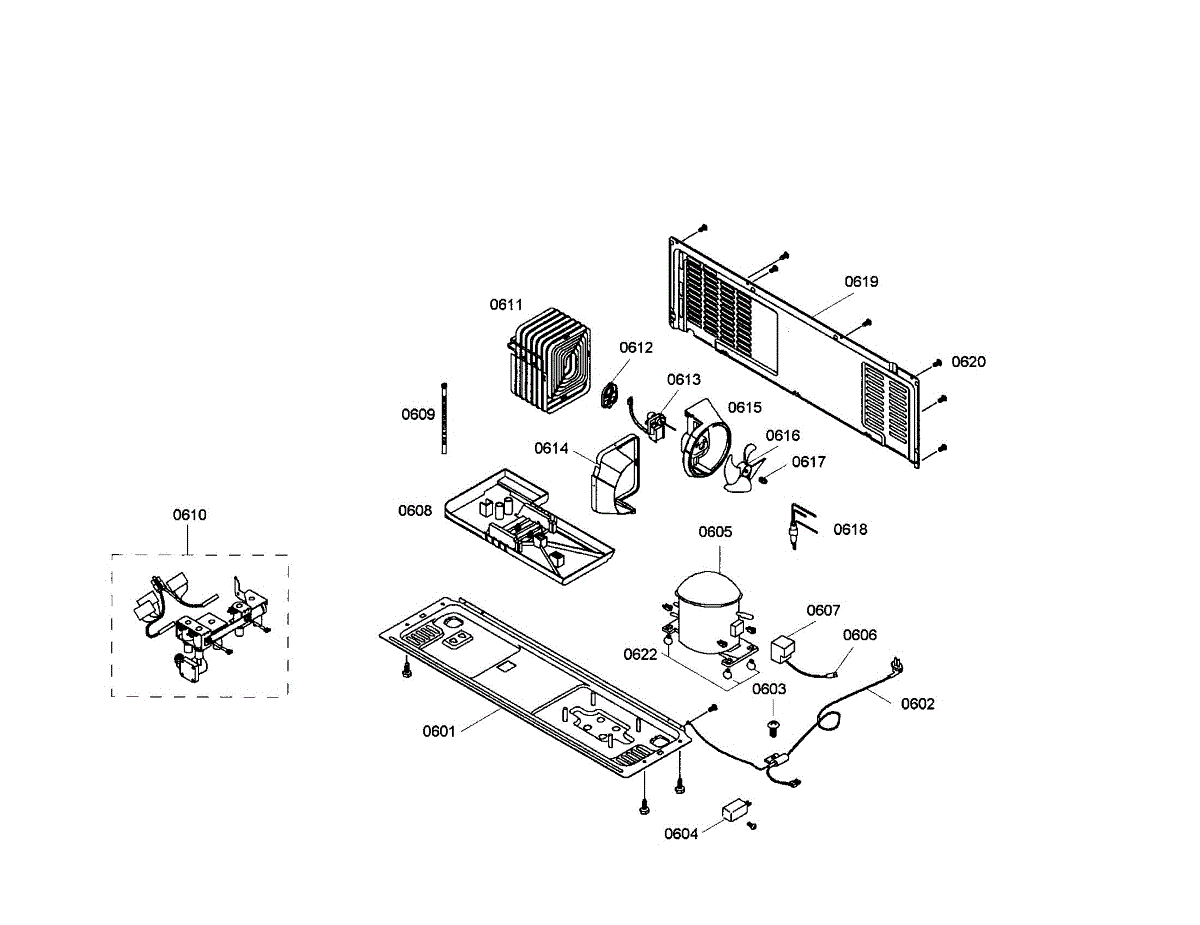

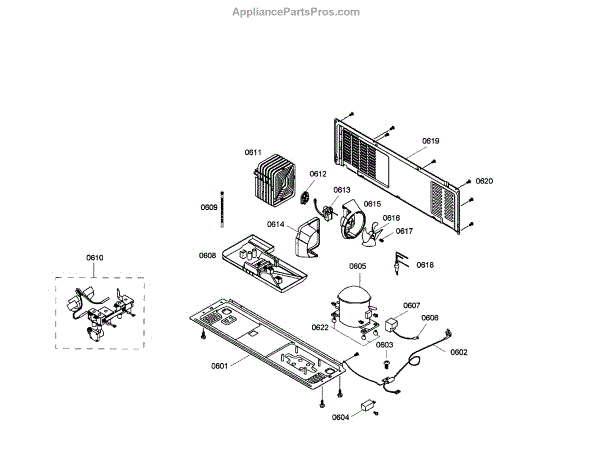

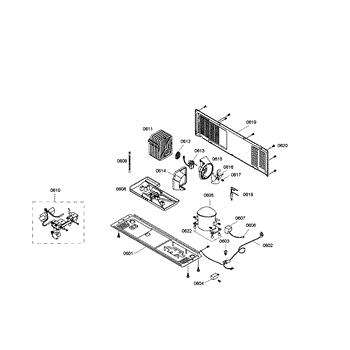

Parts for Bosch B20CS81SNB/01: Compressor / Condenser Parts

This Bosch filter has an activated carbon media that is designed to reduce chlorine taste and odor, sediment, lead, mercury, and other impurities from your drinking water. Used on many Bosch refrigerators including the Evolution 500 Series model B20CS50SN, Evolution 800 Series model B20CS80SN, and the EVOLFLTR10 filtration system. For best performance, filter should be changed every 6 months or 400 gallons. Pressure range: 25-125 psi. Temperature range: 33-100 F. Flow Rate: 0.5 gallons per minute.

This refrigerator compressor starting device engages the compressor's start winding to begin operation, then disengages for normal running. Replacing a weak or failed unit can restore reliable starts and help bring cooling performance back to normal.

• Provides the proper start circuit to the compressor motor at power-up
• Automatically disengages after start for normal operation
• Common symptoms of failure: clicking from the compressor area, compressor won't start or starts then stops, and warm temperatures
• Used when diagnosing no-cool or intermittent-cool conditions related to a failed start relay

• Disconnect power and pull the refrigerator forward for safe rear access
• Remove the rear access panel; note wire positions, then pull the old starting device straight off the compressor pins
• Transfer wires to the new device in the same locations and press it fully onto the compressor terminals
• Reinstall the access panel, restore power, and allow temperatures to stabilize

Replacement fan motor that powers the appliance's blower to circulate air for proper cooling and ventilation. Restores airflow and helps reduce noisy operation, overheating, or poor circulation caused by a failed motor. What it does:

• Drives the blower wheel to move air through the appliance, addressing weak or no airflow.
• Stops or reduces unusual grinding, rattling, or humming noises when the original motor fails.
• Restores proper ventilation to help prevent overheating and maintain consistent temperature.
• Used as the specified replacement when this part number is required.

• Disconnect power to the appliance before servicing; for gas models, shut off the gas supply as well.
• Handle wiring connectors carefully and match connector positions/colors during reassembly.
• Basic hand tools are typically required.

This is a replacement dryer complete assembly designed to restore drying function and structure for compatible Bosch laundry units. It provides the main cabinet and drum enclosure needed for normal tumbling and airflow. What it does

• Houses the drum and internal components so clothes can tumble during the drying cycle
• Provides the enclosure and mounting points for the blower, heating system, and controls
• Restores proper airflow pathways to help the dryer heat and vent as intended
• Helps eliminate issues caused by damaged or severely warped cabinet or drum housings

• One complete dryer assembly as shown

• Disconnect power before servicing
• Follow factory service manual for alignment, seal, and vent reconnection steps
• Inspect and replace any worn seals, ducts, or mounting hardware as needed during installation
